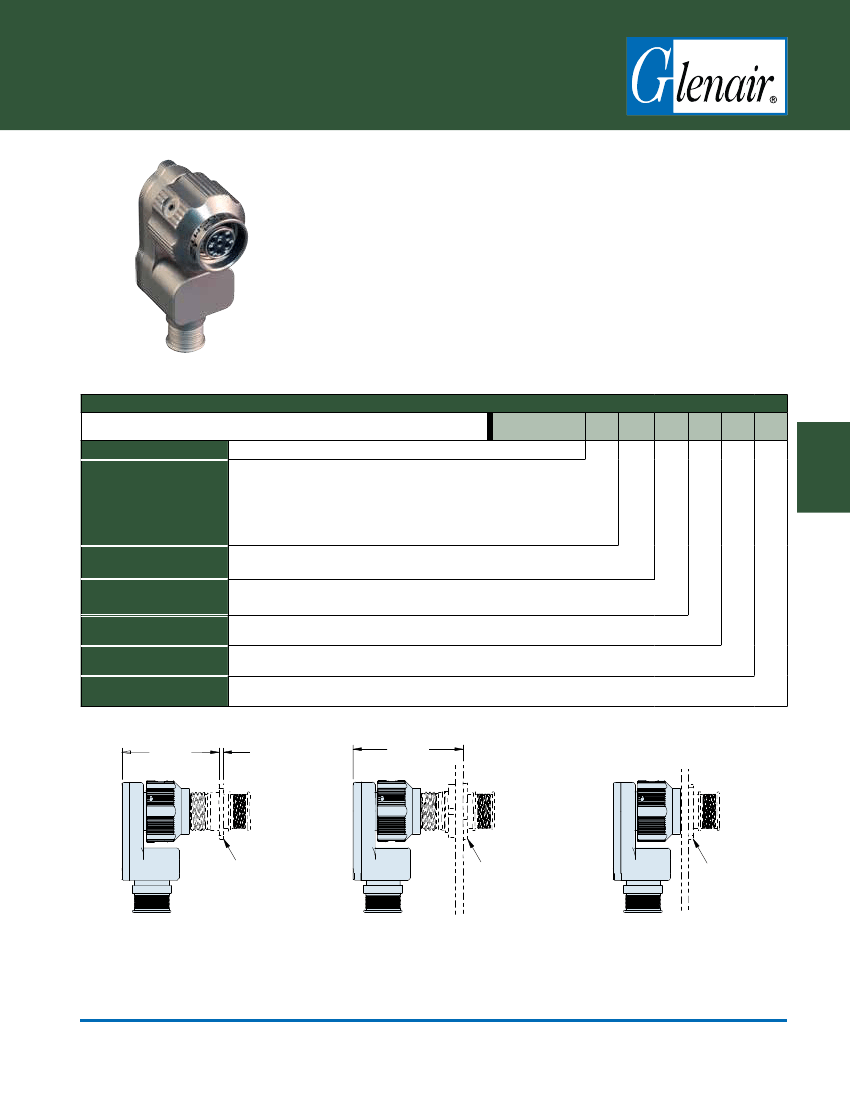

801-069 Ordering Information
Series 801 Mighty Mouse Cobra Connector
assemblies reduce clearance
requirements without compromising ruggedness or shielding performance.
Features a double-start self–locking plug with ratchet mechanism for improved
protection against cross-mating and thread damage. Each Cobra assembly is
equipped with a removable rear cover and gasket for easy crimp or solder contact
termination of the connector. Both pin and socket versions are available for both
crimp and solder terminated versions. Integrated low–profile backshell is equipped
with an EMI/RFI shield termination platform and a shrink boot lip. The ultra-
lightweight assembly may be clocked in eight different angle orientations for
additional flexibility in cable routing. Fourteen contact arrangements are available,
all with Size #23 contacts from shell size 5 to 21 with 3 to 130 contacts respectively.
Connector shells are aluminum alloy or stainless steel.
How To Order
Sample Part Number
Series
M
= Aluminum / Electroless Nickel RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
MT
= Aluminum / Nickel-PTFE RoHS Compliant
Z1
= Stainless Steel / Passivated RoHS Compliant
5-3, 6-4, 6-6, 6-7, 7-10, 8-13, 9-19, 10-25, 11-31, 13-37, 16-55, 17-85, 19-100, 21-130
(See Insert Arrangements page D-2)
P
= Pin, Crimp
S
= Socket, Crimp
A
= Normal
A
= Pin, Solder
B
= Socket, Solder
801-069-26
801-069 -26
= Double-Start Self-Locking Plug with Ratchet Mechanism
ZNU 8-13
P
A
1
05
Material and Finish
Shell Size - Insert
Arrangement
Contact Type
Shell Key Positions
(See Table II)
Cable Exit Direction Code
(See Table I)
Cable Entry Size
(See Table III)
B
= Pos. B
C
= Pos. C
D
= Pos. D
E
= Pos. F
F
= Pos. F
1, 2, 3, 4, 5, 6, 7, 8
02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17
H
Max
.060
[1.52]
G
Max
Shown Installed
Square Flange
Receptacle
Mating Space
Requirement
Jam Nut Receptacle
Mating Space
Requirement
Rear-mounted
Square Flange
Receptacle
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
D-13
E-Mail: sales@glenair.com
Series 801
Series 801 Mighty Mouse
Double-Start ACME Thread Cobra™ Plug
D
