W
Mighty Mouse
Fiber Optic
with #8 Contacts
Mighty Mouse
Sample Part Number
Series (See Table I)
Shell Style
Shell Material and Finish
Shell Size - Insert
Arrangement
Contact Type
Shell Key Positions
(See Table II)
802-008
Hex Plug with Banding/Molding
Platform
© 2014 Glenair, Inc.

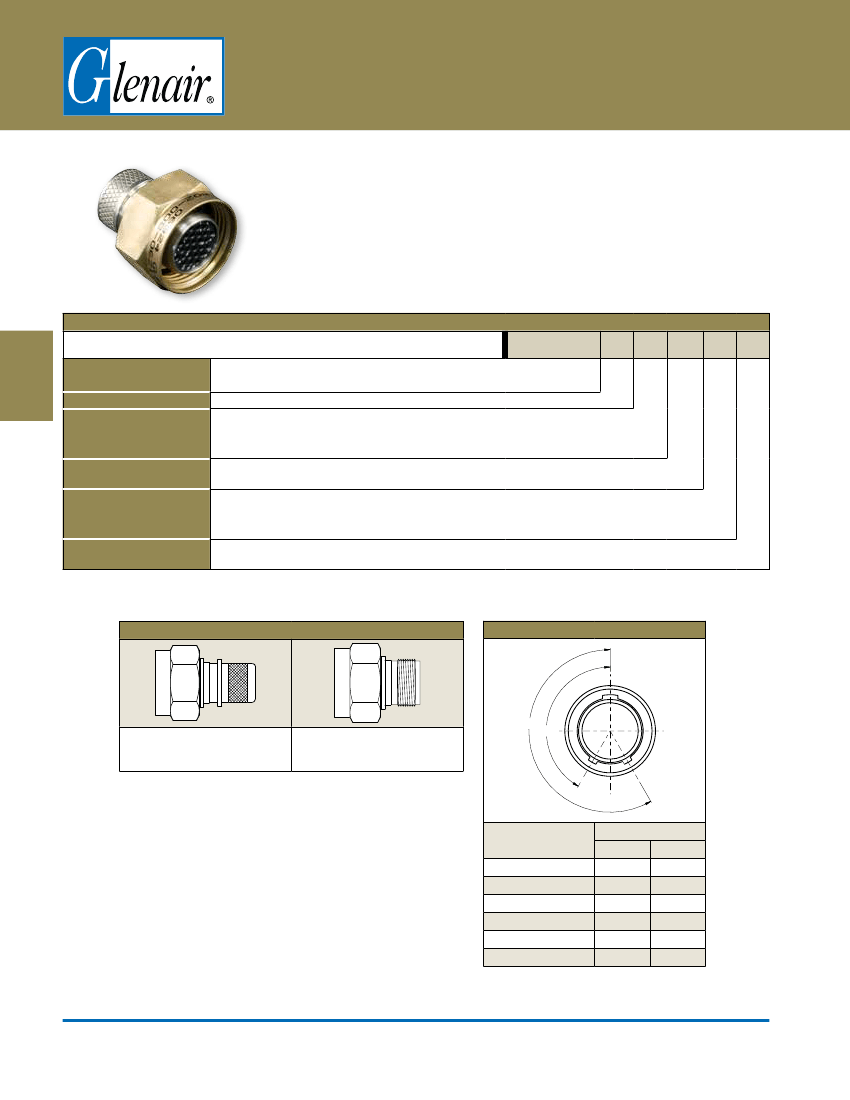

Series 802 “Aqua Mouse” Submersible Plug
802-008 and 802-009 - Ordering Information
Glenair’s Series 802 Mighty Mouse connectors feature stainless steel or marine bronze
shells with marine bronze coupling nuts to withstand corrosion in the most hostile
environments, and are designed to accommodate (depending on insert arrangement)
Glenair size 16, 20HD, or 23 fiber optic termini (termini sold separately.) Metal clips inside
the connector body lock the termini into place. Termini are removable. Rated for 3500
PSI when mated, these connectors are suitable for the most demanding geophysical and
underwater applications. Terminate cable shield directly to integral shield attachment
platform with Band-Master™ strap, or choose rear accessory thread to attach optional
backshell. Available in shell sizes 1 through 21 in 30 insert arrangements.
How To Order
802-009
802-008
= Plug with Banding/ Molding Platform
802-009
= Plug with Accessory Thread
-06
= Plug
Z1
= Stainless Steel/Passivated RoHS Compliant
ZM
= Stainless Steel/ Electroless Nickel Plated
AB
= Marine Bronze
See Contact Arrangements page W-3, W-6, W-8
Connector Supplied without Termini.
A
= Pin Connector, Less Termini
B
= Socket Connector, Less Termini
A
= Normal
B
= Pos. B
C
= Pos. C
D
= Pos. D
E
= Pos. E
F
= Pos. F
-06
Z1
9-19
A
A
Table I: Series
Table II: Key Positions
B°
802-009
Hex Plug with Accessory Thread
A°
Key Position
Normal (A)
B
C
D
E
F
Dimensions in Inches (millimeters) are subject to change without notice.
Key Rotation
A°
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
W-18
