W
Mighty Mouse
Fiber Optic
with #8 Contacts
Mighty Mouse

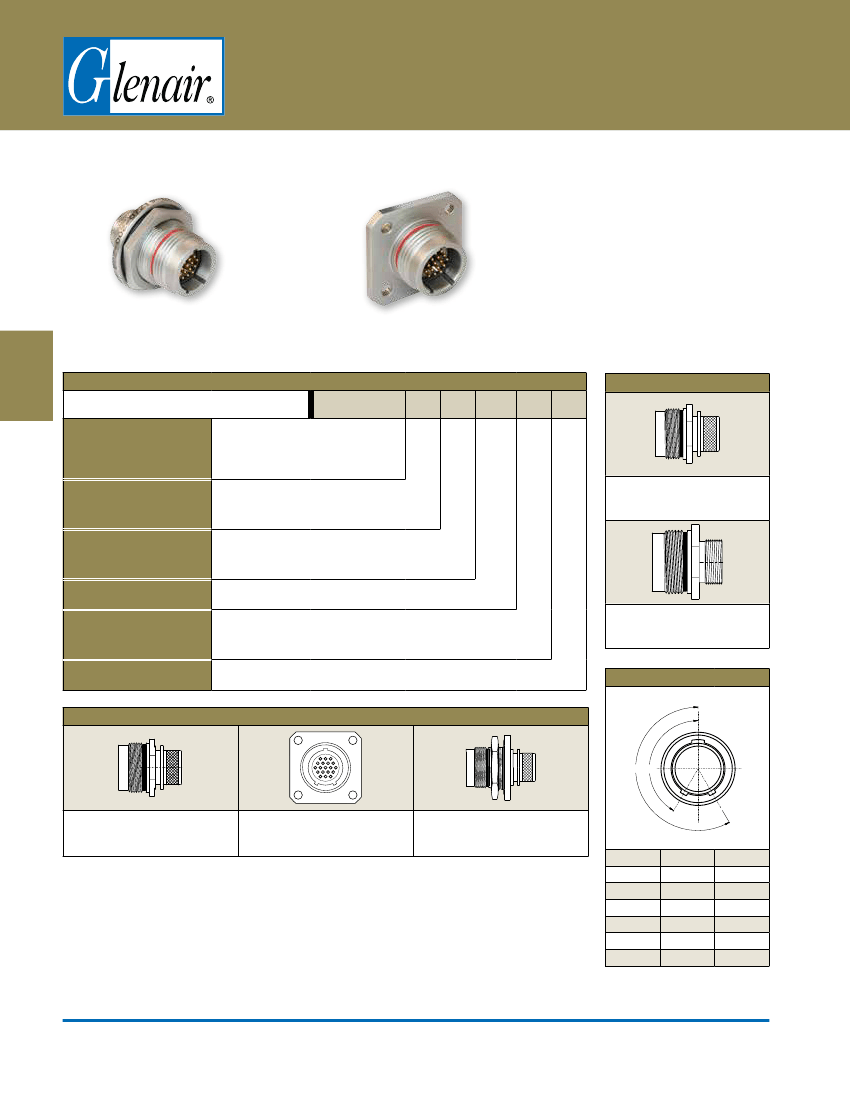

Series 802 “Aqua Mouse” Submersible Receptacle
802-010 and 802-011 Ordering Information
Three Shell Mounting Options:
Jam
nut with o-ring for rear panel mounting,
square flange for front panel mounting,
or in-line receptacles for free-hanging
cables.
Two Shell Styles:
Choose the integral
band platform for direct attachment of a
cable shield. Install a boot, or overmold a
boot over the band platform. An accessory
thread is available for attaching strain
reliefs and backshells.
Table I: Series
-02
Z1
10-26
P
B
Jam Nut, Rear Mount
How To Order
Sample Part Number
Series (See Table I)
Square Flange
802-011
Shell Style (See Table II)
Shell Material and Finish
Shell Size - Insert
Arrangement
Contact Type
Shell Key Positions
(See Table III)
802-010
Receptacle with Banding Platform
802-011
Receptacle with Accessory Thread
-01
= In-Line
-02
= Square Flange for Front Panel Mounting
-07
= Jam Nut for Rear Panel Mounting
Z1
= Stainless Steel/Passivated RoHS Compliant
ZM
= Stainless Steel/Electroless Nickel Plated
AB
= Marine Bronze/Unplated
See Contact Arrangements Page W-3, W-6, W-8
Connector supplied without termini. Please indicate pin or socket.
A
= Pin Connector, less termini
B
= Socket Connector, less termini
A
= Normal
B
= Pos. B
C
= Pos. C
D
= Pos. D
E
= Pos. E
F
= Pos. F
802-010
Receptacle with Banding
Platform
802-011
Receptacle with Accessory
Thread
Table II: Key Positions
Table II: Shell Style
B° A°
-01
In-Line
-02
Square Flange
-07
Jam Nut for Rear Panel Mounting
A
B
C
D
E
F
A°
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
W-20
