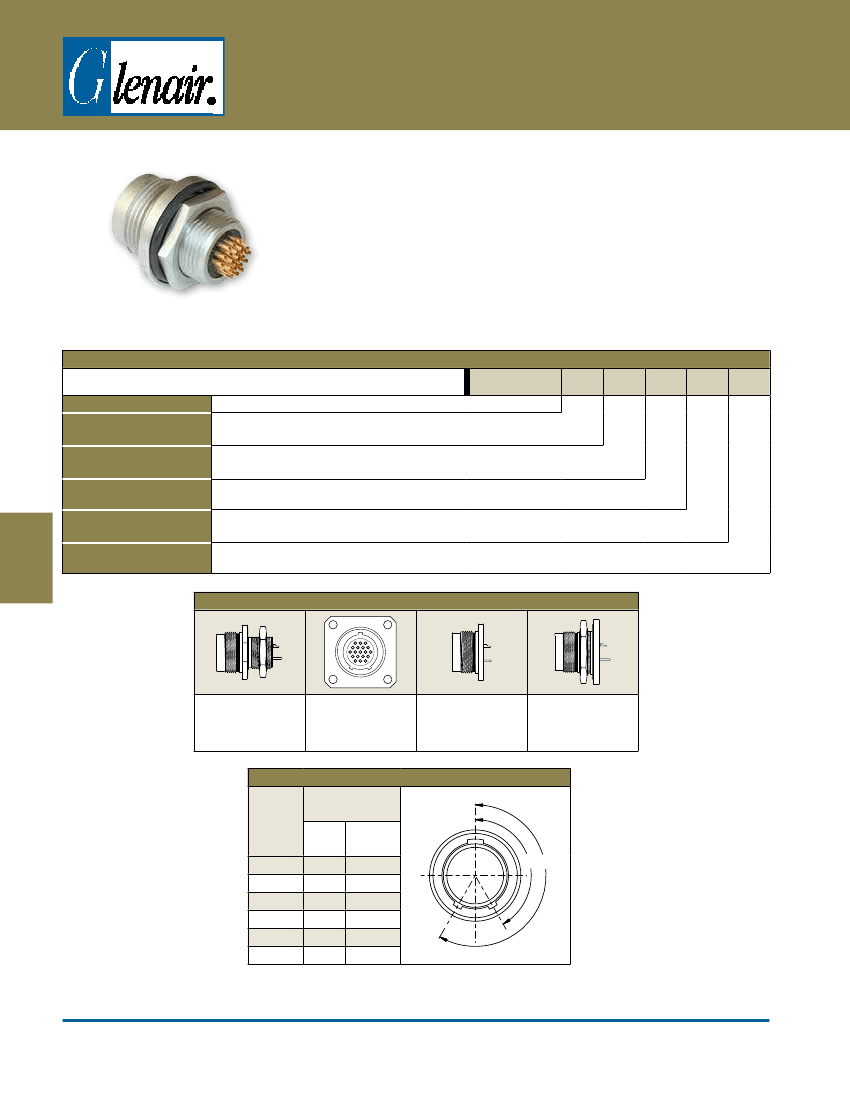

Series 802 AquaMouse™ Submersible
Hermetic Receptacle
802-013 Ordering Information
Series 802 Hermetic Receptacles
feature gold plated iron alloy contacts
and compression glass dielectric
material. The 316 series stainless steel
connector shell provides excellent
corrosion protection and is suitable
for e-beam welding. Viton
®
o-rings
offer improved resistance to high
temperature and harsh chemicals.
1 x 10
-7
cc/Second Maximum Helium
Leak Rate.
Open face (unmated)
pressure rating is 1000 PSI. When
mated, Series 802 connectors withstand
3500 PSI hydrostatic pressure.
E
Series 802
Sample Part Number
Series
Shell Style
(See Table I)
Shell Material and Finish
Shell Size - Insert
Arrangement
Contact Type
Shell Key Position
(See Table II)
P
= Pin, PC Tail
E
= Pin, Solder Cup
A
= Normal
B
= Pos. B
-00
Jam Nut for Front
Panel Mounting
Key
Position
A Normal
B
C
D
E
F
A°
9°
© 2014 Glenair, Inc.
How To Order
802-013
802-013
= Hermetic Receptacle
-00
= Jam Nut for Front Panel Mounting
-03
= Weld Mount
-07
= Jam Nut Rear Panel Mount
-02
= Square Flange Front Panel Mount
Z1
= Stainless Steel / Passivated RoHS Compliant
ZL
= Stainless Steel / Nickel Plated
See Contact Arrangements page E-2
D
= Socket, PC Tail
S
= Socket, Solder Cup
C
= Pos. C
D
= Pos. D
E
= Pos. E
F
= Pos. F
-00
Z1
9-200
P
A
Table I: Shell Style
-02
Square Flange
-03
Weld Mount
-07
Jam Nut for Rear
Panel Mounting
Table II: Key Positions
Key Rotation
B°
210°
210°
230°
275°
275°
210°
A° B°
150°
75°
95°
140°
75°
Dimensions in Inches (millimeters) are subject to change without notice.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-16
E-Mail: sales@glenair.com
