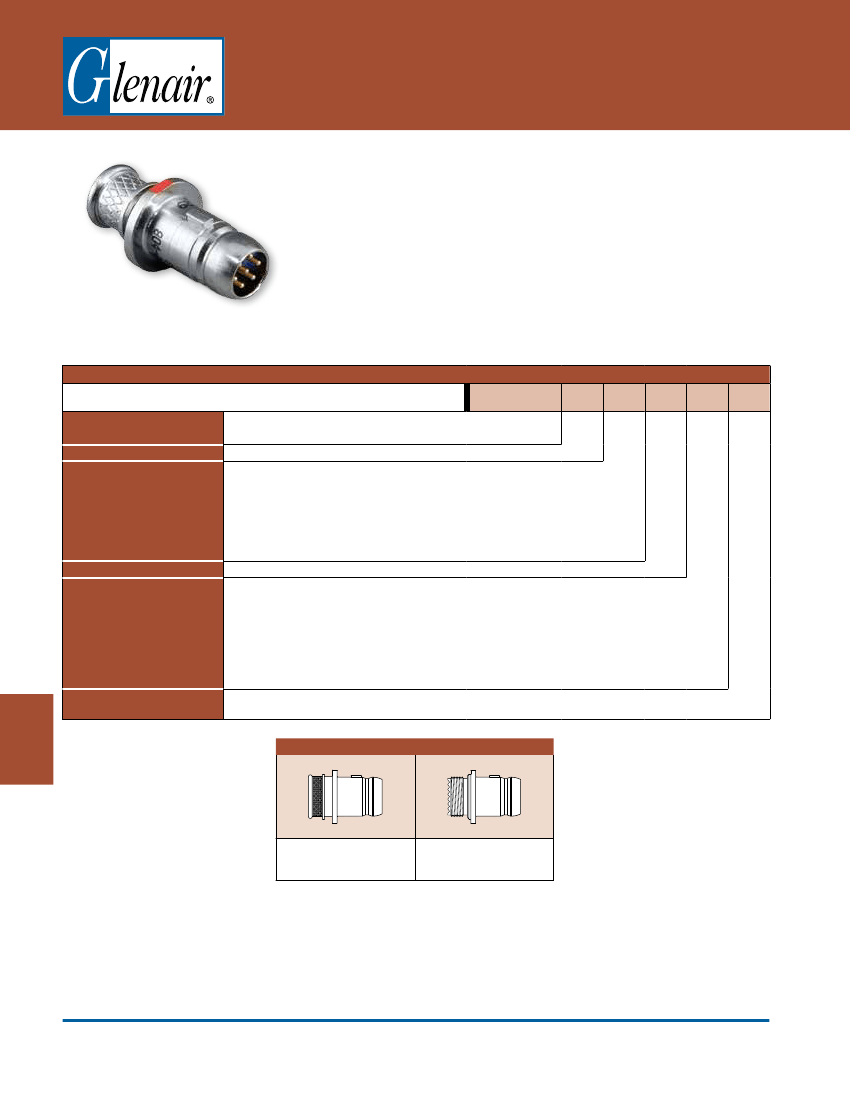

Series 804 Push-Pull Mighty Mouse
Plug Connector
804-001 & 804-002 Ordering Information
Quick Disconnect
These plugs snap securely into
receptacle housings and release with a
simple pull.
Two Keying Styles
A single master key provides fast
mating in low-light situations, or specify
three keys for more polarizing options.
Two Shell Styles
Integral platform for shield attachment
using the Band–Master
™
ATS
termination system, or an accessory
thread for attaching a strain relief.
G
Series 804
Sample Part Number
Series (See Table I)
Shell Style
Shell Material and Finish
Contact Type
Shell Key Positions
(See Table II)
© 2014 Glenair, Inc.
How To Order
804-001
804-001
= Plug with Banding Platform
804-002
= Plug with Accessory Thread
-06
= Plug
C
= Aluminum / Black Anodize (Non-Conductive); RoHS Compliant
M
= Aluminum / Electroless Nickel; RoHS Compliant
MT
= Aluminum / Nickel-PTFE RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
-06
NF
9-19
S
A
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
Z1
= Stainless Steel / Passivated; RoHS Compliant
Shell Size - Insert Arrangement
See Contact Arrangements Page G-2
Connector supplied
Connector supplied
without Crimp contacts
with contacts
Connector Supplied
with 30 AWG Crimp Barrel
A
= Pin, less contacts
P
= Pin Connector
G
= Pin, Crimp
B
= Socket , less contacts
S
= Socket Connector
H
= Socket, Crimp
Connectors with contacts are supplied with signal and/or power crimp contacts.
These contacts are not installed.
Coaxial contacts and non-standard signal contacts are ordered separately.
Omit
= Single Master Key
A
= Normal
B
= Pos. B
C
= Pos. C
D
= Pos. D
E
= Pos. E
F
= Pos. F
Table I: Series
804-001
Plug with Banding Platform
804-002
Plug with Accessory Thread
Dimensions in Inches (millimeters) are subject to change without notice.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-6
E-Mail: sales@glenair.com
