804-004-00

Description
ALUMINUM ALLOY; STAINLESS STEEL, FEMALE; MALE, CIRCULAR CONNECTOR, CRIMP, RECEPTACLE
CategoryThe connector    The connector
File Size234KB,1 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

804-004-00 Overview

ALUMINUM ALLOY; STAINLESS STEEL, FEMALE; MALE, CIRCULAR CONNECTOR, CRIMP, RECEPTACLE

804-004-00 Parametric

Parameter NameAttribute value
MakerGlenair
Reach Compliance Codecompli
Other featuresPOLARIZED, MAX CONTACT (SERIES)=85
Back shell typeSOLID
Body/casing typeRECEPTACLE
Connector typeCIRCULAR CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE; MALE
Coupling typeTHREADED
DIN complianceNO
empty shellNO
Environmental characteristicsCORROSION RESISTANT; ENVIRONMENT RESISTANT
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number804-004
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE; PANEL
OptionsGENERAL PURPOSE
Shell surfaceANODIZED BLACK; NICKEL PLATED; CADMINUM/ZINC NICKEL WITH CHROMATE PLATED
Shell materialALUMINUM ALLOY; STAINLESS STEEL
Housing size5; 6; 7; 8; 9; 10; 12; 14; 15
Termination typeCRIMP
Base Number Matches1

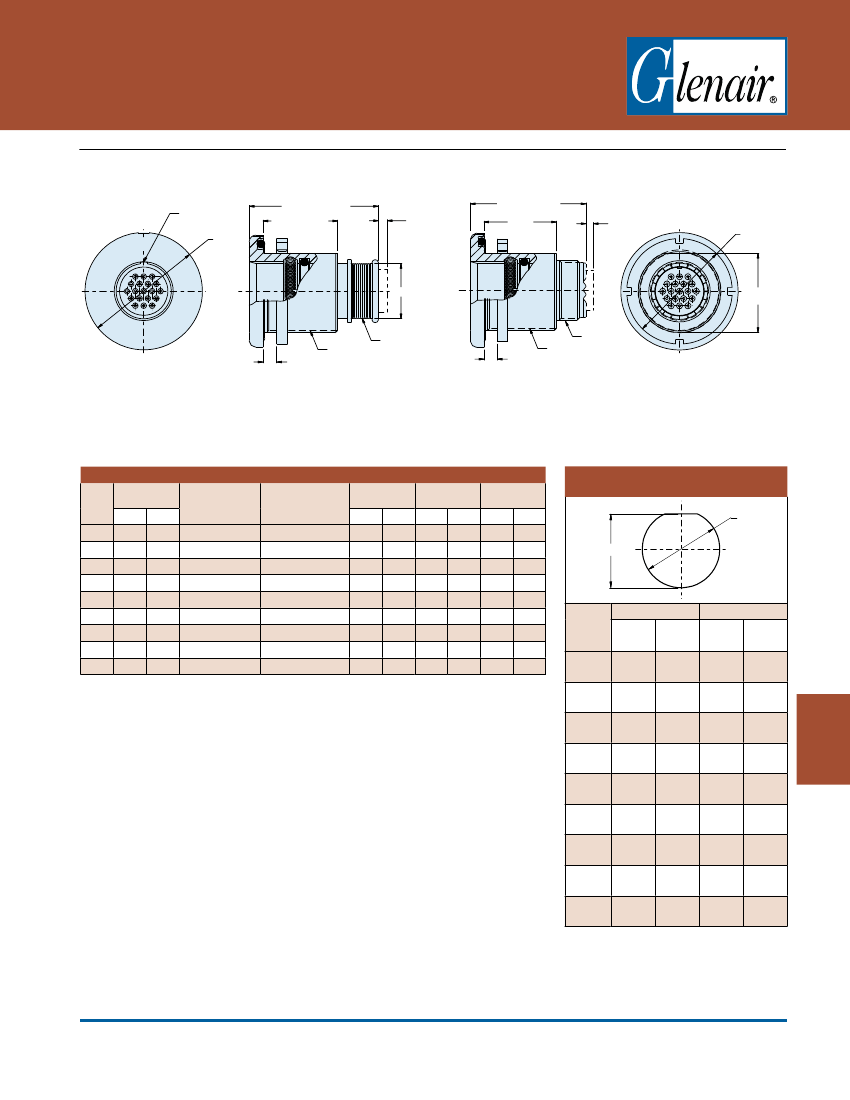

804-004-00 and 804-003-00 Dimensions
Jam nut, front panel mount receptacle - shell style 00
KEYWAY
øA
1.170 (29.72)
.675 (17.15)
.000 (.000)
1
.120 (3.05)
1.150 (29.21)
.675
(17.15)
.000 (.000)
1
.120 (3.05)
øE
øD
F FLAT
STRAIGHT
B THREAD RIDGES
.500 MAX
PANEL THICKNESS
C THREAD
B THREAD
.500 MAX
PANEL THICKNESS
1. Grommet protrudes
for power/combo
arrangements
Integral Band Platform
804-003-00
Accessory Thread
804-004-00
Dimensions
Shell
Size
5
6
7
8
9
10
11
12
14
ØA
In.
.830
.885
.995
.995
mm.
21.08
B Threads
C Threads
ØD
In.
.246
mm.
6.25
7.26
9.91
11.23
ØE
In.
.625
.688
.812
.812
mm.
15.87
17.47
20.62
20.62
F Flat
In.
.470
.530
.663
.663
.720
.788
.843
mm.
11.94
13.46
16.84
16.84
18.29
20.02
21.41
Front Mount
Jam Nut Panel Cutout
øB
A FLAT
.5000-32 UN-2A .2500-32 UNEF-2A
22.48 .5625-32 UN-2A .3125-32 UNEF-2A .286
25.27 .6875-28 UN-2A .4375-28 UNEF-2A .390
25.27 .6875-28 UN-2A .5000-28 UNEF-2A .442
1.075 27.31 .7500-28 UN-2A .5625-24 UNEF-2A .500
1.140 28.95 .8125-28 UN-2A .6250-24 UNEF-2A .564
1.190 30.23 .8750-28 UN-2A .6875-24 UNEF-2A .608
1.340 34.04 1.0000-28 UN-2A .6875-24 UNEF-2A
1.390 35.31 1.0620-20 UN-2A .9375-20 UNEF-2A
.650
.805
12.70 .875 22.22
14.33 .938 23.82
15.44 1.000 25.4
16.51 1.125
20.45 1.162
Shell
Size
5
6
7
8
9
10
11
12
14
A Flat
ØB
In.
±
.002
.482
.478
.542
.538
.676
.671
.676
.671
.732
.728
.801
.796
.855
.851
.982
.978
1.032
1.028
mm.
±
0.05
12.24
12.14
13.77
13.67
17.17
17.04
17.17
17.04
18.59
18.49
20.35
20.22
21.72
21.62
24.94
14.84
26.21
26.11
In.
±
.005
.510
.575
.698
.698
.760
.822
.885
1.010
1.075
mm.
±
0.13
12.95
14.61
17.73
17.73
19.30
20.88
22.48
25.65
27.31
28.57 .970 24.64
29.51 1.020 25.91
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
G-17
E-Mail: sales@glenair.com
Series 804
Series 804 Push-Pull Mighty Mouse
