804-004-01 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 804-004-01

Preview

804-004-01: DescriptionALUMINUM ALLOY; STAINLESS STEEL, FEMALE; MALE, CIRCULAR CONNECTOR, CRIMP, RECEPTACLE; CategoryThe connector The connector; File Size223KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

804-004-01 Overview

ALUMINUM ALLOY; STAINLESS STEEL, FEMALE; MALE, CIRCULAR CONNECTOR, CRIMP, RECEPTACLE

804-004-01 Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compli
Other features	POLARIZED, MAX CONTACT (SERIES)=85
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE; MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT; ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	804-004
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE; PANEL
Options	GENERAL PURPOSE
Shell surface	ANODIZED BLACK; NICKEL PLATED; CADMINUM/ZINC NICKEL WITH CHROMATE PLATED
Shell material	ALUMINUM ALLOY; STAINLESS STEEL
Housing size	5; 6; 7; 8; 9; 10; 12; 14; 15
Termination type	CRIMP
Base Number Matches	1

Preview

Download Datasheet

View All

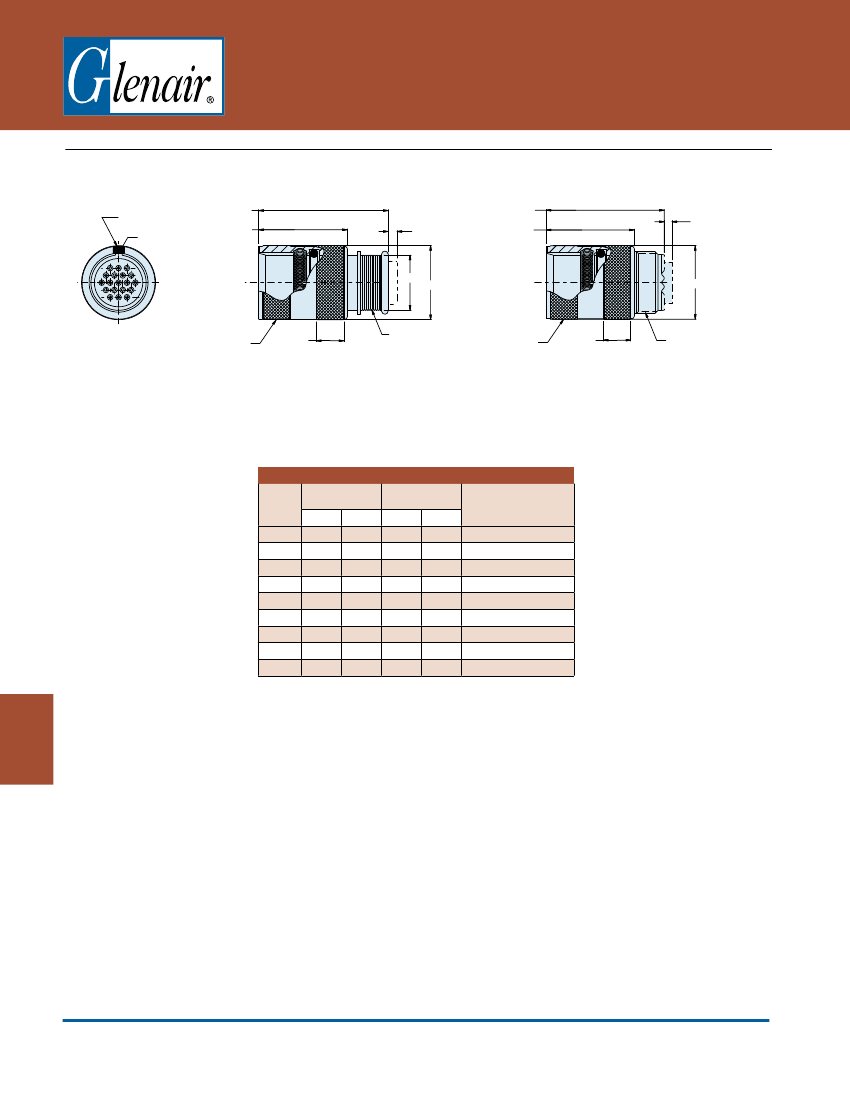

Series 804 Push-Pull Mighty Mouse

Receptacle Connector

804-004-01 and 804-003-01 Dimensions

G

Series 804

Cable receptacle - shell style 01

ALIGNMENT

STRIPE RED

KEYWAY

1.160 (29.46)

.790 (20.07)

.000 (.000)

.120 (3.05)

1

1.160 (29.46)

.790 (20.07)

.000 (.000)

1

.120 (3.05)

øA

øB

MEDIUM RAISED

DIAMOND KNURL

2X .25

STRAIGHT

RIDGES

MEDIUM RAISED

DIAMOND KNURL

2X .25

C THREAD

1. Grommet protrudes

for power/combo

arrangements

Integral Band Platform

804-003-01

Accessory Thread

804-004-01

Dimensions

Shell

Size

5

6

7

8

9

10

11

12

14

ØA

In.

.246

.286

.390

.442

.500

.564

.608

.650

.805

mm.

6.25

7.26

9.91

11.23

12.70

14.33

15.44

16.51

20.45

In.

.450

.480

.580

.603

.695

.735

.810

.880

1.010

ØB

mm.

11.43

12.19

14.73

15.32

17.65

18.67

20.57

22.35

25.65

C Threads

.2500-32 UNEF-2A

.3125-32 UNEF-2A

.4375-28 UNEF-2A

.5000-28 UNEF-2A

.5625-24 UNEF-2A

.6250-24 UNEF-2A

.6875-24 UNEF-2A

.9375-20 UNEF-2A

Dimensions in Inches (millimeters) are subject to change without notice.

Series 80 Mighty Mouse

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

G-18

E-Mail: sales@glenair.com
