804-006-07

Description
STAINLESS STEEL, MALE, CIRCULAR CONNECTOR, SOLDER, RECEPTACLE
CategoryThe connector    The connector
File Size193KB,1 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

804-006-07 Overview

STAINLESS STEEL, MALE, CIRCULAR CONNECTOR, SOLDER, RECEPTACLE

804-006-07 Parametric

Parameter NameAttribute value
MakerGlenair
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresPOLARIZED, MAX CONTACTS(SERIES)=85
Back shell typeSOLID
Body/casing typeRECEPTACLE
Connector typeCIRCULAR CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Coupling typeTHREADED
DIN complianceNO
empty shellNO
Environmental characteristicsCORROSION RESISTANT; ENVIRONMENT RESISTANT
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number804-006
Mixed contactsNO
Installation typeBOARD; CABLE; PANEL
OptionsHERMETIC
Shell surfaceNICKEL PLATED
Shell materialSTAINLESS STEEL
Housing size5; 6; 7; 8; 9; 10; 12; 14; 15
Termination typeSOLDER
804-006-07 Dimensions

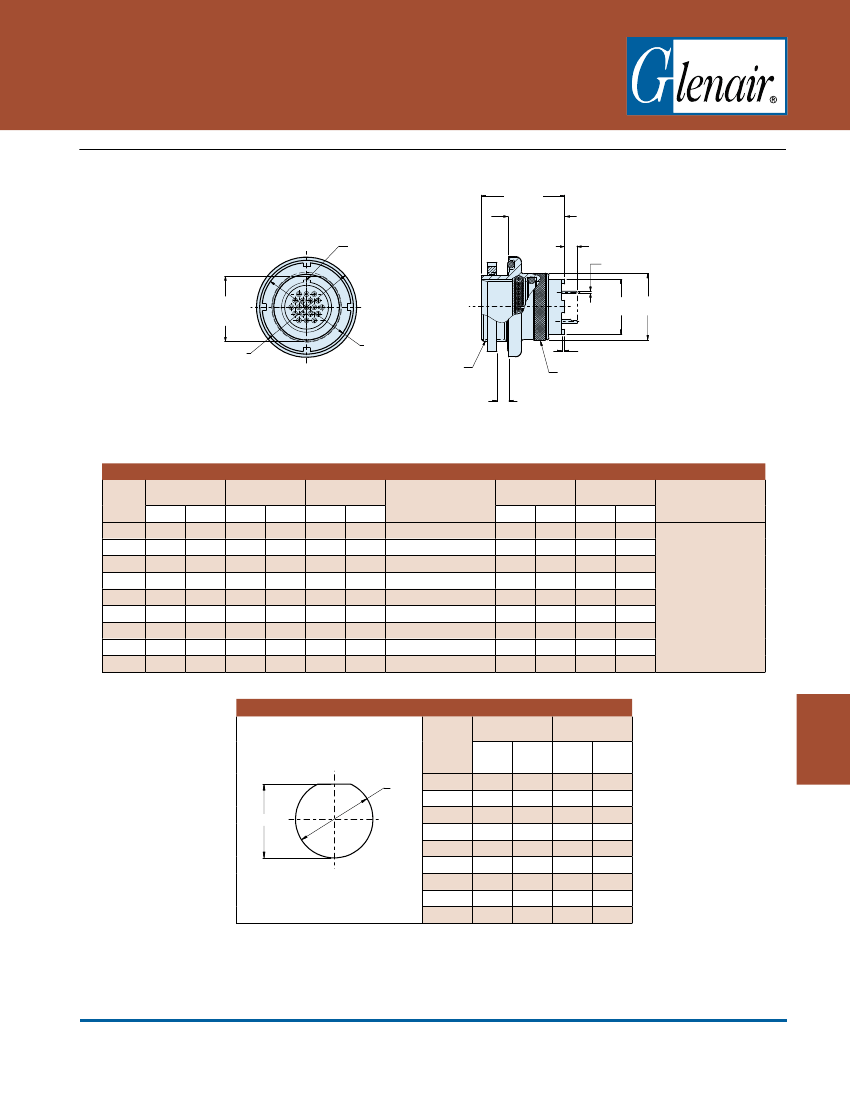

Jam nut, rear panel mount receptacle - shell style 07
.940
(23.88)
KEYWAY
.667/.657
(16.94/16.69)
.125 (3.18) MIN
øG
C
FLAT
øA
øB
D THREAD
øE øF
.025 (0.64)
MEDIUM RAISED
DIAMOND KNURL
.125 (3.18) MAX
PANEL THICKNESS
Rear Panel Jam Nut
804-006-07
Dimensions
Shell
Size
5
6
7
8
9
10
11
12
14
ØA
In.
.790
.830
.910
.955
1.000
1.085
1.135
1.180
1.325
mm.
20.07
21.08
23.11
24.26
25.40
27.48
28.83
29.97
33.66
In.
.562
.625
.750
.750
.812
.875
.938
1.000
1.125
ØB
mm.
14.27
15.87
19.05
19.05
20.62
22.22
23.83
25.40
28.57
In.
.415
.467
.594
.594
.655
.721
.788
.843
.968
C Flat
mm.
10.54
14.40
15.09
15.09
16.64
18.31
20.02
21.41
24.59
D Threads
.4375-32 UN-2A
.5000-32 UN-2A
.6250-28 UN-2A
.6250-28 UN-2A
.6875-28 UN-2A
.7500-28 UN-2A
.8125-28 UN-2A
.8750-28 UN-2A
1.0000-28 UN-2A
ØE
In.
.244
.336
.432
.493
.551
.620
.662
.703
.863
mm.
6.20
8.53
10.97
12.52
14.00
15.75
16.81
17.86
21.92
In.
.450
.520
.580
.603
.695
.735
.810
.880
1.010
ØF
mm.
11.43
13.21
14.73
15.32
17.65
18.67
20.57
22.35
25.65
ØG
Tail Dia.
#23
.018/.022 (0.46/0.56)
#20
.024/.028 (0.61/0.71)
#16
.060/.064 (1.52/1.63)
#12
.092/.096 (2.34/2.44)
Rear Mount Jam Nut Panel Cutout
Shell
Size
øB
A FLAT
5
6
7
8
9
10
11
12
14
A Flat
ØB
In.
± .002
.425
.477
.604
.604
.665
.731
.798
.853
.978
mm.
± 0.05
10.8
12.12
15.34
15.34
16.89
18.57
20.26
21.67
28.84
In.
± .005
.448
.510
.635
.635
.695
.760
.822
.885
1.010
mm.
± 0.13
11.38
12.95
16.13
16.13
17.65
19.30
20.88
22.48
25.65
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
G-23
E-Mail: sales@glenair.com
Series 804
Series 804 Push-Pull Mighty Mouse
Hermetic Receptacle
G
