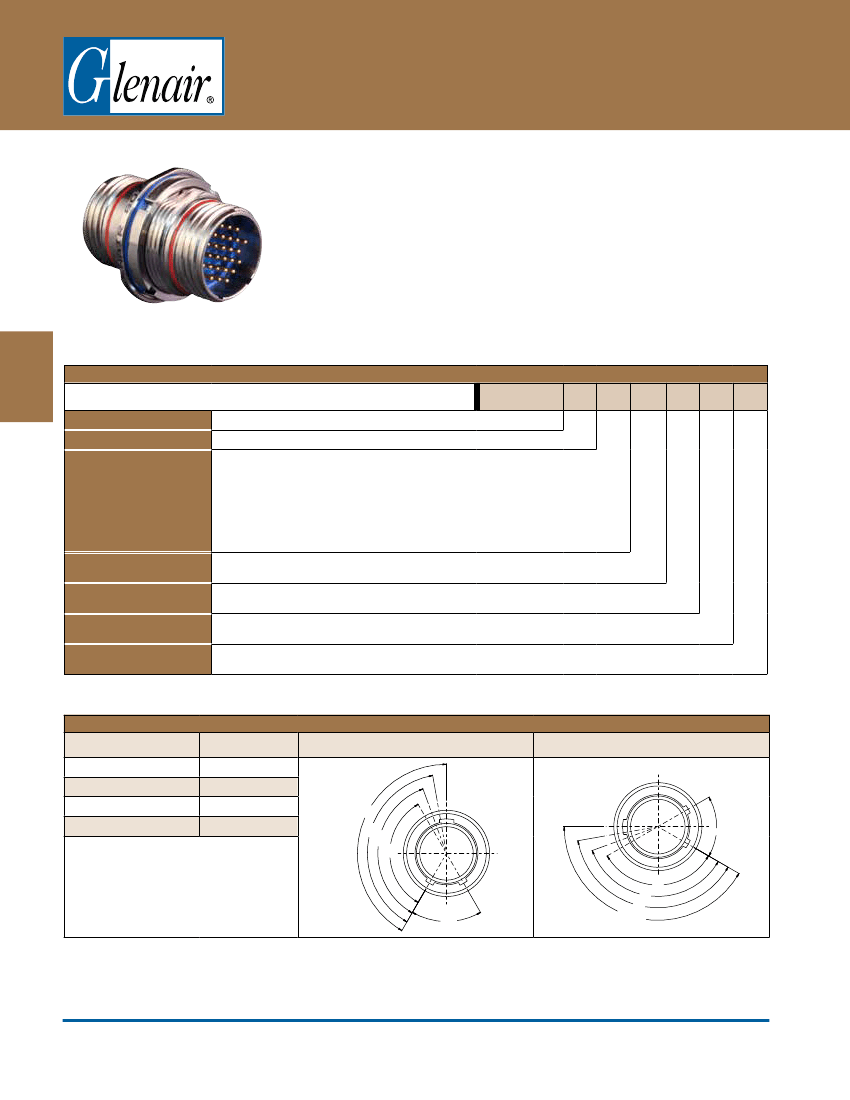

Series 800 Mighty Mouse Bulkhead Feed–Thru
UN Mating Thread Receptacle
800-060 Ordering Information
Series 800 Bulkhead Feed–Through
these connectors are double ended
receptacle with feed-through pin-pin, socket-socket, or pin-socket contacts
and available in shell sizes 5 to 12 with copper alloy gold-plated contacts. Your
choice of standard aluminum alloy or stainless steel and seven standard finishes
(see below). Contacts are factory–installed, and are non removable
C
Series 800
Sample Part Number
Series
Shell Style
07
= Jam Nut
Shell Material and Finish
Shell Size - Insert
Arrangement
Contact Type*
Jam Nut Side
Contact Type*
Other Side
Shell Key Position
(See Table I)
P
= Pin
N
= Normal
Key Position
N
Normal
X
Y
Z
Key Rotation
150°
140°
130°
120°
Shell size 5 and 6: master key is located at top
dead center for normal (N) position.
© 2014 Glenair, Inc.
How To Order
800-060
800-060
= Feed–Through Jam Nut Mount Receptacle
C
= Aluminum / Black Anodize (Non-Conductive) RoHS Compliant
M
= Aluminum / Electroless Nickel RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
MT
= Aluminum / Nickel-PTFE RoHS Compliant
Z1
= Stainless Steel / Passivated RoHS Compliant
See Page C-2 for Contact Arrangements
S
= Socket
-07
M
6-7
P
S
N
P
= Pin
S
= Socket
X
= Pos. X
Y
= Pos. Y
Z
= Pos. Z
* Connectors with PP and SS contact styles will cause the arrangement pattern to be mirrored about the vertical centerline.
Shell Key Positions
Shell Size 5 and 6 Key Positions
Shell Size 7 thru 12 Key Positions
NORMAL
X°
Y°
Z°
60°
Shell size 7 thru 12: master key is rotated 90° from
TDC for normal position.
60°
Y°
X°
NORMAL
Z°
Dimensions in Inches (millimeters) are subject to change without notice.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-24
E-Mail: sales@glenair.com
