FAKRA Plug Right Angle Connector Solder
Attachment Thru Hole PCB, Beige Color
TECHNICAL DATA SHEET
FAKRA Plug Right Angle Connector Solder Attachment Thru Hole PCB, Beige Color
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
FAKRA Plug
Thru Hole
Solder
Right Angle
PE44651I
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Dielectric Withstanding Voltage, Vrms
DC to 3
50
1.35:1
800
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-40 to +85
0.787 [19.99]
0.37 [9.40]
0.58 [14.73]
0.008 [3.63]
Beige
Weight, lbs [g]
Color
Connector
Type
Contact Material and Plating
Outer Conductor Material and Plating
Body Material and Plating
Dielectric Type
FAKRA Plug
Brass, Gold
Brass, Nickel
Plastic
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
FAKRA Plug Right Angle Connector Solder Attachment Thru Hole PCB, Beige Color PE44651I
PE44651I REV 01
1
FAKRA Plug Right Angle Connector Solder
Attachment Thru Hole PCB, Beige Color
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE44651I
FAKRA Plug Right Angle Connector Solder Attachment Thru Hole PCB, Beige Color from Pasternack Enterprises has same
day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability
and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
FAKRA Plug Right Angle Connector Solder Attachment Thru Hole PCB, Beige Color PE44651I
URL:
http://www.pasternack.com/fakra-plug-standard-thru-hole-pcb-connector-pe44651i-p.aspx
PE44651I REV 01
2
PE44651I

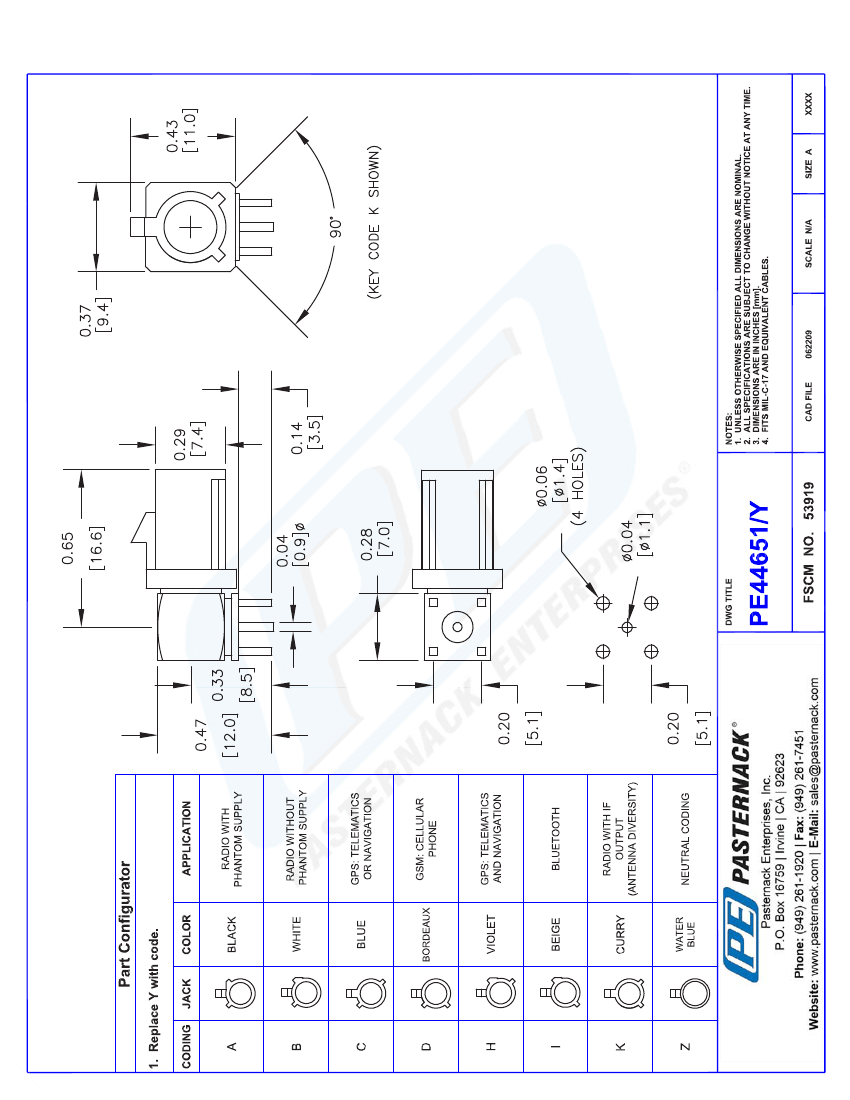

CAD Drawing
FAKRA Plug Right Angle Connector Solder Attachment Thru Hole PCB, Beige Color
