892-005
Circular Threaded, Inline Receptacle
Connector with Insulated Wire
Glenair Inline Threaded Coupling Receptacle
Connectors
feature gold alloy TwistPin contacts, offering
premium performance and reliability for demanding
applications. Available with or without backshell, overmolded
or shrink boot.
Choose Aluminum or Stainless Steel Shells
in 6 layouts
MATES
WITH 892-006
from 4 to 55 contacts. These connectors are intermateable with
nanominiature plug connectors 892-006.

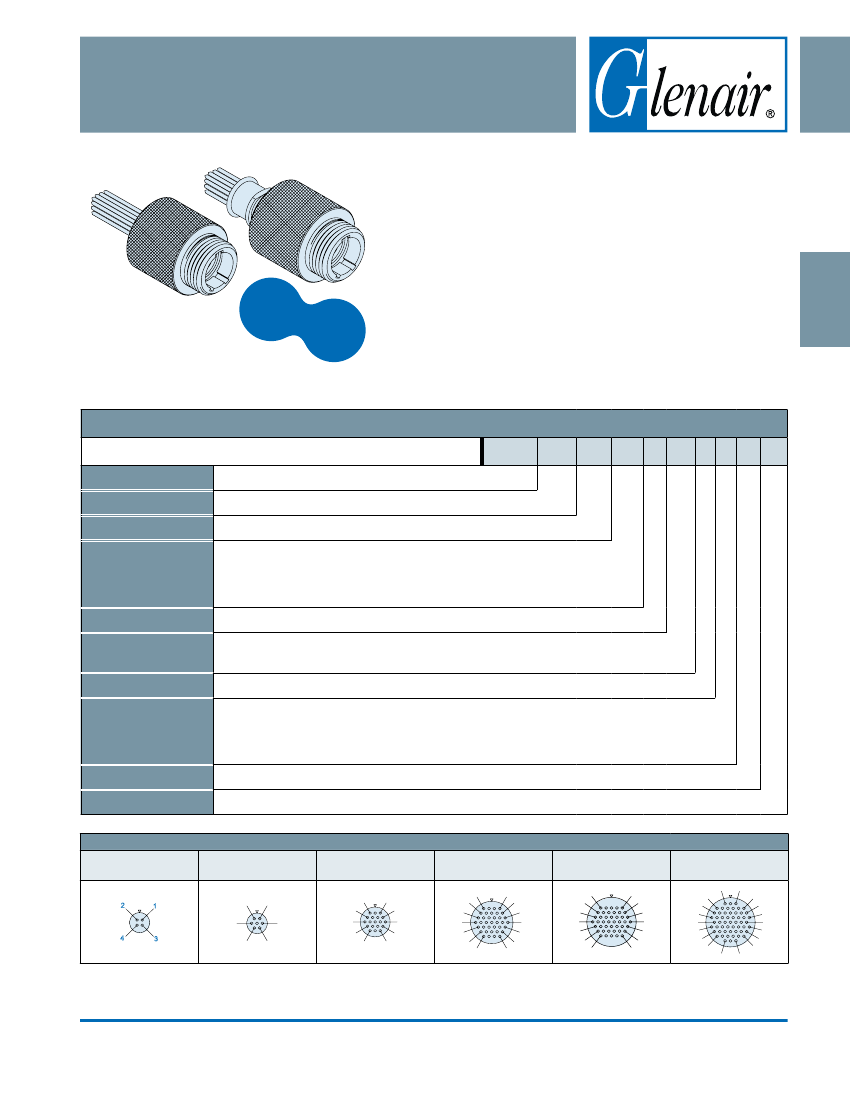

How To Order Circular Nano Connectors
Sample Part Number
Series
Shell Style
Accessory
Shell Size/Contact
Arrangement
Polarization
Shell Material/Finish
Wire Gauge
Wire Type
Wire Color
892
- Nano Circular With Insulated Wire
005
- In-Line Threaded Coupling Receptacle
01
- No Backshell
02
- With Backshell
03
- Overmolded
04
- Shrink Boot
892
-005
-02
1-7
N
A2 -0 A
7
-12
1-4
- Shell Size 1 with 4 contacts
1-7
- Shell Size 1 with 7 contacts
2-19
- Shell Size 2 wih 19 contacts
See Table I
N
- Normal
A
- Alternate
A2
- Aluminum/Electroless Nickel
A5-
Aluminum/Gold Over Nickel
0
- 30 AWG
2
- 32 AWG
3-37
- Shell Size 3 with 37 contacts
4-44
- Shell Size 4 with 44 contacts
4-55
- Shell Size 4 with 55 contacts
S1
- Stainless Steel/Zinc Cobalt (Black)
S2
- Stainless Steel/Passivated
A
- Ultralightweight XLETFE insulation, silver coated ultrahigh strength copper
B
- Extruded PTFE insulation, silver-coated copper NEMA HP3-ETX (MIL-W-16878/6)
C
- Cross linked modified ETFE insulation, silver coated high strength copper. MIL-W-22759/33
(not available in #32 AWG)
1
- White
2
- Yellow
7
- 10 Color repeating (Wire type
A
is striped, types
B
and
C
are solid colors)
Wire Length (Inches)
12
= 12.00 + 1.00 Inches
Table I: 892 Circular Receptacle Mating Face Views
Size 2-19
Size 3-37
19 Contacts
37 Contacts
3
7
1
4
Size 1-4
4 Contacts
2
1
Size 1-7
7 Contacts
2
5
1
3
7
6
Size 4-44
44 Contacts
11
18
26
33
39
44
40
5
1
6
12
19
27
34
Size 4-55
55 Contacts
16
24
31
93
46
52
41391016172425313239404647525355
9
15
22
28
33
4
1
5
10
16
23
9
3
1
4
10
12
16
19
17
8
13
4
3
37
34
29
55
53
17
25
32
40
47
Dimensions in inches (millimeters) and are subject to change without notice.
© 2013 Glenair, Inc.
Series 89 Nano Catalog
U.S. CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-11
E-Mail: sales@glenair.com
Circular
Nanominiatures
A
B
Circular
Nanominiatures
“L” Length
.530 (13.4)
+/-.005 (0.1)
892-005
Circular Threaded, Inline Receptacle
Connector with Insulated Wire

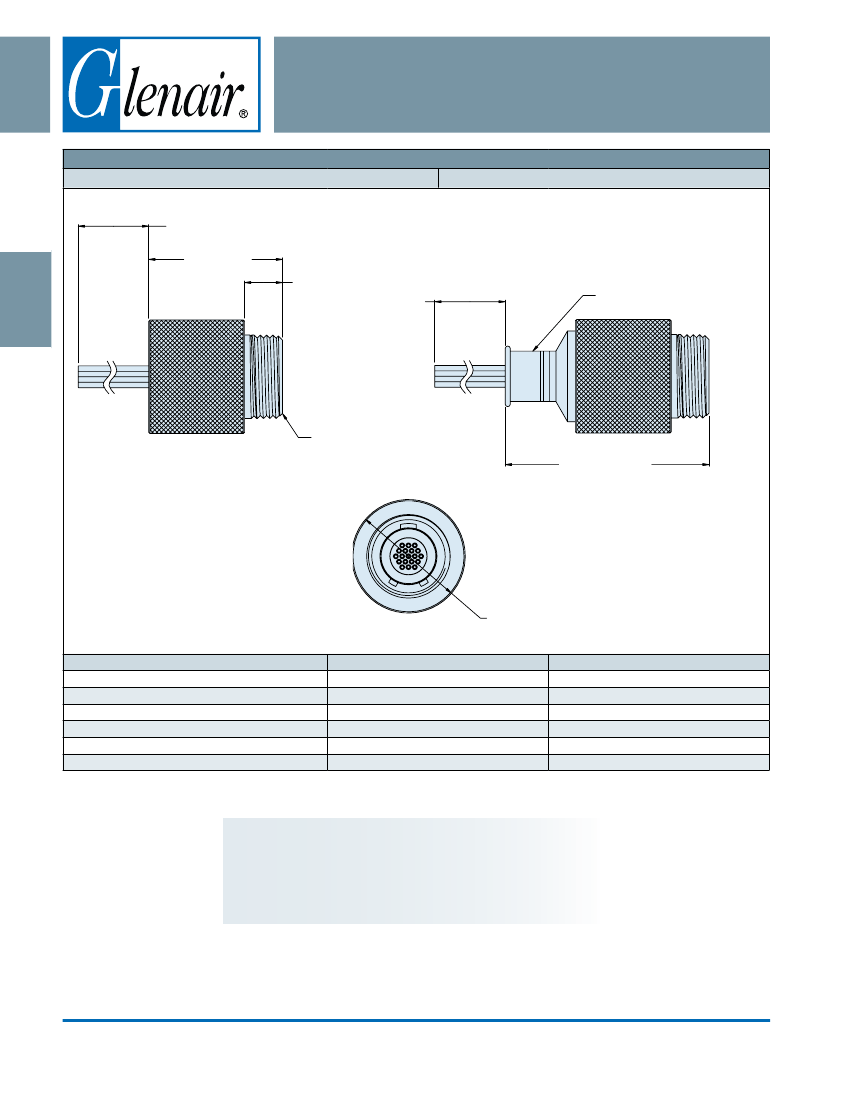

Table II: Dimensions
892-005-01 Without Termination Platform
892-005-02 With Termination Platform
B
.180(4.6)
+/-.005 (0.1)
“L” Length
Shield Overmold/Shrink Boot
Termination Platform Backshell
B Thread
.820 (20.8) Max
ØA
Size
1-4
1-7
2-19
3-37
4-44
4-55
Ø A +/-.005
.425 (10.8)
.425 (10.2)
.475 (12.1)
.526 (13.4)
.558 (14.2)
.558 (14.2)
B Thread
M7.0 x 0.75 - 6g
M7.0 x 0.75 - 6g
M8.5 x 0.75 - 6g
M9.5 x 0.75 - 6g
M10.5 x 0.75 - 6g
M10.5 x 0.75 - 6g
Material/finish:
•
•
•
•
•
Shell/spanner nut/backshell - see part number breakdown
Insulator - LCP/na
Socket contacts - gold alloy
O-rings - fluorosilicone/na
Internal latching spring - stainless steel/gold plate
