54F777/BRA: DescriptionIC F/FAST SERIES, TRIPLE 1-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, CDIP20, CERAMIC, DIP-20, Bus Driver/Transceiver; Categorylogic logic; File Size174KB，7 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F777/BRA Overview

IC F/FAST SERIES, TRIPLE 1-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, CDIP20, CERAMIC, DIP-20, Bus Driver/Transceiver

54F777/BRA Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	DIP
package instruction	DIP,
Contacts	20
Reach Compliance Code	unknown
Other features	PORT B STANDARD INPUTS AND OPEN COLLECTOR OUTPUTS; OUTPUT ENABLE ACTIVE HIGH FOR PORT A
series	F/FAST
JESD-30 code	R-GDIP-T20
Load capacitance (CL)	30 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Number of digits	1
Number of functions	3
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR/3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	80 mA
propagation delay (tpd)	12 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

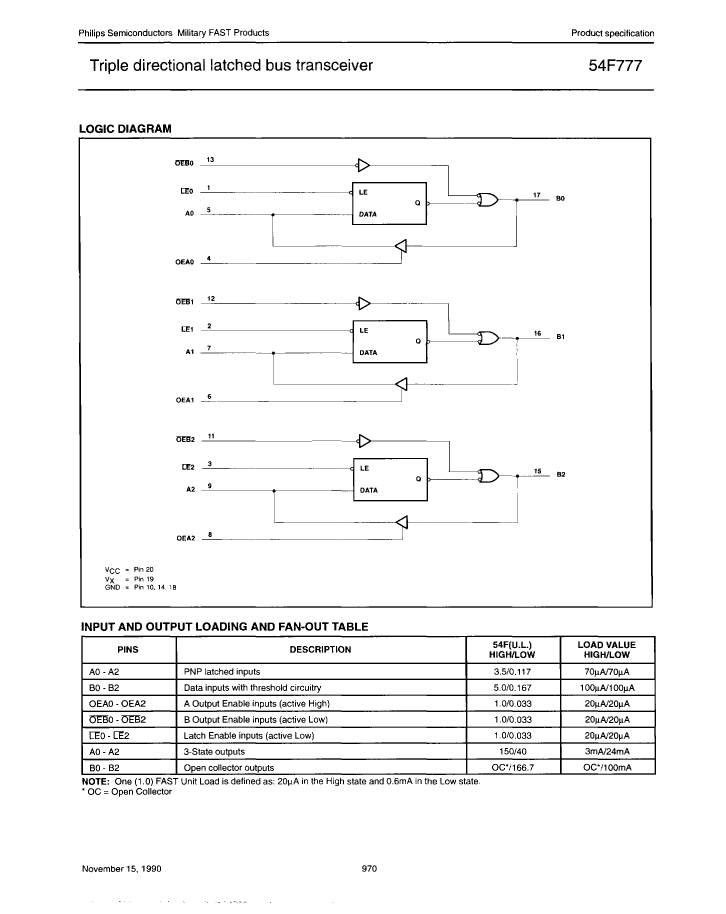

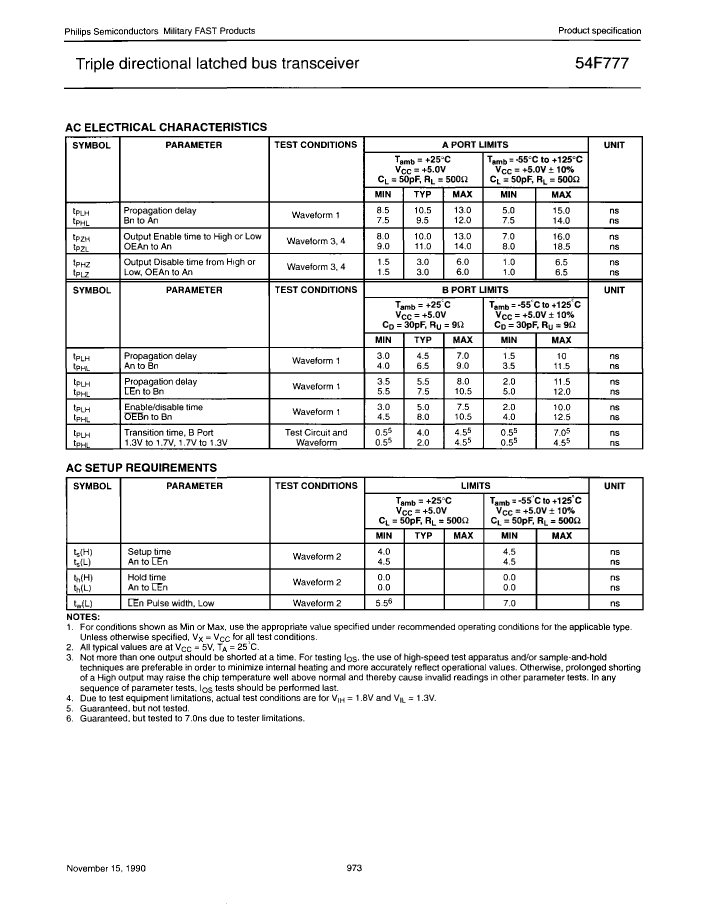

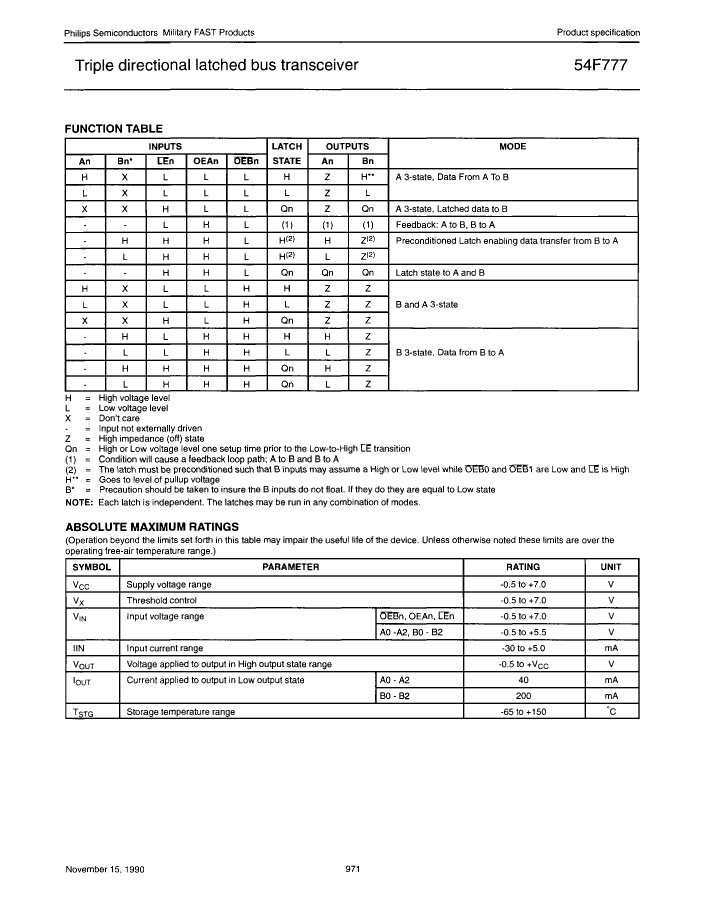

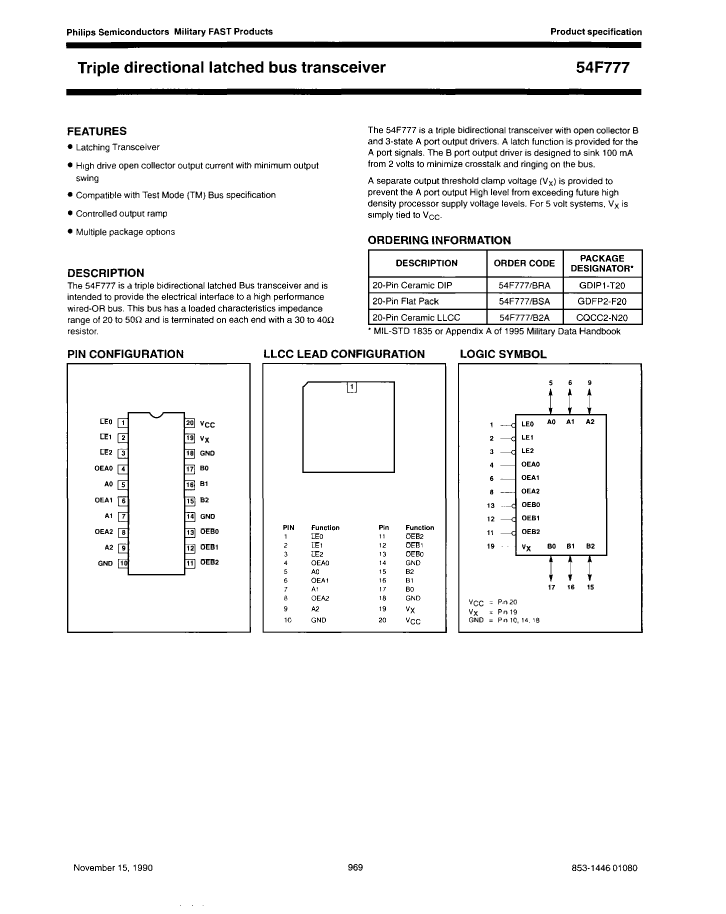

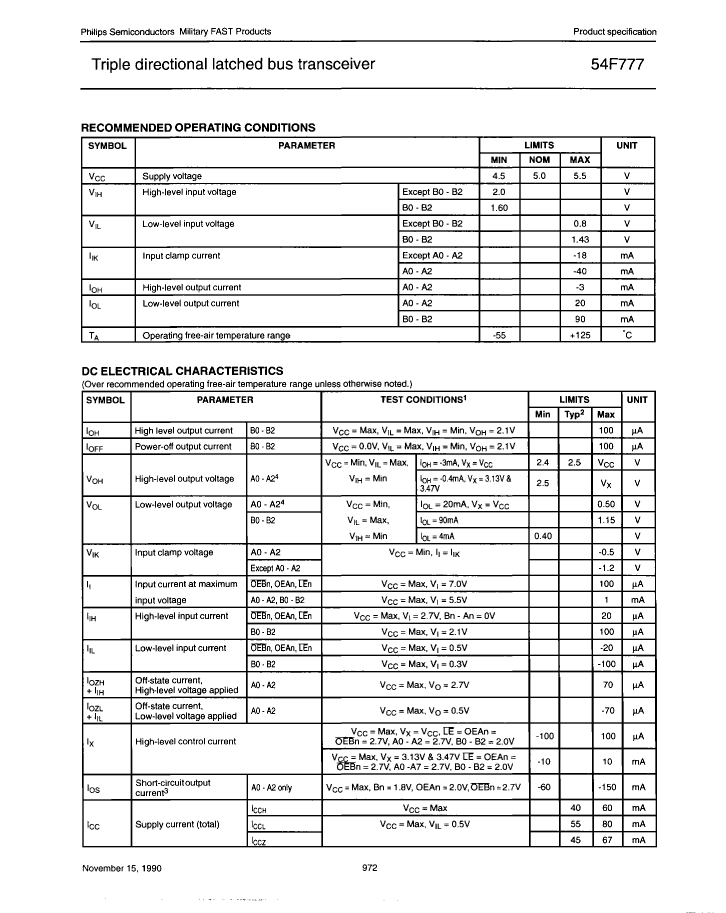

54F777/BRA Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

54F777/BRA Related Products

	54F777/BRA	54F777/B2A	54F777/BSA	N54F777/B2A	N54F777/BSA
Description	IC F/FAST SERIES, TRIPLE 1-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, CDIP20, CERAMIC, DIP-20, Bus Driver/Transceiver	IC F/FAST SERIES, TRIPLE 1-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, CQCC20, CERAMIC, LLCC-20, Bus Driver/Transceiver	IC F/FAST SERIES, TRIPLE 1-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, CDFP20, CERAMIC, FP-20, Bus Driver/Transceiver	IC F/FAST SERIES, 3-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, CQCC20, CERAMIC, LLCC-20, Bus Driver/Transceiver	IC F/FAST SERIES, 3-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, DFP20, FP-20, Bus Driver/Transceiver
Maker	NXP	NXP	NXP	NXP	NXP
Parts packaging code	DIP	QLCC	DFP	QLCC	DFP
package instruction	DIP,	QCCN,	DFP,	QCCN,	DFP,
Contacts	20	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	PORT B STANDARD INPUTS AND OPEN COLLECTOR OUTPUTS; OUTPUT ENABLE ACTIVE HIGH FOR PORT A	PORT B STANDARD INPUTS AND OPEN COLLECTOR OUTPUTS; OUTPUT ENABLE ACTIVE HIGH FOR PORT A	PORT B STANDARD INPUTS AND OPEN COLLECTOR OUTPUTS; OUTPUT ENABLE ACTIVE HIGH FOR PORT A	PORT B STANDARD INPUTS AND OPEN COLLECTOR OUTPUTS; OUTPUT ENABLE ACTIVE HIGH FOR PORT A	PORT B STANDARD INPUTS AND OPEN COLLECTOR OUTPUTS; OUTPUT ENABLE ACTIVE HIGH FOR PORT A
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-GDIP-T20	S-CQCC-N20	R-CDFP-F20	S-CQCC-N20	R-XDFP-F20
Load capacitance (CL)	30 pF	30 pF	30 pF	30 pF	30 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
Number of digits	1	1	1	3	3
Number of functions	3	3	3	1	1
Number of ports	2	2	2	2	2
Number of terminals	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED
encapsulated code	DIP	QCCN	DFP	QCCN	DFP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	FLATPACK	CHIP CARRIER	FLATPACK
Maximum supply current (ICC)	80 mA	80 mA	80 mA	80 mA	80 mA
propagation delay (tpd)	12 ns	12 ns	12 ns	12 ns	12 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	1.905 mm	2.54 mm	1.905 mm	2.54 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD	FLAT	NO LEAD	FLAT
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL	QUAD	DUAL
width	7.62 mm	8.89 mm	6.9215 mm	8.89 mm	6.9215 mm
