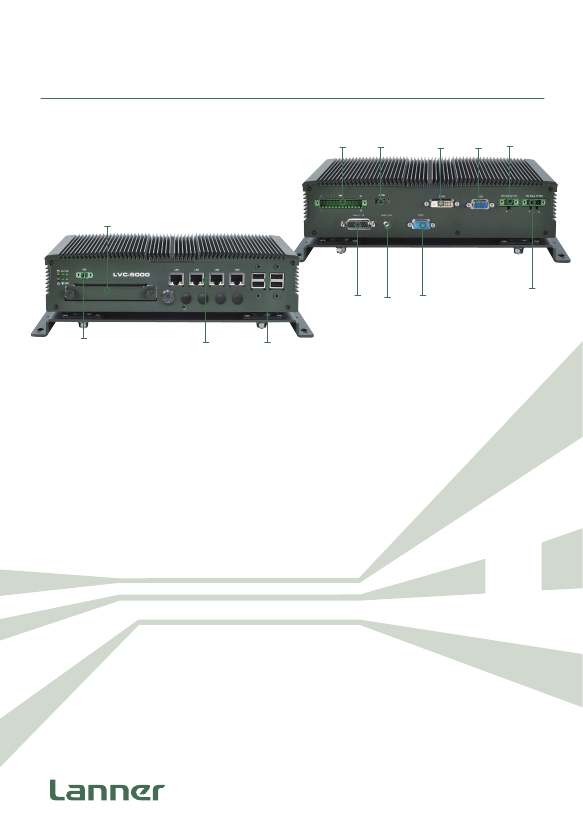

LVC-5000-A6
Fanless Mobile Hybrid DVR+NVR with Intel Core i7-
3517UE & 16CH Analogue Video Plus 4 PoEs for
Transport Surveilance Solution
Digital I/O HDMI
DVI-D
VGA 12V DC Out
2.5” Removable Drive Bay
Video Audio COM
Inpurt Input
Power SW
(Bypass Ignition)
4x PoE
4x USB
9~36VDC
Power In
Features
Multiple PoE LAN ports to
Fanless Design with
support Transport Surveillance Corrugated Aluminum
This mobile NVR with 4 PoE ports
(IEEE 802.3af) is suitable for IP Video
Surveillance and real-time recording
applications.
The corrugated aluminum casing lets
heat dissipate through the top of the
device, allowing for a fanless design.
Designed for MIL-STD-810G
with Extreme Vibration
Resistance
Convenient DC output
LVC-5000-A Series is in compliance
with MIL-STD-810G vibration and shock
standards and includes SSD storage
and a Suspension Kit to further improve
robustness.
The LVC-5000-A Series offers 12VDC
output (max 1A) for external devices,
operational in concert with the
Ignition Power Management feature
.
Detects vehicle ignition on/off status
and allows flexible control of the
delay time via software utility.
Vehicle Ignition Power
Management
Analogue Video Grabber
Settings and Installation via
The analogue solution is a high-quality,
the front panel
high-performance video capture
device with on-board hardware H.264
compression engine can record live
video from cameras into high-quality
H.264 Baseline Profile files, which
is specially designed for surveillance
applications and supports up to 16
channels of video inputs and 1 channel
of audio input.
MCU setting and CF card and SIM card
installation is easy to access simply by
opening the front panel.
Digital I/O
Key lock for Drive Bay
The system is with key lock for
removable drive bay.
The Digital I/O design includes 12V
Level DI/O, audio, MCU TX/RX and also
includes 2x DI (Digital Input from MCU)
which can connect sensors to detect the
environment. Once defined events occur,
the LVC-5000 series can be turned on
automatically.

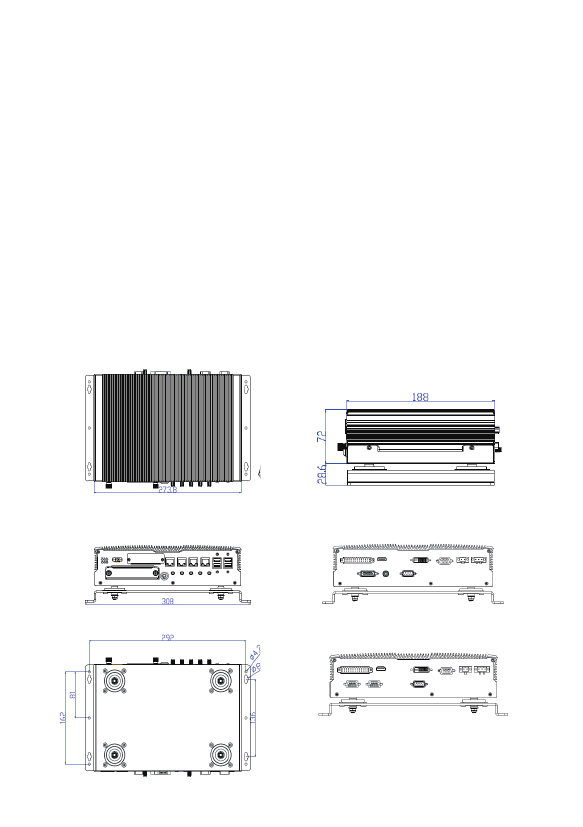

Dimensions: 273.8 x 72 x 188 mm (10.78” x 2.84” x 7.4” )
connect@lannerinc.com | www.lannerinc.com
Preliminary Specifications
Dimensions (WxHxD)
Processor
Chipset
System
Memory
Storage
Technology
Max. Capacity
SATA/CF
273.8 x 72 x 188 mm (10.78” x 2.84” x 7.4” )
Intel® Core
TM
i7-3517UE Processors
Intel HM65
DDR3 SO-DIMM x1 ( Factory default: 4GB module pre-installed )
Up to 8GB
Removable 2.5” SSD/HDD drive bay x1, CF socket x1
Intel 82583V x4
Intel integrated HD graphic engine
Realtek ALC886 HD codec
LAN
GbE RJ45 x 4
DVI-D, maximum resolution up to 1920x1200@75Hz
VGA, maximum resolution up to 2048x1536@60Hz
HDMI, maximum resolution up to 1920x1200@75Hz
Dual display supports Independent, clone and extended mode.
Audio
Serial I/O
GPS
G-sensor
IO
Digital I/O
USB 2.0
Power Input
Power Output
Expansion
Video Grabber
PoE
Others
Power Input
PoE Power Module
OS Support
Certifications
Compliance
Operating Tem-
perature Range
Extended
Standard
Mic-in and Line-out with 2 watt by terminal block MIO connector
1x RS-232/422/485 both with RI/5V/12V
Ublox NEO-7N GPS receiver module
ADXL 345
4x DI and 4x DO with 5V/12V Level by jumper setting
2x DI (from MCU) 3.3V Level
2x DO control relay with contact current @ 2A
Type A x4
3-pin terminal block (+, -, ignition)
12 V / 1A DC
Mini-PCIe x2 (Both with SIM card slot)
LVC-5000-A6: Stretch S7100 H.264 Hardware En/Decoder without SDK
supports for 16x Analogue Video Input, 1x Audio input
PoE x4, IEEE 802.3af, Standard PoE
External: 5x SMA antenna hole, Remote Power switch
Internal: Lanner Proprietary DI/O
+9~36VDC input range, with ignition delay on/off control
Internal integrated
Linux: Redhat Enterprise 5/ Fedora 14. Linux Kernel 2.6.18 or later
Windows: XP embedded ; Win7 Pro FES/Embedded; Win8
CE, FCC Class A, E13, RoHS
Vibration: MIL-STD-810G, Method 514.6
Shock:MIL-STD-810G, Method 516.6
With Selected Industrial Components: -20~55°C/-4~131°F
With Commercial Components: -5~45°C / 23~113°F
Ethernet Controller
Graphic Controller
Audio Controller
Display
Ordering Information
LVC-5000-A6
Intel® Core i7-3517UE In-Vehicle Hybrid NVR Computer, with 16Ch Analogue Video
Input and Intel GbE x4 Ports PoE for IP cameras. 4GB DDR3 Memory included,
2.5” Removable Drive Bay, Mini-PCIe x2 with two SIM card reader, USB x4, COM
x2, DIO, Audio, Power input +9~36Vdc with Ignition, Suspension Kit included.
