DTA124E_15 Overview

PNP DIGITAL TRANSISTOR

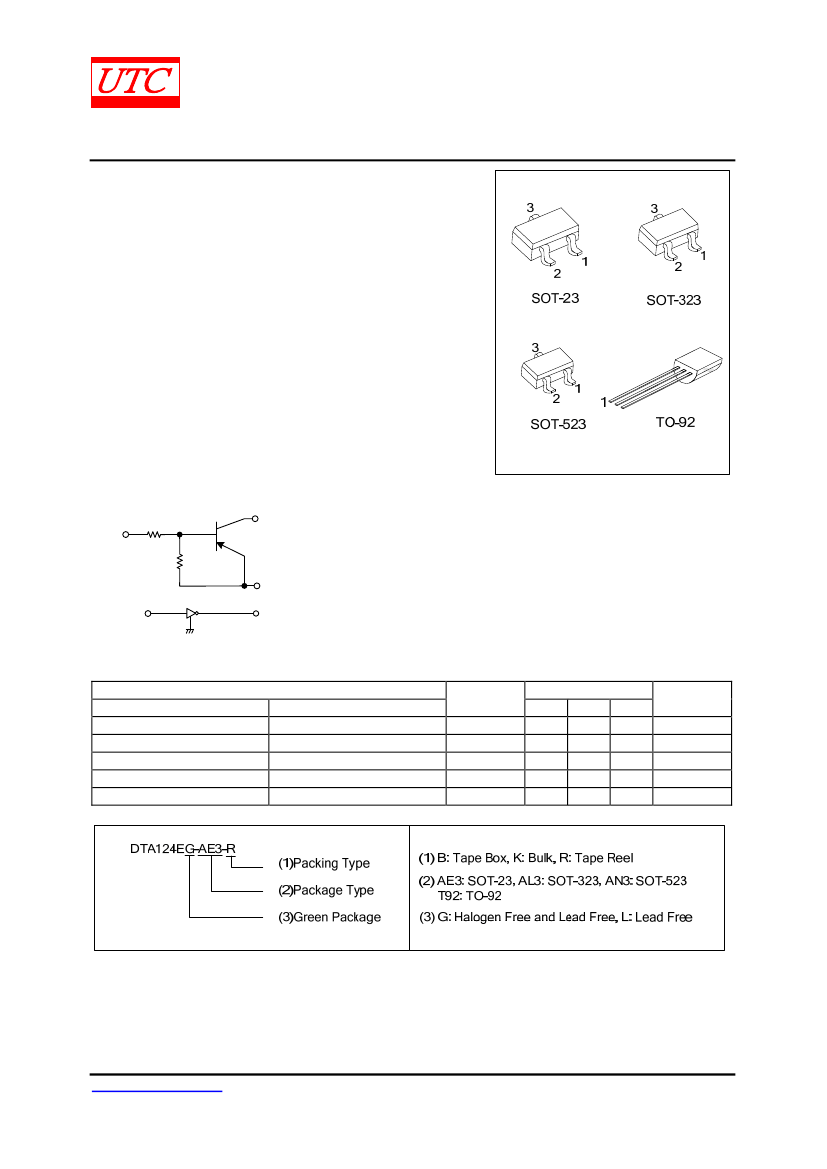

UNISONIC TECHNOLOGIES CO., Ltd
DTA124E
PNP DIGITAL TRANSISTOR
(BUILT-IN RESISTORS)
FEATURES
PNP EPITAXIAL SILICON TRANSISTOR
*Built-in bias resistors enable the configuration of an inverter
circuit without connecting external input resistors (see the
equivalent circuit).
*The bias resistors consist of thin-film resistors with complete
isolation to allow positive biasing of the input. They also have
the advantage of almost completely eliminating parasitic
effects.
*Only the on / off conditions need to be set for operation,
making device design easy.
EQUIVALENT CIRCUIT
R
1
OUT
IN
R
2
GND(+)
IN
GND(+)
OUT
ORDERING INFORMATION
Ordering Number
Halogen Free
DTA124EG-AE3-R
DTA124EG-AL3-R
DTA124EG-AN3-R
DTA124EG-T92-B
DTA124EG-T92-K
I: IN O: OUT
Package
SOT-23
SOT-323
SOT-523
TO-92
TO-92
Pin Assignment
1
2
3
G
I
O
G
I
O
G
I
O
G
O
I
G
O
I
Packing
Tape Reel
Tape Reel
Tape Reel
Tape Box
Bulk
Lead Free
-
-
-
DTA124EL-T92-B
DTA124EL-T92-K
Note: Pin Assignment: G: GND
www.unisonic.com.tw
Copyright © 2015 Unisonic Technologies Co., Ltd
1 of 4
QW-R206-044.F
