LAA125LSTR

Description
Solid State Relay, DUAL TRANSISTOR OUTPUT SOLID STATE RELAY, 3750 V ISOLATION-MAX, SURFACE MOUNT, DIP-8
CategoryLED optoelectronic/LED    photoelectric
File Size1MB,6 Pages
ManufacturerIXYS
Environmental Compliance
Download Datasheet Parametric Compare View All

LAA125LSTR Online Shopping

Suppliers Part Number Price MOQ In stock
LAA125LSTR - - View Buy Now

LAA125LSTR Overview

Solid State Relay, DUAL TRANSISTOR OUTPUT SOLID STATE RELAY, 3750 V ISOLATION-MAX, SURFACE MOUNT, DIP-8

LAA125LSTR Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1464303917
Reach Compliance Codeunknown
YTEOL5.6
Other featuresUL RECOGNIZED, HIGH RELIABILITY, CMOS COMPATIBLE
ConfigurationSEPARATE, 2 ELEMENTS
control current0.005 A
control voltage0.9 V
Maximum forward current0.05 A
input typeDC
Maximum insulation voltage3750 V
JESD-609 codee3
Number of components2
Maximum on-state current0.15 A
Maximum on-state resistance18 Ω
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Optoelectronic device typesTRANSISTOR OUTPUT SSR
Output circuit typeMOSFET
total height3.3 mm
total length9.65 mm
Terminal surfaceMatte Tin (Sn)

LAA125LSTR Preview

LAA125L
Single Pole OptoMOS
®
Relays
Blocking Voltage
Load Current
Max R
ON
LAA125L
350
150
18
Units
V
P
mA
Description
LAA125L is a 350V, 150mA, 18Ω dual 1-Form-A
relay. It combines enhanced peak load current
capability and current limiting with low on-resistance.
Features
Small 8 Pin Packages
Low Drive Power Requirements (TTL/CMOS
Compatible)
No Moving Parts
High Reliability
Arc-Free With No Snubbing Circuits
3750V
RMS
Input/Output Isolation
No EMI/RFI Generation
Machine Insertable, Wave Solderable
Surface Mount and Tape & Reel Versions Available
Current Limiting
Flammability classification rating: V-0
Approvals
UL Recognized: File Number E76270
CSA Certified: File Number LR 43639
Certified to:
EN 60950
EN 41003
Ordering Information
Part #
LAA125L
LAA125LS
LAA125LSTR
LAA125PL
LAA125PLTR
Description
8 Pin DIP (50/Tube)
8 Pin Surface Mount (50/Tube)
8 Pin Surface Mount (1,000/Reel)
8 Pin Flat Pack (50/Tube)
8 Pin Flat Pack (1,000/Reel)
Applications
Telecommunications
Telecom Switching
Tip/Ring Circuits
Modem Switching (Laptop, Notebook, Pocket
Size)
Hook Switch
Dial Pulsing
Ground Start
Ringing Injection
Instrumentation
Multiplexers
Data Acquisition
Electronic Switching
I/O Subsystems
Meters (Watt-Hour, Water, Gas)
Medical Equipment-Patient/Equipment Isolation
Security
Aerospace
Industrial Controls
Pin Configuration
LAA125L Pinout
AC/DC Configuration
+ Control - Switch #1
– Control - Switch #1
+ Control - Switch #2
– Control - Switch #2
1
2
3
4
8
7
Load - Switch #1
Load - Switch #1
Load - Switch #2
Load - Switch #2
6
5
Switching Characteristics of
Normally Open (Form A) Devices
DS-LAA125L-R10
www.clare.com
1
LAA125L
Absolute Maximum Ratings (@ 25˚ C)
Parameter
Blocking Voltage
Reverse Input Voltage
Input Control Current
Peak (10ms)
Input Power Dissipation
1
Total Power Dissipation
2
Isolation Voltage Input to Output
Operational Temperature
Storage Temperature
1
2
Ratings Units
350
V
P
5
V
50
mA
1
A
150
mW
800
mW
3750
V
rms
-40 to +85
°C
-40 to +125
°C
Absolute Maximum Ratings are stress ratings. Stresses in
excess of these ratings can cause permanent damage to
the device. Functional operation of the device at conditions
beyond those indicated in the operational sections of this
data sheet is not implied.
Derate Linearly 1.33 mw/˚C
Derate Linearly 6.67 mw/˚C
Electrical Characteristics
Parameter
Output Characteristics @ 25°C
Load Current
Peak Load Current
Load Current Limiting
On-Resistance
Off-State Leakage Current
Switching Speeds
Turn-On
Turn-Off
Output Capacitance
Input Characteristics @ 25°C
Input Control Current
Input Dropout Current
Input Voltage Drop
Reverse Input Current
Input to Output Capacitance
Conditions
Continuous
10ms max
I
L
=Load Current
V
L
=350V
I
F
=5mA, V
L
=10V
I
F
=5mA, V
L
=10V
50V; f=1MHz
I
L
=170mA
-
I
F
=5mA
V
R
=5V
-
Symbol
I
L
Min
-
-
190
-
-
-
-
-
5
0.4
0.9
-
-
Typ
-
-
235
-
-
-
-
50
-
0.7
1.2
-
3
Max
150
400
280
18
1
5
5
-
-
-
1.4
10
-
Units
mA
mA
mA
Ω
μA
ms
ms
pF
mA
mA
V
μA
pF
I
LPK
I
CL
R
ON
I
LEAK
T
ON
T
OFF
C
OUT
I
F
-
V
F
I
R
C
I/O
2
www.clare.com
Rev. 10
LAA125L
PERFORMANCE DATA*
35
30
Device Count (N)
LAA125L
Typical LED Forward Voltage Drop
(N=50 Ambient Temperature = 25ºC)
I
F
= 5mA
DC
35
30
LAA125L
Typical On-Resistance Distribution
(N=50 Ambient Temperature = 25ºC)
(Load Current = 150mA
DC
)
Device Count (N)
35
30
25
20
15
10
5
0
LAA125L
Typical Blocking Voltage Distribution
(N=50 Ambient Temperature = 25ºC)
25
20
15
10
5
0
1.17
1.19
1.21
1.23
1.25
Device Count (N)
25
20
15
10
5
0
14.0
14.4
14.8
15.2
15.6
380
384
388
392
396
400
LED Forward Voltage Drop (V)
On-Resistance (Ω)
Blocking Voltage (V)
40
35
Device Count (N)
LAA125L
Typical I
F
for Switch Operation
(N=50 Ambient Temperature = 25ºC)
(Load Current = 150mA
DC
)
25
20
15
10
5
0
LAA125L
Typical I
F
for Switch Dropout
(N=50 Ambient Temperature = 25ºC)
(Load Current = 150mA
DC
)
30
25
Device Count (N)
LAA125L
Typical Turn-On Time
(N=50 Ambient Temperature = 25ºC)
(Load Current = 150mA
DC
; I
F
= 5mA
DC
)
Device Count (N)
30
25
20
15
10
5
0
20
15
10
5
0.73
0.88
1.03
1.18
1.33
1.48
1.63
0.3
0.5
0.7
0.9
1.1
1.3
1.5
0
0.23
0.32
0.41
0.50
0.59
0.68
0.77
LED Current (mA)
LED Current (mA)
Turn-On (ms)
35
30
Device Count (N)
LAA125L
Typical Turn-Off Time
(N=50 Ambient Temperature = 25ºC)
(Load Current = 150mA
DC
; I
F
= 5mA
DC
)
Load Current (mA)
250
200
LAA125L
Typical Load Current vs. Temperature
0.18
0.16
LAA125L
Typical Leakage vs. Temperature
(Measured across Pins 5 & 6 or 7 & 8)
Leakage (µA)
25
20
15
10
5
0
0.06
0.10
0.14
0.18
0.22
0.26
0.30
150
100
50
0
0.14
0.12
0.10
0.08
I
F
= 20mA
I
F
= 10mA
I
F
= 5mA
-40
-20
0
20
40
60
80
100
120
0.06
-40
-20
0
20
40
60
80
100
Turn-Off (ms)
Temperature (ºC)
Temperature (°C)
400
Blocking Voltage (V
rma
)
LAA125L
Typical Blocking Voltage
vs. Temperature
0.6
0.5
LAA125L
Typical Turn-On vs. Temperature
(Load Current = 150mA
DC
)
I
F
= 5mA
0.30
0.25
LAA125L
Typical Turn-Off vs. Temperature
(Load Current = 150mA
DC
)
395
Turn-On (ms)
Turn-Off (ms)
390
385
380
375
0.4
0.3
0.2
0.1
I
F
=
10mA
0.20
0.15
0.10
0.05
I
F
= 20mA
I
F
= 5mA
-40
-20
0
20
40
60
80
100
0
-40
-20
0
20
40
60
80
100
0
-40
-20
0
20
40
60
80
100
Temperature (ºC)
Temperature (ºC)
Temperature (ºC)
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact our application
department.
Rev. 10
www.clare.com
3
LAA125L
PERFORMANCE DATA*
LAA125L
Typical LED Forward Voltage Drop
vs. Temperature
LED Forward Voltage Drop (V)
1.8
1.6
0.40
0.35
Turn-On (ms)
LAA125L
Typical Turn-On vs.LED Forward Current
(Load Current = 150mA
DC
)
0.160
0.150
Turn-Off (ms)
LAA125L
Typical Turn-Off vs. LED Forward Current
(Load Current = 150mA
DC
)
1.4
1.2
1.0
0.8
0.30
0.25
0.20
0.15
0.10
0
2
4
6
8
10
12
14
16
18
20
0.140
0.130
0.120
0.110
0.100
0
2
4
6
8
10
12
14
16
18
20
I
F
= 50mA
I
F
= 30mA
I
F
= 20mA
I
F
= 10mA
I
F
= 5mA
-40
-20
0
20
40
60
80
100
120
Temperature (ºC)
LED Forward Current (mA)
LED Forward Current (mA)
60
On-Resistance (Ω)
LAA125L
Typical On-Resistance vs. Temperature
(Load Current = 150mA
DC
; I
F
= 5mA
DC
)
3.000
2.500
LED Current (mA)
LAA125L
Typical I
F
for Switch Operation
vs. Temperature
(Load Current = 150mA
DC
)
LED Current (mA)
3.000
2.500
2.000
1.500
1.000
0.500
0
-40
LAA125L
Typical I
F
for Switch Dropout
vs. Temperature
(Load Current = 150mA
DC
)
50
40
30
20
10
0
-40
-20
0
20
40
60
80
100
2.000
1.500
1.000
0.500
0
-40
-20
0
20
40
60
80
100
Temperature (ºC)
-20
0
20
40
60
80
100
Temperature (ºC)
Temperature (ºC)
200
150
Load Current (mA)
LAA125L
Typical Load Current vs. Load Voltage
(Ambient Temperature = 25ºC)
I
F
= 5mA
DC
1.2
1.0
Load Current (A)
LAA125L
Energy Rating Curve
100
50
0
-50
-100
-150
-200
-2.5 -2.0 -1.5 -1.0 -0.5
0
0.5 1.0 1.5 2.0 2.5
0.8
0.6
0.4
0.2
0
10µs 100µs 1ms 10ms 100ms
Time
1s
10s 100s
Load Voltage (V)
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact our application
department.
4
www.clare.com
Rev. 10
LAA125L
Manufaturing Information
Soldering
Recommended soldering processes are limited to
245ºC component body temperature for 10 seconds.
Washing
Clare does not recommend ultrasonic cleaning or the
use of chlorinated solvents.

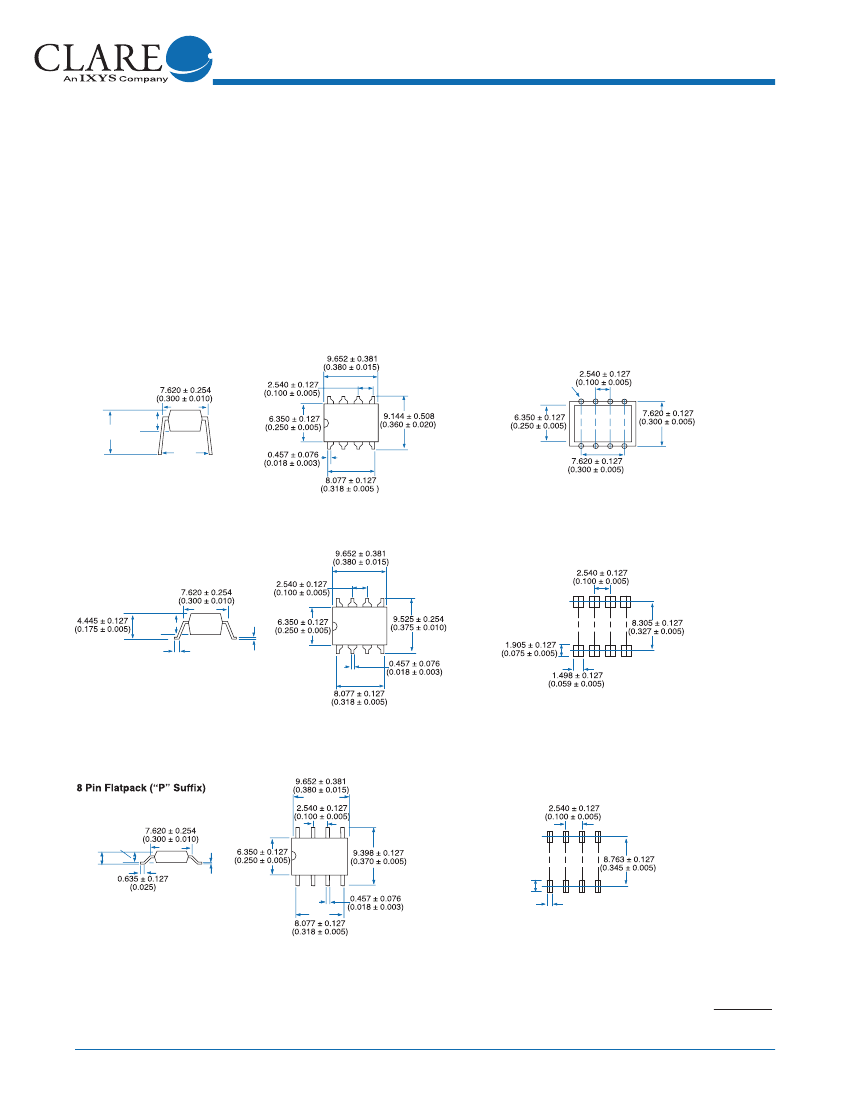

MECHANICAL DIMENSIONS
8 Pin DIP Through Hole (Standard)
PC Board Pattern
(Top View)
8-0.800 DIA.
(8-0.031 DIA.)
7.239 TYP.
(0.285)
3.302
(0.130)
9.144 TYP.
(0.360)
8 Pin Surface Mount (“S” Suffix)
PC Board Pattern
(Top View)
3.302
(0.130)
0.635 TYP.
(0.025)
0.254 TYP.
(0.010)
PC Board Pattern
(Top View)
2.159 TYP.
(0.085)
2.286 MAX.
(0.090)
0.203
(0.008)
1.193
(0.047)
0.787
(0.031)
Dimensions
mm
(inches)
Rev. 10
www.clare.com
5

LAA125LSTR Related Products

LAA125LSTR LAA125LS LAA125PLTR
Description Solid State Relay, DUAL TRANSISTOR OUTPUT SOLID STATE RELAY, 3750 V ISOLATION-MAX, SURFACE MOUNT, DIP-8 Transistor Output SSR, 2-Channel, 3750V Isolation, SURFACE MOUNT PACKAGE-8 Transistor Output SSR, 2-Channel, 3750V Isolation, FP-8
Is it lead-free? Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to
Reach Compliance Code unknown compliant compliant
Other features UL RECOGNIZED, HIGH RELIABILITY, CMOS COMPATIBLE UL RECOGNIZED, HIGH RELIABILITY, CMOS COMPATIBLE UL RECOGNIZED, HIGH RELIABILITY, CMOS COMPATIBLE
Configuration SEPARATE, 2 ELEMENTS SEPARATE, 2 ELEMENTS SEPARATE, 2 ELEMENTS
control current 0.005 A 0.005 A 0.005 A
control voltage 0.9 V 0.9 V 0.9 V
Maximum forward current 0.05 A 0.05 A 0.05 A
input type DC DC DC
Maximum insulation voltage 3750 V 3750 V 3750 V
JESD-609 code e3 e3 e3
Number of components 2 2 2
Maximum on-state current 0.15 A 0.15 A 0.15 A
Maximum on-state resistance 18 Ω 18 Ω 18 Ω
Maximum operating temperature 85 °C 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C -40 °C
Optoelectronic device types TRANSISTOR OUTPUT SSR TRANSISTOR OUTPUT SSR TRANSISTOR OUTPUT SSR
Output circuit type MOSFET MOSFET MOSFET
total height 3.3 mm 3 mm 2.1 mm
total length 9.65 mm 9 mm 9.65 mm
Terminal surface Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn)
Maker - IXYS IXYS
package instruction - SURFACE MOUNT PACKAGE-8 FP-8

Technical ResourceMore

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 2194  565  1074  513  2269  45  12  22  11  46
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
