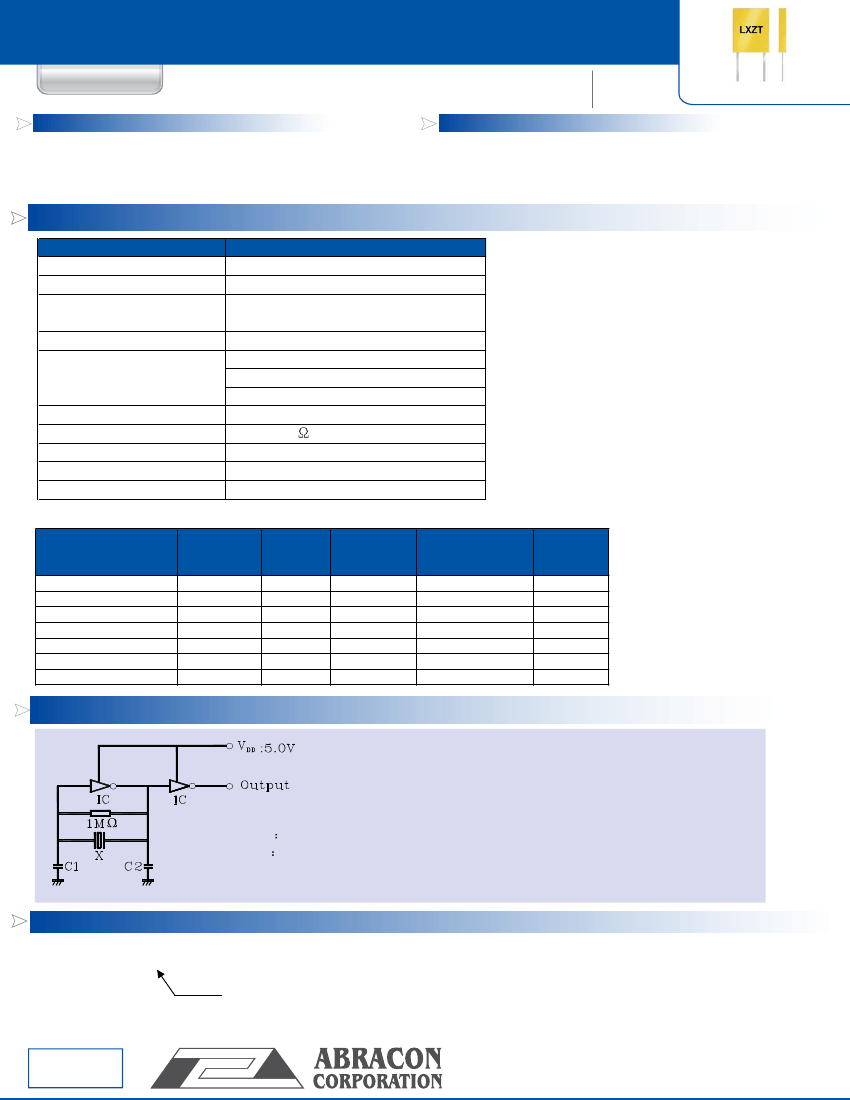

LEADED, LOW FREQUENCY kHz BAND CERAMIC RESONATORS
LXZT series
Pb in ceramic
(exempt per RoHS 2002/95/EC Annex (7))
RoHS
Compliant
| | | | | | | | | | | | | | |
Size varies
FEATURES:
•
Standard frequency range from190kHz to 1250kHz.
•
Low cost timing solution.
•
Low resonant impedance.
APPLICATIONS:
•
Microprocessor clocks.
•
Electrical appliances.
•
Remote controls.
STANDARD SPECIFICATIONS:
Oscillation Frequency
Resonant Impedance
Frequency Tolerance and
stability
Withstanding Voltage (V)
Rating Voltage
(1) D.C.Voltage
(2) A.C. Voltage
Load Capacitance
Insulation Resistance
Operating Temperature
Storage Temperature
Aging Rate (Fosc)
Table 2.1
Frequency Range
(kHz)
190 - 249
250 - 374
375 - 429
430 - 509
510 - 699
700 - 999
1000 - 1250
C1 (pF)
±20%
330
220
120
100
100
100
100
C2 (pF)
±20%
470
470
470
100
100
100
100
Resonant
Impedance
20Ω max.
20Ω max.
20Ω max.
20Ω max.
30Ω max.
70Ω max.
100Ω max.
Item
190.00kHz to 1250.00kHz
See Table 2.1
See Table 2.1
*
50 (DC , 1 min)
6 V.D.C. max
15 Vp-p. max
See Table 2.1
100M min. (10V DC 1min)
-25
o
C to + 85
o
C
*
o
o
-40 C to +85 C
±0.3% (From initial value)
Frequency
Stability at
-25°C to +85°C
± 0.3%
± 0.3%
± 0.3%
± 0.3%
± 0.3%
± 0.3%
± 0.3%
Freq.
Freq.
Tolerance at
25°C
* Please contact ABRACON for tighter stability and/or
wider temperature range
Requirement
±1.0 kHz
±1.0 kHz
±2.0 kHz
±2.0 kHz
±2.0 kHz
± 0.5%
± 0.5%
TEST CIRCUIT:
IC 1/6TC4069UBP×2
X CERAMIC
RESONATOR
C1,C2: Load Capacitance
OPTIONS & PART IDENTIFICATION:
LXZT - Frequency
Frequency (kHz)
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 09.29.08
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
LEADED, LOW FREQUENCY kHz BAND CERAMIC RESONATORS
LXZT series
OUTLINE DIMENSIONS
Pb in ceramic
(exempt per RoHS 2002/95/EC Annex (7))
RoHS
Compliant
| | | | | | | | | | | | | | |
Size varies
Freq.
Dimension : Inches (mm)
Frequency Range
190-249 kHz
250-374 kHz
375-429 kHz
430-699 kHz
700-1250 kHz
L
0.53 (13.5)
0.43 (11.0)
0.31 (7.9)
0.28 (7.0)
0.20 (5.1)
W
0.14 (3.6)
0.14 (3.6)
0.14 (3.6)
0.14 (3.5)
0.09 (2.2)
H
0.58 (14.7)
0.48 (12.2)
0.37 (9.3)
0.35 (9.0)
0.25 (6.3)
LL
WW
0.32 (8.0)
0.39 (10.0)
0.28 (7.0)
0.30 (7.7)
0.24 (6.0)
0.20 (5.0)
0.16 (4.0)/0.24 (6.0) 0.20 (5.0)
0.16 (4.0)
0.10 (2.5)
• Do not apply excess mechanical stress to the component body or terminations. Do not attempt to re-form or bend the components as this will cause
damage to the component.
• This component is not hermetically sealed. Do not clean or wash the component.
• Reflow soldering: Do not use strong acidity flux,such as flux with chlorine content of greater than 0.2wt% during reflow Soldering.
• Do not expose the component to open flame.
• This specification applies to the functionality of the component as a single unit. Customers are advised to insure that the component is thoroughly
evaluated in the particular application.
• Shelf life: The warranted shelf life of this product is six months after the delivery date under the conditions of sealed, unopened, original packaging.
• Storage conditions: If the product is to be stored for a period greater than six months after the delivery date, it is recommended that customers confirm
the solderability and characteristics for the product prior to use.
• This product is not recommended for use in the following applications: Automotive, Medical, Military, Safety, or any other high-reliability, life-dependant
application. Contact Abracon Corporation prior to using this product when in doubt.
