UNISONIC TECHNOLOGIES CO., LTD
8507
4mA COMPANDER
DESCRIPTION
LINEAR INTEGRATED CIRCUIT
The UTC
8507
is a automatic gain control system that is
used for dynamic range compression and expansion.
By companding the signal, this can reduce the noise
components.
The UTC
8507
includes compressor, expander,
pre-amp, filter amp, limiter and mute/bypath logic.
FEATURES
* Wide Supply Voltage (2.4 ~ 7V )
* Easy Gain Control
* Mute/Bypath Logic
* Data In/Out Pin
ORDERING INFORMATION
Ordering Number
Lead Free
8507L-D20-T
-
Halogen Free
8507G-D20-T
8507G-S20-R
Package
DIP-20
SOP-20
Packing
Tube
Tape Reel
8507L-D20-T
(1) Packing Type
(2) Package Type
(3) Green Package
(1) T: Tube, R: Tape Reel
(2) D20: DIP-20, S20: SOP-20
(3) L: Lead Free, G: Halogen Free and Lead Free

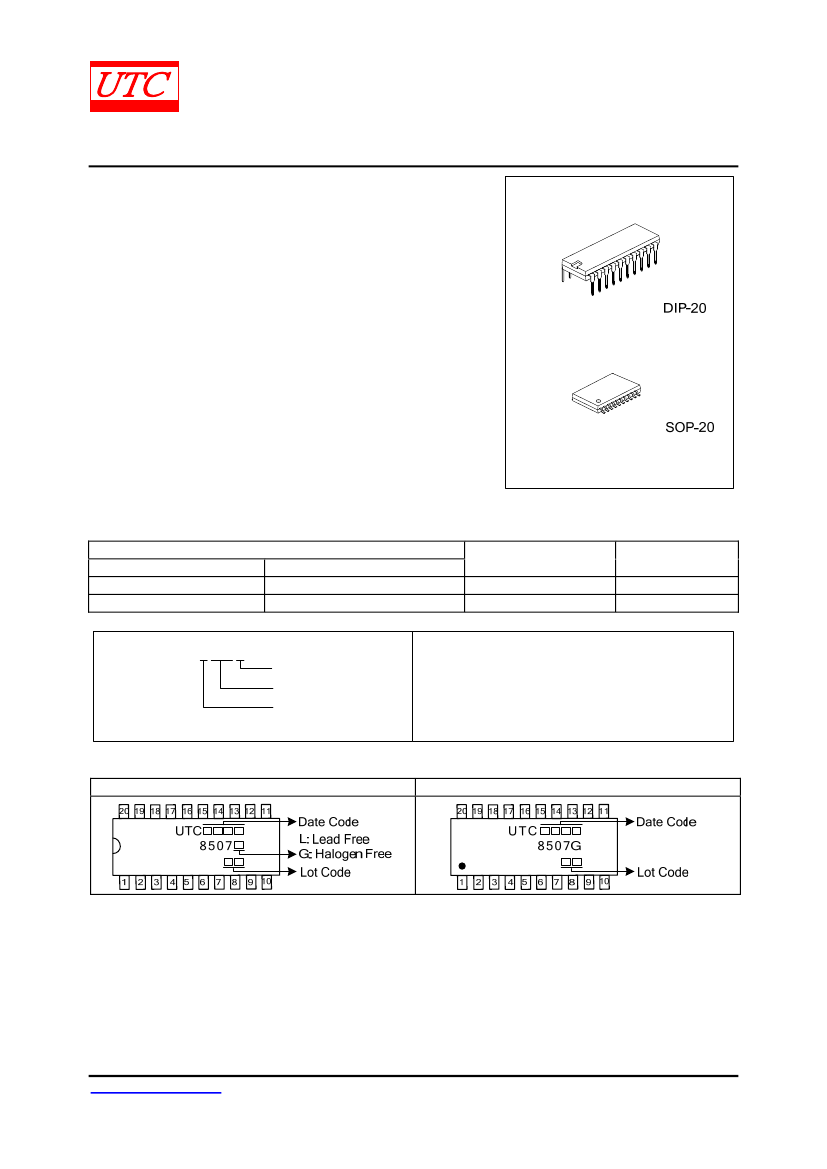

MARKING
DIP-20
SOP-20
www.unisonic.com.tw
Copyright © 2015 Unisonic Technologies Co., Ltd
1 of 5
QW-R123-006.C
8507
PIN CONFIGURATION
FO
FI
CO
DI
AGIC
CRC
CPI-
CPI+
CB
GND
1
2
3
4
5
6
7
8
9
10
LINEAR INTEGRATED CIRCUIT
20
19
18
17
16
15
14
13
12
11
V
CC
EO
ERC
DO
EPI-
EPI+
EB
EMUTE
BYPATH
CMUTE
PIN DESCRIPTION
SYMBOL
FO
FI
CO
DI
AGIC
CRC
CPI-
CPI+
CB
GND
CMUTE
BYPATH
EMUTE
EB
EPI+
EPI-
DO
ERC
EO
V
CC
DESCRIPTON
Filter Amp Output
Filter Amp Input
Compressor Output
Data Input
AC Gain Infinity Capacitor
Compressor Rectifier Capacitor
Compressor Inverting Input
Compressor Non-Inverting Input
Compressor Reference Bias
Ground
Compressor Mute
No companding
Expander Mute
Expander Reference Bias
Expander Non-Inverting Input
Expander Inverting Input
Data Output
Expander Rectifier Capacitor
Expander Output
Supply Voltage
PIN No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 5
QW-R123-006.C
8507
BLOCK DIAGRAM
AGIC
5
Bypath
CRC
6
Rectifier
Variable
Resistor
5.1K
CPI- 7
CPI+ 8
3.3k
DI
4
LINEAR INTEGRATED CIRCUIT
CO
3
Compressor
Output Buffer
FI
2
Filter Amp
+
1 Fo
-
Compressor
Mute
Summing
Amp
CB
Bypath
13 EMUTE
Variable
Resistor
Rectifier
17
DO
18
ERC
Summing
Amp
Expandor
Mute
19
EO
Bias Circuit
9
CB
14
EB
10
GND
20 Vcc
11 CMUTE
Limiter
Logic
12 BYPATH
-
+
EPI- 16
EPI+ 15
-
+
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 5
QW-R123-006.C
8507
ABSOLUTE MAXIMUM RATINGS
PARAMETER
SYMBOL
V
CC
LINEAR INTEGRATED CIRCUIT
RATINGS
UNIT
Supply Voltage
10
V
Power Dissipation
DIP-20
1000
mW
SOP-20
410
mW
Operating Temperature
T
OPR
-20 ~ +70
C
Storage Temperature
T
STG
-55 ~ +150
C
Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
ELECTRICAL CHARACTERISTICS
(Vcc=3V,f=1kHz,Ta=25℃,unless otherwise noted)
TEST CONDITIONS
MIN
TYP
2.4
4.0
8.0
-0.5
-1.0
-1.5
12.5
0
0
0
0.5
3.0
80
1.35
130
0
0
0
0
0.5
10.0
80
800
MAX
7.0
6.5
17.0
+0.5
+1.0
+1.5
1.0
5.5
1.50
160
+0.5
+1.0
+2.0
+0.5
1.5
30.0
UNIT
V
mA
mVrms
dB
dB
%
mVrms
dB
Vp-p
mVrms
dB
dB
%
μVrms
dB
mVrms
PARAMETER
SYMBOL
DC ELECTRICAL CHARACTERISTICS
Operating Voltage
V
CC
Operating Current
I
CC
COMPRESSOR PART
Standard Input Voltage (0dB)
V
I (COMP)
△
G
V1 (COMP)
Gain Difference
△
G
V2 (COMP)
Bypath Gain Difference
△
G
VB (COMP)
Output Distortion
THD
COMP
Noise Output Voltage
V
NO (COMP)
Mute Attenuation Ratio
ATT
MUTE
Limiting Voltage
V
LIM (COMP)
EXPANDER PART
Standard Output Level (0dB)
V
O (EXP)
△
G
V1 (EXP)
Gain Difference
△
G
V2 (EXP)
△
G
V3 (EXP)
Bypath Gain Difference
△
G
vB (EXP)
Output Distortion
THD
EXP
Noise Output Voltage
V
NO (EXP)
Mute Attenuation Ratio
ATT
MUTE
Limiting Voltage
V
OEXP (MAX)
No signal
V
OUT
=300mVrms=0dB
V
IN
=-20dB
V
IN
=-40dB
V
IN
=0dB, B
YPATH
=GND
V
IN
=0dB
R
G
=620Ω
V
IN
=0dB, C
MUTE
=GND
60
1.15
110
-0.5
-1.0
-1.5
-2.5
V
IN
=30mVrms=0dB
V
IN
=-10dB-0.5
V
IN
=-20dB
V
IN
=-30dB
V
IN
=0dB, B
YPATH
=GND
V
IN
=0dB
R
G
=620Ω
V
IN
=0dB, E
MUTE
=GND
THD=10%
60
700
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
4 of 5
QW-R123-006.C
8507
TEST CIRCUIT
LINEAR INTEGRATED CIRCUIT
COMP OUT
10k
100k
1µF
+
1
FO
Vcc
20
10µF
+
V
CC
EXP OUT
10K
+
2
1µF
+
3
FI
EO
19
+
1.0µF
CO
ERC
18
2.2µF
4
22µF
+
2.2µF
+
9.1k
0.47µF
+
474
COMP
IN
8
620
9
6
5
DI
DO
17
51K
50pF
10K
474
+
AGIC
EPI-
16
1.0µF
CRC
EPI+
15
100k
620
EXP IN
7
CPI-
EB
14
+
4.7µF
CPI+
EMUTE
13
SW3
12
SW2
+
4.7µF
CB
BYPATH
10
GND
CMUTE
11
SW1
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
5 of 5
QW-R123-006.C
