T-1 (3mm) BI-COLOR INDICATOR LAMP
Part Number: L-93WSRSGC-CC
SUPER BRIGHT RED
SUPER BRIGHT GREEN
Features
UNIFORM LIGHT OUTPUT.
LOW POWER CONSUMPTION.
3 LEADS WITH ONE COMMON LEAD.
I.C. COMPATIBLE.
LONG LIFE - SOLID STATE RELIABILITY.
RoHS COMPLIANT.
Description
The Super Bright Red source color devices are made
with Gallium Aluminum Arsenide Red Light Emitting
Diode.
The Super Bright Green source color devices are made
with Gallium Phosphide Green Light Emitting Diode.

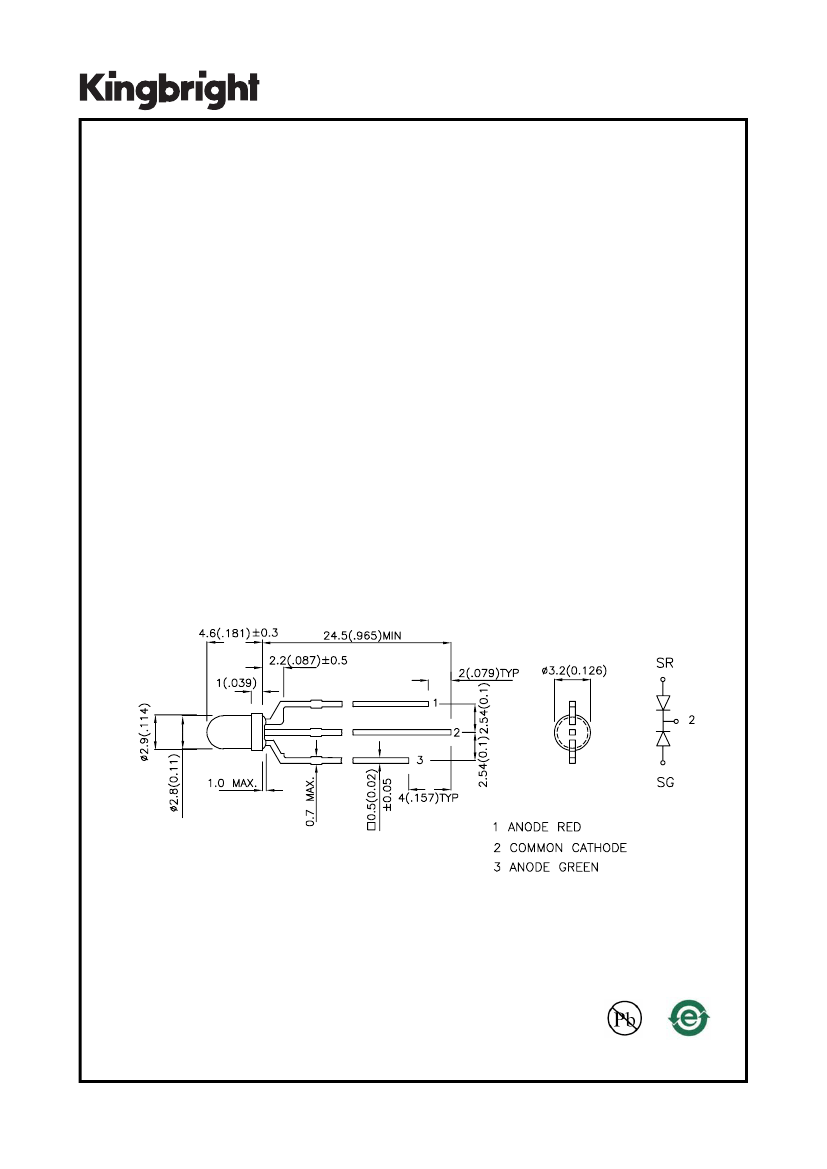

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
SPEC NO: DSAA8602
APPROVED: WYNEC
REV NO: V.6
CHECKED: Allen Liu
DATE: APR/21/2007
DRAWN: F.ZHANG
PAGE: 1 OF 4
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
SUPER BRIGHT RED (GaAlAs)
L-93WSRSGC-CC
SUPER BRIGHT GREEN (GaP)
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2. Luminous intensity/ luminous Flux: +/-15%.
Viewing
Angle [1]
2
θ
1/2
50
°
Typ.
400
70
180
WATER CLEAR
18
Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Super Bright Red
Super Bright Green
Super Bright Red
Super Bright Green
Super Bright Red
Super Bright Green
Super Bright Red
Super Bright Green
Super Bright Red
Super Bright Green
Super Bright Red
Super Bright Green
Typ.
660
565
640
568
20
30
45
15
1.85
2.2
2.5
2.5
10
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Notes:
1. Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating / Storage Temperature
Lead Solder Temperature [2]
Lead Solder Temperature [3]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
Super Bright Red
75
30
155
5
Super Bright Green
62.5
25
140
5
-40°C To +85°C
260°C For 3 Seconds
260°C For 5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAA8602
APPROVED: WYNEC
REV NO: V.6
CHECKED: Allen Liu
DATE: APR/21/2007
DRAWN: F.ZHANG
PAGE: 2 OF 4

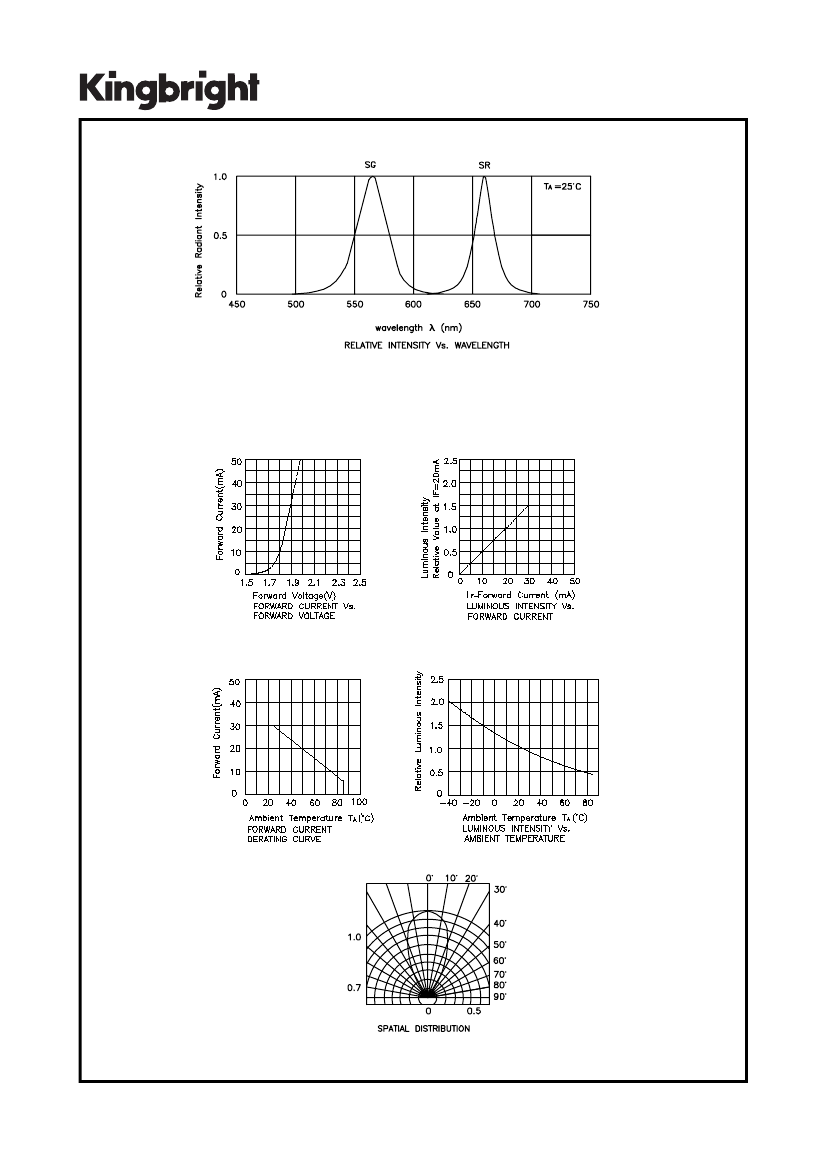

L-93WSRSGC-CC
Super Bright Red
SPEC NO: DSAA8602
APPROVED: WYNEC
REV NO: V.6
CHECKED: Allen Liu
DATE: APR/21/2007
DRAWN: F.ZHANG
PAGE: 3 OF 4

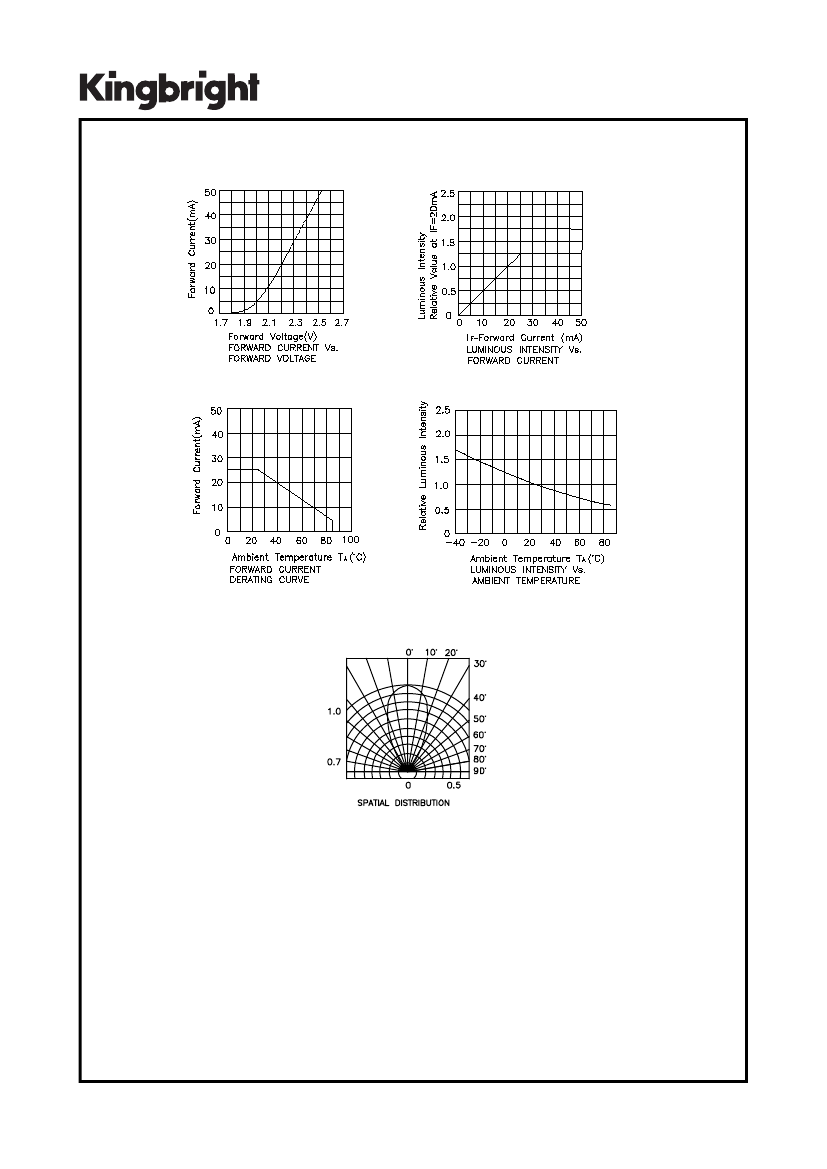

Super Bright Green
SPEC NO: DSAA8602
APPROVED: WYNEC
REV NO: V.6
CHECKED: Allen Liu
DATE: APR/21/2007
DRAWN: F.ZHANG
PAGE: 4 OF 4
