AD116S10KEF-K datasheet, PDF - EEWORLD Datasheet

AD116S10KEF-K: DescriptionAssymetric SCR, 220A I(T)RMS, 1000V V(DRM), 15V V(RRM), 1 Element, MODULE-4; CategoryAnalog mixed-signal IC Trigger device; File Size27KB，1 Pages; ManufacturerEUPEC [eupec GmbH]

Download Datasheet Parametric View All

AD116S10KEF-K Overview

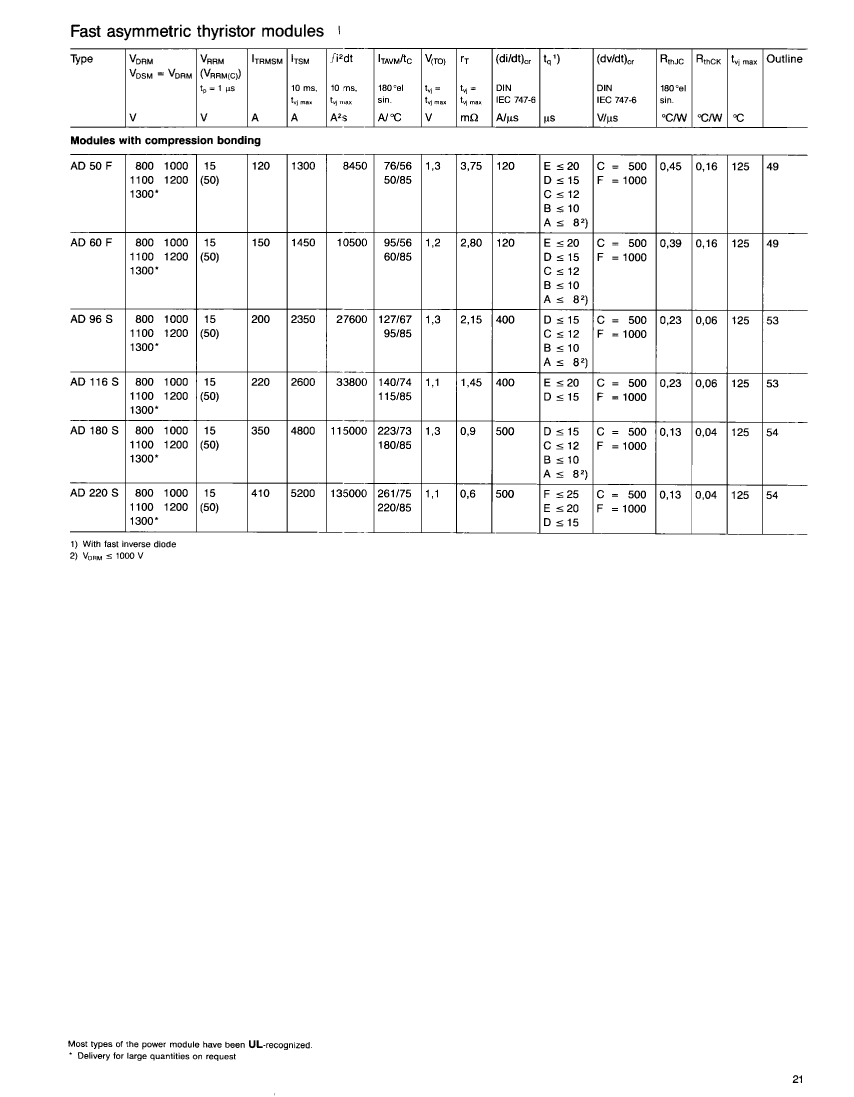

Assymetric SCR, 220A I(T)RMS, 1000V V(DRM), 15V V(RRM), 1 Element, MODULE-4

Parameter Name	Attribute value
Maker	EUPEC [eupec GmbH]
package instruction	MODULE-4
Reach Compliance Code	unknown
Other features	FAST
Shell connection	ISOLATED
Nominal circuit commutation break time	20 µs
Configuration	SINGLE WITH BUILT-IN FREE-WHEELING DIODE
Critical rise rate of minimum off-state voltage	1000 V/us
JESD-30 code	R-PUFM-X4
Number of components	1
Number of terminals	4
Maximum operating temperature	125 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	220 A
Off-state repetitive peak voltage	1000 V
Repeated peak reverse voltage	15 V
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Trigger device type	ASSYMETRIC SCR
