UNISONIC TECHNOLOGIES CO., LTD
A6043
FM STEREO MULTIPLEX
DESCRIPTION
LINEAR INTEGRATED CIRCUIT
The UTC
A6043
is Phase Locked Loop(PLL) FM stereo
multiplex IC. It is suitable for automotive applications and portable
radio applications.
FEATURES
* Low and wide operation: V
CC
= 3V~12V
* High pilot lamp ON sensitivity: V
L(ON)
= 9mV
rms
(Typ.)
* Suitable for LED driving: I
LAMP
= 20mA (Max.)
* Recommendable input voltage range: V
IN
= 200~700mV
rms
* Low distortion: THD = 0.08% (Typ.) at V
IN
= 200mV
rms
(Stereo)
* VCO stop capability stereo lamp and turn off are simultaneously
operated by connect pin 7 to V
CC.
* Easy adjustment (The monitored free running frequency of VCO
is 38kHz at pin 6.)
ORDERING INFORMATION
Ordering Number
A6043G-G09-T
A6043G-S14-R
Package
SIP-9
SOP-14
Packing
Tube
Tape Reel
MARKING
www.unisonic.com.tw
Copyright © 2015 Unisonic Technologies Co., Ltd
1 of 4
QW-R110-018.B
A6043

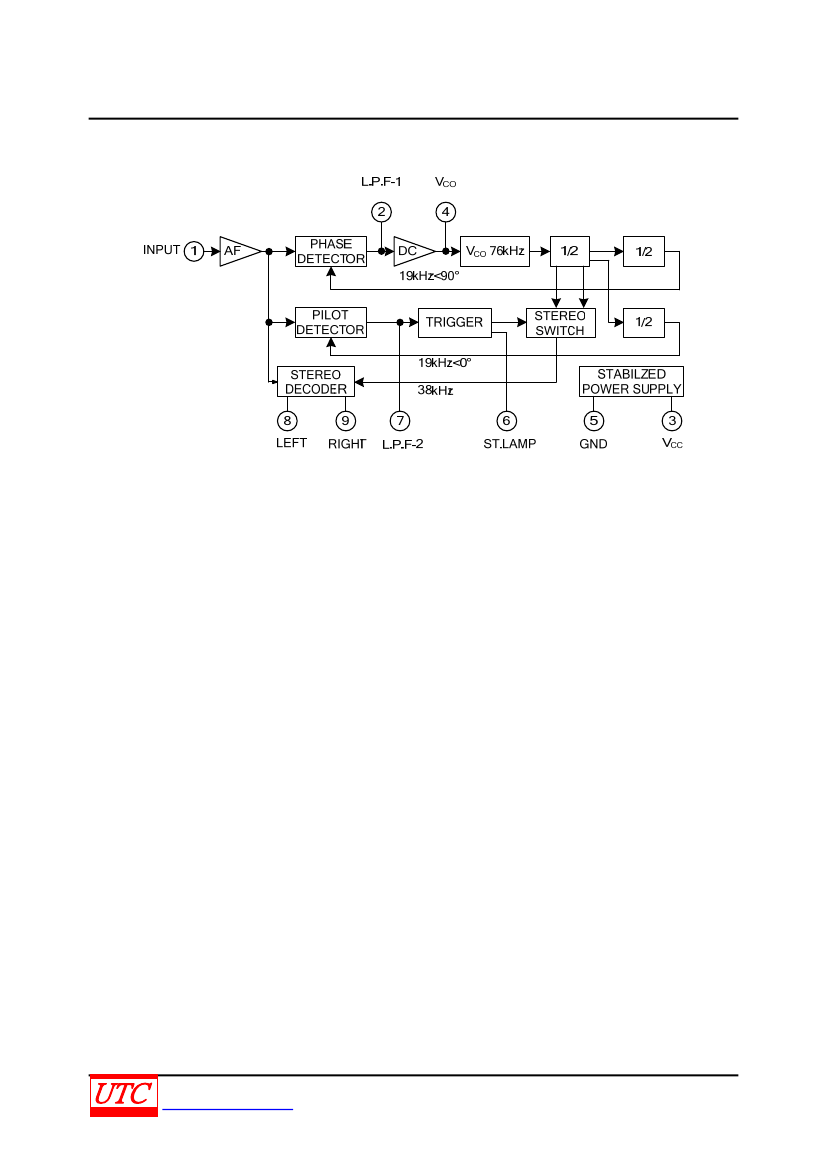

BLOCK DIAGRAM
LINEAR INTEGRATED CIRCUIT
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 4
QW-R110-018.B
A6043
PARAMETER
LINEAR INTEGRATED CIRCUIT
ABSOLUTE MAXIMUM RATINGS
(T
A
= 25°C, unless otherwise specified)
SYMBOL
RATINGS
UNIT
Supply Voltage
V
CC
12
V
Lamp Voltage
V
LAMP
16
V
Lamp Current
I
LAMP
20
mA
Power Dissipation
P
D
500
mW
Operating Temperature
T
OPR
-20 ~ +85
°C
Storage Temperature
T
STG
-40 ~ +150
°C
Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
ELECTRICAL CHARACTERISTICS
MAX
UNIT
V
V
V
V
V
V
V
V
V
UNIT
mA
mV
rms
dB
%
%
dB
dB
mV
rms
mV
rms
mV
rms
%
dB
dB
dB
kΩ
mA
mA
mA
For DC CHARACTERISTICS
(T
A
= 25°C, V
CC
= 8V, terminal Voltage at No Signal)
PIN NO.
PARAMETER
SYMBOL
MIN
TYP
1
Composite Signal Input
Input
3.5
2
PLL Low-Pass Filter
LPF1
6.6
3
V
CC
V
CC
8.0
4
V
CO
V
CO
7.1
5
Ground
GND
0
6
Stereo Lamp
SLED
7
Pilot Detect Low-Pas Filter
LPF2
7.4
8
L-ch output
L-ch
4.0
9
R-ch output
R-ch
4.0
For AC ELECTRICAL CHARACTERISTICS
(T
A
= 25°C, V
CC
= 8V, f = 1kHz, unless otherwise specified)
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP MAX
Supply Current
I
CC
at Lamp off
11
18
900
Maximum Input Voltage(Stereo)
V
IN(MAX)
L+R = 90%，P = 10%
Channel Separation
CS
L+R = 180 mV
rms
, P = 20mV
rms
36
45
Monaural
V
IN
= 200mV
rms
0.08
0.3
Total Harmonic Distortion
THD
Stereo
L+R = 180 mV
rms
, P = 20mV
rms
0.08
Voltage Gain
G
V
V
IN
= 200mV
rms
-2.0
0.5
+2.0
Channel Balance
C
B
V
IN
= 200mV
rms
0
1.5
ON
V
L(ON)
9
15
Lamp Sensitivity
Pilot Input
OFF
V
L(OFF)
2
6
Stereo Lamp Hysteresis
V
HYS
To Turn Off from Lamp Turn On
3
Capture Range
C
R
P = 20mV
rms
±3
19kHz
34
Carrier Leak
C
L
L+R = 180 mV
rms
, P = 20mV
rms
38kHz
42
L+R = 160 mV
rms
, P = 20mV
rms
SCA Rejection Ratio
SCA Rej.
70
SCA = 20mV
rms,
f
SCA
= 67kHz
Signal to Noise Ratio
S/N
V
IN
= 200mV
rms
, f = 1kHz, R
G
= 620Ω
74
Input Resistance
R
IN
33
V
CC
= 3.5V
0.3
0.6
Output Current (Pins 8, 9)
I
OUT
R
L
= 3.3kΩ
V
CC
= 8.0V
1.2
1.8
V
CC
= 12V
1.4
2.1
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 4
QW-R110-018.B
A6043
TEST CIRCUIT
LINEAR INTEGRATED CIRCUIT
UTC A6043
C7 0.015μF
1
2
SG
C1
10μF
+
SW1
1
-
+
R1
1kΩ
2
3
*C4 1000pF
4
R2
9.1kΩ
5
6
R5
560Ω
7
8
R6 3.3kΩ
9
C8
4.7μF
-
L
C7 0.015μF
-
R
19kHz
≤
55dB
38kHz
≤
55dB
Filter
* POLYSTIROLL CAPACITOR
SW2
R4
330kΩ
F.C
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
+
C2
3.3μF
C5 1μF
LED
R3
4.7kΩ
R8
220kΩ
SW3
V
CC
GND
VCO STOP
+
C3
1μF
R7
3.3kΩ
+
-
+
-
C9
4.7μF
-
K.F
+
-
C10
100μF
38kHz
MONITOR
4 of 4
QW-R110-018.B
