SMQ4110

Quad 1 Form A

250V / 300Ω

MOSFET Output Solid State Relay

Description

The SMQ4110 is a bi-directional, quad-pole, single-throw,

normally open MOSFET output solid-state relay. This

device offers four discrete and independently controlled

optically isolated SSRs in one miniature 16 pin SOIC

package. Each discrete relay consists of an infrared LED,

optically coupled to a Photo Diode Array, which in turn

drives a pair of back-to-back enhancement MOSFETs. The

output structures offer very fast switching speeds (50S

TYP) and very low leakage current (10nA TYP).

The SMQ4110 comes standard in a 16 SOIC package.

Features



Quad Pole Switching / Small 16 SOIC Package

Fast Turn On Speed (<50S TYP)

Ultra Low Leakage Current (<10nA TYP)

40mA Maximum Continuous Load Current

High Isolation Voltage (2.5kV

RMS

)

Long Life / High Reliability

RoHS / Pb-Free / REACH Compliant

Agency Approvals

UL / C-UL:

VDE:

File # E201932

File # 40035191 (EN 60747-5-2)

Applications



Data Acquisition

Meter Reading Systems

Medical Equipment

Battery Monitoring

Multiplexers

Absolute Maximum Ratings

The values indicated are absolute stress ratings. Functional

operation of the device is not implied at these or any

conditions in excess of those defined in electrical

characteristics section of this document. Exposure to

absolute Maximum Ratings may cause permanent damage

to the device and may adversely affect reliability.

Storage Temperature …………………………..-55 to +125°C

Operating Temperature ………………………-40 to +85°C

Continuous Input Current ………………………………..40mA

Transient Input Current ………………….……………..400mA

Reverse Input Control Voltage …………..…………………5V

Input Power Dissipation …………………………………70mW

Total Power Dissipation ……………………………..500mW

Solder Temperature – Wave (10sec)……………….….260°C

Solder Temperature – IR Reflow (10sec)….…………..260°C

Schematic Diagram

(+) Input (Pole 1)

1

16 (+/-) Load (Pole 1)

(-) Input (Pole 1)

2

15 (-/+) Load (Pole 1)

(+) Input (Pole 2)

3

14 (+/-) Load (Pole 2)

(-) Input (Pole 2)

4

13 (-/+) Load (Pole 2)

(+) Input (Pole 3)

5

12 (+/-) Load (Pole 3)

Ordering Information

(-) Input (Pole 3)

6

11 (-/+) Load (Pole 3)

Part Number

SMQ4110

SMQ4110-TR

Description

16 pin SOIC, (46/Tube)

16 pin SOIC, Tape and Reel (1000/Reel)

(+) Input (Pole 4)

7

10 (+/-) Load (Pole 4)

(-) Input (Pole 4)

8

9

(-/+) Load (Pole 4)

SMQ4110

NOTE: Suffixes listed above are not included in marking on

device for part number identification

•

San José, CA

www.ssousa.com

•

+1.408.293.4600

Page 1 of 8

SMQ4110 /TR

Rev 2.00 (11/25/2013)

001754

SMQ4110

Quad 1 Form A

250V / 300Ω

MOSFET Output Solid State Relay

Electrical Characteristics,

T

A

= 25°C (unless otherwise specified)

Parameter

Input Specifications

LED Forward Voltage

LED Reverse Voltage

Turn-On Current (LED Trigger)

Turn-Off Current

Terminal Capacitance

V

F

BV

R

I

F

I

FOFF

C

t

-

5

-

1.2

-

2.5

0.5

30

1.5

-

5

-

V

mA

pF

I

F

= 10mA

I

R

= 10μA

I

O

= 40mA

I

O

= 40mA

V=0, f=1MHz

Symbol

Min.

Typ.

Max.

Units

Test Conditions

Output Specifications

Blocking Voltage

Continuous Load Current

On Resistance

Leakage Current

Output Capacitance

Offset Voltage

V

B

I

O

R

ON

I

Oleak

C

OUT

V

OFFSET

250

-

225

10

1.5

-

40

300

100

-

0.2

V

mA

Ω

nA

pF

mV

I

F

=0mA, I

O

=1A

I

F

=5mA

I

F

=5mA, I

O

=40mA

V

O

=250V

I

F

=0mA, f=1.0MHz

I

F

=5mA

Coupled Specifications

Turn-On Time

Turn-Off Time

Input to Output Capacitance

Contact Transient Ratio

T

ON

T

OFF

C

S

-

2,000

50

150

3

7,000

500

-

0

S

pF

V/S

I

F

=5mA, I

O

=40mA

I

F

=0mA, I

O

=40mA

V=0, f=1MHz

dV = 50V

Isolation Specifications

Isolation Voltage

Input-Output Resistance

V

ISO

R

I-O

2500

-

10

12

-

V

RMS



RH

≤

50%, t=1min

RH

≤

50%, V

I-O

= 500V

DC

•

San José, CA

www.ssousa.com

•

+1.408.293.4600

Page 2 of 8

SMQ4110 /TR

Rev 2.00 (11/25/2013)

001754

SMQ4110

Quad 1 Form A

250V / 300Ω

MOSFET Output Solid State Relay

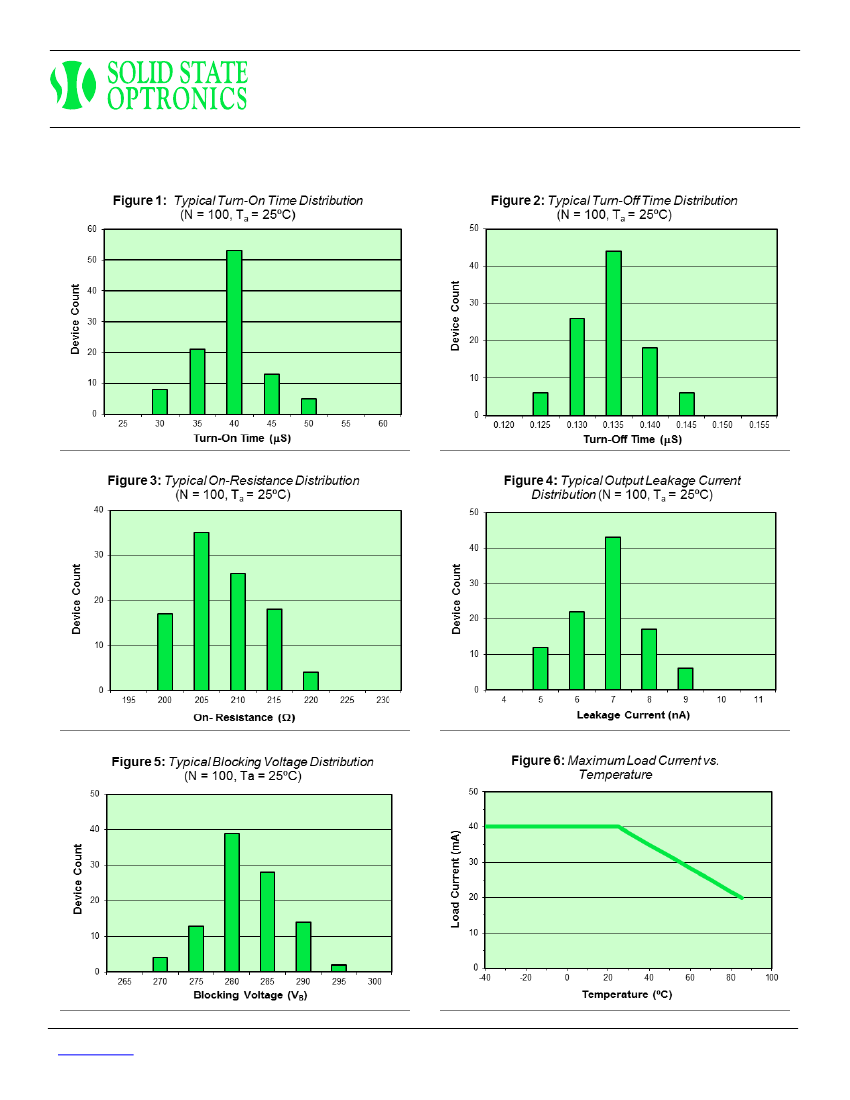

SMQ4110 Performance & Characteristics Plots,

T

A

= 25°C (unless otherwise specified)

•

San José, CA

www.ssousa.com

•

+1.408.293.4600

Page 3 of 8

SMQ4110 /TR

Rev 2.00 (11/25/2013)

001754

SMQ4110

Quad 1 Form A

250V / 300Ω

MOSFET Output Solid State Relay

SMQ4110 Solder Reflow Temperature Profile Recommendations

(1)

Infrared Reflow:

Refer to the following figure as an example of an optimal temperature profile for single occurrence infrared reflow.

Soldering process should not exceed temperature or time limits expressed herein. Surface temperature of device

package should not exceed 250ºC:

G

F

D

E

H

B

A

C

Process

Step

A

B

C

D

E

F

G

H

Description

Preheat Start Temperature (ºC)

Preheat Finish Temperature (ºC)

Preheat Time (s)

Melting Temperature (ºC)

Time above Melting Temperature (s)

Peak Temperature, at Terminal (ºC)

Dwell Time at Peak Temperature (s)

Cool-down (ºC/s)

150ºC

180ºC

90 - 120s

230ºC

30s

260ºC

10s

<6ºC/s

Parameter

(2)

Wave Solder:

Maximum Temperature:

Maximum Time:

Pre-heating:

Single Occurrence

260ºC (at terminal)

10s

100 - 150ºC (30 - 90s)

(3)

Hand Solder:

Maximum Temperature:

Maximum Time:

Single Occurrence

350ºC

3s

(at tip of soldering iron)

•

San José, CA

www.ssousa.com

•

+1.408.293.4600

Page 4 of 8

SMQ4110 /TR

Rev 2.00 (11/25/2013)

001754

SMQ4110

Quad 1 Form A

250V / 300Ω

MOSFET Output Solid State Relay

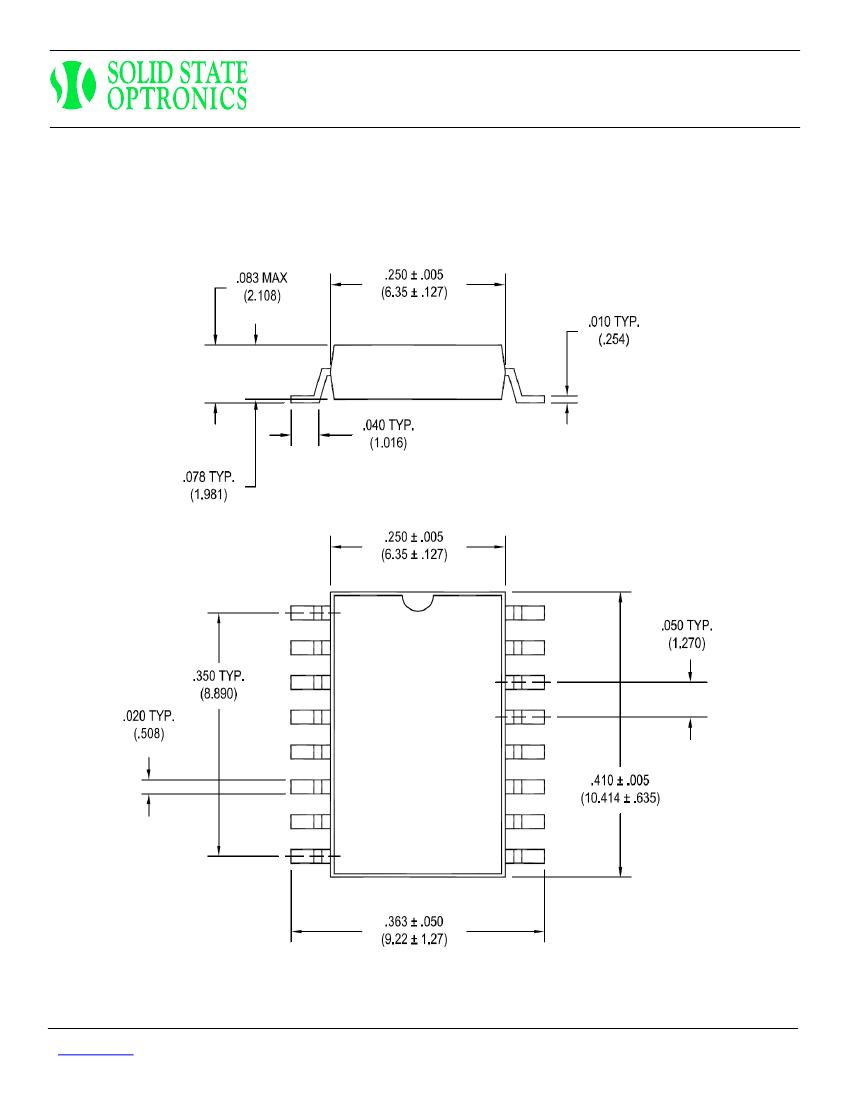

SMQ4110 Package Dimensions

16 PIN SOIC Package

Note:

All dimensions in inches [“] with millimeters in parenthesis (mm)

•

San José, CA

www.ssousa.com

•

+1.408.293.4600

Page 5 of 8

SMQ4110 /TR

Rev 2.00 (11/25/2013)

001754

SMQ4110

SMQ4110 Overview

Preview

Recommended Resources
