SHEET 1 OF 1
n
16.00
n
18.00
[.709 in]
[.630 in]

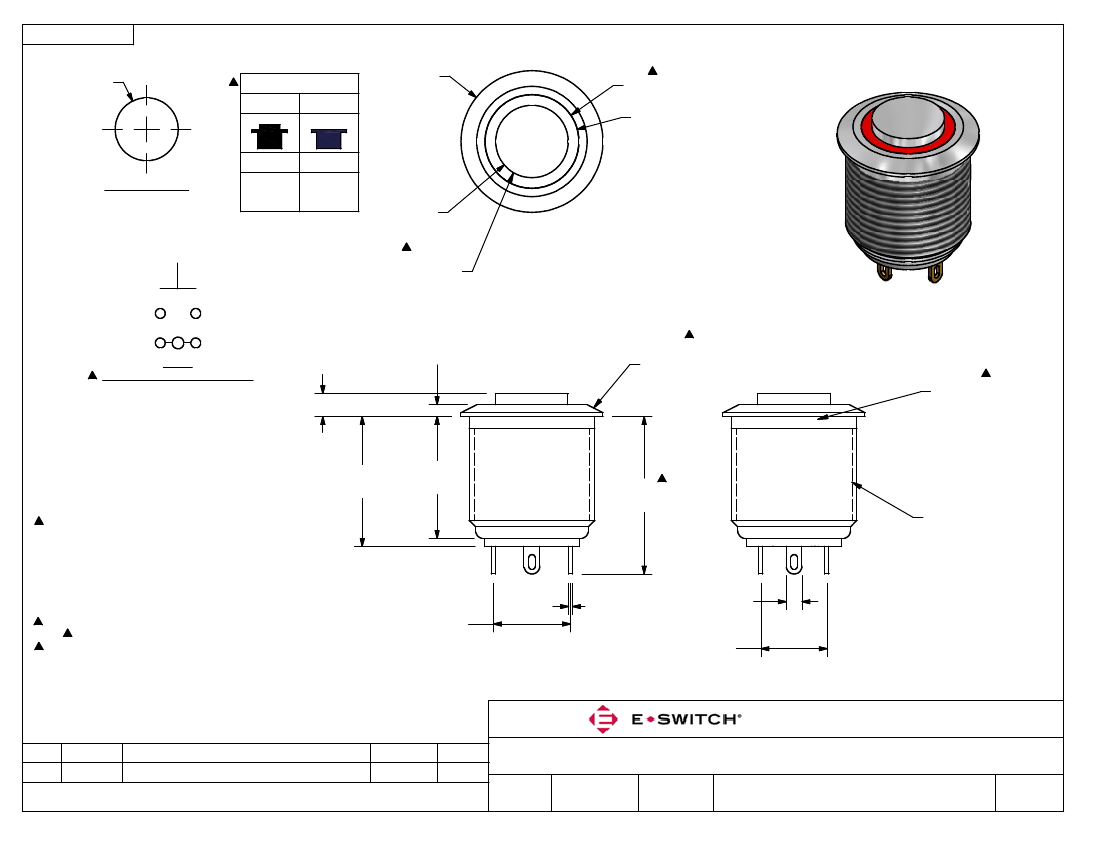

SWITCH FUNCTION
POS. 1
POS. 2
RING ILLUMINATION
n
11.90
[.469 in]
OFF
PANEL CUTOUT
MAX. PANEL THICKNESS
10.0mm [.315 in]
OPEN
(ON)
1-2
(ON) = MOMENTARY
n
9.20
[.362 in]
HIGH ACTUATOR
MACHINE FINISH
STAINLESS STEEL
1
-
L
2
+
2.90
[.114 in]
1.50
[.059 in]
BODY FINISH
MACHINE FINISH
STAINLESS STEEL
SPDT
CONTACT CONFIGURATION
NOTE 15
HARDWARE SUPPLIED
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
16.50
`
.50
2. GENERAL TOLERANCE: X.X=±0.4
[.650
`
.020
in]
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. CONTACT MATERIAL: SILVER PLATED
5. RATING: 2A 48VDC
6. ELECTRIC LIFE: 200,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 M MIN.
8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE
9. CONTACT RESISTANCE: 50m MAX. @ 1A 12VDC
10. OPERATING TEMP.: -20° to 55°
C
C
11. TRAVEL: 1.8mm
12. DENOTES CRITICAL PARAMETER.
13. ILLUMINATION COLOR: RED
14. HARDWARE SUPPLIED: O-RING AND HEXNUT (NOT SHOWN)
15. ILLUMINATION BASE RATING: 20mA 1.8V
16. 2002/95/EC (ROHS) COMPLIANT
15.50
[.610 in]
20.00
`
.50
[.787
`
.020
in]
M16x1.0
2
(-)
1
.50
[.020 in]
(-)
2.00
[.079 in]
8.40
[.331 in]
1
(+)
9.80
[.386 in]
A
REV
20902
PCR NO
RELEASE FOR PRODUCTION
DESCRIPTION
12/3/12
DATE
EBP
BY
TITLE
SCALE
PV6H240SS-311
DATE
DR
DWG
REV
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
12/3/2012 EBP
52-PV6H240SS311
A
