Crimp
XM

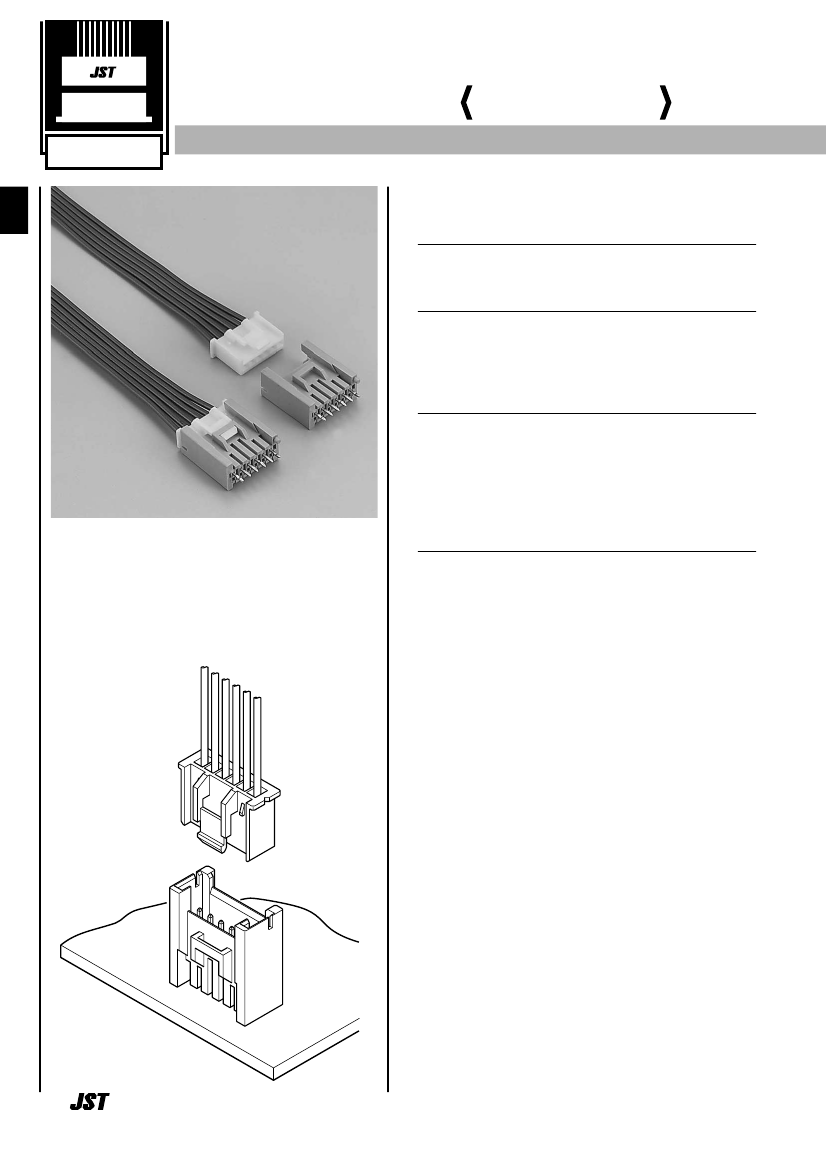

CONNECTOR High box type
Disconnectable Crimp style connectors
Features ––––––––––––––––––––––––
• Interchangeability
The housing is matable with the XM receptacle housing for
wire-to-wire connection.
2.5mm
(.098") pitch
• Inner-housing lock
This inner-housing lock secures the plug to the receptacle and
prevents accidental disconnection. The lock is protected and
is not affected by external forces that might result from the
routing of wires.
• Secondary retainers
The secondary retainers enhance safety in case of partial
insertion or accidental release of the contact. Even if a contact
is inserted incompletely, the retainer guides the contact to the
proper position and securely locks it in place.
High-box type XM connector with 8.9mm
(.350") depth and 20.0mm (.787") height
after assembly.
• Header for 2.5mm (.098") pitch XM connector
for use specifically with resin coated
("potted") PC boards
This header is tall and fully shrouded so as to prevent the resin
used to coat the PC board from coming into contact with the
mating pins.
120
Fa
1
2
3
4
5
6
ST
HJ
Specifications –––––––––––––––––––
• Current rating: 3A AC,DC (AWG#22, #20)
• Voltage rating: 250V AC,DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m
Ω
max.
After environmental testing/20m
Ω
max.
• Insulation resistance: 500M
Ω
min.
• Withstanding voltage: 1,000V AC/minute
• Applicable wire: AWG #28 to #20
• Applicable PC board thickness: 1.6mm (.063")
* Contact JST if Lead-Free product is required.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
XM
CONNECTOR High box type
Contact––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Model No.
1.9(.075)
mm
2
0.22 to 0.50
0.08 to 0.33
Applicable wire
Q'ty /
Insulation O.D. mm(in.) reel
AWG #
24 to 20
28 to 22
1.5 to 1.9(.059 to .075)
1.2 to 1.9(.047 to .075)
8,000
8,000
SXA- 01T-P0.6
SXA-001T-P0.6
6.5(.256)
3.1(.122)
2.9(.114)
1.3
(.051)
0.8(.031)
Material and Finish
Phosphor bronze, tin-plated
Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
2
3
4
5
6
7
8
9
2.3(.091)
Model No.
XMP-02V
XMP-03V
XMP-04V
XMP-05V
XMP-06V
XMP-07V
XMP-08V
XMP-09V
XMP-10V
Dimensions mm(in.)
A
2.5(.098)
5.0(.197)
7.5(.295)
10.0(.394)
12.5(.492)
15.0(.591)
17.5(.689)
20.0(.787)
22.5(.866)
B
8.8( .346)
9.8( .386)
12.3( .484)
14.8( .583)
17.3( .681)
19.8( .780)
22.3( .878)
24.8( .976)
27.3(1.075)
Q'ty /
bag
1,000
1,000
1,000
500
500
500
500
500
500
2.5(.098)
10
A
B
Material
Nylon 66, UL94V-0
11.5(.453)
12.0(.472)
6.3(.248)
7.7(.303)
Retainer –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
2
3
4
5
6
A
Model No.
XMS-02V
XMS-03V
XMS-04V
XMS-05V
XMS-06V
XMS-07V
XMS-08V
XMS-09V
XMS-10V
Material
Glass-filled nylon 66, UL94V-0
A
2.5( .098)
5.0( .197)
7.5( .295)
10.0( .394)
12.5( .492)
15.0( .591)
17.5( .689)
20.0( .787)
22.5( .886)
Q'ty / bag
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
7
8
2.5
(.098)
9
10
2.5
(.098)
7.8(.307)
0.95(.037)
121
XM
CONNECTOR High box type
Shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
2
3
4
5
6
7
8
Model No.
BH02B-XMSK
BH03B-XMSK
BH04B-XMSK
BH05B-XMSK
BH06B-XMSK
BH07B-XMSK
BH08B-XMSK
BH09B-XMSK
BH10B-XMSK
Dimensions mm(in.)
A
2.5(.098)
5.0(.197)
7.5(.295)
10.0(.394)
12.5(.492)
15.0(.591)
17.5(.689)
20.0(.787)
22.5(.886)
B
8.9( .350)
9.9( .390)
12.4( .488)
14.9( .587)
17.4( .685)
19.9( .783)
22.4( .882)
24.9( .980)
27.4(1.079)
Q'ty /
bag
770
700
525
455
385
315
280
245
245
B
8.9(.350)
18.8(.740)
9
10
1.5(.059)
Material and Finish
Post: Copper alloy, copper-undercoated, tin/lead-plated
Wafer: Glass-filled nylon 66, UL94V-0
2.5(.098)
A
PC board layout
(viewed from soldering side)
and Assembly layout –––––––––––––––––––
8.9(.350)
1.55
±0.05(.061±.002)
2.5
±0.05
(.098±.002)
1.7
±0.05(.067±.002)dia.
0.1
0.9
+
0
(.035
+.004
)dia.
0
Note:
1. Tolerances are non-cumulative:
±
0.05mm(
±
.002") for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method.
The dimensions above should serve as a guideline. Contact JST for details.
Applicator for the semi-automatic press AP-K2N –––––––––––––––––––––––––––––––
Contact
SXA-001T-P0.6
SXA-01T-P0.6
Crimp applicator MKS-L
with safety cover
without safety cover
APLMK SXA/M001-06
APLMK SXA01-06
APLNC SXA/M001-06
APLNC SXA01-06
Compact crimp applicator MKS-LS
with safety cover
without safety cover
–
–
–
–
20.0(.787)
A±0.1(.004)
3.15±0.05
(.124±.002)
[3.5
(.138)]
Strip-crimp applicator MKS-SC
with safety cover
APLSC SXA/M001-06
APLSC SXA/M01-06
122
