VXA7-5E4-FREQ: DescriptionParallel - 5Th Overtone Quartz Crystal, 1.8232MHz Min, 150MHz Max; CategoryPassive components Crystal/resonator; File Size41KB，2 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/; Environmental Compliance

Download Datasheet Parametric View All

VXA7-5E4-FREQ Overview

Parallel - 5Th Overtone Quartz Crystal, 1.8232MHz Min, 150MHz Max

VXA7-5E4-FREQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vectron International, Inc.
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - 5TH OVERTONE
Drive level	1000 µW
frequency stability	0.0025%
frequency tolerance	25 ppm
JESD-609 code	e2
load capacitance	18 pF
Manufacturer's serial number	VXA7
Installation features	SURFACE MOUNT
Maximum operating frequency	150 MHz
Minimum operating frequency	1.8232 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
surface mount	YES
Terminal surface	Tin/Silver (Sn/Ag)

Preview

Download Datasheet

View All

VXA7 Microprocessor Crystals

Package Options

Frequency Range

Standard Frequencies

Mode

A7

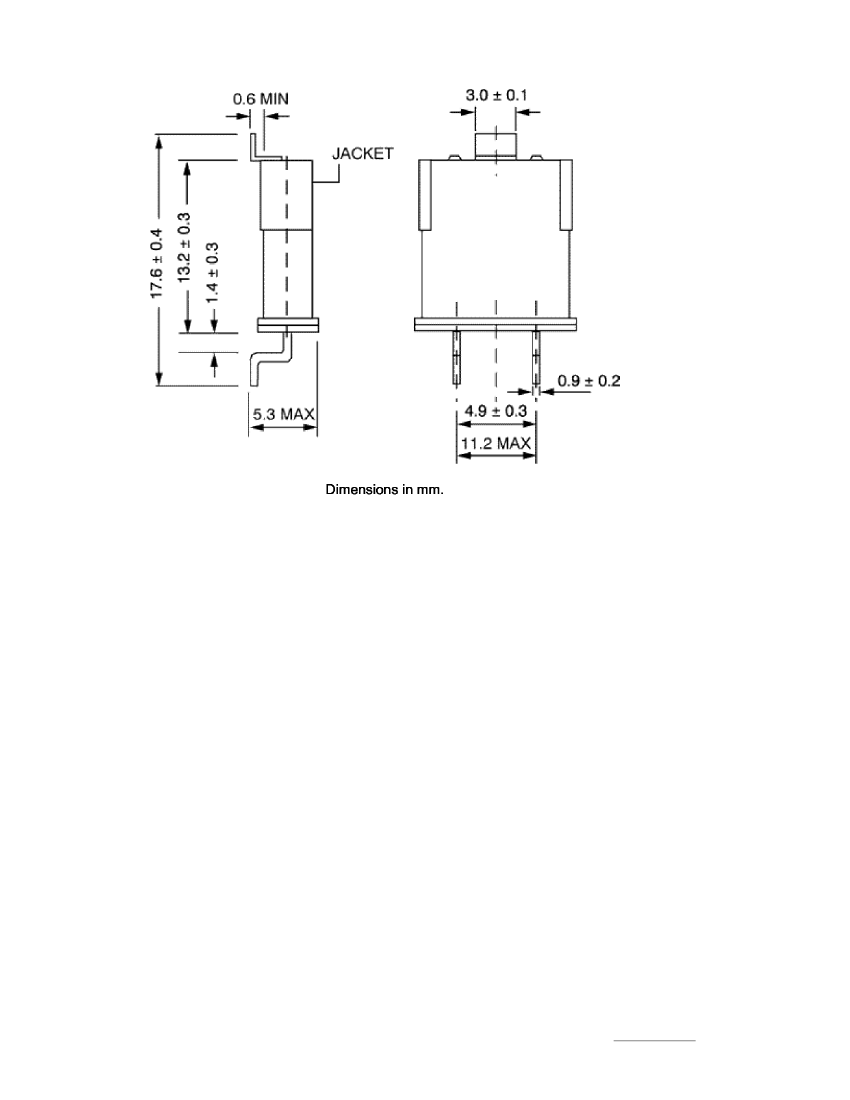

= HC-49/U 13.5 mm tall with gull leads

1.8432 M Hz to 150.00 M Hz

See

Standard Frequency Table

1

= Fundamental (1.8432 to 30 MHz)

3

= 3

rd

Overtone (24 to 85 MHz)

5 =

5

th

Overtone (< 150 MHz)

A

= ±100 PPM -20°C to +70°C

B

= ±50 PPM -20°C to +70°C

C

= ±100 PPM -40°C to +85°C

D

= ±50 PPM -40°C to +85°C

E

= ±25 PPM -20°C to +70°C

F

= ±30 PPM -20°C to +70°C

0

= Series Resonant

1

= 16 pF

2

= 20 pF

3

= 32 pF

4

= 18 pF

5

= 10 pF

6

= 30 pF

±25 PPM at +25°C

Tolerances to ±10 PPM are available

Stability Options

Load Capacitance

STD Calibration

Tolerance

Equivalent Series

Resistance

Shunt Capacitance

Drive Level Crystal

Aging Standard

Packaging Typical

P/N

See

ESR Table I

7 pf Maximum

10 to 1,000 uW

<5 ppm/1

st

year

Tape & Reel (1000 pc minimum)

VXA7-3B2-40M000

A7

= HC/49U package with gull leads

3

= 3

rd

overtone

B

= ±50 PPM -20°C to +70°C

2

= 20 pF load

Generate your own part number!

We welcome your custom requests and will issue a custom part

number for items that are not listed.

Vectron International, 267 Lowell Rd, Hudson NH 03051-4916

Tel: 1-88-VECTRON-1

Website: www.vectron.com
