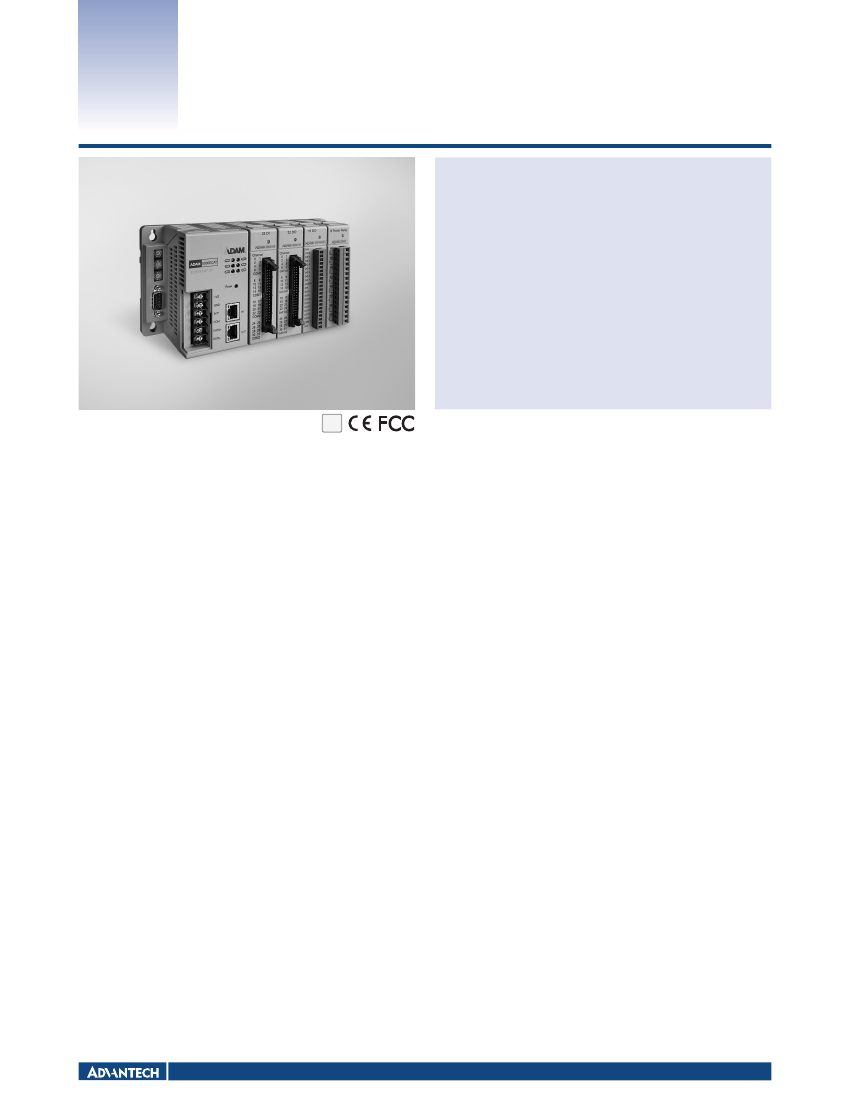

ADAM-5000/ECAT
4-slot Distributed High Speed
I/O System for EtherCAT
Features
32-bit ARM RISC Processor
4 slots with various digital and analog I/O modules is just a single EtherCAT
node on the network.
Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode
Supports the Modular Device Profile (MDP) when all modules are a pure I/O
function
Configure I/O module parameters and upgrade via a utility
Node addresses can be fixed by rotary switches, or set by software.
Compatible with Advantech Common Motion SDK or other EtherCAT master
through ENI file generation
8-bit DIP switch for Mode setting and three rotate switch for up to 4,096 slave
IDs (x1, x10, x100)
* I/O modules are optional
RoHS
2002/95/EC
COMPLIANT
Introduction
The ADAM-5000/ECAT 4-slot distributed flexible system can provide high-speed, high-precision remote I/O for EtherCAT. It is the link between the EtherCAT automation control
network and the EtherCAT I/O modules ranging from basic DI/O's to high-speed AI/O models for different application scenarios. All our EtherCAT devices have been designed and
tested to meet Advantech's stringent requirements on noise immunity. Fast, accurate, highly -efficient data transmission and easy remote configuration make ADAM-5000/ECAT the
perfect match in industrial automation architecture.
Specifications
Control System
CPU
I/O Slots
Memory
LED Indicators
32-bit ARM RISC Processor
4
Flash ROM: 64M SPI
RAM: 4G DDR3
Power LED
System status LED
EtherCAT RUN LED
EtherCAT ERROR LED
EtherCAT Port 0 LINK LED
EtherCAT Port 1 LINK LED
Protection
I/O Module Isolation
LAN Communication
Overvoltage Protection
Power Reversal
Protection
3.000 V
DC
1.500 V
DC
Yes
Yes
General
Certification
Connectors
CE, FCC class A
1 x Screw-terminal for RS-485 (communication)
1 x DB9-M for RS-232 (internal use)
1 x Screw-terminal for power input
2 x RJ-45 for LAN
231 x 110 x 75 mm
DIN-rail, wall
5 ~ 95%, non-condensing
- 10 ~ 70°C (14 ~ 158°F)
- 25 ~ 85°C (-13 ~ 185°F)
Communications
Data Transfer Rate
Communication Cycle Time
Interface
Wiring
Up to 100 Mbps
100 us
2 x RJ-45
UTP, category 5 or greater
2.5 W @ 24 V
DC
(not including I/O modules)
10 ~ 30 V
DC
Advantech Common Motion Library
Network setting, I/O configuration
Dimensions (W x H x D)
Mounting
Environment
Operating Humidity
Operating Temperature
Storage Temperature
Power
Power Consumption
Power Input
Ordering Information
ADAM-5000/ECAT
4-slot EtherCAT Distributed High Speed I/O
System
Software
API
Windows Utility
Motion Control
All product specifications are subject to change without notice
Date updated: 25-May-2015
