SQE48T10120-NDA0G Overview

DC-DC Regulated Power Supply Module, 1 Output, 120W, Hybrid, PACKAGE-8

SQE48T10120-NDA0G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bel
package instruction	PACKAGE-8
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	20 weeks
Other features	REMOTE SHUTDOWN
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Certification	CSA, EN, IEC, UL
Efficiency (main output)	93%
high	9.5 mm
Maximum input voltage	75 V
Minimum input voltage	36 V
Nominal input voltage	48 V
JESD-30 code	R-XDMA-P8
JESD-609 code	e3
length	58.42 mm
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	10 A
Maximum output voltage	13.2 V
Minimum output voltage	9.6 V
Nominal output voltage	12 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Ripple voltage (main output)	0.0707 Vrms
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	120 W
Fine-tuning/adjustable output	YES
width	22.76 mm

SQE48T10120-NDA0G Preview

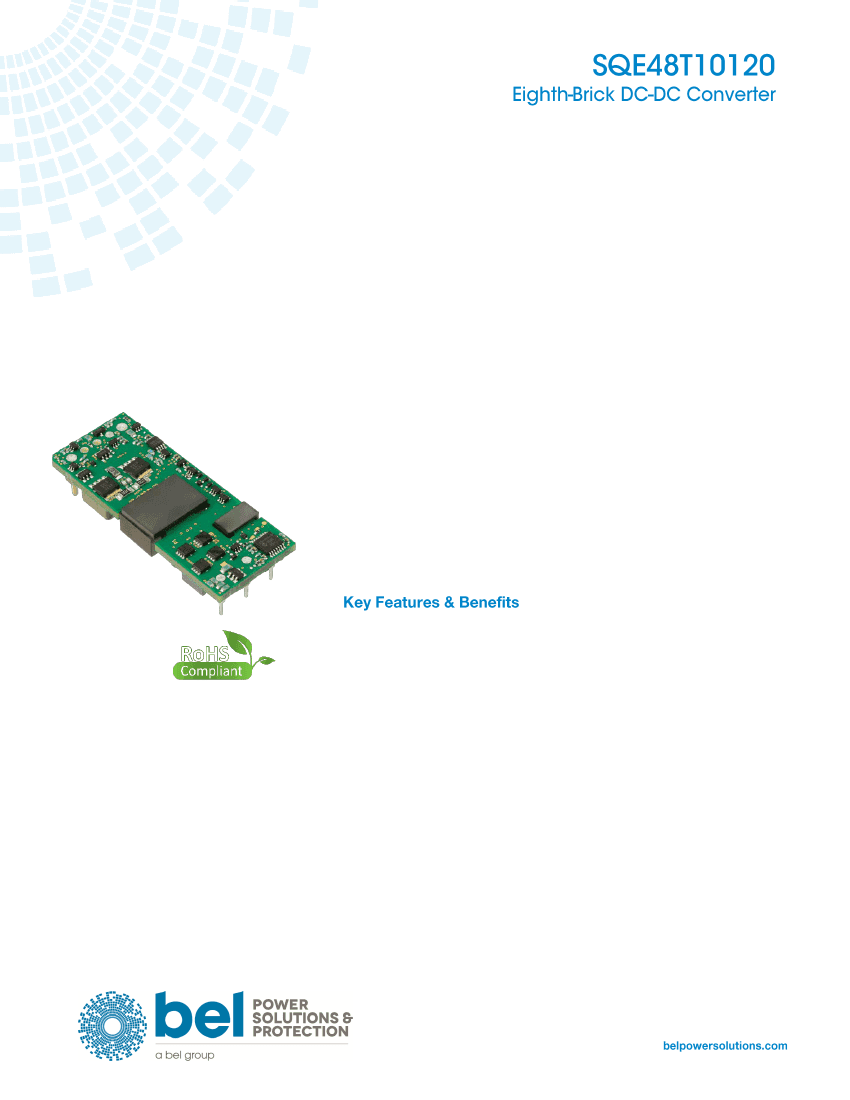

The new high performance 10A SQE48T10120 DC-DC converter provides a

high efficiency single output, in a 1/8th brick package that is only 62% the size

of the industry-standard quarter-brick. Specifically designed for operation in

systems that have limited airflow and increased ambient temperatures, the

SQE48T10120 converter utilize the same pinout and functionality of the

industry-standard quarter-bricks.

The SQE48T10120 converter thermal performance is accomplished through

the use of patented/patent-pending circuits, packaging, and processing

techniques to achieve ultra-high efficiency, excellent thermal management,

and a low-body profile.

Low-body profile and the preclusion of heat sinks minimize impedance to

system airflow, thus enhancing cooling for both upstream and downstream

devices. The use of 100% automation for assembly, coupled with advanced

electronic circuits and thermal design, results in a product with extremely high

reliability.

Operating from a 36-75V input, the SQE48T10120 converter provides a 12V

output voltage that can be trimmed from –20% to +10% of the nominal output

voltage, thus providing outstanding design flexibility.

With standard pinout and trim equations, the SQE48T10120 converter is a

perfect drop-in replacement for existing 10A quarter-brick designs. Inclusion

of this converter in a new design can result in significant board space and cost

savings. The designer can expect reliability improvement over other available

converters because of the SQE48T10120’s optimized thermal efficiency.



36-75 VDC Input; 12 VDC @ 10 A Output

Industry-standard quarter-brick pinout

Delivers 120W at 93% efficiency

Withstands 100 V input transient for 100 ms

Fixed-frequency operation

On-board input differential LC-filter

Start-up into pre-biased load

No minimum load required

Output voltage trim range: +10%/−20% with industry-standard trim

equations

Fully protected

Remote output sense

Positive or negative logic ON/OFF option

Approved to the latest edition of the following standards:

UL/CSA60950-1, IEC60950-1 and EN60950-1.

Designed to meet Class B conducted emissions per FCC and EN55022

when used with external filter

All materials meet UL94, V-0 flammability rating

RoHS lead-free solder and lead-solder-exempted products are

available

Asia-Pacific

+86 755 298 85888

Europe, Middle East

+353 61 225 977

North America

+1 866 513 2839

BCD.00723_AA

Conditions: T

= 25 ºC, Airflow = 300 LFM (1.5 m/s), Vin = 48 VDC, Cin = 33 µF, unless otherwise specified.

PARAMETER

CONDITIONS / DESCRIPTION

MIN

TYP

MAX

UNITS

Absolute Maximum Ratings

Input Voltage

Operating Ambient Temperature

Storage Temperature

Continuous

Transient, 100ms

-0.3

-40

-55

100

125

VDC

°C

Isolation Characteristics

I/O Isolation

Isolation Capacitance

Isolation Resistance

I/O Isolation

Isolation Capacitance

Isolation Resistance

Option

(refer to Ordering Information)

Standard Product:

Option

(refer to Ordering Information)

2250

190

1500

1200

1500

VDC

MΩ

VDC

MΩ

Feature Characteristics

Switching Frequency

Output Voltage Trim Range

Remote Sense Compensation

Output Overvoltage Protection

Overtemperature Shutdown (PCB)

Auto-Restart Period

Turn-On Time from Vin

Turn-On Time from ON/OFF Control

Turn-On Time from Vin

Turn-On Time from ON/OFF Control

ON/OFF Control (Positive Logic)

Converter On (logic high)

Converter Off (logic high)

ON/OFF Control (Negative Logic)

Converter On (logic low)

-20

0.8

VDC

2.4

VDC

Industry-standard trim equations

Percent of V

OUT

(

NOM

)

Non-latching

Applies to all protection features

Time from UVLO to Vo = 90% V

OUT

(

NOM

)

Resistive load

Time from ON to Vo = 90% V

OUT

(

NOM

)

Resistive load

Time from UVLO to Vo = 90% V

OUT

(

NOM

)

Resistive load and 5,000 µF load

Time from ON to Vo = 90% V

OUT

(

NOM

)

Resistive load and 5,000 µF load

Converter Off (logic low)

-20

200

0.8

117

122

-20

500

+10

135

140

kHz

°C

VDC

Input Characteristics

Operating Input Voltage Range

Turn-on Threshold

Input Undervoltage Lockout

Turn-off Threshold

Lockout Hysteresis Voltage

Maximum Input Current

Po = 120 W @ 36 VDC In

1.5

3.6

VDC

ADC

VDC

Vout can be increased up to 10% via the sense leads or 10% via the trim function. However, the total output voltage trim from all

sources should not exceed 10% of V

OUT

(nom), in order to ensure specified operation of overvoltage protection circuitry.

tech.support@psbel.com

Input Standby Current

Input No Load Current

(No load on the output)

Input Reflected-Ripple Current,

Input Reflected-Ripple Current

, i

Input Voltage Ripple Rejection

Vin = 48 V, converter disabled

Vin = 48 V, converter enabled

Vin = 48 V, 25 MHz bandwidth, Po = 120 W

510

180

PK-PK

RMS

PK-PK

RMS

120 Hz

Output Characteristics

Output Voltage Setpoint

Output Regulation

Over Line

Over Load

Output Voltage Range

Output Ripple and Noise – 25 MHz

bandwidth

Admissible External Load Capacitance

Full load (resistive)

Output Current Range

Current Limit Inception

Peak Short-Circuit Current

RMS Short-Circuit Current

Non-latching

Non-latching, Short = 10 mΩ

Non-latching

Full load, Room temperature

Vin = 48 V, Room temperature

Over line, load and temperature

Full load + 10 µF tantalum + 1 µF ceramic

CEXT

ESR

TBD

11.76

±10

±24

12.24

200

5000

TBD

2.5

VDC

PK-PK

µF

mOhm

ADC

Vin = 48 V, No load, Room temperature

11.88

12.12

VDC

Dynamic Response

Load Change 50%-75%-50% of Iout Max,

di/dt = 0.1 A/μs

Settling Time to 1% of Vout

Co = 10µF tantalum + 1µF ceramic

100

µs

Efficiency

100% Load

50% Load

92.7

Environmental

Operating / Storage Humidity

Non-condensing

Mechanical

Weight

Vibration

Shocks

GR-63-CORE, Sect. 5.4.2

Half Sinewave, 3-axis

22.5

Reliability

MTBF

Telcordia SR-332, Method I Case 1

50% electrical stress, 40°C components

TBD

MHrs

EMI and Regulatory Compliance

Conducted Emissions

CISPR 22 B with specified EMI filter network

tech.support@psbel.com

These power converters have been designed to be stable with no external capacitors when used in low inductance input

and output circuits.

However, in some applications, the inductance associated with the distribution from the power source to the input of the

converter can affect the stability of the converter. A 33 µF electrolytic capacitor with an ESR < 1

Ω

across the input is

recommended to ensure stability of the converter.

In many applications, the user has to use decoupling capacitance at the load. The power converter will exhibit stable

operation with external load capacitance up to 5000 µF.

The ON/OFF pin is used to turn the power converter on or off remotely via a system signal. There are two remote control

options available, positive and negative logic, with both referenced to Vin(-). A typical connection is shown in Figure A.

Vin (+)

SQE48 Converter

(Top View)

Vout (+)

SENSE (+)

TRIM

SENSE (-)

Rload

Vin

ON/OFF

Vin (-)

CONTROL

INPUT

Vout (-)

Figure A. Circuit configuration for ON/OFF function.

The positive logic version turns on when the ON/OFF pin is at a logic high and turns off when at a logic low. The converter

is on when the ON/OFF pin is left open. See the Electrical Specifications for logic high/low definitions.

The negative logic version turns on when the pin is at a logic low and turns off when the pin is at a logic high. The ON/OFF

pin can be hard wired directly to Vin(-) to enable automatic power up of the converter without the need of an external control

signal.

The ON/OFF pin is internally pulled up to 5V through a resistor. A properly de-bounced mechanical switch, open-collector

transistor, or FET can be used to drive the input of the ON/OFF pin. The device must be capable of sinking up to 0.2 mA at

a low level voltage of



0.8 V. An external voltage source (±20 V maximum) may be connected directly to the ON/OFF input,

in which case it must be capable of sourcing or sinking up to 1 mA depending on the signal polarity.

See the Startup Information section for system timing waveforms associated with use of the ON/OFF pin.

The remote sense feature of the converter compensates for voltage drops occurring between the output pins of the converter

and the load. The SENSE(-) (Pin 5) and SENSE(+) (Pin 7) pins should be connected at the load or at the point where regulation

is required (see Figure B).

SQE48 Converter

Vin (+)

(Top View)

ON/OFF

Vout (+)

100

SENSE (+)

Vin

TRIM

SENSE (-)

Rload

Vin (-)

Vout (-)

Figure B. Remote sense circuit configuration.

tech.support@psbel.com

CAUTION

If remote sensing is not utilized, the SENSE(-) pin must be connected to the Vout(-) pin (Pin 4), and the SENSE(+) pin must

be connected to the Vout(+) pin (Pin 8) to ensure the converter will regulate at the specified output voltage. If these

connections are not made, the converter will deliver an output voltage that is higher than the specified data sheet value.

Because the sense leads carry minimal current, large traces on the end-user board are not required. However, sense traces

should be run side by side and located close to a ground plane to minimize system noise and ensure optimum performance.

The converter’s output overvoltage protection (OVP) senses the voltage across Vout(+) and Vout(-), and not across the sense

lines, so the resistance (and resulting voltage drop) between the output pins of the converter and the load should be

minimized to prevent unwanted triggering of the OVP.

When utilizing the remote sense feature, care must be taken not to exceed the maximum allowable output power capability

of the converter, which is equal to the product of the nominal output voltage and the allowable output current for the given

conditions.

When using remote sense, the output voltage at the converter can be increased by as much as 10% above the nominal

rating in order to maintain the required voltage across the load. Therefore, the designer must, if necessary, decrease the

maximum current (originally obtained from the derating curves) by the same percentage to ensure the converter’s actual

output power remains at or below the maximum allowable output power.

The output voltage can be adjusted up 10% or down 20%, relative to the rated output voltage by the addition of an externally

connected resistor. Trim up to 10% at full load is guaranteed at Vin

≥

40V

The TRIM pin should be left open if trimming is not being used. To minimize noise pickup, a 0.1 µF capacitor is connected

internally between the TRIM and SENSE(-) pins.

To increase the output voltage, refer to Figure C. A trim resistor, R

T-INCR

, should be connected between the TRIM (Pin 6) and

SENSE(+) (Pin 7), with a value of:



INCR

where,

5.11(100



Δ)V



NOM



626



10.22

1.225Δ

[kΩ],

TINCR

Required value of trim-up resistor kΩ]

ONOM

Nominal value of output voltage [V]

O-REQ



O-NOM

)

X 100

O -NOM

[%]

Desired (trimmed) output voltage [V].

When trimming up, care must be taken not to exceed the converter‘s maximum allowable output power. See the previous

section for a complete discussion of this requirement.

OREQ

Vin (+)

SQE48 Converter

(Top View)

Vout (+)

SENSE (+)

T-INCR

Rload

Vin

ON/OFF

TRIM

SENSE (-)

Vin (-)

Vout (-)

Figure C. Configuration for increasing output voltage.

To decrease the output voltage (Figure D), a trim resistor, R

T-DECR

, should be connected between the TRIM (Pin 6) and SENSE(-)

(Pin 5), with a value of:

tech.support@psbel.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

SQE48T10120-NDA0G Related Products

	SQE48T10120-NDA0G	SQE48T10120-PDAKG
Description	DC-DC Regulated Power Supply Module, 1 Output, 120W, Hybrid, PACKAGE-8	DC-DC Regulated Power Supply Module, 1 Output, 120W, Hybrid, PACKAGE-8
Is it Rohs certified?	conform to	conform to
Maker	Bel	Bel
Reach Compliance Code	unknown	compliant
ECCN code	EAR99	EAR99
Other features	REMOTE SHUTDOWN	REMOTE SHUTDOWN
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Certification	CSA, EN, IEC, UL	CSA, EN, IEC, UL
Efficiency (main output)	93%	93%
high	9.5 mm	9.5 mm
Maximum input voltage	75 V	75 V
Minimum input voltage	36 V	36 V
Nominal input voltage	48 V	48 V
JESD-30 code	R-XDMA-P8	R-XDMA-P8
JESD-609 code	e3	e3
length	58.42 mm	58.42 mm
Number of functions	1	1
Output times	1	1
Number of terminals	8	8
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum output current	10 A	10 A
Maximum output voltage	13.2 V	13.2 V
Minimum output voltage	9.6 V	9.6 V
Nominal output voltage	12 V	12 V
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Ripple voltage (main output)	0.0707 Vrms	0.0707 Vrms
surface mount	NO	NO
technology	HYBRID	HYBRID
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Terminal form	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Maximum total power output	120 W	120 W
Fine-tuning/adjustable output	YES	YES
width	22.76 mm	22.76 mm

Recommended Resources

A delayed pull-in relay circuit diagram

sensor circuit

CB950 control terminal application circuit diagram a

Measurement circuit diagram

555 infrared automatic faucet controller circuit

Temperature change indicator circuit with audible indication

Please teach me how to wind a small inductor: I recently used an LC filter, but I don't know how to wind a small inductor? Is there a technical formula or empirical formula that has been proven in practice?...; JFET Analog electronics

LPC2388 chip program re-burning: I am now burning a chip program for LPC2388. After burning is completed, I found that it is not the program I want. Now there is no way to burn the chip again. Does anyone know a way? Please give me s...; zxf_love2 NXP MCU

After copper plating, many width constraint errors occur: As the title says: Since the default grid width is 8mil, and the minimum line width of the check rule is set to 10mil, many errors occur. Should I change the minimum line width of the rule to 8mil, or...; wolfcan PCB Design

Is it reliable to port ucosII to the cortexA15 board?: As the title says, it is not ported to M3. I would like to ask an expert for advice. Is it possible to port it to CortexA15?...; wuzhao0626 Embedded System

Data M3 la la la la: About LM3S... you know....; zca123 Microcontroller MCU

About the selection of dsp emulator: About the selection of dsp emulator 1. There are many types of emulators. You must determine which chip and software version to use before choosing. The prices of emulators vary greatly.2. What chips ...; Jacktang DSP and ARM Processors

Shortcut: L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components
