SGS100ZG-A1V

Description
DC-DC Regulated Power Supply Module, 1 Output, 100W, Hybrid
CategoryPower/power management    The power supply circuit
File Size99KB,3 Pages
ManufacturerBel
Websitehttp://www.belfuse.com
Download Datasheet Parametric View All

SGS100ZG-A1V Overview

DC-DC Regulated Power Supply Module, 1 Output, 100W, Hybrid

SGS100ZG-A1V Parametric

Parameter NameAttribute value
Brand NamePower-One
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerBel
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
Analog Integrated Circuits - Other TypesDC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage56 V
Minimum input voltage42 V
Nominal input voltage48 V
JESD-30 codeR-XDMA-P9
JESD-609 codee0
Maximum load regulation0.5%
Number of functions1
Output times1
Number of terminals9
Maximum operating temperature100 °C
Minimum operating temperature-40 °C
Maximum output voltage5.05 V
Minimum output voltage4.95 V
Nominal output voltage5 V
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
surface mountNO
technologyHYBRID
Temperature levelINDUSTRIAL
Terminal surfaceTIN LEAD
Terminal formPIN/PEG
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum total power output100 W
Fine-tuning/adjustable outputYES
(888) IPD-CONVerters
q
(888) 473-2668
q
www.ipdconverters.com

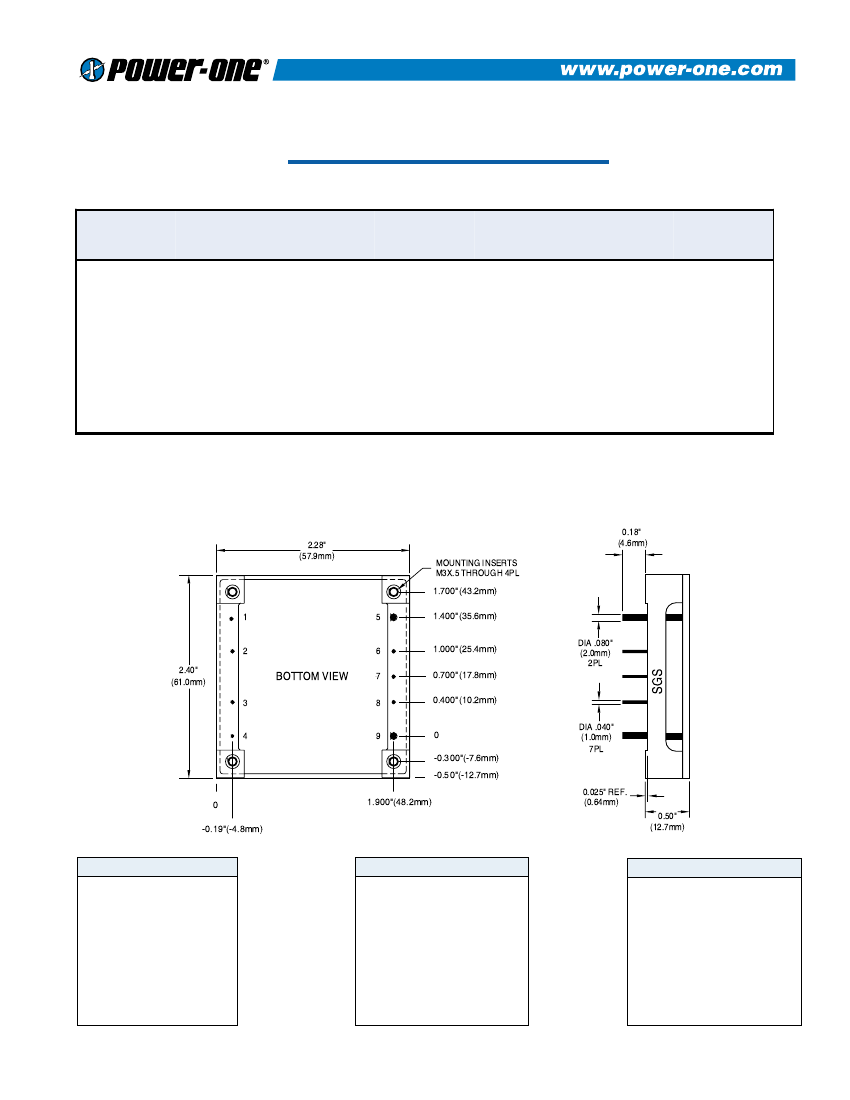

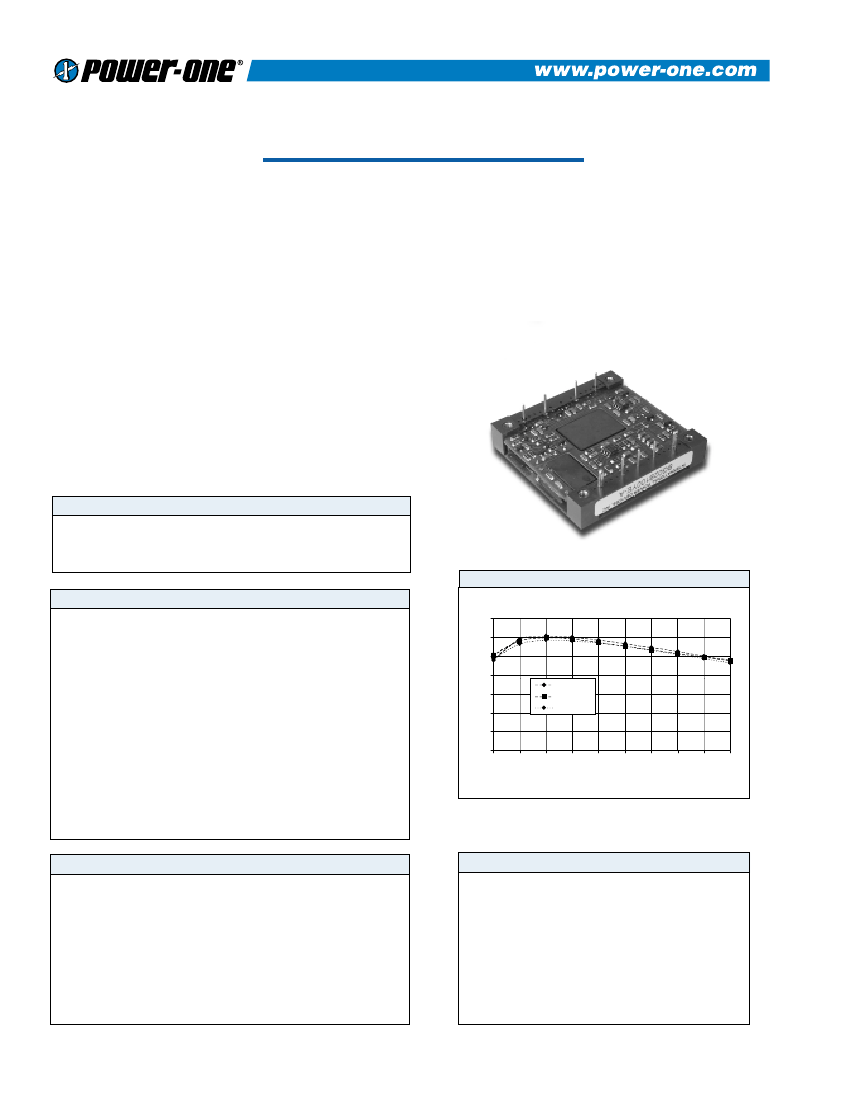

SGS SERIES - NON-ISOLATED, 100 WATT
DESCRIPTION
SGS non-isolated buck converters provide up to 100
Watts of power at up to 30 Amps of output current in an
industry standard half-brick package. The SGS series
uses a high efficiency, non-isolated topology to provide
excellent efficiency and transient response. The SGS has
open-frame packaging and high temperature planar
magnetics to provide exceptional thermal performance.
The SGS uses 100% surface-mount construction and has
a predicted reliability of over one million hours MTBF.
• High Power Step-Down
Converter
• Industry Standard Half-
Brick
• Excellent Transient
Response
• Excellent Efficiency
• Open-Frame
Construction
• Voltage Trim and Sense
Pins
• Planar Magnetics
• Water Washable
TECHNICAL SPECIFICATIONS
Input
Voltage Range
12 VDC Nominal
24 VDC Nominal
48 VDC Nominal
Output
Setpoint Accuracy
Line Regulation V
in
Min. - V
in
Max., I
out
Rated
Load Regulation I
out
Min. - I
out
Max., V
in
Nom.
Dynamic Regulation, Loadstep
Pk Deviation
Settling Time
MinimumOutput Current
Ripple and Noise Pk-Pk, DC - 20 MHz
Ripple and Noise RMS, DC - 20 MHz
Remote Sense Headroom
OVP Trip Range
Current Limit Protection Type
current limit threshold range, % of I
out
rated
Short Circuit Current Limit
Shortcircuit Protection Type
General
Switching Frequency
Output Voltage Trim Range
Temperature Coefficient
Baseplate Operating Temperature
Storage Range
Remote Shutdown
1
Humidity Max., Non-Condensing
Vibration, 3 Axes, 5 Min Each
MTBF
(Bellcore TR-NWT-000332)
Safety
Weight (approx.)
200 kHz
±10%
0.02ppm/°C
-40 to +100°C
-40 to +125°C
Positive Logic
95%
5 g, 10 - 55 Hz
1.0 x 10
6
hrs
UL, CSA, EN60950
2.4 oz
10 - 15 VDC
22 - 26 VDC
42 - 56 VDC
Efficiency vs. Load (24V Input)
±1%
0.2% V
out
0.5% V
out
25% I
out
4% V
out
250
µs
10% I
out
Max.
1% V
out
0.3% V
out
0.50V
115 - 140%
Hiccup
110-140%
200%
Latching
EFFICIENCY %
95
90
85
SGS100YE-A
80
EFF. (22v)
75
70
65
60
10
20
30
EFF. (24v)
EFF. (26v)
40
50
60
70
80
90
100
LOAD %
Notes
MTBF predictions may vary slightly from model to model.
For negative logic add suffix -N to part number
1
Specifications typically at 25°C, normal line, and full load, unless otherwise
stated.
Soldering Conditions: I/O pins, 260°C, ten seconds; fully compatible with
commercial wave-soldering equipment.
Safety: Agency approvals may vary from model to model. Please consult factory
for specific model information.
