V586ME04 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> V586ME04

V586ME04: DescriptionLOW COST - HIGH PERFORMANCE VOLTAGE CONTROLLED OSCILLATOR; CategoryPassive components oscillator; File Size58KB，2 Pages; ManufacturerZ-Communications, Inc.; Websitehttps://www.zcomm.com/

Download Datasheet Parametric View All

V586ME04 Overview

LOW COST - HIGH PERFORMANCE VOLTAGE CONTROLLED OSCILLATOR

V586ME04 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Z-Communications, Inc.
Reach Compliance Code	compli
Maximum control voltage	14 V
Minimum control voltage	2 V
Modulation sensitivity	68 MHz/V
Installation features	SURFACE MOUNT
offset frequency	1 kHz
Maximum operating frequency	2010 MHz
Minimum operating frequency	1430 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	6 dBm
phase noise	-73 dBc/Hz
physical size	12.7mm x 12.7mm x 5.588mm
power change	3 dB
Nominal supply voltage	12 V
surface mount	YES

Preview

Download Datasheet

View All

V586ME04

9939 Via Pasar • San Diego, CA 92126

TEL (858) 621-2700 FAX (858) 621-2722

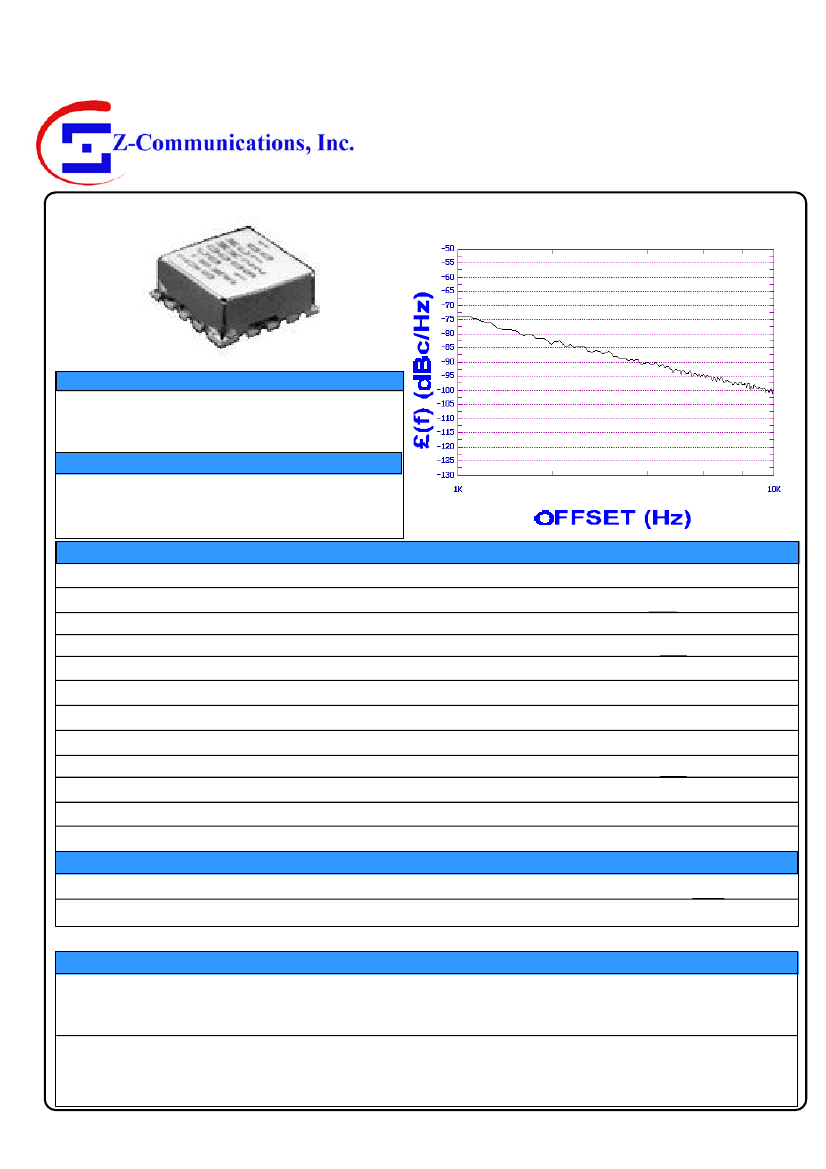

VOLTAGE CONTROLLED OSCILLATOR

Rev B2

PHASE NOISE (1 Hz BW, typical)

FEATURES

• Frequency Range: 1430 - 2010

• Tuning Voltage:

2-14 Vdc

• MINI-14S - Style Package

APPLICATIONS

• Test Instrumentation

• Earthstations

• Downconvertors

PERFORMANCE SPECIFICATIONS

Oscillation Frequency Range

MHz

VALUE

1430

2010

-98

-5

2-14

6±3

<12

-10 to 80

MINI-14S

UNITS

MHz

dBc/Hz

dBc

Vdc

MHz/V

dBm

Phase Noise @ 10 kHz offset (1 Hz BW, typ.)

Harmonic Suppression (2nd, typ.)

Tuning Voltage

Tuning Sensitivity (avg.)

Power Output

Load Impedance

Input Capacitance (max.)

Pushing

Pulling (14 dB Return Loss, Any Phase)

Ω

MHz/V

MHz

°C

Operating Temperature Range

Package Style

POWER SUPPLY REQUIREMENTS

Supply Voltage (Vcc, nom.)

Supply Current (Icc, typ.)

APPLICATION NOTES

Vdc

All specifications are typical unless otherwise noted and subject to change without notice.

•

AN-100/1 : Mounting and Grounding of VCOs

•

AN-102 : Proper Output Loading of VCOs

•

AN-107 : How to Solder Z-COMM VCOs

NOTES:

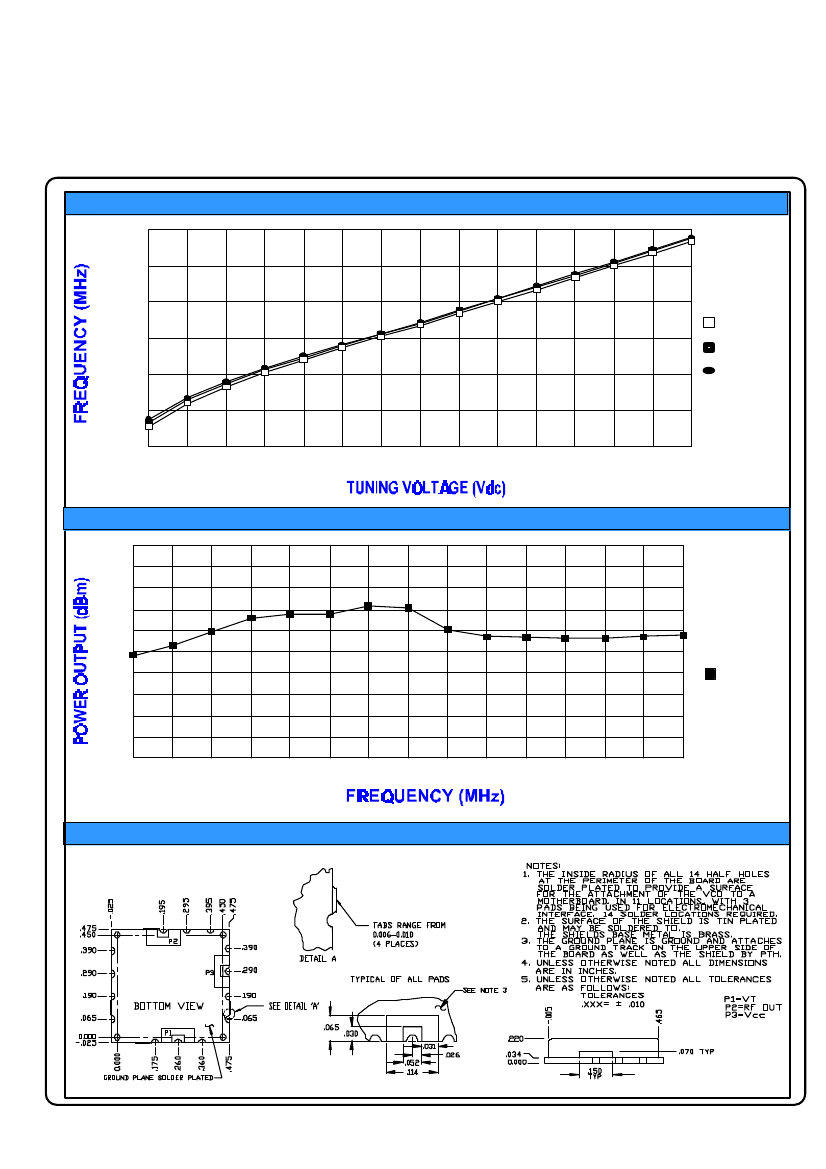

Page 1
