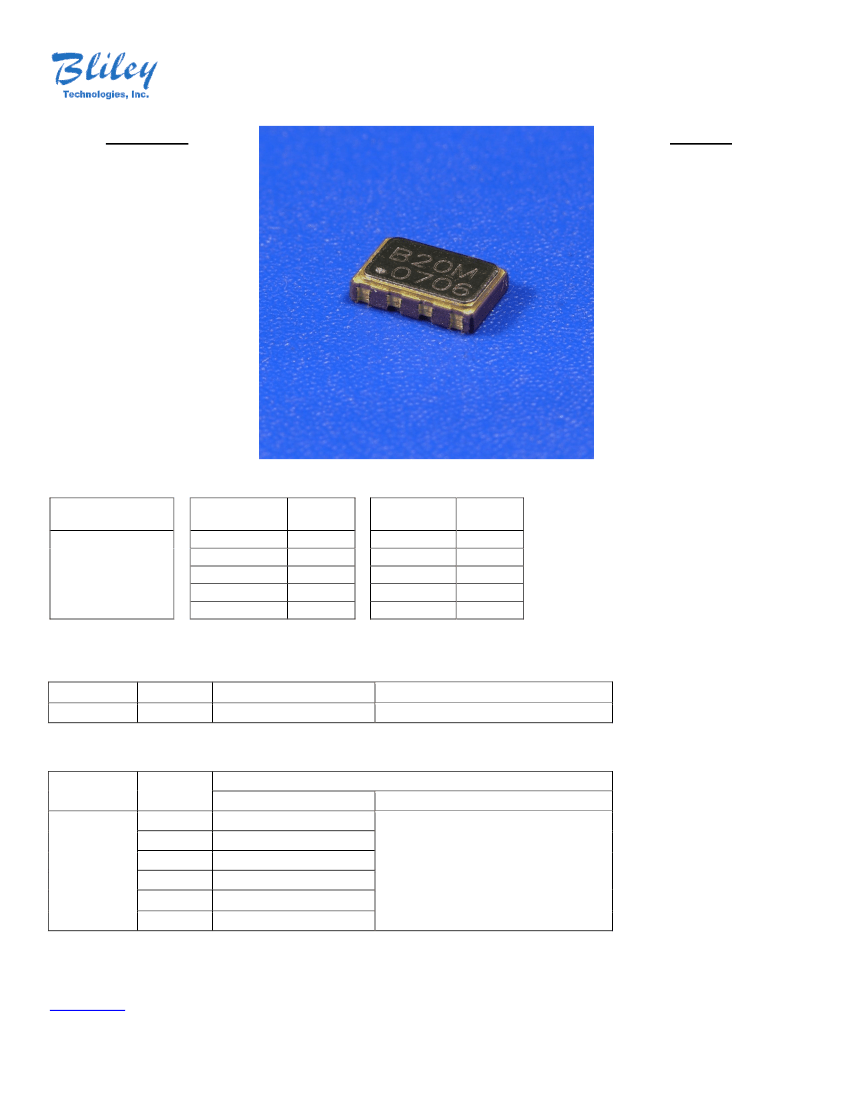

3.2 x 5 mm TCVCXO TV105A Series
Description:
•
The TV105A
Temperature
Compensated Voltage
Controllable Crystal
Oscillator (TCVCXO)
Series products provide a
wide range of options in
temperature stability,
operating frequency
range, and electronic
frequency adjustment in
a miniature 3.2 x 5 mm
ceramic SMD package.
Features:
Available in frequencies from
10 to 52 MHz with 13 MHz,
14.4 MHz, 20 MHz, and
other frequencies as standards
+/-5 to +/- 20 ppm pull range
Clipped Sine or CMOS
output
Standard 3.2 x 5 mm ceramic
SMD package
Analog Frequency vs.
Temperature compensation
technique
Excellent for GPS
Applications
RoHS-6 Lead-free compliant
•
•
•
•
•
•
Frequency Range, Operating Temperature, and Frequency Stability:
Frequency
Range
10 to 52 MHz
Operating
Temperature
-20 to +70° C
-40 to +85° C
0 to +55° C
-10 to +60° C
-30 to +85° C
Product
Code
C
D
E
F
G
Frequency
Stability
+/- 0.5 ppm
+/- 1.0 ppm
+/- 1.5 ppm
+/- 2.0 ppm
+/- 2.5 ppm
Product
Code
A
B
C
D
E
** Not all combinations of frequency stability over temperature available. Consult the factory for your specific requirements.
Aging:
(typical at 10 MHz after 30 days continuous operation)
Frequency
10 MHz
Timeframe
1st Year
Aging
+/- 1.0 ppm
Product Code
N/A
Phase Noise:
Frequency
Offset
1 Hz
10 Hz
100 Hz
1 KHz
10 KHz
100 KHz
Phase Noise (Typ.)
- 60 dBc/Hz
- 85 dBc/Hz
-115 dBc/Hz
-135 dBc/Hz
-148 dBc/Hz
-150 dBc/Hz
Product Code
10.0 MHz
N/A
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 1 of 2
Tel
(814) 838-3571
Rev 2.0
3.2 x 5 mm TCVCXO TV105A Series
Supply Voltage (Vs):
Power Supply (Vs)
Product Code
+3.3 Vdc
+/-10%
C
+5.0 Vdc
+/-10%
D
Current Consumption:
Clipped Sine Wave
Supply Current
2.5 mA
Environmental:
Storage Temperature
-55 to +125° C
Output Waveform:
Product Code
Output Level
Load
Clipped Sine
HCMOS
Wave
Output
H
N/A
0.8 V p-p min. 10% / 90% Vs
15pF
10K // 10 pF
Pulling Range:
Tuning
None(TCXO) +/-5 ppm +/-8 ppm +/-10 ppm +/-12 ppm +/-15 ppm +/-20 ppm
Range
Product
T
A
B
C
D
E
F
(Pin 1 – Ground)
Code
**Note: Maximum pull available dependent upon required temperature stability
Ordering Options:
Operating
Frequency Supply
Temperature Stability
Voltage
C
A
C
D
B
D
E
C
F
D
G
E
Pulling
Range
T
A
B
C
D
E
F
Output
N/A
H
Operating Frequency
xx.xxxx MHz
xx.xxxx MHz
xx.xxxx MHz
xx.xxxx MHz
xx.xxxx MHz
xx.xxxx MHz
xx.xxxx MHz
Leave Blank for
Clipped Sine
TV105A C A C A
10.0000 MHz
Product Selection Code (refer to the above example):
This part is RoHs compliant, -20 to +70C, +/- 0.50pm, 3.3 volt clipped sine wave
with +/- 5 ppm pull, 10MHz operating frequency.
** Not all combinations available in this product
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 2 of 2
Tel
(814) 838-3571
Rev 2.0
