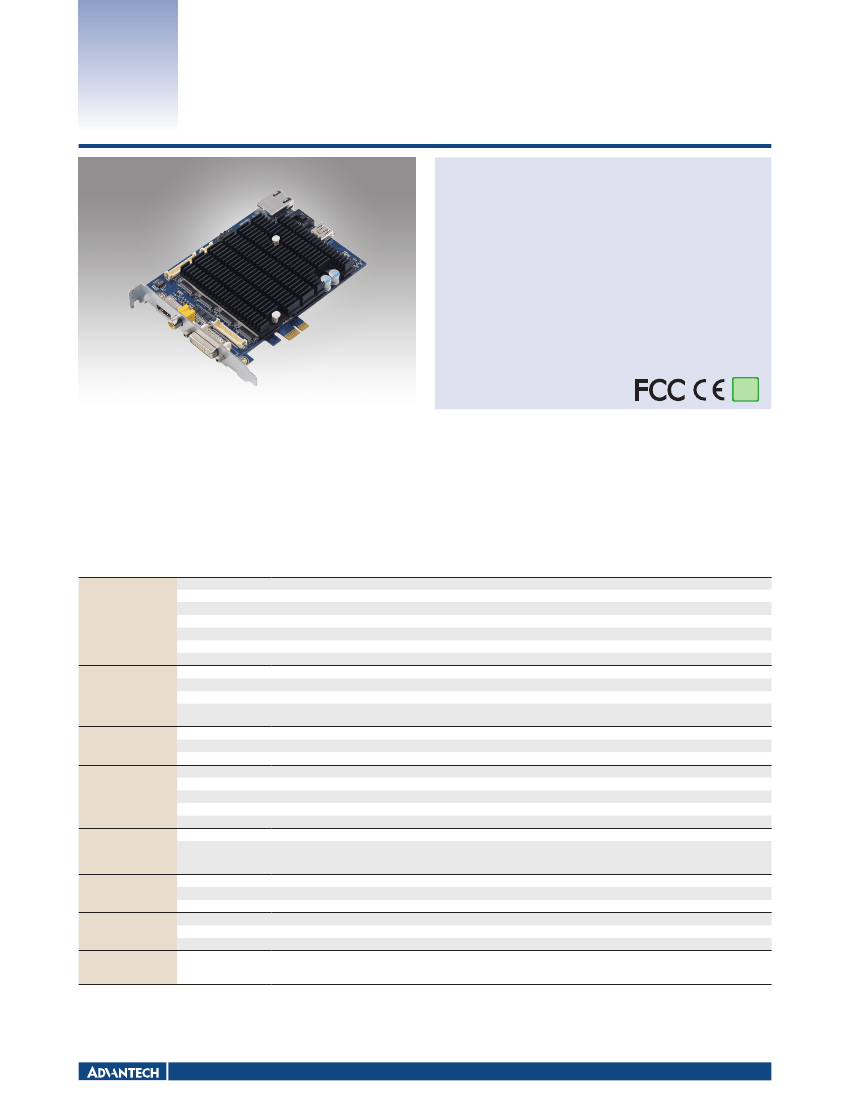

DSP-8661
Features
Powered by TI TMS320DM8168 SoC
16-ch PCIe Versatile
Video Processing
Board with SDK
16-ch composite video and audio inputs
H.264 / MJPEG / RAW H/W encoding up to 480fps at D1
H.264 / MJPEG / RAW H/W decoding up to 480fps at D1
One HDMI supports AV display up to 1080p at 60fps
Embedded with 1.0GHz C674X VLIW DSP
Versatile peripherals: GbE LAN port, SATA, USB 2.0, I
2
C and UART
Half-size form factor and fanless H/W design
Windows / Linux PC driver and SDK with sample codes
RoHS
COMPLIANT
2002/95/EC
Introduction
Designed with TMS320DM8168 SoC, DSP-8661 is a full-functional video processing platform with 16-ch composite video and audio inputs based on a standard half-length
PCIe board form factor. The board supports H.264 / MJPEG / RAW encode / decode up to D1 resolution at a real-time frame rate (30/25fps) for all channels simultaneously. HDMI
provides up to 1080p 60fps video / audio outputs that fulfills high-definition display requirements. Equipped with a high-performance C674X Digital Signal Processor (DSP),
DSP-8661 can manage a system's host processing by executing image enhancement and video analytics programs. The I
2
C and UART interfaces are designed for extending the
control and indicator functions like RS-485 and DIO (on the optional DIO & Control Board). With an easy-to-use software development kit (SDK), the DSP-8661 is an ideal solution
for system integrators working to implement diverse video-processing related applications that fit a broad spectrum of customer requirements.
Specifications
Video Input
Channels
Input Format
Resolution
Compression
Max. Frame Rate
Bit Rate Control
Connectors
Channels
Format
Sampling Rate
Connectors
Video Output
RCA
Loop-out
HDMI out
GbE Lan Port
USB 2.0 Port
SATA Port
I
2
C and UART
Data Bus
Cable
Expansion Board
(optional)
Power Consumption
Operating Temperature

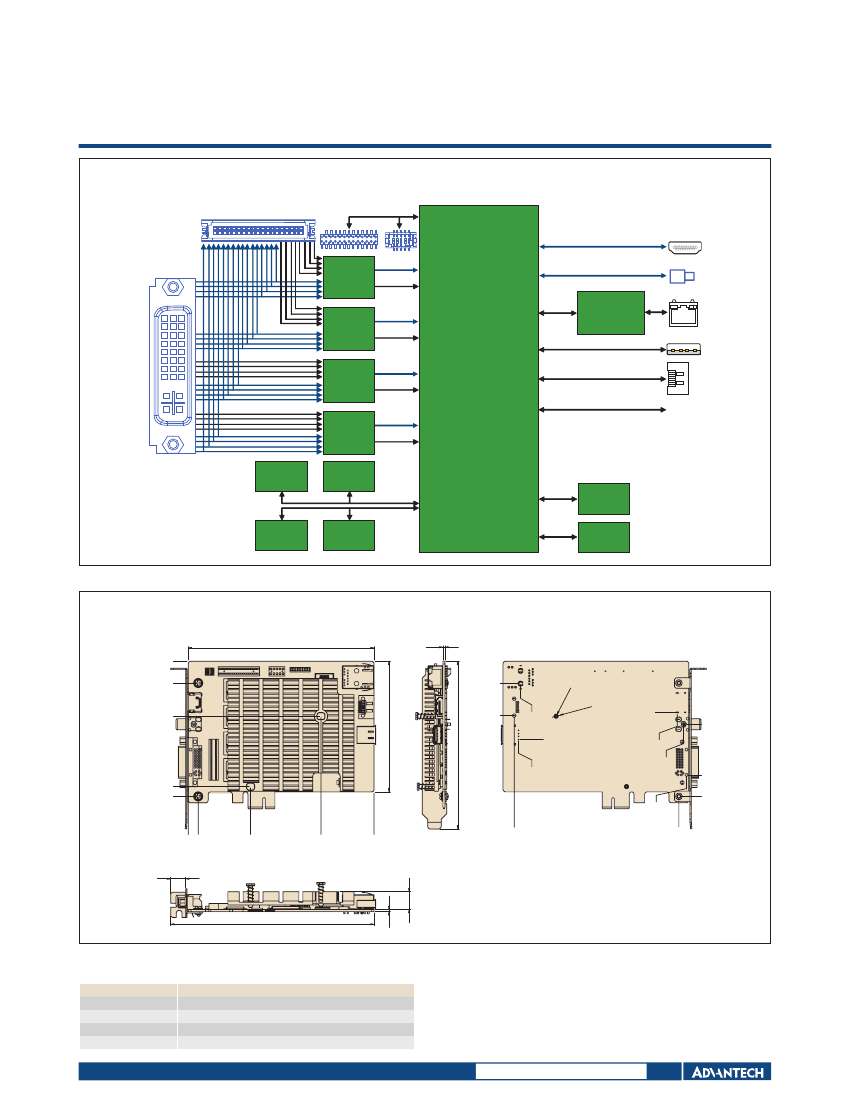

Dimensions
OS Supported by Driver
SDK
Demo Program
PCIe Device Mode
16
Composite for NTSC/PAL
Up to D1 (720 x 576)
H.264/MJPEG/RAW
480/400 fps (NTSC/PAL) at D1
CBR & VBR
DVI x1 (for connecting 16 x BNC + 8 x RCA to DVI octopus cable), Pin header x1 (Alternative for 16-ch video inputs)
8 + 8 (optional)
RAW
Up to 16-bit, 44KHz
DVI x1 (8-ch audio shared with video-input connector)
Pin header x1 (for connecting the optional Audio & Loop-out Board; supports the other 8ch audio-in)
1
16-ch pin header on board (connecting the optional Audio & Loop-out Board)
1, resolution up to 1080P, frame rate up to 60fps
RJ-45 x1
A-type Female x1
x1 (3.0 Gbps)
Pin-header x1 for connecting the optional DIO and Control Board
PCI Express 2.0, Gen2, x1
16xBNC + 8xRCA to DVI Octopus Cable
JTAG Debug Board (with 1x Board-to-board flat cable)
Audio & Loop-out Board: Audio-out + 8ch Audio-in + 16ch Video Loop-out (with 1x Octopus Cable + 1x Board-to-board flat cable)
DIO & Control Board: 16x DI + 8x DO (Relay) + 1x RS-485 (with 1x Board-to-board flat cable)
< 26W
-20 ~ 70° C / -4 ~ 158° F (with air flow)
140 x 111.15 mm (5.51" x 4.38")
Linux; Windows XP / XPe / Vista / 7
User’s Manual, Programming Guide, Sample Codes
16-ch Video Capturing and H.264 Encoding at PCIe Device Mode
PCIe digital video capturing & encoding card
PCIe video decoder card with HDMI out
PCIe DSP-based intelligent video analytics card
Audio Input
Peripherals
Accessories
Physical Characteristics
Software
Applications
DSP Processing Platforms
All product specifications are subject to change without notice
Last updated : 27-Dec-2014
