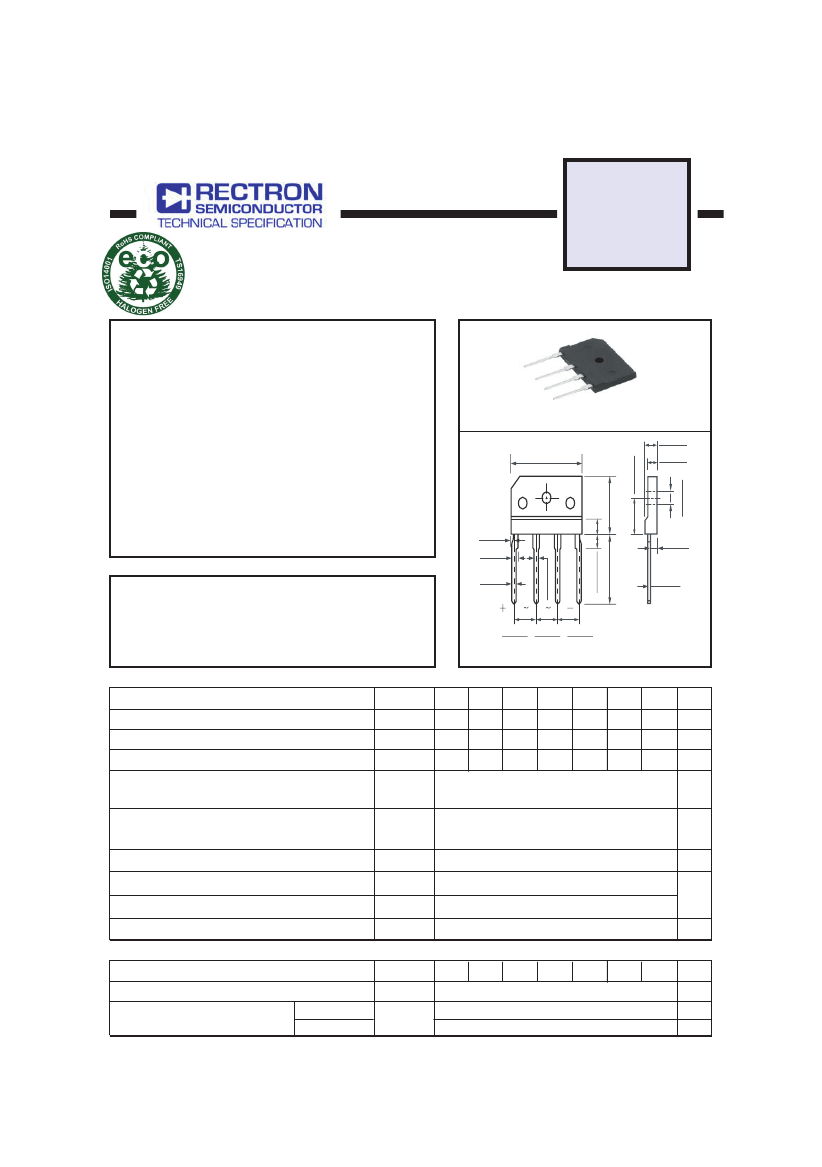

SINGLE-PHASE GLASS PASSIVATED
SILICON BRIDGE RECTIFIER
VOLTAGE RANGE 50 to 1000 Volts CURRENT 10 Amperes
FEATURES
*
*
*
*
*
*
Low leakage
Low forward voltage
Mounting position : Any
Surge overload rating: 200 Amperes peak
Ideal for printed circuit boards
MSL: Level 2
RS1001M
THRU
RS1007M
RS-10M
.382 (9 .7 )
.366 (9 .3 )
MECHANICAL DATA
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
O
C ambient temperature unless otherwise specified.
resistive or inductive load.
.043 (1.1)
.035 (0.9)
.074 (1.9)
.059 (1.5)
.146 ( 3.7 )
.130 ( 3.3 )
.708 ( 18.0 )
.669 ( 17.0 )
.057 (1.45)
.041 (1.05)
.083 (2.1)
.069 (1.7)
.602 (15.3 )
.578 (14.7)
.114 (2.9)
.098 (2.5)
.031 (0.8)
.023 (0.6)
.303 (7.7)
.287 (7.3)
.303 (7.7)
.287 (7.3)
.303 (7.7)
.287 (7.3)
Dimensions in inches and (millimeters)
MAXIMUM CHARACTERISTICS
( @ T
A
= 25
o
C unless otherwise noted )
CHARACTERISTICS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Bridge Input Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Output Current
at Tc=100 degree with heatsink
SYMBOL
V
RRM
V
RMS
V
DC
I
O
RS1001M RS1002M RS1003M RS1004M RS1005M RS1006M RS1007M
UNITS
f.134 ( 3.4 )
.157 ( 4 )
50
35
50
100
70
100
200
140
200
400
280
400
10
600
420
600
800
560
800
1000
700
1000
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load
Typical Current Square Time
Typical Thermal Resistance from junction to ambient
Typical Thermal Resistance from junction to case
Operating and Storage Temperature Range
I
FSM
I
2
T
RΘ
JA
RΘ
JC
T
J
,T
STG
200
165.9
22
1.0
-55 to + 150
.122 (3 .1 )
* UL listed the recognized component directory, file #E94233
* Epoxy: Device has UL flammability classification 94V-O
.995 (25.3)
.983 (24.7)
.189 (4.8)
.173 (4.4)
.150 (3.8)
.134 (3.4)
Volts
Volts
Volts
Amps
Amps
A
2
S
O
C/W
O
C
ELECTRICAL CHARACTERISTICS
( @ T
A
= 25
o
C unless otherwise noted )
CHARACTERISTICS
Maximum Forward Voltage Drop per element at 5.0A DC
Maximum Reverse Current at Rated
DC Blocking Voltage per element
＠TA=25
O
C
＠TC=100
C
O
SYMBOL
V
F
IR
RS1001M RS1002M RS1003M RS1004M RS1005M RS1006M RS1007M
UNITS
1.1
5.0
0.2
Volts
µAmps
mAmps
2010-11
REV: A
Note: 1."Fully ROHS compliant", "100% Sn plating (Pb-free)".
2. Available in Halogen-free epoxy by adding suffix -HF after the part nbr.

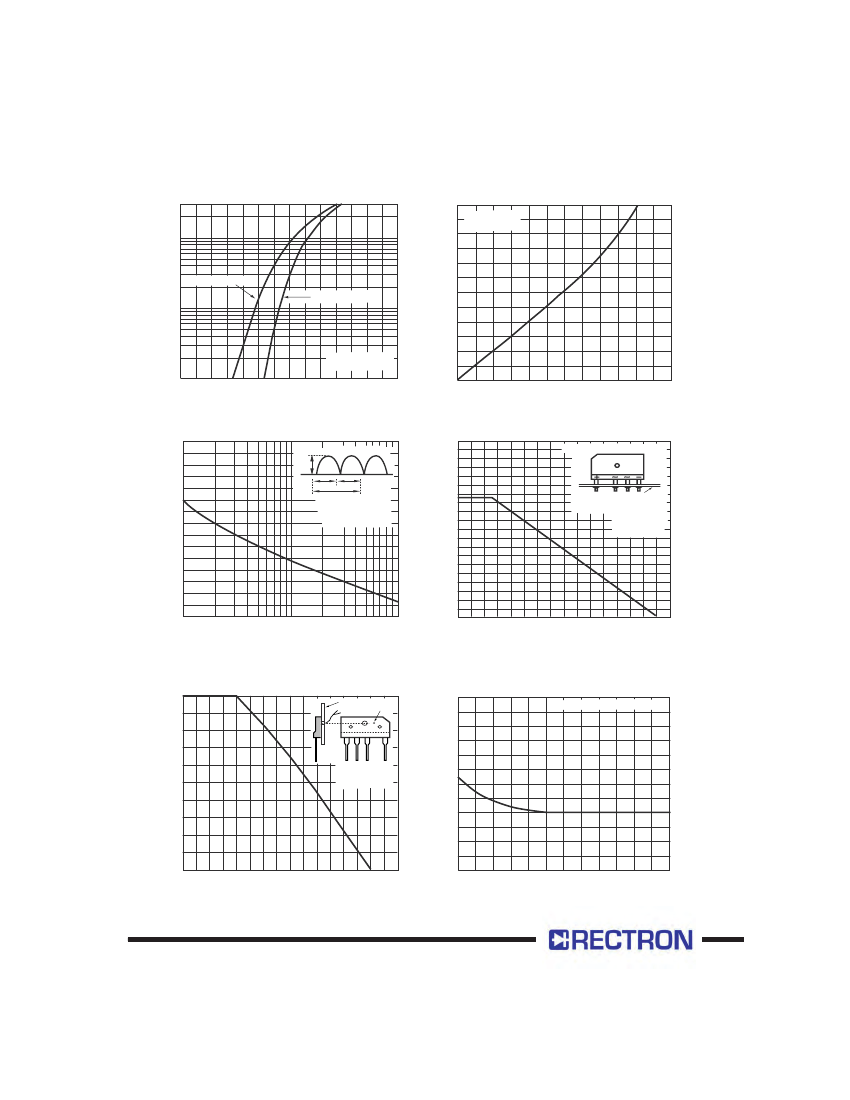

RATING AND CHARACTERISTICS CURVES ( RS1001M THRU RS1007M )
INSTANTANEOUS FORWARD CURRENT, (A)
30
20
10
5
2
1
0.5
0.2
0.1
0.2
0.4
0.6
0.8
1
pulse test
per one diode
TC = 150 C
o
60
POWER DISSIPATION
F
(W)
P
50
40
30
20
10
0
0
sine wave
o
Tj=150 C
(TYP)
T C = 25 C (TYP)
o
1.2
1.4
1.6
4
8
12
16
20
24
INSTANTANEOUS FORWARD VOLTAGE, (V)
AVERAGE RECTIFIED FORWARD CURRENT, Io (A)
PEAK FORWARD SURGE CURRENT, (A)
AVERAGE FORWARD CURRENT, (A)
300
FIG.1 TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
sine wave
0
FIG.2 POWER DISSPATION
4
on glass-epoxi substrate
I
FSM
8.3ms 8.3ms
3
P.C.B
soldering land 5mmf
sine wave
R-load
free in air
200
1 cycle
non-repetitive
o
Tj=25 C
2
100
1
0
1
2
5
10
20
50
100
0
0
40
80
120
O
160
NUMBER OF CYCLE
AMBIENT TEMPERATURE( C)
FIG.3 SURGE FORWARD CURRENT CAPABILITY
AVERAGE FORWARD CURRENT, (A)
10
8
6
4
2
0
heatsink
Tc
FIG.4 TYPICAL FORWARD CURRENT
DERATING CURVE
1.6
with thermal compound
Tc
THERMAL RESISTANCE (
o
C/W)
160
1.5
1.4
1.3
1.2
1.1
1
2
3
4
5
6
7
8
sine wave
R-load
on heatsink
80
90
100
110
120
130
140
o
150
CASE TEMPERATURE（ C）
MOUNTING RORQUE (Kg.cm)
FIG.5 TYPICAL FORWARD CURRENT
DERATING CURVE
FIG.6 CONTACT THERMAL RESISTANCE
Marking Description
Rectron Logo
Plant - code
UL Logo
Year – code
(Y: Last digit of year &
A:2010, B:2011…..)
RS100XM
V Y WW
Week – code
(WW: 01~52)
Part No.
Voltage-code
1-------50V 2-------100V
3-------200V 4-------400V
5-------600V 6-------800V
7-------1000V
PACKAGING OF DIODE AND BRIDGE RECTIFIERS
BULK PACK
PACKAGE
RS-4M/-10M
PACKING CODE
-B
EA PER BOX
600
INNER BOX SIZE
(mm)
236*236*40
CARTON SIZE
(mm)
497*251*100
EA PER CARTON
2,400
GROSS
WEIGHT(Kg)
11.09
TUBE PACK
PACKAGE
RS-4M/-10M
PACKING CODE
-C
EA PER BOX
900
INNER BOX SIZE
(mm)
540*118*118
CARTON SIZE
(mm)
560*259*144
EA PER CARTON
1,800
WEIGHT(Kg)
12.82
DISCLAIMER NOTICE
Rectron Inc reserves the right to make changes without notice to any product
specification herein, to make corrections, modifications, enhancements or other
changes. Rectron Inc or anyone on its behalf assumes no responsibility or liabi-
lity for any errors or inaccuracies. Data sheet specifications and its information
contained are intended to provide a product description only. "Typical" paramet-
ers which may be included on RECTRON data sheets and/ or specifications ca-
n and do vary in different applications and actual performance may vary over ti-
me. Rectron Inc does not assume any liability arising out of the application or
use of any product or circuit.
Rectron products are not designed, intended or authorized for use in medical,
life-saving implant or other applications intended for life-sustaining or other rela-
ted applications where a failure or malfunction of component or circuitry may di-
rectly or indirectly cause injury or threaten a life without expressed written appr-
oval of Rectron Inc. Customers using or selling Rectron components for use in
such applications do so at their own risk and shall agree to fully indemnify Rect-
ron Inc and its subsidiaries harmless against all claims, damages and expendit-
ures.
