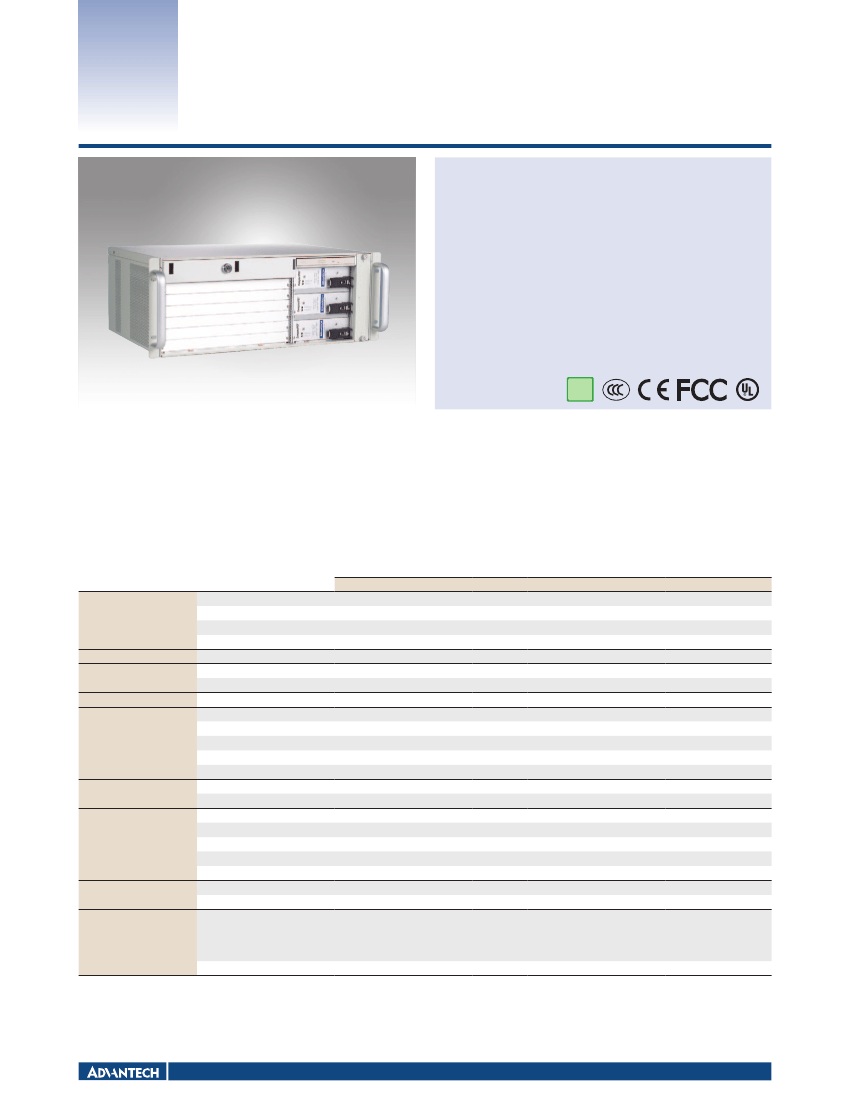

MIC-3043D2E Overview

4U CompactPCIÂ® Enclosure with cPCI Power Supply and Removable HDD Bay (CT Bus or Non-CT Bus)

Preview

Download Datasheet

View All

MIC-3043

4U CompactPCI

Enclosure with cPCI

Power Supply and Removable HDD Bay

(CT Bus or Non-CT Bus)

Features

6-slot 6U CompactPCI

backplane (CT or Non-CT Bus)

Supports removable HDD bays (up to 2 3.5” SATA/SAS or up to 4 2.5” SATA/

SAS drives)

Built-in SATA slim-type DVD-RW/RAM

AC cPCI 250 W + 250 W redundant (1+1) or 500W+250W (2+1) power

supplies

Supports hot-swappable fan modules

PICMG 2.5 (CompactPCI Computer Telephony) compliance (MIC-3043D)

Built-in alarm module (MIC-3924L-AE)

RoHS

COMPLIANT

2002/95/EC

Introduction

The MIC-3043 is a 4U enclosure designed for mission-critical and high-reliability applications such as Networking, Telecommunication, Computer Telephony Integration, and Image

Processing. It is equipped with a hot-swappable CompactPCI redundant power supply and hot-swappable fan modules to minimize MTTR (Mean-Time-to-Repair). The MIC-3043

supports six 6U CompactPCI blades and rear I/O transition boards. Users can route I/O signals to the rear transition boards for simplified system cabling. Front boards and RTMs can

be swapped in and out the system without powering down. The MIC-3043 has removable SATA /SAS HDD bays and one slim DVD-RW as standard. The MIC-3043 has a high-quality

backplane with impedance controlled design that supports 64-bit / 66 MHz cards. The H.110 CT Bus complies with PICMG 2.5, which is an open architecture ideal for telecom solutions.

Specifications

Backplane

Cooling

Drive Bay

Management Interface

MIC-3043D

MIC-3043E

MIC-3043F

System x 1, Peripheral x 5, Rear transition x 6 (80 mm, IEEE1101.11 compliant)

Yes

32-bit/33 MHz, 64-bit/66 MHz CompactPCI Rev. 3.0, PICMG2.9

+3.3 V/+5 V (selectable)

2 (front: 193 CFM, rear: 61.3 CFM)

2 (3.5" SATA/SAS)

4 (2.5" SAS /SATA or SSD)

2 (fan failure and system overheating)

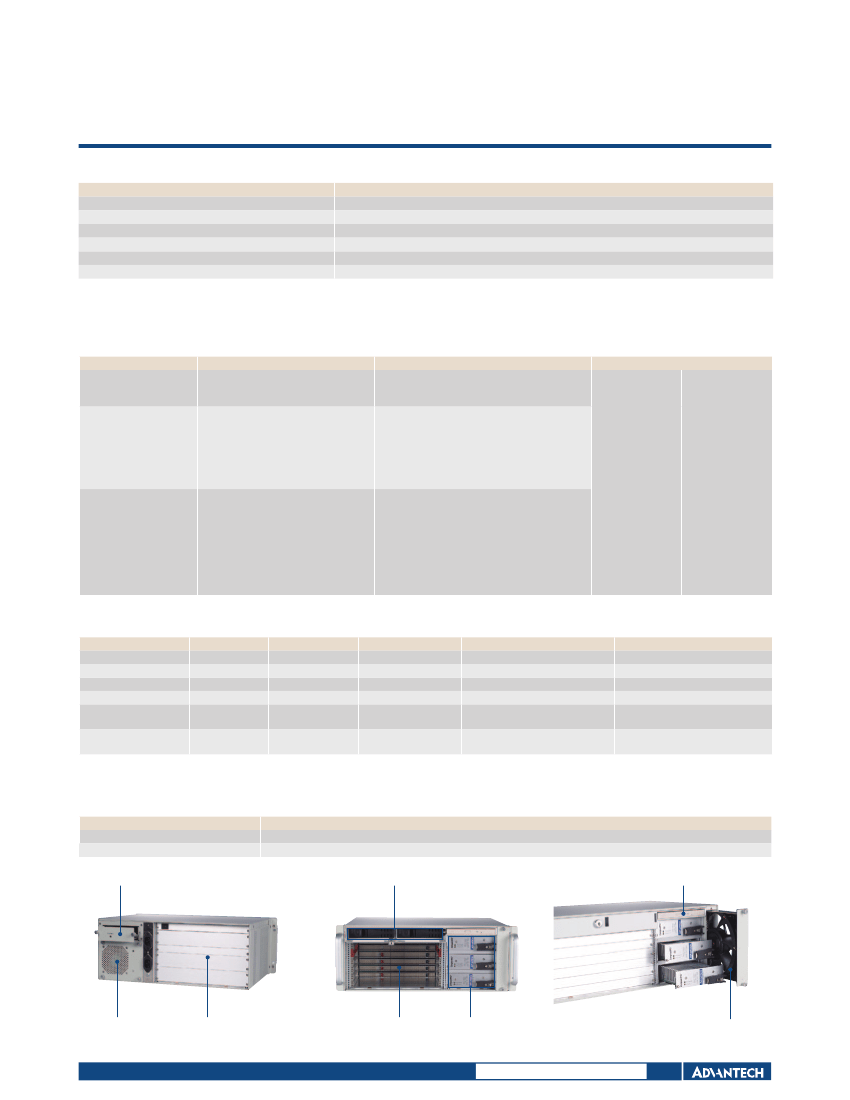

AC 100 ~ 240 V @ 50 ~ 60 Hz, full range (MIC-3043X-XX)

AC cPCI 250 W redundant power module (1+1 configuration)

+3.3 V

+5 V

+12 V

-12 V

Max. Load

36 A

50 A

10 A

Min. Load

2.0 A

MTBF

Backplane

Power supply

FAN

800, 000 hours

100, 000 hours @ 70%

80000 hours @ 40°

Operating

Non-Operating

Temperature

0 ~ 45° C, (32 ~ 113° F)

-20 ~ 60° C, (-4 ~ 140° F)

Humidity

10 ~ 95% @ 40° C, non-condensing

Shock

10 G

30 G

Vibration (5 ~ 500 Hz)

1.0 Grms*

2.0 G

Dimensions (W x H x D)

440 x 177 x 320 mm (17.3" x 7" x 12.6")

Weight

18 kg (39.7 lb )

PICMG 2.0 R3.0 CompactPCI Specification

PICMG 2.1 R2.0 CompactPCI Hot Swap Specification

PICMG 2.11 R3.0 Front-Access Power Connectors Specification

PICMG 2.5 R1.0 CompactPCI Computer Telephony Specification (MIC-3043D only)

RoHS, CE, FCC, UL, CCC

6U Slot

H.110 CT Backplane

Backplane

V (I/O)

Fan

HDD

Slim DVD-RW/RAM

Alarm Indicators

Input

Output

Power Supply

Reliability

Environment

Physical Characteristics

Compliance

All product specifications are subject to change without notice

Last updated : 10-Jul-2014
