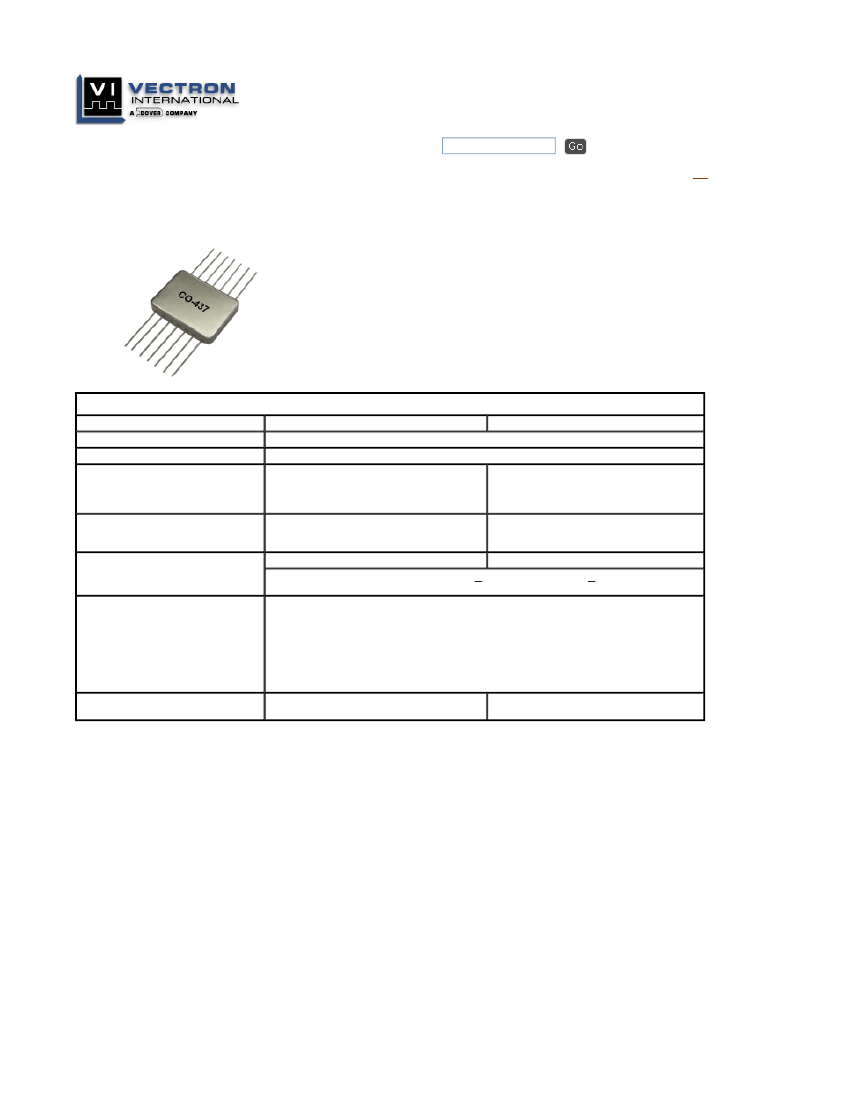

CO-437/457 ECL/PECL Clock Oscillators
Features:
Frequencies from 5 MHz to 700 MHz
Low profile 14 Pin Flatpack
10K, 10KH, 100K, ECLinPS, 10E/EL and 100E/EL Logic
SPECIFICATIONS
Part
Series
Frequency
Output
CO-437
14 Pin Flatpack
5 MHz-700 MHz
Output taken directly from 10K, 10KH,
ECLinPS or ECLinPS Lite gate, depending on
temperature
and
frequency
range.
Complementary outputs optional.
-5.2 Vdc ± 5%
<45 mA to 110 MHz
<70 mA above 110 MHz
CO-437E:
±1 ppm
Output taken directly from 100K, ECLinPS or
ECLinPS Lite gate, depending on temperature
and
frequency
range.
Complementary
outputs optional.
-4.5 Vdc±5% at <60 mA
CO-457E:
±1 ppm
CO-457
Supply
Accuracy
(at 25°C)
Temperature Stability
Improved accuracy/stability available on some models. For
example, for ±7 ppm over 0°C to +50°C and for ±10ppm
over 0°C to +70°C. Improvement is also available over wider
temperature ranges. Please contact factory.
E= set to ±1 ppm via external capacitor (< MHz in CO-432 and <240MHz in CO-434/37
package)
STANDARD:
0°C
Option
1:
Option
2:
Option
5:
Option
6:
Option
7:
to +70°C:
±25 ppm
±50 ppm
±5 ppm
±10 ppm
-55°C to +85°C:
0°C
0°C
to +50°C:
to +50°C:
-55°C to +125°C: ±50 ppm
-55°C to +125°C: ±100 ppm
3 ppm first year
<2 ppm/year thereafter
Aging Rate
(typical after 30 days)
3 ppm first year
2 ppm/year thereafter
top of page
http://www.vectron.com/products/xo/CO-437_457.htm
3/11/2009
Vectron Products - ECL/PECL Clock Oscillators - CO-437, CO-457
Page 2 of 3
SCREEN TESTING OF ABOVE MODELS
Standard
SCREEN TEST
Stabilization Bake
(150°C)
Seal Test
(Gross and Fine)
Temperature Cycling
(Thermal Shock)
Burn-in, operating
160 hours @125°C
Acceleration
(5000g in Y
1
axis)
MIL-STD-883
METHOD
—
1014, Cond A2
1010, Cond B
—
2001, Cond A
CLASS
X
X
X
Options
CLASS
D
X
X
X
X
CLASS
B
X
X
X
X
X
CLASS
S
Class
S
screen
test
requirements include 24
hour additional bake-out, 80
hour
additional
burn-in,
thermal shock, PIND test
and radiographic inspection
in addition to Class B
Screening. Has major cost
impact.
top of page

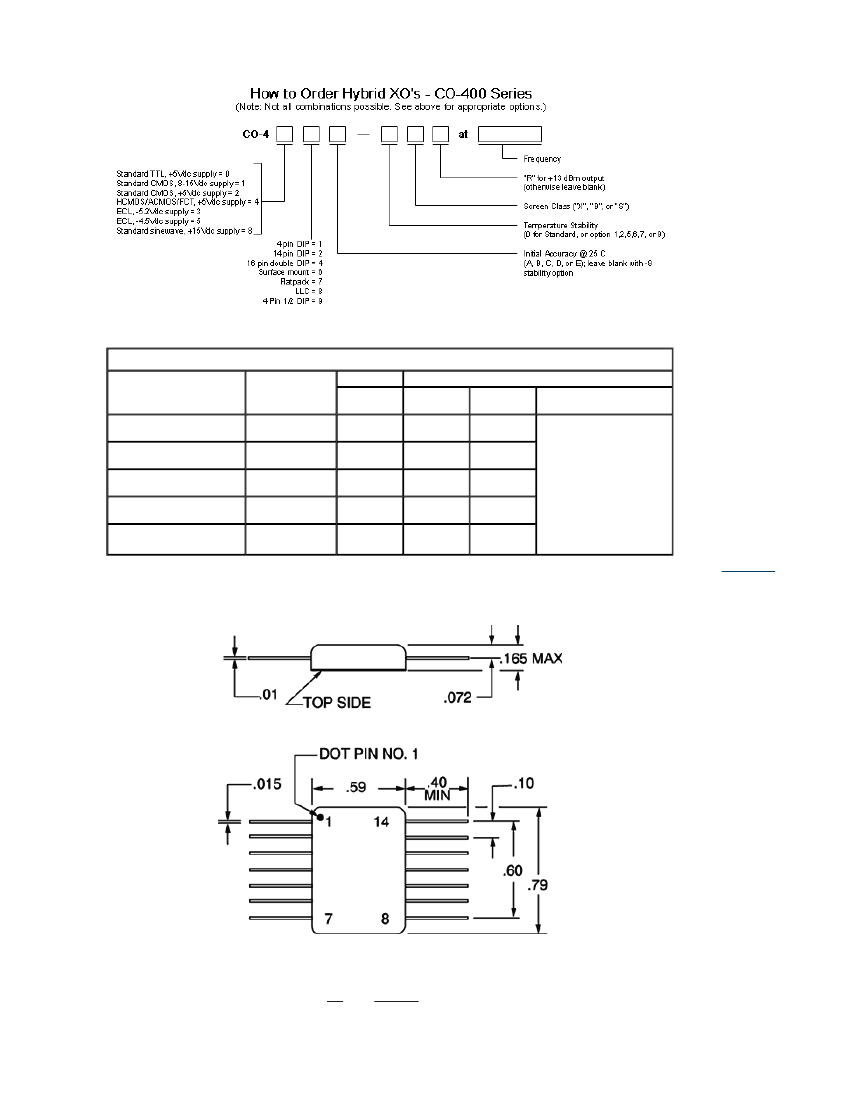

CO-437 <200 MHz
Dimension in inches
Pinouts
Pin
7
8
Function
Supply (-)
Output
http://www.vectron.com/products/xo/CO-437_457.htm
3/11/2009
Vectron Products - ECL/PECL Clock Oscillators - CO-437, CO-457
Page 3 of 3
14
Other
OV, case
N/C
top of page
Copyright © 1997-2009 by Vectron International, Inc.,
A Dover Company.
Vectron International's
Terms and Conditions.
The most recent change to this page occurred 02/11/2009
