UBC-200 Overview

Freescale ARM Cortex-A9 i.MX6 RISC Compact Box Computer

Preview

Download Datasheet

View All

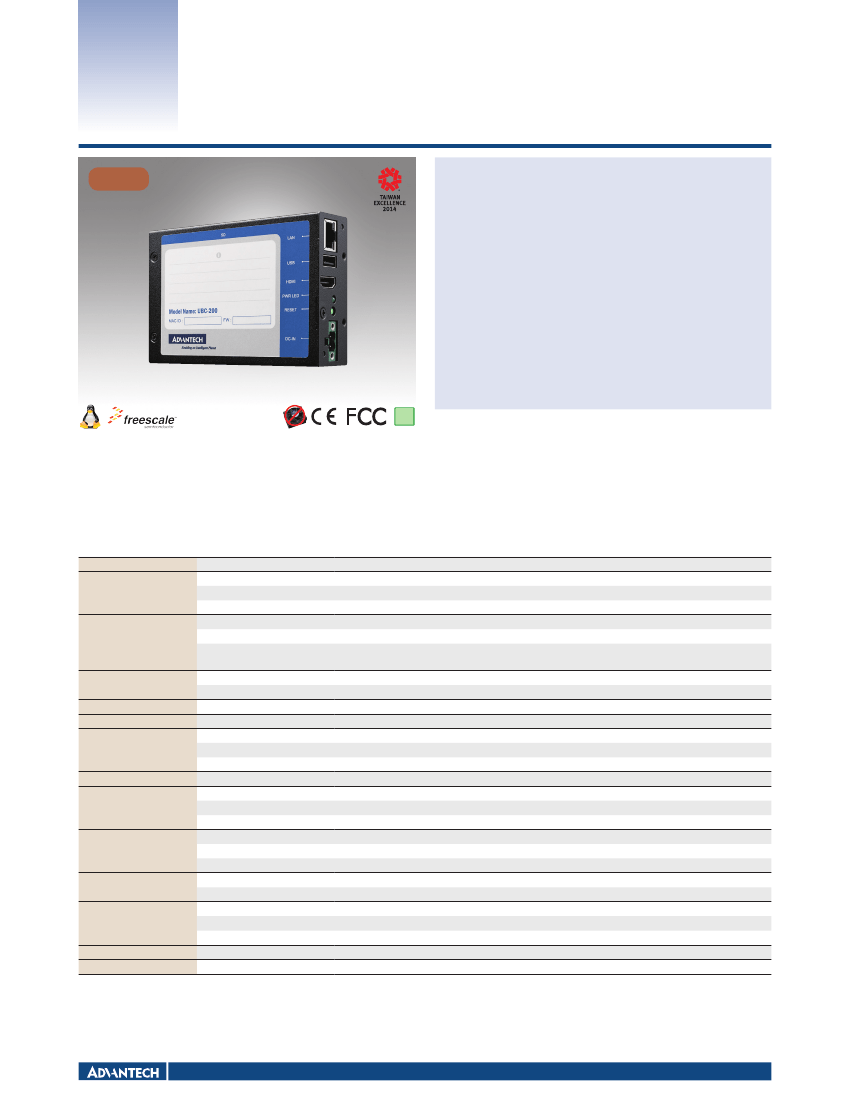

UBC-200

NEW

Freescale ARM Cortex-A9 i.MX6

RISC Compact Box Computer

Features

Freescale ARM Cortex-A9 i.MX6 Dual/Quad 1 GHz high performance

processor

Onboard DDR3 1 GB, up to 2 GB

On board 4 GB eMMC Flash

Supports OpenGL ES 2.0 and OpenVG 1.1 hardware accelerators, full HD

1080p video codec

HDMI 1920x1080

1 USB 2.0, 1 10/100/1000 Mbps Ethernet; 1 SD Slot

On board mini-PCIe connector for WIFI/3G module support

Low power, fanless design

Supports wall mount and Din-rail

RoHS

COMPLIANT

2002/95/EC

Introduction

UBC-200 is an IP-based RISC compact box for industrial applications and the IoT market. With a powerful ARM Freescale i.MX6 Cortex-A9 Dual/Quad core processor inside,

UBC-200 is the best choice to fulfill the requirements of CPU performance and power consumption. It supports USB 2.0, HDMI up to 1080p and Gigabit Ethernet. As well as one

mini PCIe slot for WIFI/3G module support and a built-in SD card socket for storage expansion. With the wall mount brackets enclosed in UBC-200 package, you can easily install

it on a solid wall or any material surfaces.

Specifications

Processor System

Memory

CPU

Technology

Capacity

Flash

HDMI

Graphics Engine

H/W Video Codec

Ethernet

RTC

WatchDog Timer

I/O

Indicator

Expansion

Chipset

Speed

RTC

WatchDog Timer

USB

SDIO

Button

LED

Mini PCIe

SD Socket

SIM

Power Supply Voltage

Power Type

Power Consumption

Operating Temperature

Operating Humidity

Dimensions (W x D)

Mounting

Weight

Linux

Freescale i.MX6 Cortex-A9 Dual/Quad 1GHz

DDR3 1066 MHz

On-board DDR3 1 GB, up to 2 GB

4 GB eMMC Flash for O.S. and 4 MB NOR Flash for Advantech boot loader

2 IPUs. OpenGL ES 2.0 for 3D, BitBlt for 2D and OpenVG 1.1

Decoder: MPEG-4 ASP, H.264 HP, H.263, MPEG-2 MP, MJPEG BP

Encoder: MPEG-4 SP, H.264 BP, H.263, MJPEG BP

Freescale i.MX6 integrated RGMII

1 10/100/1000 Mbps

Yes

1 USB 2.0

1 SD slot

1 Reset button

1 Green LED for the system power

9 ~ 24 V

Two poles lockable DC-in

3.16W (Max. load)

0 ~ 60° C

5%~95% Relative Humidity, non-condensing

111 x 77 x 30 mm

Wall mount, DIN-Rail

312G

V3.0.35

CE/FCC Class B

Graphics

Power

Environment

Mechanical

Operating System

Certifications

RISC Computing Platforms

All product specifications are subject to change without notice

Last updated : 21-May-2015
