UBC-220 Overview

Freescale i.MX6 RISC Compact Box Computer

Preview

Download Datasheet

View All

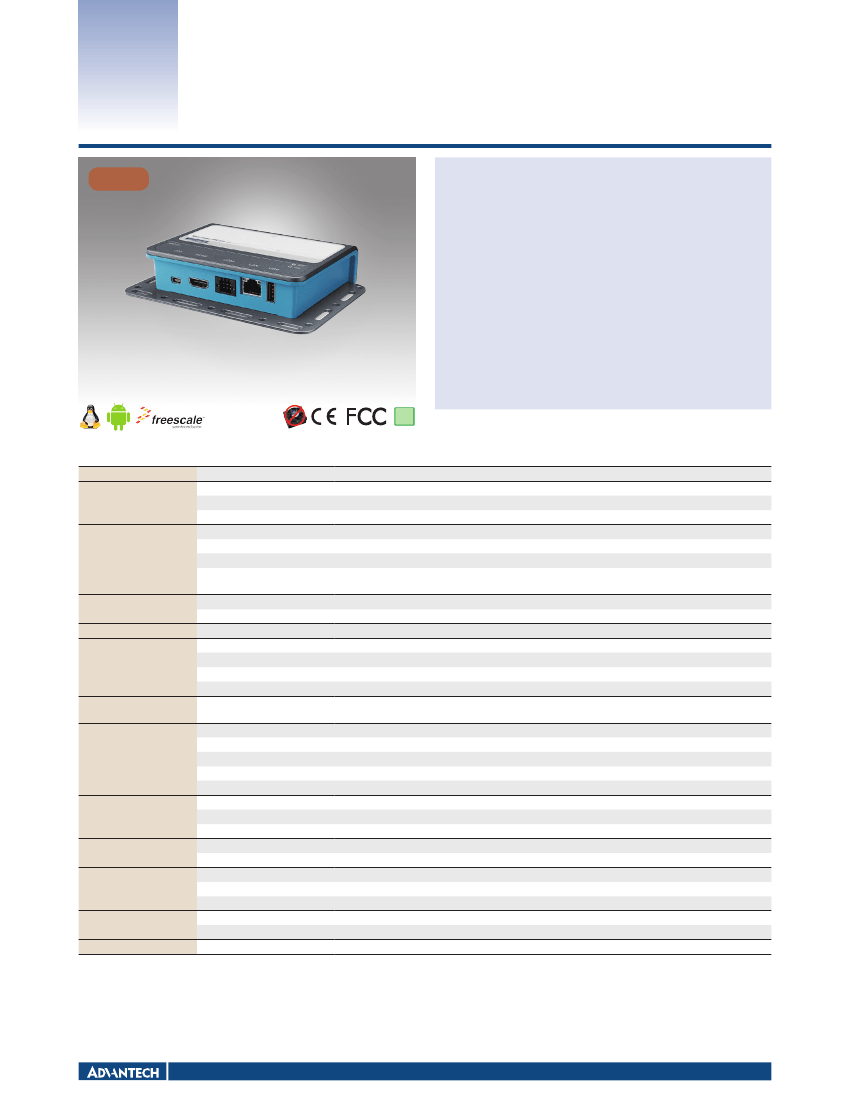

UBC-220

NEW

Freescale i.MX6 RISC Compact Box

Computer

Features

Freescale ARM Cortex-A9 i.MX6 Dual Lite 1 GHz high performance processor

Onboard DDR3 1 GB, 4 GB eMMC Flash

Supports OpenGL ES 2.0 and OpenVG 1.1 hardware accelerators, full HD

1080p video codec

HDMI 1920x1080

Single Channel 18/24 bit LVDS

1 4-wire RS-232

1 USB 2.0, 1 USB OTG

1 10/100/1000 Mbps Ethernet; 1 SD Slot

Dual mini-PCIe for WIFI/3G support

Multiple OS support in Linux/Android

RoHS

COMPLIANT

2002/95/EC

Specifications

Processor System

Memory

CPU

Technology

Capacity

Flash

HDMI

LVDS

Graphics Engine

H/W Video Codec

Ethernet

WatchDog Timer

I/O

Chipset

Speed

WatchDog Timer

USB

USB OTG

SDIO

UART

LED

Full Size Mini PCIe

Half Size Mini PCIe

SD Socket

SIM

Antenna Hole

Power Supply Voltage

Power Type

Power Consumption

Operating Temperature

Operating Humidity

Dimensions

Mounting

Weight

Linux

Android

Freescale i.MX6 Cortex-A9 Dual Lite 1 GHz

DDR3 800 MHz

On-board DDR3 1 GB

4 GB eMMC Flash for O.S. and 4 MB NOR Flash for Advantech boot loader

1 HDMI, 1920 x 1080

Single Channel 18/24 bit LVDS

1 IPU. OpenGL ES 2.0 for 3D, BitBlt for 2D and OpenVG 1.1

Decoder: MPEG-4 ASP, H.264 HP, H.263, MPEG-2 MP, MJPEG BP

Encoder: MPEG-4 SP, H.264 BP, H.263, MJPEG BP

Freescale i.MX6 integrated RGMII

1 10/100/1000 Mbps

External HW WDT

1 USB 2.0 Type A

1 USB 2.0 OTG

1 SD slot

1 4-wire RS-232

1 Green LED for the system power

1 Green LED for user define

1

12 V

DC

DC-in

4.4W (Max. load)

0 ~ 40° C

5%~95% Relative Humidity, non-condensing

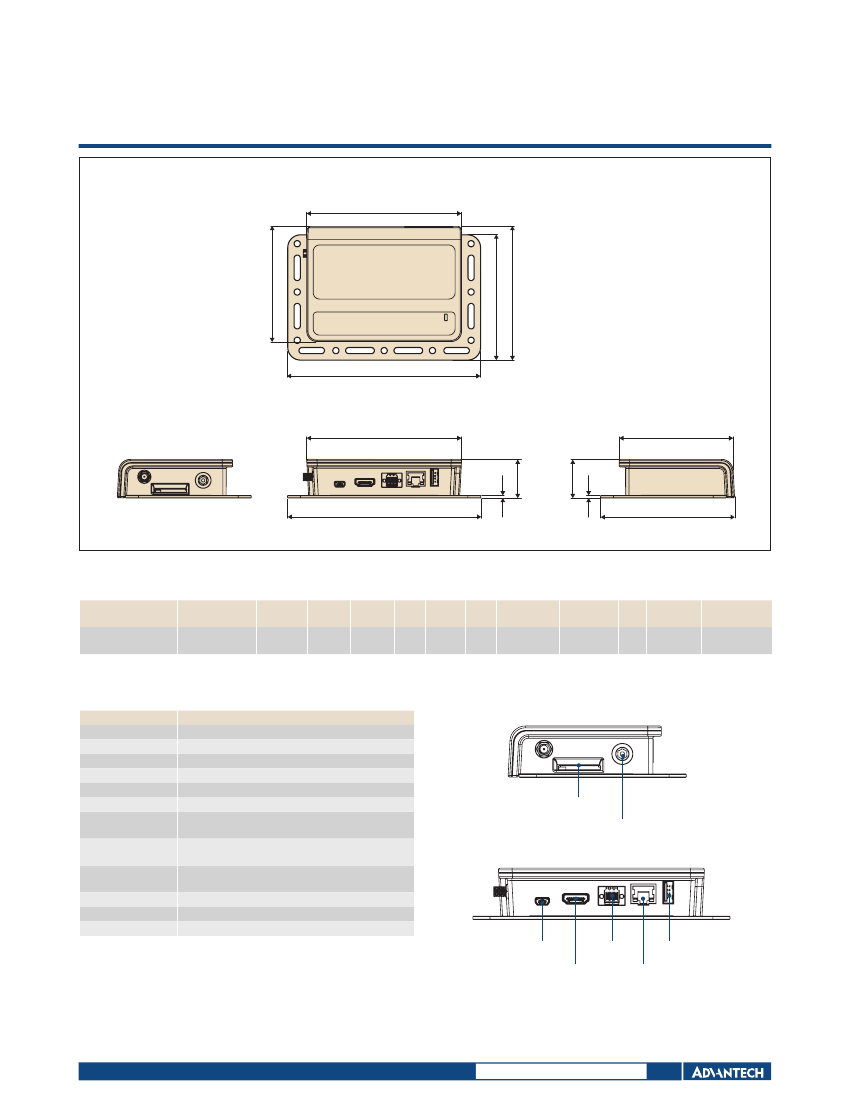

142 x 101 x 30 mm

Wall mount, DIN Rail, VESA mount

210g

V3.0.35

V4.2.2

CE/FCC Class B

Graphics

Indicator

Expansion

Power

Environment

Mechanical

Operating System

Certifications

RISC Computing Platforms

All product specifications are subject to change without notice

Last updated : 29-Jul-2015
