RSB-4220WS-MCA1E Overview

TI Sitara AM3352 Cotrex A8

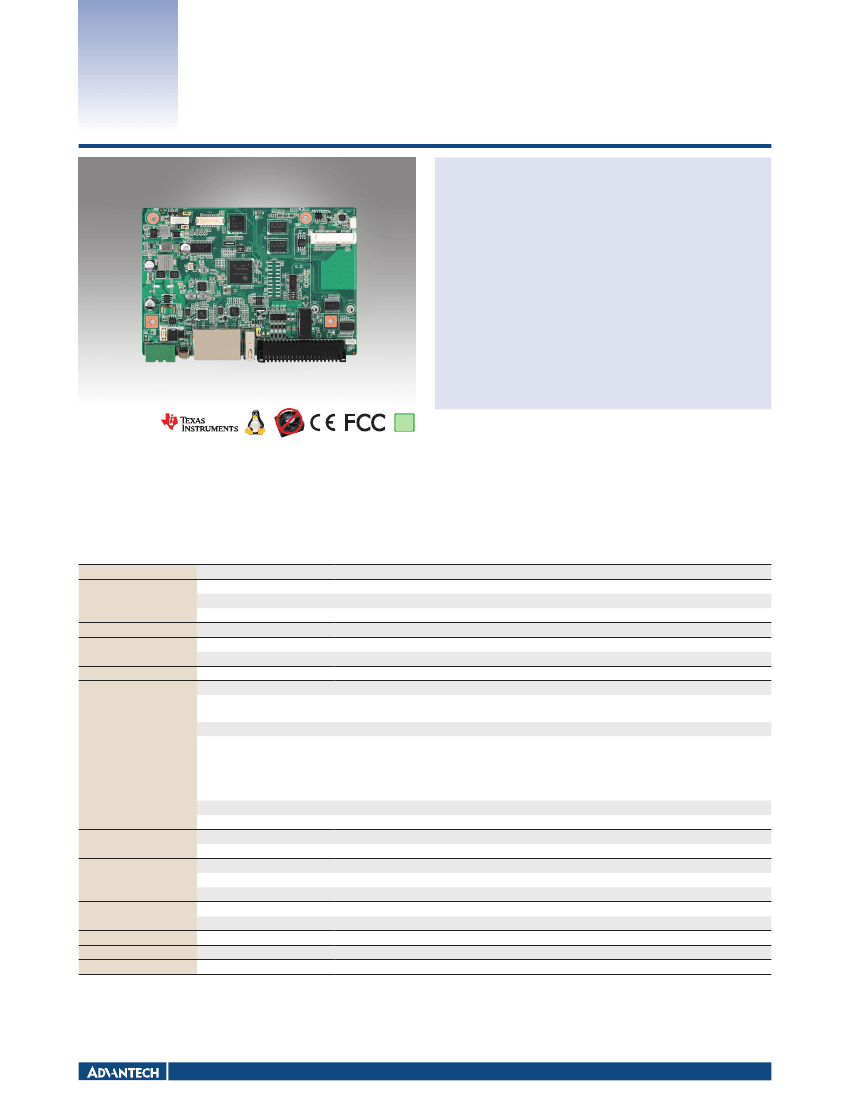

RSB-4220
TI Sitara AM3352 Cotrex A8
3.5" Single board
Features
ƒ
TI Sitara AM3352 Cortex A8 1.0GHz
ƒ
On-board DDR3 800MHz 512MB & 4MB SPI NOR Flash & 4GB eMMC NAND
Flash
ƒ
Support 4GPI / 4GPO w/ESD & isolation
ƒ
6x UART w/ESD protection (Contact 4KV / Air 8KV)
ƒ
Support 2x Gigabit Ethernet ports and 1x Mini PCIe socket
ƒ
Supports Linux Kernel V3.2.0
ƒ
Operation temperature 0 ~ 60° C / -40 ~ 85° C
ƒ
Support 18bit LVDS resolution up to 1366 x 768
ƒ
HW WTD for system protection
RoHS
COMPLIANT
2002/95/EC
Introduction
RSB-4220 series are the RISC SBC which integrated TI Sitara AM3352 Cortex-A8 processor. It offers 2x gigabit Ethernets, 6x serials port, 4x GPI and 4x GPO. For the industrial
application, the UART & GPIO feature a rugged ESD and isolatoin protection and it can protect system from unstable power damage. Otherwise, RSB-4220 also has multiple power
input and operation temperature support,even support a single channel 18 bit LVDS up to 1366 x 768 resolution. It is an ideal solution for automation control such as smart grid,
industrial and machinery automation applications.
Specifications
Form Factor
Processor System
Graphics
Ethernet
WatchDog Timer
USB
UART
CAN
I/O
GPIO
I
2
C
Button
Mini PCIe
SD Socket
Power Supply Voltage
Power Type
Power Consumption
Operational Temperature
Operating Humidity
Dimensions (W x D x H)
CPU
Capacity
Flash
LVDS
Transceiver
Speed
3.5" SBC
TI Sitara AM3352 Cortex A8 1.0GHz
On-board DDR3 800MHz 512MB
4 GB eMMC NAND Flash for O.S. and 4 MB SPI NOR Flash for booting code
Support 18bit LVDS resolution up to 1366 x 768
RTL 8211
2 x 10/100/1000 Mbps
MSP430G2202 (time out:1~6553s,default 60s/power on/off 1s)
USB2.0 HOST /OTG (By jumper selection)
6 (1x 4 wires RS-232/422/485, 5x 2 wires RS-232)
The 6 UART w/ ESD protection (Contact 4KV/ Air 8KV)
1 x CAN bus version 2.0 A and B
4x GPI/4x GPO (w/ESD & isolation, optional)
GPI:
GPO:
ESD protection: Contact 4KV/ Air 8KV
ESD protection: Contact 4KV/ Air 8KV
Isolation: 0 ~ 50Voc input and 10KHz speed
Isolation: 5 ~ 40Voc output and 10KHz speed
(200mA max/chanel sink current)
1
1x Reset
1x mini-PCIe socket (USB signal only)
1 x SD slot
+ 12/19/24 VDC-In
Two poles lockable DC-in
2.8W (Idle)
0 ~ 60° C/ -40 ~ 85° C
5%~95% Relative Humidity, non-condensing
146 x 102 x 1.6 mm
Linux kernel v3.2.0
CE/FCC Class B
Expansion
Power
Environment
Mechanical
Operating System
Certifications
RISC Computing Solutions
All product specifications are subject to change without notice
Last updated : 30-Jun-2015
