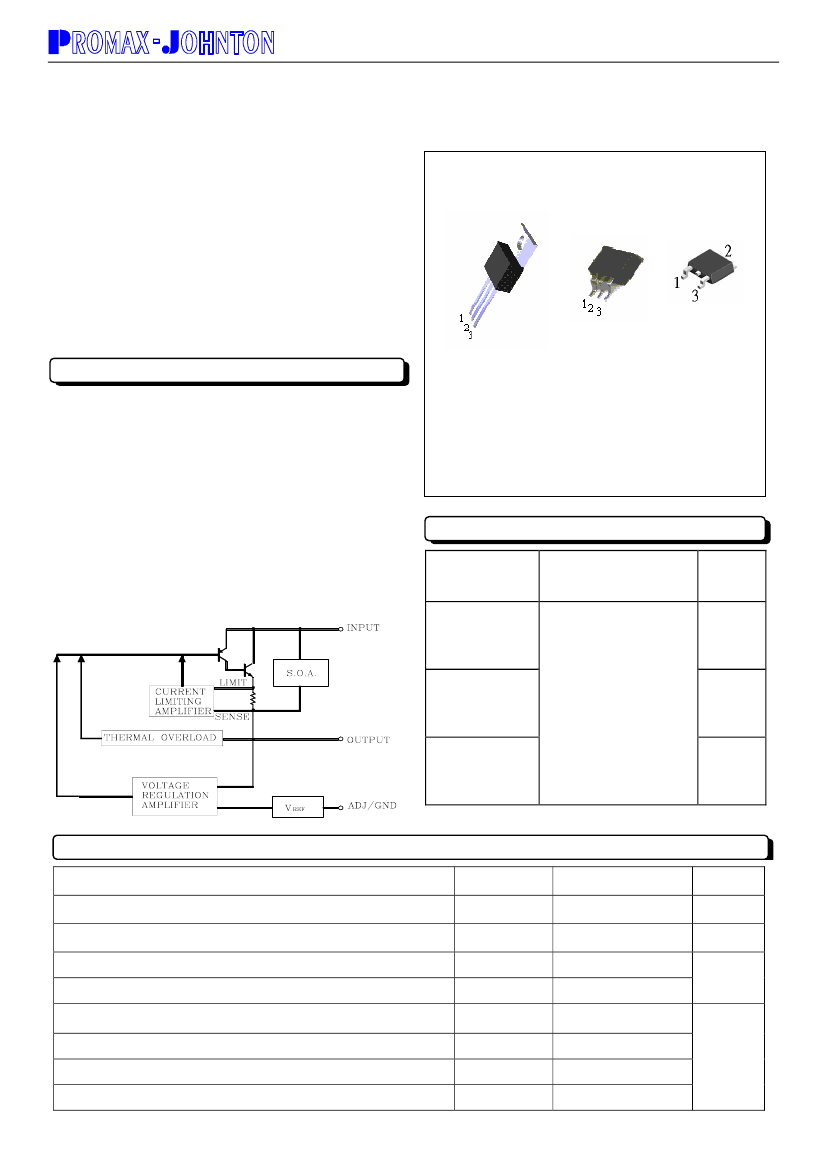

PJ1086

1.5 Amp Low Dropout Positive Voltage Regulators

T

he PJ1086 seriesof high performance positive voltage

regulators designed for use in applications requiring low

dropout performance at full rated current, Additionally,

the PJ1086 Series provides excellent regulation over variations

due to changes in line, load and temperature. Outstanding

features include low dropout performance at rated current, fast

transient response, internal current limiting and thermal

shutdown protection of the output device. The PJ1086 Series

are three

terminal regulators with fixed and adjustable voltage

options available in popular packages.

TO-220

TO-263

TO-252

FEATURES

•

Low dropout voltage 1.3V max.

Full current rating over line and temperature

Fast transient response

±2%Total

output regulation over line, load and

temperature

Adjust pin current max 120μA over temperature

Line regulation typical 0.015%.

Load regulation typical 0.05%.

Fixed/adjustable output voltage

TO-220 & TO-263 ,TO-252 package

Pin:1.Adj(com)

2.Out

3.In.

NOTE: Contact factory for additional voltage option.

ORDERING INFORMATION

Device

PJ1086CZ

PJ1086CZ-2.5

PJ1086CZ-3.3

PJ1086CM

PJ1086CM-2.5

PJ1086CM-3.3

PJ1086CP

PJ1086CP-2.5

PJ1086CP-3.3

TO-252

-20℃〜+85℃

TO-263

TO-220

Operating Temperature

(Ambient)

Package

BLOCK DIAGRAM

ABSOLUTE MAXIMUM RATING

Parameter

Input Voltage

Power Dissipation

Thermal Resistance Junction to Case

Thermal Resistance Junction to Ambient

Operating Junction Temperature Range

Operating Ambient Temperature Range

Storage Temperature Range

Lead Temperature(Soldering) 10 Sec.

1-6

Symbol

V

IN

P

D

θ

JC

θ

JA

T

J

T

A

T

STG

T

LEAD

Maximum

7

Internally Limited

2.5

50

0 to +125

-20 to +85

-25 to 150

260

2002.rev.A

℃

Units

V

W

℃/W

PJ1086

1.5 Amp Low Dropout Positive Voltage Regulators

ELECTRICAL CHARACTERISTICS

Unless otherwise specified, Adjust VIN=2.75V to 12V and Adjust Io=10mA to 1.5A

Fixed VIN=4.75V to 12V and Fixed Io=10mA to 1.5A

Test Conditions

Parameter

Output Voltage

(1)

Fixed Voltage

Reference Voltage

(1)

Adj Voltage

Line Regulation

(1)

(Vin-Vout=3V)

Load Regulation

(1)

(Vin-Vout=3V)

Dropout Voltage

ΔV

REF

=1%

Current Limit

(Vin-Vout=5V)

Quiescent Current

Fixed Model

Temperature Coefficient

Adjust Pin Current

I

Q

Tc

I

ADJ

25

5V

Ic

L

Over Temp.

12

0.005

55

120

Adjust Pin Current Change

Temperature Stability

Minimum Load Current

Adjust Model

RMS Output Noise

(2)

Ripple Rejection Ratio

(3)

ΔI

ADJ

Ts

Io

V

N

R

A

5V

1.5A

5V

25

Over Temp.

60

500mA Over Temp.

0.2

0.5

5

0.003

72

10

5

%

mA

%Vo

dB

μA

14

mA

%/℃

1.6

V

D

REG

(LOAD)

REG

(LINE)

10mA

V

REF

5V

10mA

Symbol

Vo

V

IN

-V

OUT

5V

I

O

10mA

T

J(4)

25

Over Temp.

25

Over Temp.

25

Over Temp.

25

Over Temp.

25

Min

0.99|Vo|

0.98|Vo|

1.238

1.225

0.015

0.035

0.05

0.2

1

1.1

2.5

1.3

A

0.3

0.4

V

%

1.250

Test Limits

Typ

Vo

Max

1.01|Vo|

1.02|Vo|

1.262

1.275

0.2

V

Units

(1)Low duty cycle pulse testing with Kelvin connections required.

(2)Bandwidth of 10Hz to 10KHz.

(3)120Hz input ripple (C

ADJ

for ADJ) =25μF .

(4)Over Temp.-over specified operating junction temperature range.

2-6

2002.rev.A

PJ1086

1.5 Amp Low Dropout Positive Voltage Regulators

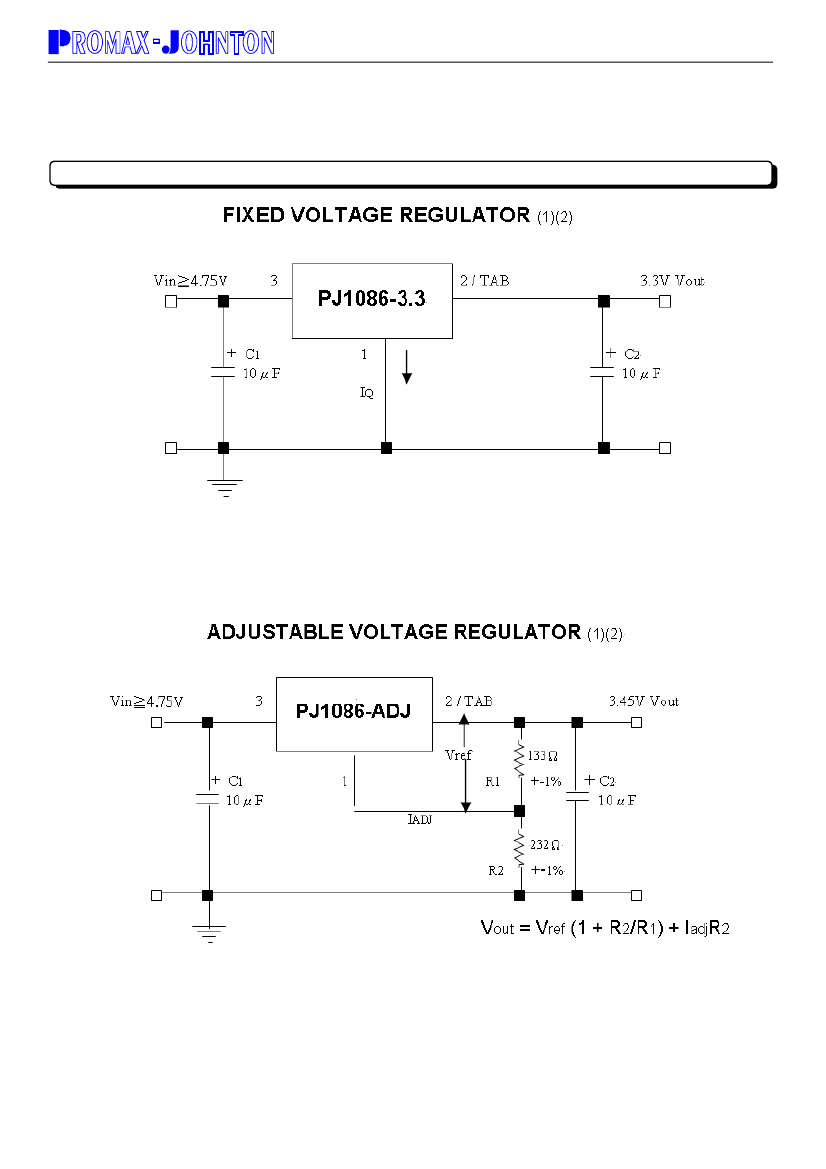

Typical Application Circuit

(1) C

1

NEEDED IF DEVICE IS FAR FROM FILTER CAPACITORS

(2) C

2

REQUIRED FOR STABILITY

(1) C

1

NEEDED IF DEVICE IS FAR FROM FILTER CAPACITORS

(2) C

2

REQUIRED FOR STABILITY

3-6

2002.rev.A

PJ1086

1.5 Amp Low Dropout Positive Voltage Regulators

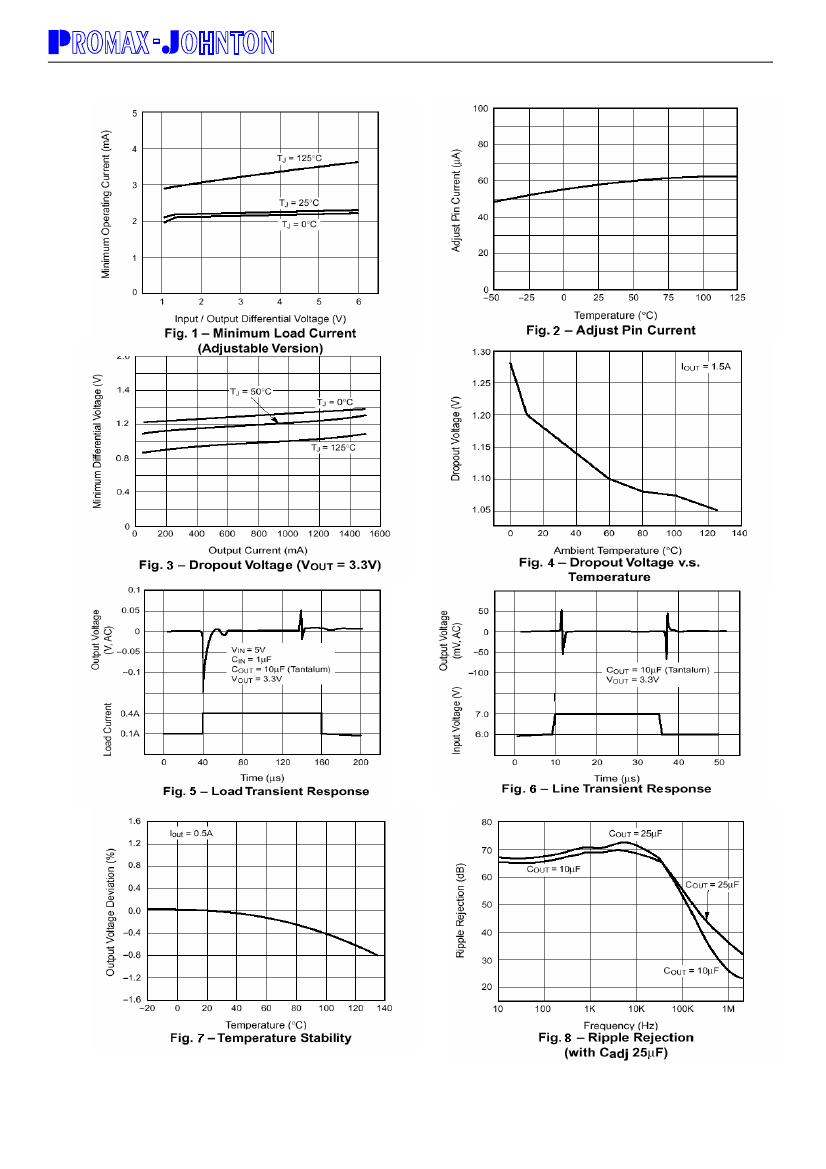

4-6

2002.rev.A

PJ1086

1.5 Amp Low Dropout Positive Voltage Regulators

TO-220 Mechanical drawing

TO-220 DIMENSION

MILLIMETERS

INCHES

MIN

MAX

MIN MAX

10.00

10.50

0.394 0.413

3.24

4.44

0.128 0.175

2.44

2.94

0.096 0.116

3.565

4.315

0.140 0.170

0.68

0.92

0.027 0.036

1.115

1.485

0.044 0.058

2.345

2.715

0.092 0.107

13.49

14.31

0.531 0.563

4.475

5.225

0.176 0.206

1.15

1.39

0.045 0.055

27.78

29.62

1.094 1.166

2.175

2.925

0.086 0.115

0.297

0.477

0.012 0.019

8.28

8.80

0.326 0.346

14.29

15.31

0.563 0.603

6.01

6.51

0.237 0.256

DIM

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

TO-263 Mechanical drawing

DIM

A

B

C

D

E

F

G

H

I

J

TO-263 DIMENSION

MILLIMETER

INCHES

S

MIN

MAX

MIN

MAX

10.00

10.50

0.394 0.413

14.60

15.87

0.575 0.625

0.68

0.92

0.027 0.036

2.42

2.66

0.095 0.105

4.31

4.83

0.170 0.190

1.14

1.40

0.045 0.055

2.28

2.79

0.090 0.110

0.45

0.73

0.018 0.029

8.28

8.80

0.326 0.346

1.14

1.4

0.045 0.055

5-6

2002.rev.A
