Board Connector, 48 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle
| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |

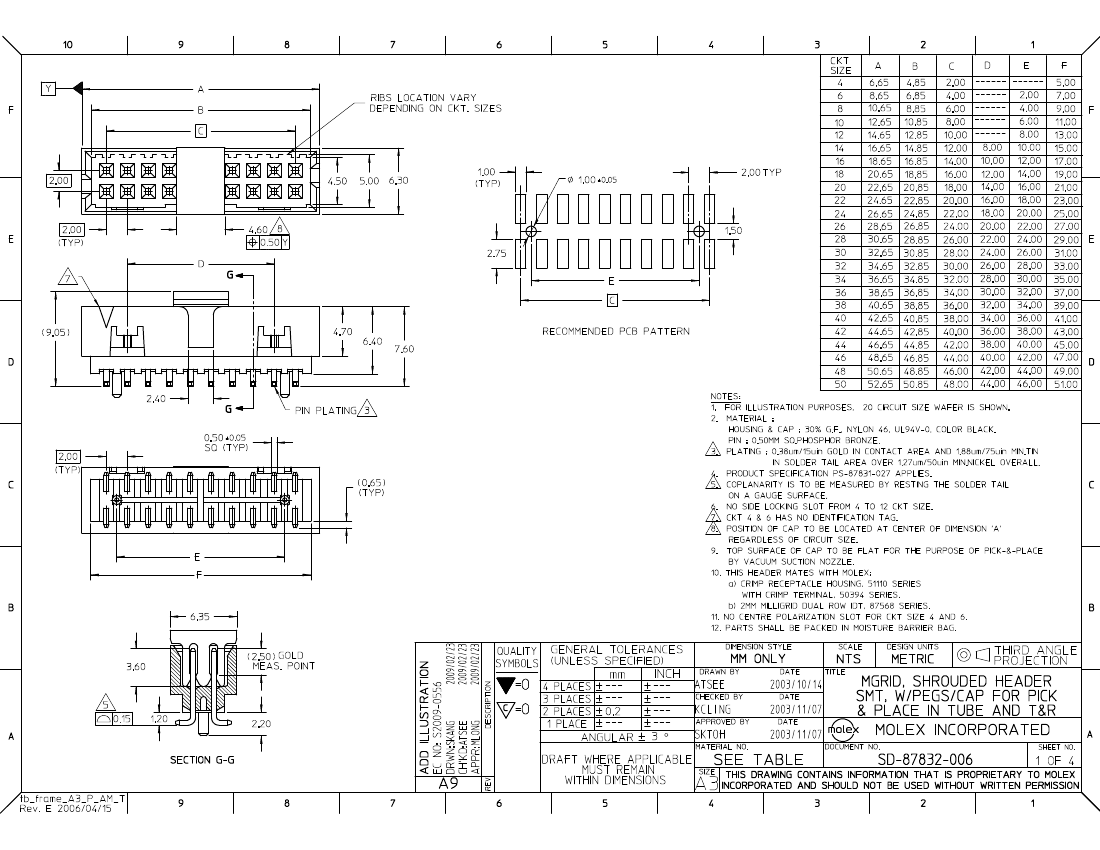

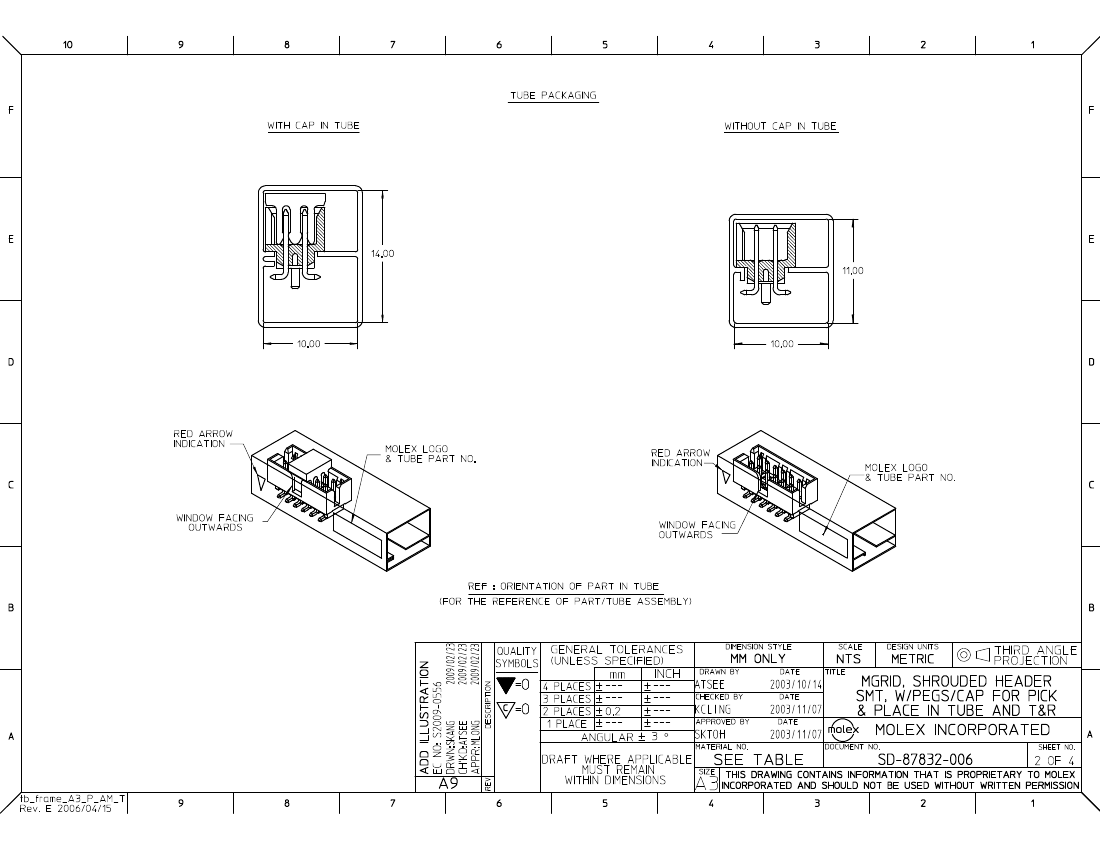

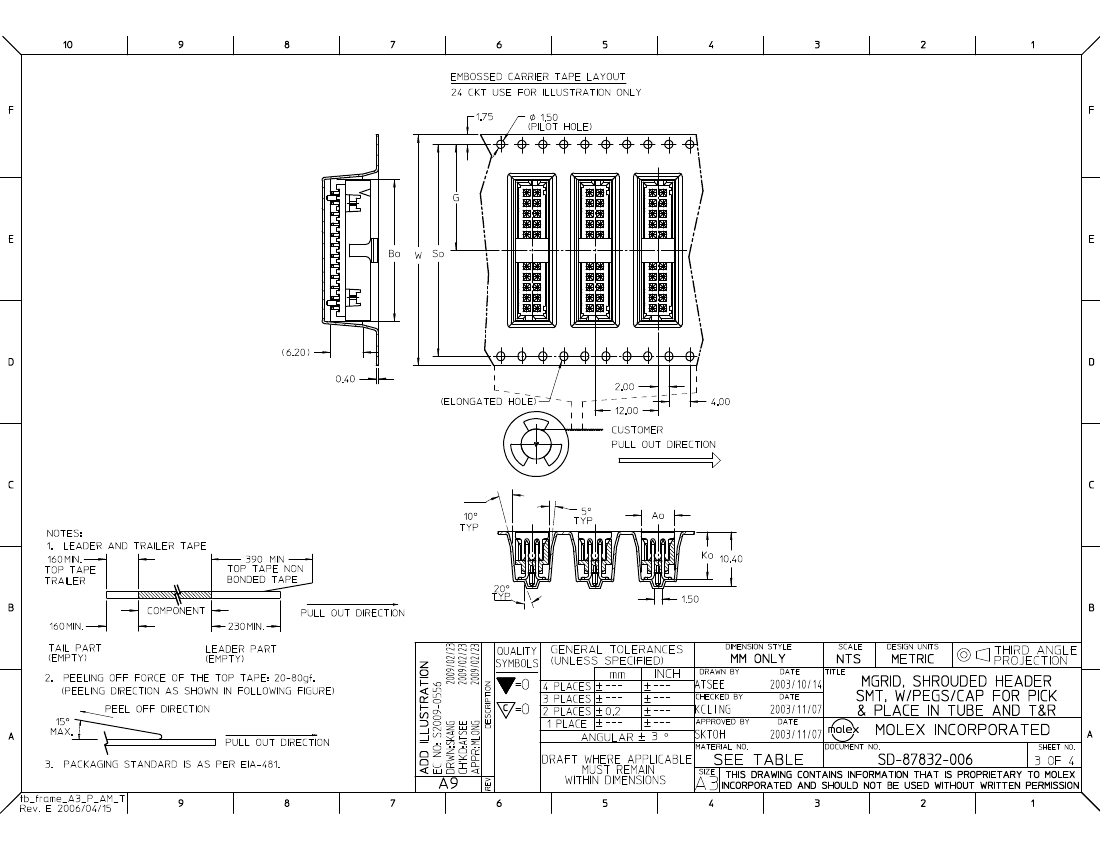

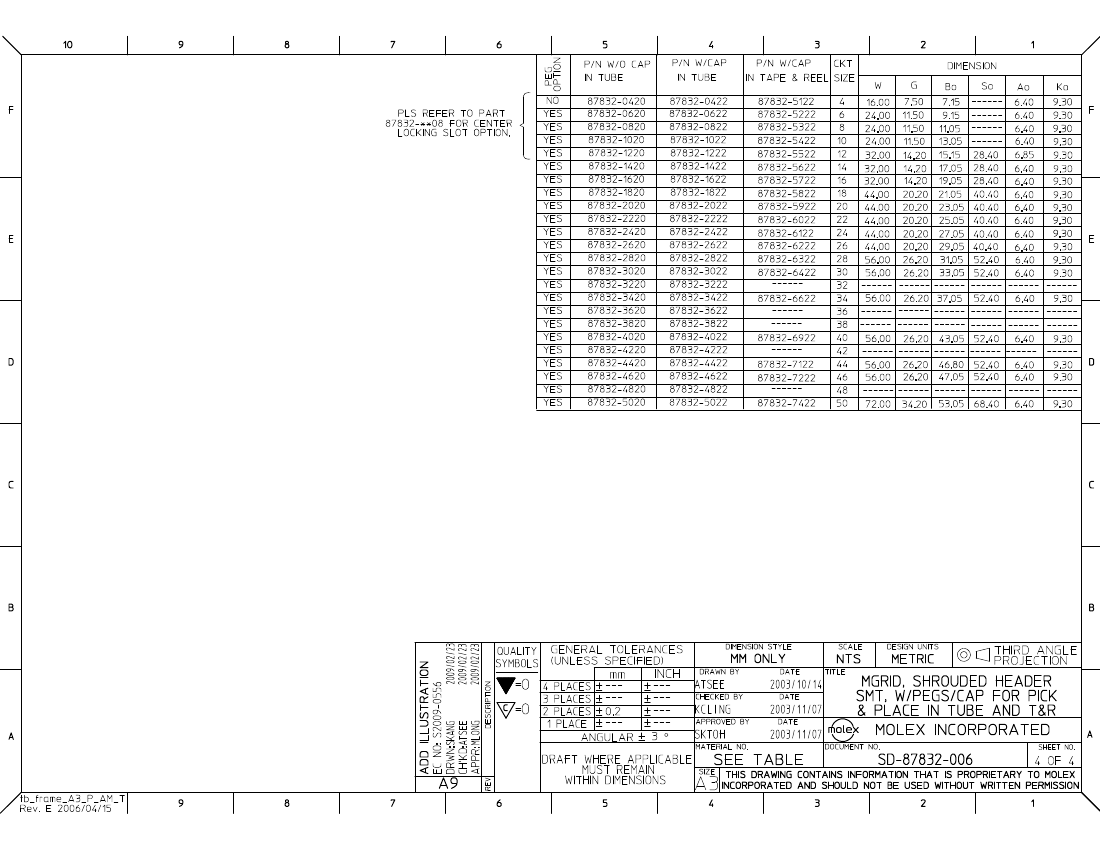

| Other features | TUBE PACKAGE |
| Board mount options | PEG |
| body width | 0.248 inch |
| subject depth | 0.252 inch |
| body length | 1.995 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD (15) OVER NICKEL |
| Contact completed and terminated | TIN (75) OVER NICKEL |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact resistance | 30 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 500VAC V |
| Durability | 100 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 2.0016 N |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED NYLON |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Manufacturer's serial number | 87832 |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 4.2418 mm |
| Plating thickness | 15u inch |
| polarization key | CTR W/GUIDE SLOTS |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 2 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 48 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .3892 N |
| 87832-4822 | 87832-3822 | 87832-4222 | |
|---|---|---|---|
| Description | Board Connector, 48 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle | Board Connector, 38 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle | Board Connector, 42 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle |
| Reach Compliance Code | unknown | unknown | unknown |
| Other features | TUBE PACKAGE | TUBE PACKAGE | TUBE PACKAGE |
| Board mount options | PEG | PEG | PEG |
| body width | 0.248 inch | 0.248 inch | 0.248 inch |
| subject depth | 0.252 inch | 0.252 inch | 0.252 inch |
| body length | 1.995 inch | 1.6 inch | 1.757 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD (15) OVER NICKEL | GOLD (15) OVER NICKEL | GOLD (15) OVER NICKEL |
| Contact completed and terminated | TIN (75) OVER NICKEL | TIN (75) OVER NICKEL | TIN (75) OVER NICKEL |
| Contact point gender | MALE | MALE | MALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 30 mΩ | 30 mΩ | 30 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO |
| Dielectric withstand voltage | 500VAC V | 500VAC V | 500VAC V |
| Durability | 100 Cycles | 100 Cycles | 100 Cycles |
| Filter function | NO | NO | NO |
| IEC compliance | NO | NO | NO |
| maximum insertion force | 2.0016 N | 2.0016 N | 2.0016 N |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω |
| Insulator color | BLACK | BLACK | BLACK |
| insulator material | GLASS FILLED NYLON | GLASS FILLED NYLON | GLASS FILLED NYLON |
| JESD-609 code | e3 | e3 | e3 |
| MIL compliance | NO | NO | NO |
| Manufacturer's serial number | 87832 | 87832 | 87832 |
| Plug contact pitch | 0.079 inch | 0.079 inch | 0.079 inch |
| Match contact row spacing | 0.079 inch | 0.079 inch | 0.079 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO | NO |
| Installation option 1 | LOCKING | LOCKING | LOCKING |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE |
| PCB row number | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 4.2418 mm | 4.2418 mm | 4.2418 mm |
| Plating thickness | 15u inch | 15u inch | 15u inch |
| polarization key | CTR W/GUIDE SLOTS | CTR W/GUIDE SLOTS | CTR W/GUIDE SLOTS |
| Rated current (signal) | 1 A | 1 A | 1 A |
| Guideline | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 2 mm | 2 mm | 2 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 48 | 38 | 42 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 |
| Evacuation force-minimum value | .3892 N | .3892 N | .3892 N |
| Maker | Molex | - | Molex |
