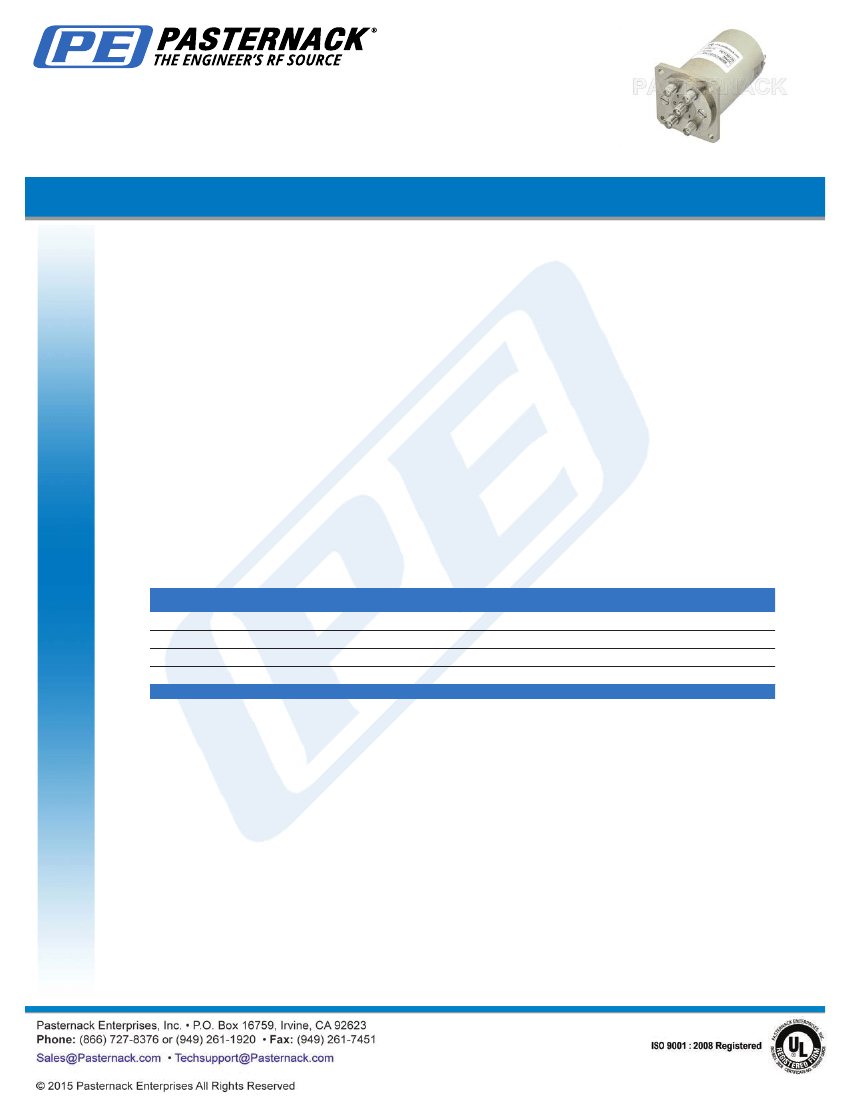

SP4T Electromechanical Relay Switch DC to 22 GHz, SMA,

30 Watts, 28V Control with Normally Open, Indicators

TECHNICAL DATA SHEET

PE71S6129

The PE71S6129 is Single Pole Four Throw Switch that operates from DC to 22 GHz. The switch has a normally open actuator,

Indicators and 1M life cycles. The switch has an operating voltage of 28 Volts.

Features

•

SP4T Switch

DC to 22 GHz Operating Frequency Range

1 M Cycles min

Normally Open Switch

• Indicators

• TTL Contol

• Switching Sequence Break Before Make

Applications

• Test & Measurement

• Communications System

• Instrumentation

Electrical Specifications

Frequency Range

Impedance

Actuator

Actuating Current

Control Voltage

RF Input Power (Max CW)

RF Characteristic

Description

Frequency Range

VSWR, Max

Insertion Loss, Max

Isolation, Min

DC to 22 GHz

50 Ohms

Normally Open, Indicators

135 mA

28 Volts

30 Watts

Band 1

DC to 4

1.2:1

0.3

Band 2

4 to 8

1.3:1

0.35

Band 3

8 to 12

1.4:1

0.4

Band 4

12 to 18

1.5:1

0.5

Band 5

18 to 22

1.6:1

0.6

Units

GHz

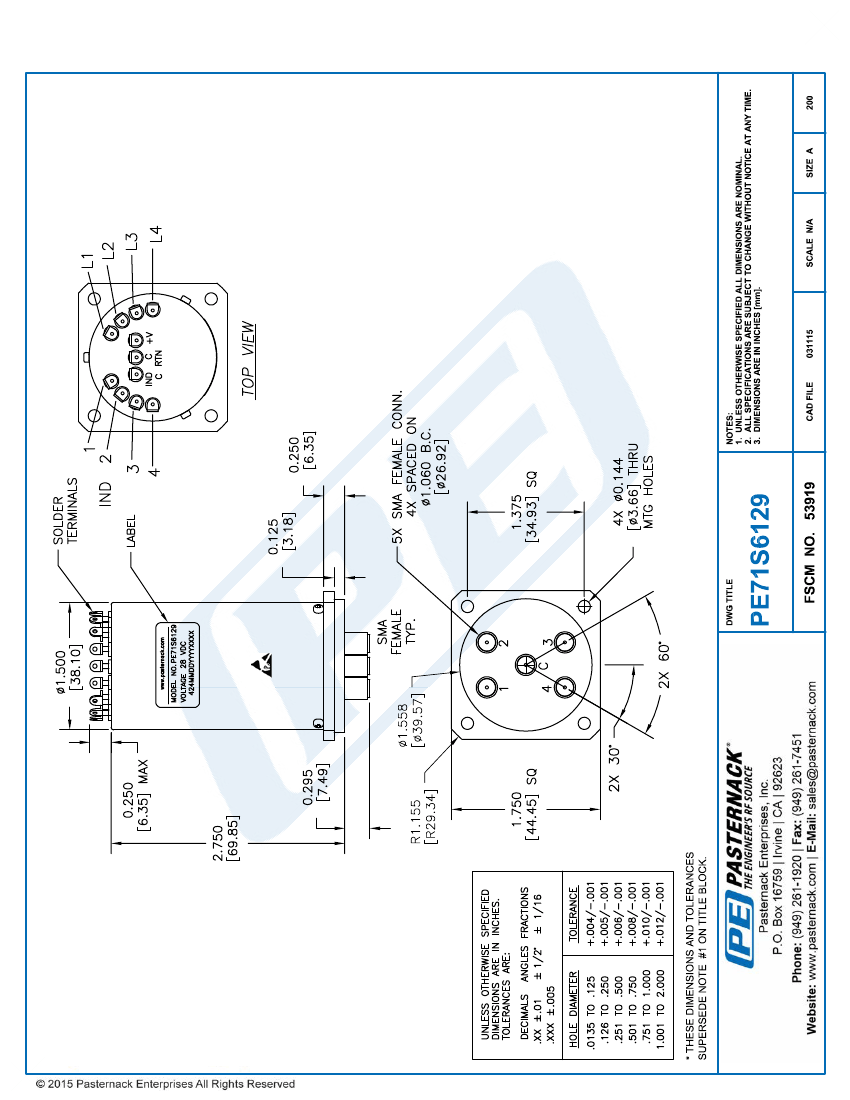

Mechanical Specifications

Connector Type

Operating Life

Terminals

Switching Time (nominal voltage, 25°C)

SMA Female

1,000,000

Solder Pins

<15 ms Typ

Environmental Specifications

Temperature

Operating Range

Environment

-55 to +85 deg C

MIL-DTL-3928

Aluminum

Housing Material and Plating

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

SP4T Electromechanical Relay Switch DC to 22 GHz, SMA, 30 Watts, 28V Control with Nor-

mally Open, Indicators PE71S6129

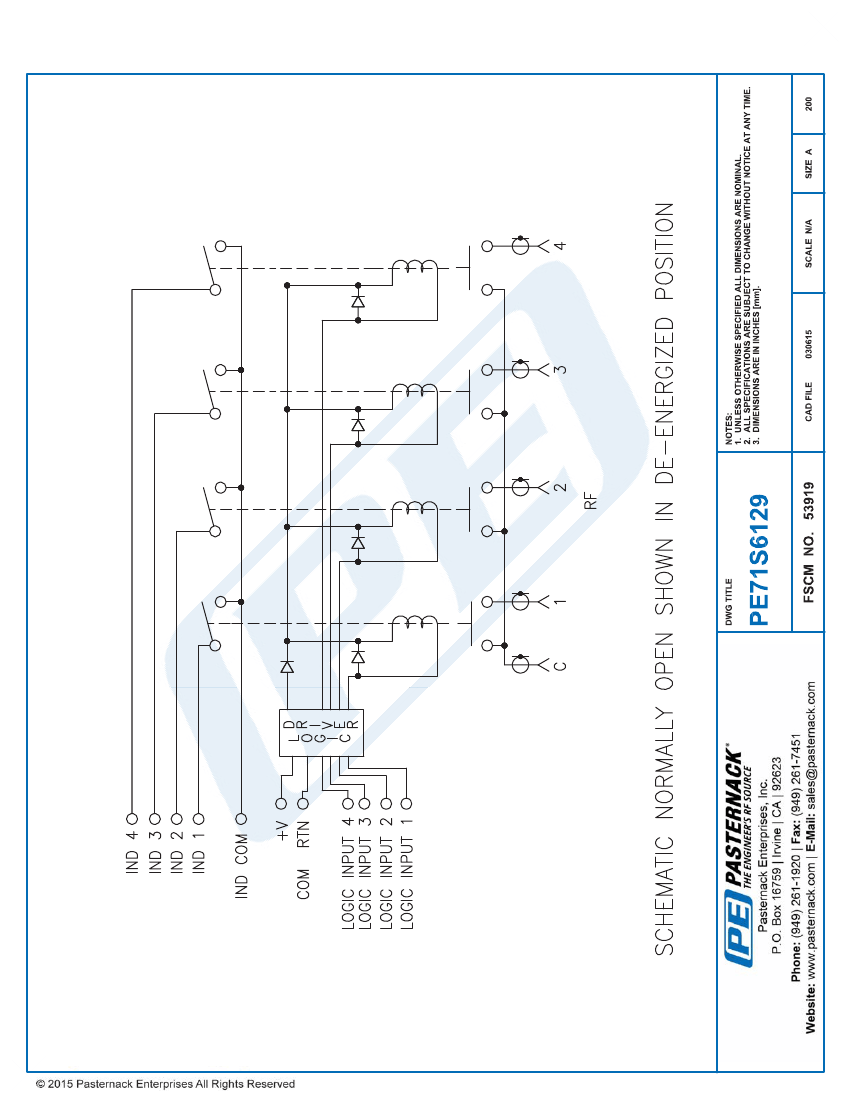

PE71S6129 REV 1.0
