DAJKX15P3-1A0N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DAJKX15P3-1A0N

DAJKX15P3-1A0N: DescriptionD Subminiature Connector, 15 Contact(s), Male, Solder Terminal, Plug,; CategoryThe connector The connector; File Size31KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

DAJKX15P3-1A0N Overview

D Subminiature Connector, 15 Contact(s), Male, Solder Terminal, Plug,

DAJKX15P3-1A0N Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	EMI/RFI SHIELDED, PANEL MOUNT
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

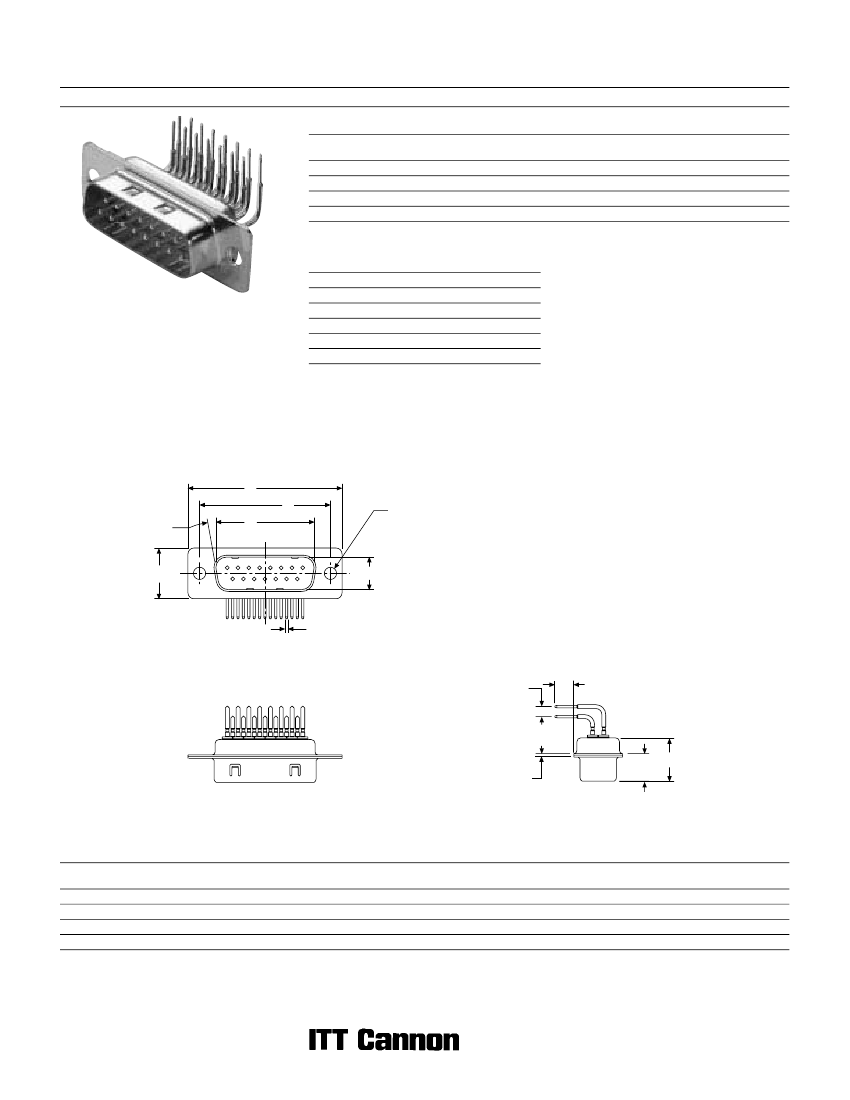

D Subminiature

D*JK — 90° PC Tails — European Footprint 10,2 or 9,4 mm

Plug

Part Numbers

Shell Size

Layout

Through Hole

DEJK9P*-1A0N

DAJK15P*-1A0N

DBJK25P*-1A0N

DCJK37P*-1A0N

Clinch Nut

#4-40 UNC

DEJKE9P*-1A0N

DAJKE15P*-1A0N

DBJKE25P*-1A0N

DCJKE37P*-1A0N

Filter D

Clinch Nut

DEJKX9P*-1A0N

DAJKX15P*-1A0N

DBJKX25P*-1A0N

DCJKX37P*-1A0N

* Insert filter designator. Example: DEJK9P4-1A0N (For 1000 pF Filter Capacitance)

Modifier: For performance class 1 add -A190. Example: DEJK9P1-1A0N-A190

Reader’s Resource

For contact cavity arrangements,

see page 224.

For P.C. hole patterns, see page 273.

For panel cutouts, see page 221.

For hardware options (European),

see page 227.

Filter Designator*

For electrical data, see page 106.

Filter Capacitance

330 pF

470 pF

680 pF

1000 pF

1500 pF

Engaging Face

10°

Ø 3,05 (.120)

Ø 0,60 (.024)

2,54 (.100)

4,73 (.186)

9,40

(.370)

Dimensions

Shell Size

±0,38

(.015)

30,81 (1.213)

39,14 (1.541)

53,04 (2.088)

69,32 (2.729)

±0,13

(.005)

16,92 (.666)

25,25 (.994)

38,96 (1.534)

55,42 (2.182)

±0,13

(.005)

24,99 (.984)

33,32 (1.312)

47,04 (1.852)

63,50 (2.500)

±0,13

(.005)

8,36 (.329)

±0,38

(.015)

12,55 (.494)

±0,25

(.010)

10,72 (.422)

±0,37

(.015)

6,69 (.264)

—

±0,41

(.016)

—

6,84 (.269)

±0,25

(.010)

0,76 (.030)

0,99 (.039)

Connector footprint measured from the front shell.

Connector footprint measured from the rear shell.

110

Dimensions are shown in mm (inch)

Dimensions subject to change
