SPDT Electromechanical Relay Switch DC to 40 GHz,
2.92mm, 10 Watts, 28V Control with Failsafe
TECHNICAL DATA SHEET
PE71S6103
The PE71S6103 is Single Pole Double Throw Switch that operates from DC to 40 GHz. The switch has a failsafe actuator 1M
life cycles. The switch has an operating voltage of 28 Volts.
Features
• SPDT Switch
• DC to 40 GHz Operating Frequency Range
• 1 M Cycles min
• Failsafe Switch
• Switching Sequence Break Before Make
Applications
• Test & Measurement
• Communications System
• Instrumentation
Electrical Specifications
Frequency Range
Impedance
Actuator
Actuating Current
Control Voltage
RF Input Power (Max CW)
RF Characteristic
Description
Frequency Range
VSWR, Max
Insertion Loss, Max
Isolation, Min
.
DC to 40 GHz
50 Ohms
Failsafe
160 mA
28 Volts
10 Watts
Band 1
DC to 6
1.3:1
0.3
70
Band 2
6 to 12
1.4:1
0.4
60
Band 3
12 to 18
1.5:1
0.5
60
Band 4
18 to 26.5
1.7:1
0.7
55
Band 5
26.5 to 40
1.9:1
0.8
50
Units
GHz
dB
dB
Mechanical Specifications
Connector Type
Operating Life
Terminals
Switching Time (nominal voltage, 25°C)
2.92mm Female
1,000,000
Solder Pins
<15 ms Typ
Environmental Specifications
Temperature
Operating Range
Environment
.
-35 to +85 deg C
MIL-DTL-3928
Aluminum
Housing Material and Plating
Compliance Certifications
(visit www.Pasternack.com for current document)
Not RoHS Compliant
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SPDT Electromechanical Relay Switch DC to 40 GHz, 2.92mm, 10 Watts, 28V Control with
Failsafe PE71S6103
PE71S6103 REV 1.0
1
SPDT Electromechanical Relay Switch DC to 40 GHz,
2.92mm, 10 Watts, 28V Control with Failsafe
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
• Values at +25 °C, sea level
• ESD Sensitive Material, Transport material in Approved ESD bags. Handle only in approved ESD Workstation
PE71S6103
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SPDT Electromechanical Relay Switch DC to 40 GHz, 2.92mm, 10 Watts, 28V Control with
Failsafe PE71S6103
PE71S6103 REV 1.0
2
SPDT Electromechanical Relay Switch DC to 40 GHz,
2.92mm, 10 Watts, 28V Control with Failsafe
TECHNICAL DATA SHEET

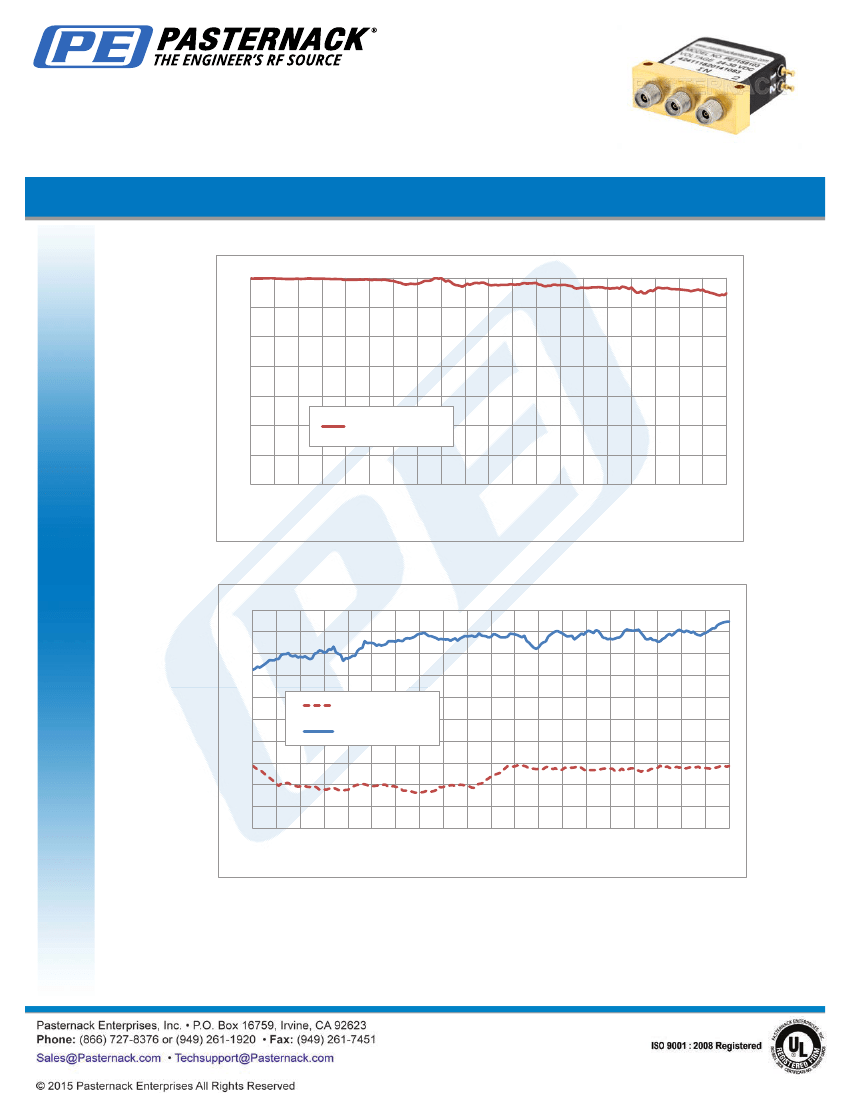

Typical Performance Data
0.0
-0.5
-1.0
-1.5
-2.0
-2.5
-3.0
-3.5
0
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
Freq.(GHz)
INSERTION LOSS (dB)
PE71S6103
INSERTION LOSS
-5
-15
-25
-35
-45
-55
-65
-75
-85
-95
-105
0
2
4
6
8
10
12
ISOLATION (dB)
ISOLAITON OVER RETURN LOSS
RETURN LOSS (dB)
14
16
18
20
22
24
26
28
30
32
34
36
38
40
Freq.(GHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SPDT Electromechanical Relay Switch DC to 40 GHz, 2.92mm, 10 Watts, 28V Control with
Failsafe PE71S6103
PE71S6103 REV 1.0
3
SPDT Electromechanical Relay Switch DC to 40 GHz,
2.92mm, 10 Watts, 28V Control with Failsafe
TECHNICAL DATA SHEET
PE71S6103

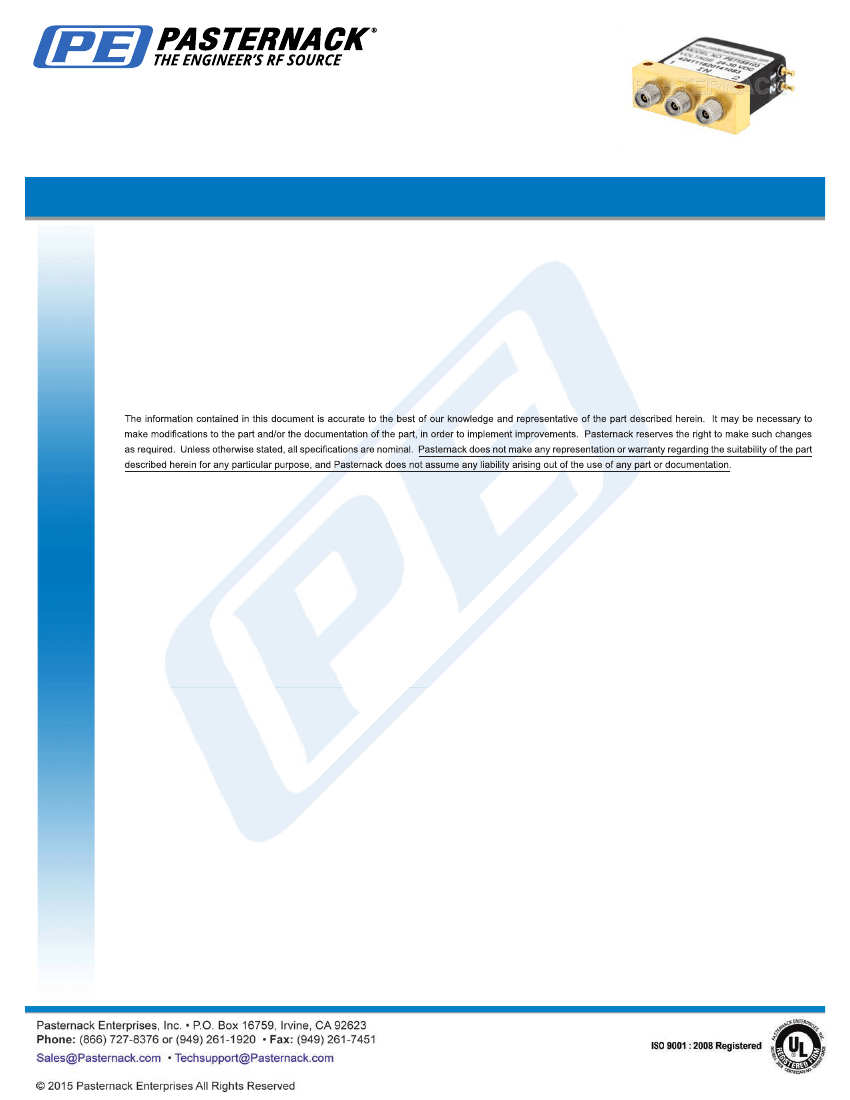

SPDT Electromechanical Relay Switch DC to 40 GHz, 2.92mm, 10 Watts, 28V Control with Failsafe from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SPDT Electromechanical Relay Switch DC to 40 GHz, 2.92mm, 10 Watts, 28V Control with
Failsafe PE71S6103
URL:
http://www.pasternack.com/2.92mm-spdt-electromechanical-relay-switch-40-ghz-failsafe-pe71s6103-p.aspx
PE71S6103 REV 1.0
4
PE71S6103

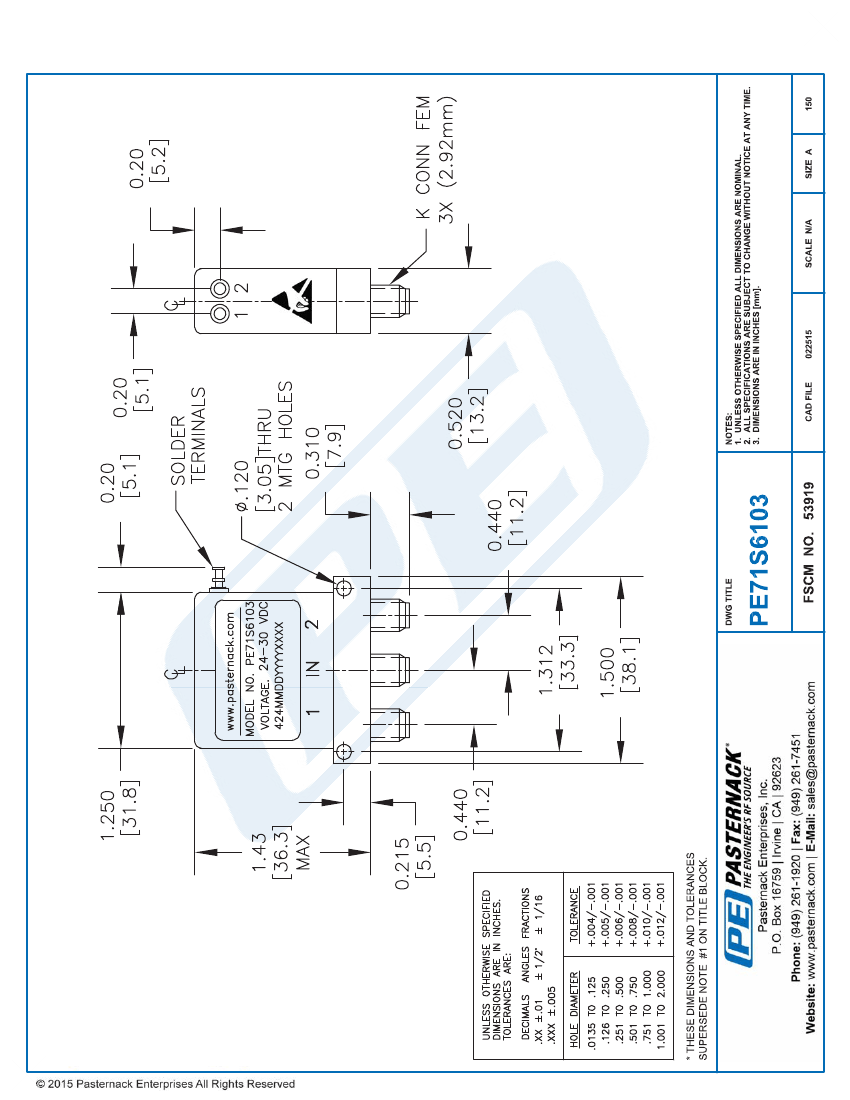

CAD Drawing
SPDT Electromechanical Relay Switch DC to 40 GHz,
2.92mm, 10 Watts, 28V Control with Failsafe
PE71S6103 REV 1.0
5
