Document 590

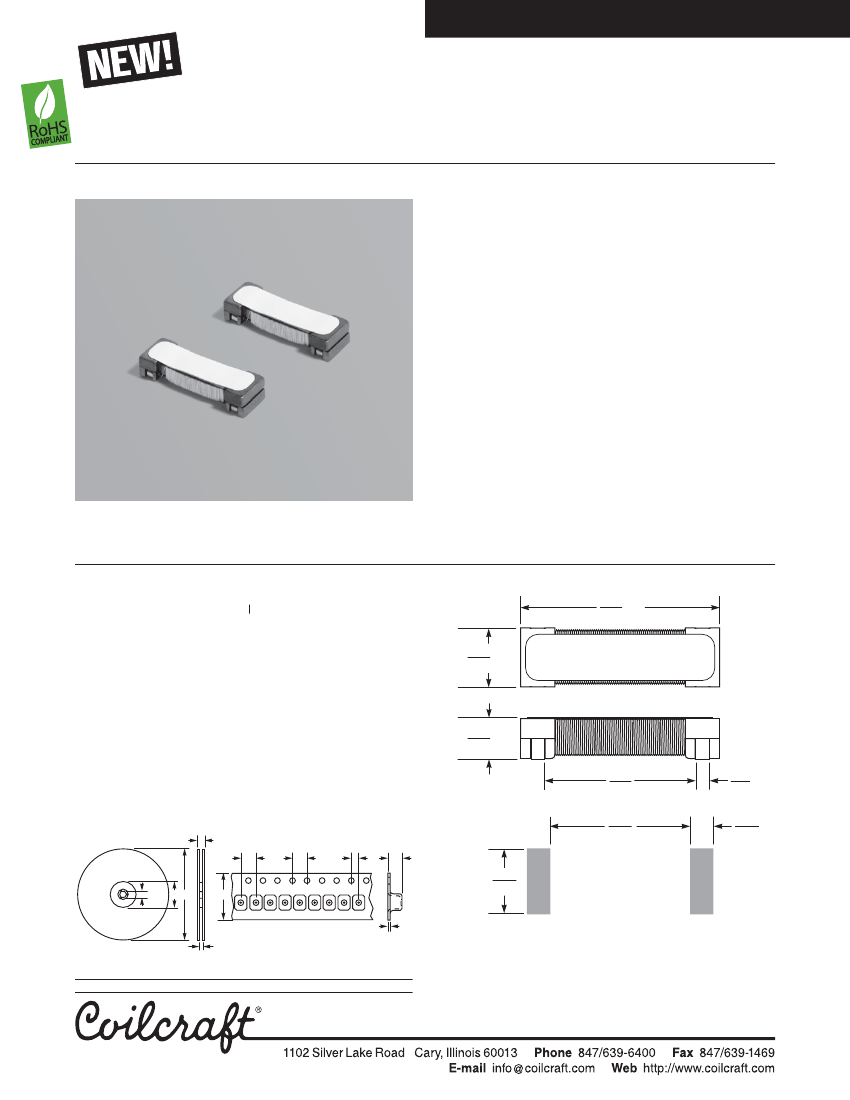

RFID Transponder Coil – FA2602-AL
The FA2602-AL is Coilcraft’s best performing transpon-
der coil designed for RFID applications at 5.5 kHz. It
offers excellent sensitivity and SRF values.
The coil is wound on a plastic base, providing great
durability and allowing this part to withstand harsh
mechanical shock. The uniquely shaped termination
provides excellent board adhesion.
In addition to our standard models, Coilcraft can custom
design transponder coils to operate at other frequencies.
Part number
1
FA2602-AL_
Inductance
2
at 5.5 kHz
±5% (mH)
39.0
Q typ
2
3.1
Sensitivity
3
(mV/A/M)
6.91
DCR max
4
(Ohms)
528
SRF typ
5
(MHz)
0.658
0.461
max
11,70
1. When ordering, please specify
packaging
code:
FA2602-ALD
Packaging: D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (2500 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter D instead.
Inductance and Q measured using Agilent/HP 4192A impedance
analyzer at 5.5 kHz. For recommended test procedures, contact Coilcraft.
Sensitivity measured in accordance with Coilcraft application note
“Measuring Sensitivity of Transponder Coils.”
DCR measured on micro-ohmmeter.
SRF measured using Agilent/HP 8753D network analyzer.
Operating temperature range
−40°C
to +105°C.
Electrical specifications at 25°C.
0.138
max
3,50
2.
3.
4.
5.
6.
7.
0.102
max
2,60
0.337
8,55
0.315
8,0
0.03
0,76
0.051
1,3
D
P
Po
P1
H
C
B A
W
0.126
3,2
Recommended
Land Pattern
T
E
Plastic
Terminations:
Gold over nickel over phos bronze
Parts/
Part
reel
A
B C
D
E
W P Po P1 H
T
FA2602-AL 2500 330 100 13 30,4 24,4 24 8 4 2 2,75 0,35
Specifications subject to change without notice.
Please check our website for latest information.
Document 590
Revised 02/26/08
© Coilcraft, Inc. 2008
