DRO12000A
PHASE NOISE (1 Hz BW, typical)
14118 Stowe Drive, Suite B
Poway, CA 92064
TEL: (858) 621-2700 | FAX: (858) 486-1927
URL: www.zcomm.com
EMAIL: applications@zcomm.com
Rev A1
Applications
• Test Equipment
• Satcom
•
Application Notes
• AN-101: Mounting and Grounding
• AN-102: Output Loading
• AN-107: Manual Soldering
OFFSET (Hz)
Performance Specifications
Oscillation Frequency Range
Phase Noise @ 10 kHz offset (1 Hz BW)
Harmonic Suppression (2nd)
Tuning Voltage
Tuning Sensitivity (avg.)
Power Output
Load Impedance
Input Capacitance
Pushing
Pulling (
dB Return Loss, Any Phase)
Operating Temperature Range
Package Style
£(f) (dBc/Hz)
Voltage-Controlled Oscillator
Surface Mount Module
Min
12000
Typ
-106
-35
Max
12000
-30
12
Units
MHz
dBc/Hz
dBc
Vdc
MHz/V
dBm
pF
MHz/V
MHz
°C
0
0.5
-3
0
50
3
50
1
1.5
-40
SDRO
85
Power Supply Requirements
Supply Voltage (Vcc, nom.)
Supply Current (Icc)
Min
Typ
5
23
Max
30
Units
Vdc
mA
Additional Notes
LFSuffix = RoHS Compliant. All specifications are subject to change without notice.
© Z-Communications, Inc. All Rights Reserved.
Page 1 of 2
FRM-S-002 B
Voltage-Controlled Oscillator
Surface Mount Module

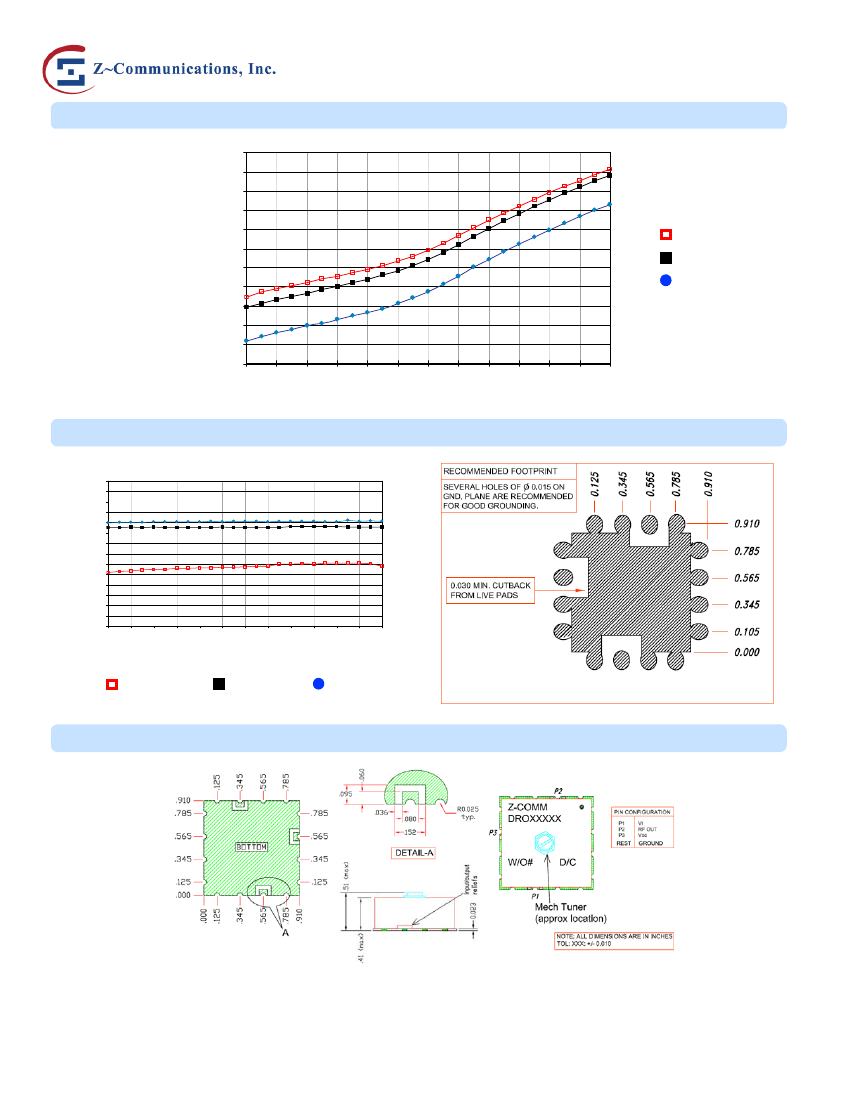

Tuning Curve, typ.
12004
12003
DRO12000A
Rev A1
FREQUENCY (MHz)
12002
12001
12000
11999
11998
11997
11996
11995
11994
11993
0
1
2
3
4
5
6
7
8
9
10
11
12
85 °C
25 °C
-40 °C
TUNING VOLTAGE (Vdc)
Power Curve, typ.
POWER OUTPUT (dBm)
7
6
5
4
3
2
1
0
-1
-2
-3
-4
-5
-6
-7
11996 11996 11997 11997 11997 11998 11998 11999 12000 12001 12002 12002 12003
Footprint
FREQUENCY (MHz)
85 °C
25 °C
-40 °C
Physical Dimensions
LFSuffix = RoHS Compliant. All specifications are subject to change without notice.
© Z-Communications, Inc. All Rights Reserved.
Page 2 of 2
FRM-S-002 B
