CMPSH-3_15: DescriptionSURFACE MOUNT SILICON SCHOTTKY DIODES; File Size579KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet View All

CMPSH-3_15 Overview

SURFACE MOUNT SILICON SCHOTTKY DIODES

Preview

Download Datasheet

View All

CMPSH-3

CMPSH-3A

CMPSH-3C

CMPSH-3S

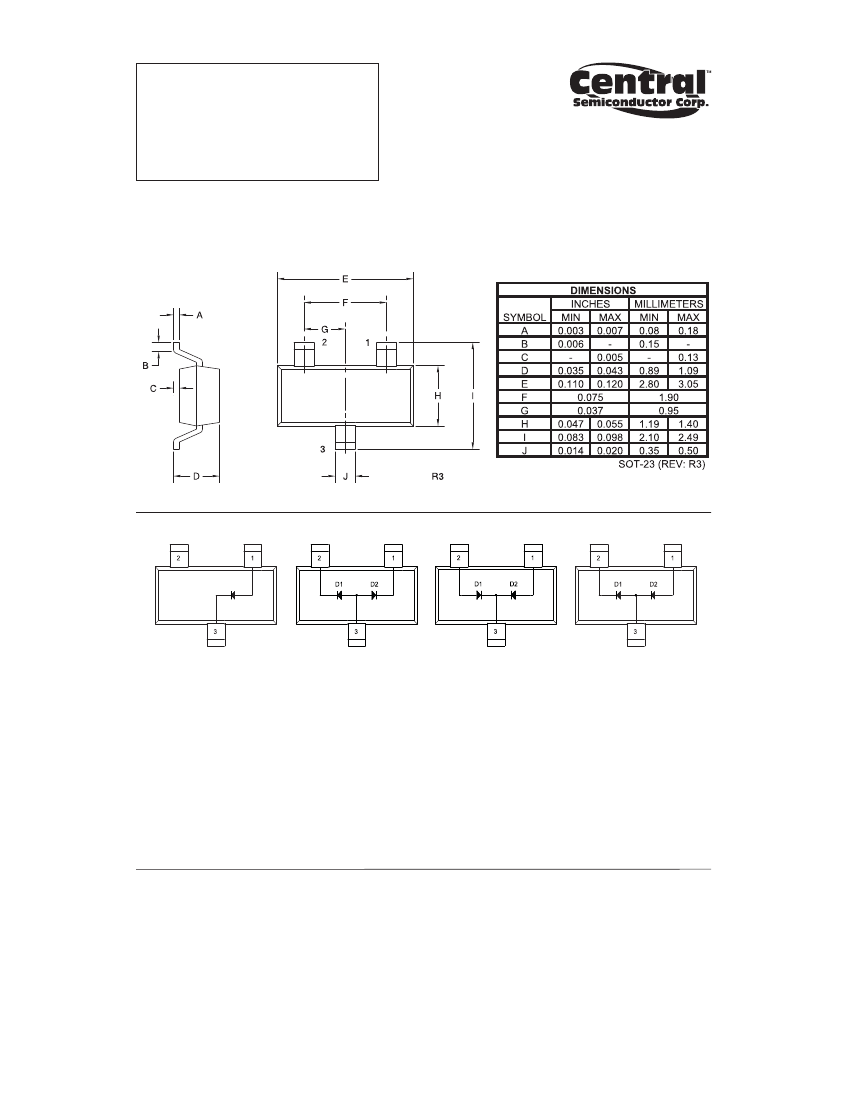

SURFACE MOUNT

SILICON SCHOTTKY DIODES

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMPSH-3 series

types are Silicon Schottky diodes designed for surface

mount fast switching applications requiring a low

forward voltage drop.

SOT-23 CASE

The following configurations are available:

CMPSH-3

CMPSH-3A

CMPSH-3C

CMPSH-3S

SINGLE

DUAL, COMMON ANODE

DUAL, COMMON CATHODE

DUAL, IN SERIES

MARKING

SYMBOL

VRRM

IFRM

IFSM

TJ, Tstg

CODE:

D95

DB1

DB2

DA5

UNITS

°C

°C/W

MAXIMUM RATINGS:

(TA=25°C)

Peak Repetitive Reverse Voltage

Continuous Forward Current

Peak Repetitive Forward Current

Peak Forward Surge Current, tp=10ms

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

100

350

750

350

-65 to +150

357

ELECTRICAL CHARACTERISTICS PER DIODE:

(TA=25°C unless otherwise noted)

SYMBOL

TEST CONDITIONS

MIN

TYP

MAX

VR=25V

500

VR=25V, TA=100°C

100

BVR

IR=100μA

trr

IF=2.0mA

IF=15mA

IF=100mA

VR=1.0V, f=1.0MHz

IF=IR=10mA, Irr=1.0mA, RL=100Ω

0.29

0.40

0.74

7.0

5.0

0.33

0.45

1.00

UNITS

μA

R6 (27-January 2010)
