EDI8F44128C20MMC datasheet, PDF

Datasheet> All Categories > storage> storage> EDI8F44128C20MMC

EDI8F44128C20MMC: DescriptionCache SRAM Module, 128KX44, 20ns, CMOS,; Categorystorage storage; File Size336KB，4 Pages; ManufacturerEDI [Electronic devices inc.]

Download Datasheet Parametric Compare View All

EDI8F44128C20MMC Overview

Cache SRAM Module, 128KX44, 20ns, CMOS,

EDI8F44128C20MMC Parametric

Parameter Name	Attribute value
Maker	EDI [Electronic devices inc.]
Reach Compliance Code	unknown
Maximum access time	20 ns
I/O type	COMMON
JESD-30 code	R-XSMA-N80
memory density	5767168 bit
Memory IC Type	CACHE SRAM MODULE
memory width	44
Number of functions	1
Number of ports	1
Number of terminals	80
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX44
Output characteristics	3-STATE
Exportable	YES
Package body material	UNSPECIFIED
encapsulated code	SIMM
Encapsulate equivalent code	SSIM80
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.195 A
Minimum standby current	4.5 V
Maximum slew rate	1.9 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	SINGLE

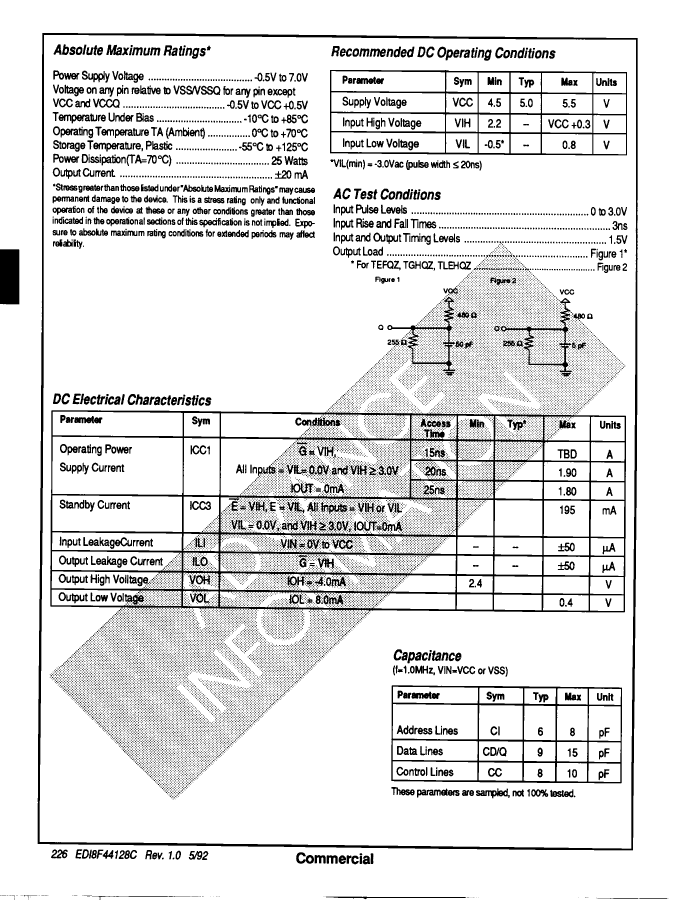

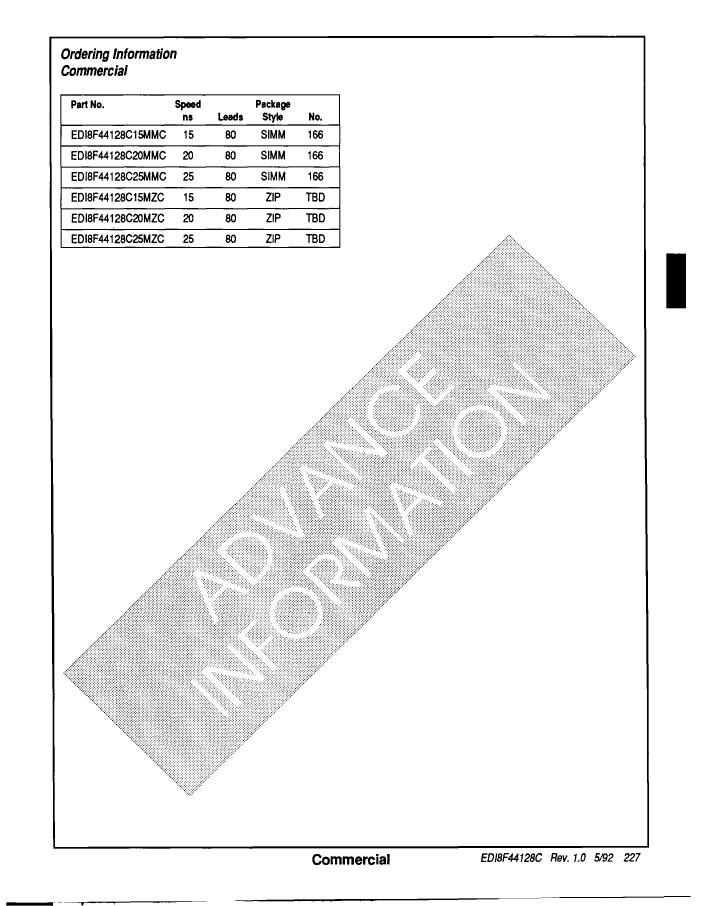

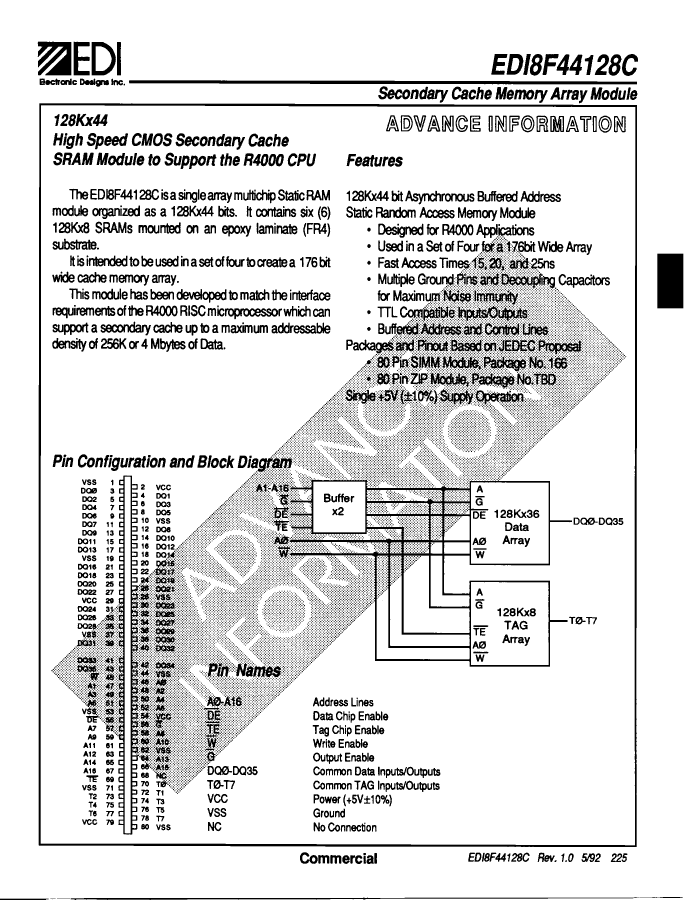

Preview

Download Datasheet

View All

EDI8F44128C20MMC Related Products

	EDI8F44128C20MMC	EDI8F44128C25MZC	EDI8F44128C20MZC	EDI8F44128C15MZC	EDI8F44128C15MMC	EDI8F44128C25MMC
Description	Cache SRAM Module, 128KX44, 20ns, CMOS,	Cache SRAM Module, 128KX44, 25ns, CMOS, MODULE, SIMM-80	Cache SRAM Module, 128KX44, 20ns, CMOS, MODULE, SIMM-80	Cache SRAM Module, 128KX44, 15ns, CMOS, MODULE, SIMM-80	Cache SRAM Module, 128KX44, 15ns, CMOS,	Cache SRAM Module, 128KX44, 25ns, CMOS,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	20 ns	25 ns	20 ns	15 ns	15 ns	25 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XSMA-N80	R-XZMA-T80	R-XZMA-T80	R-XZMA-T80	R-XSMA-N80	R-XSMA-N80
memory density	5767168 bit	5767168 bit	5767168 bit	5767168 bit	5767168 bit	5767168 bit
Memory IC Type	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE
memory width	44	44	44	44	44	44
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	80	80	80	80	80	80
word count	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words
character code	128000	128000	128000	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	128KX44	128KX44	128KX44	128KX44	128KX44	128KX44
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	SIMM	ZIP	ZIP	ZIP	SIMM	SIMM
Encapsulate equivalent code	SSIM80	ZIP80(UNSPEC)	ZIP80(UNSPEC)	ZIP80(UNSPEC)	SSIM80	SSIM80
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.195 A	0.195 A	0.195 A	0.195 A	0.195 A	0.195 A
Minimum standby current	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD
Terminal location	SINGLE	ZIG-ZAG	ZIG-ZAG	ZIG-ZAG	SINGLE	SINGLE
Maker	EDI [Electronic devices inc.]	-	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]
Maximum slew rate	1.9 mA	1.8 mA	1.9 mA	-	-	1.8 mA
