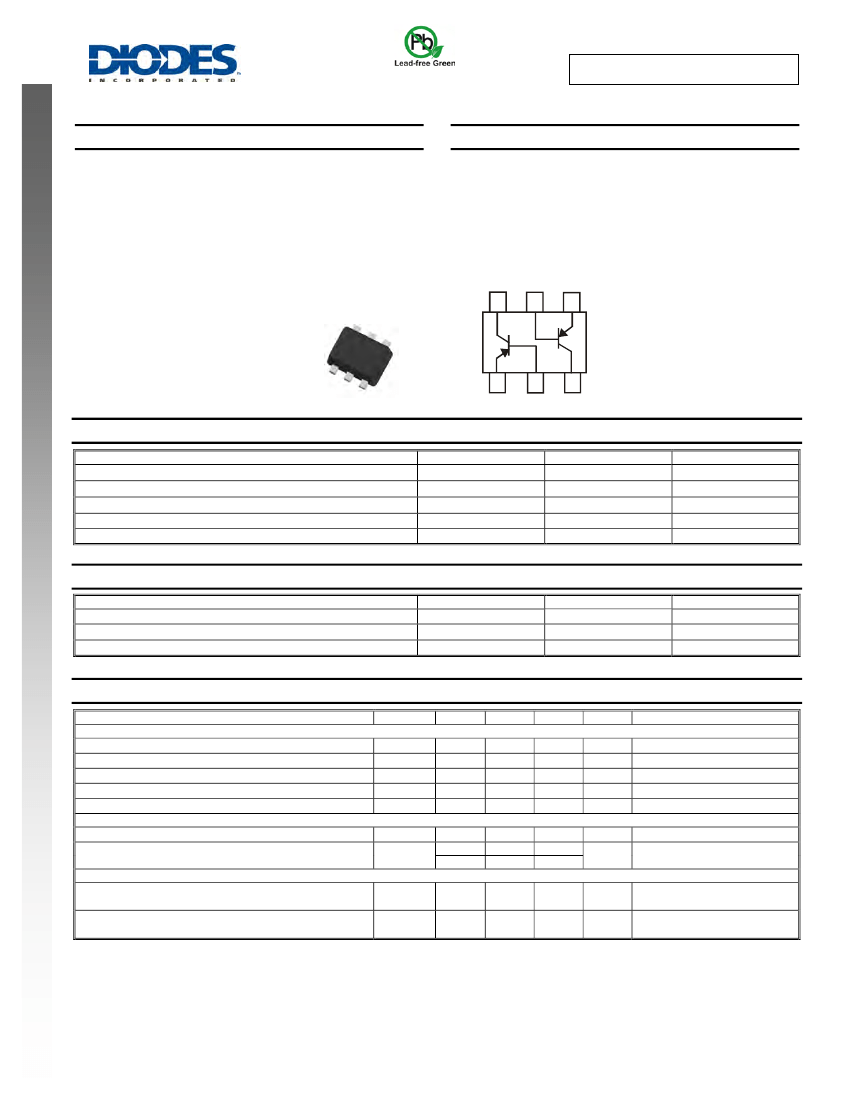

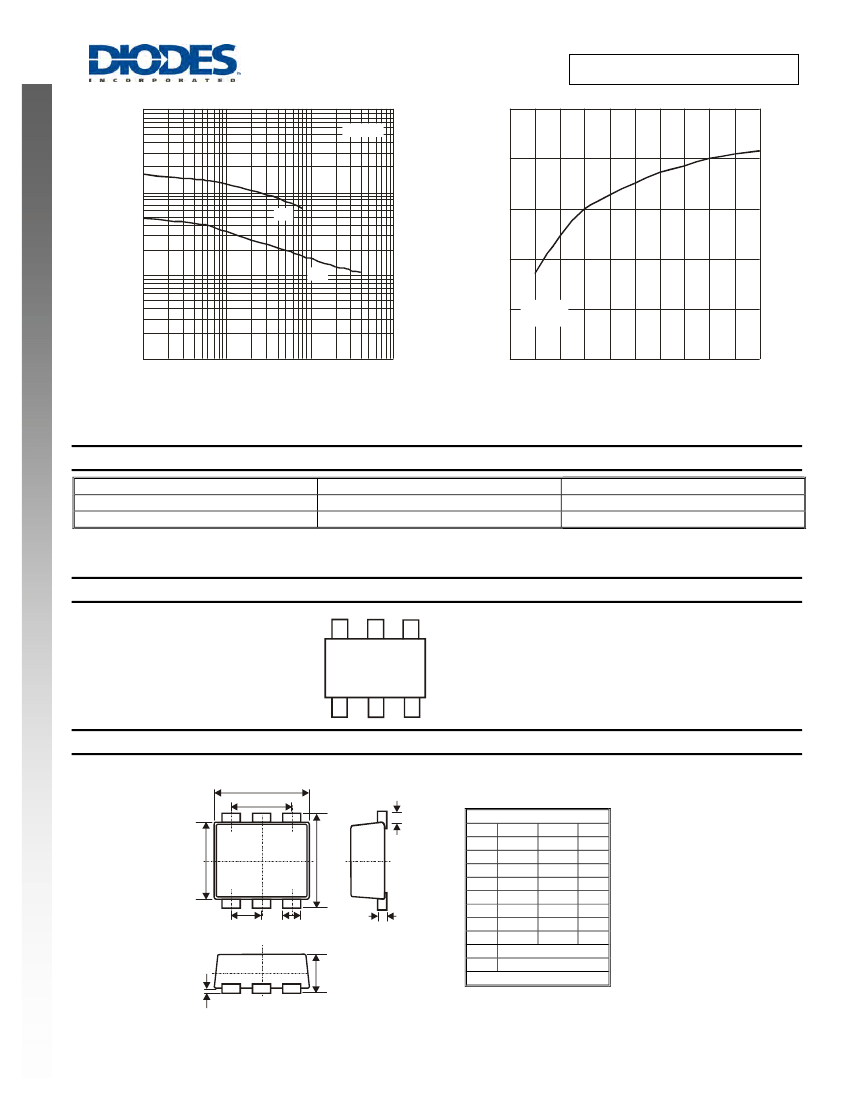

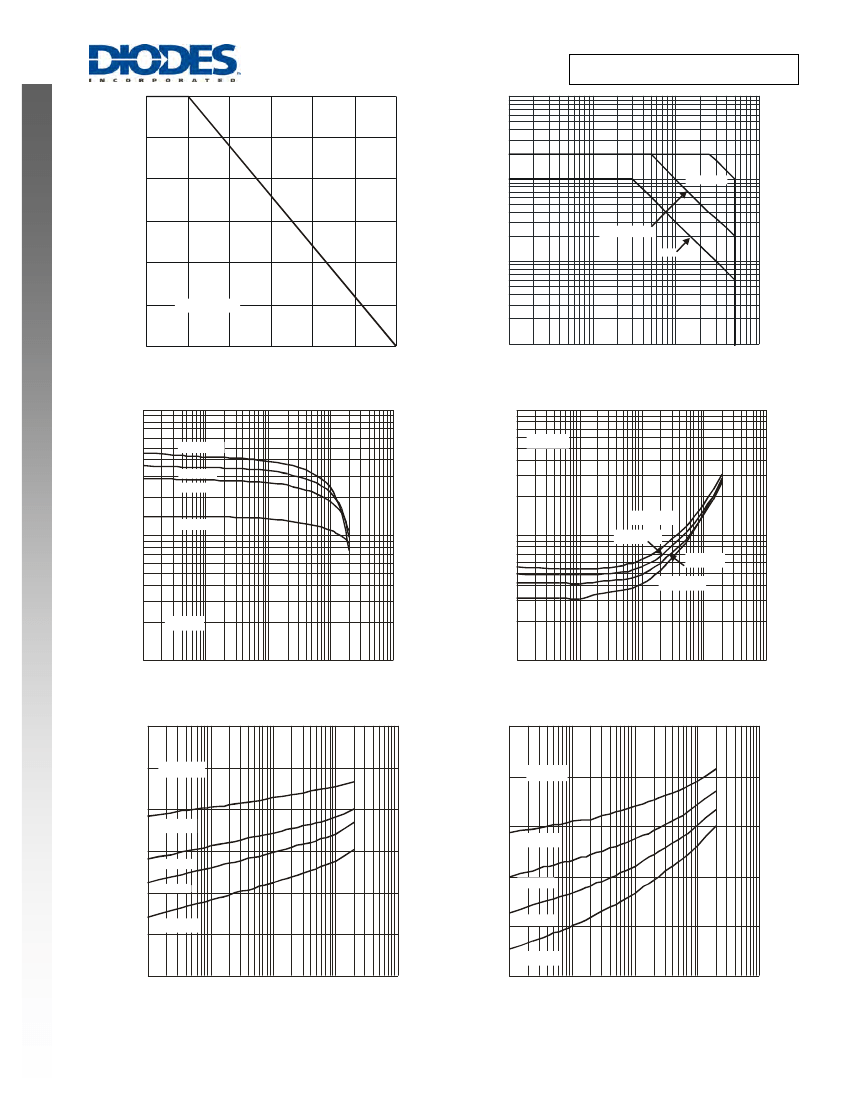

DP0150ADJ / DP0150BDJ

DUAL PNP SURFACE MOUNT TRANSISTOR

Please click here to visit our online spice models database.

Features

•

Epitaxial Planar Die Construction

Ideally Suited for Automated Assembly Processes

Lead Free By Design/RoHS Compliant (Note 1)

"Green" Device (Note 2)

Ultra Small Package

Mechanical Data

•

SOT-963

NEW PRODUCT

Case: SOT-963

Case Material: Molded Plastic, “Green” Molding Compound. UL

Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020D

Terminals: Finish

⎯

Matte Tin annealed over Copper leadframe.

Solderable per MIL-STD-202, Method 208

Marking Information: See Page 3

Ordering Information: See Page 3

Weight: 0.0027 grams (approximate)

Top View

Device Schematic

Maximum Ratings

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Collector Current - Continuous

Base Current

= 25°C unless otherwise specified

Symbol

CBO

CEO

EBO

Value

-50

-5

-100

-30

Unit

Characteristic

Thermal Characteristics

Characteristic

Power Dissipation (Note 3)

Thermal Resistance, Junction to Ambient (Note 3)

Operating and Storage Temperature Range

Symbol

, T

STG

Value

300

417

-55 to +150

Unit

°C/W

°C

Electrical Characteristics

Characteristic

OFF CHARACTERISTICS (Note 4)

Collector-Base Breakdown Voltage

Collector-Emitter Breakdown Voltage

Emitter-Base Breakdown Voltage

Collector Cut-Off Current

Emitter Cut-Off Current

ON CHARACTERISTICS (Note 4)

Collector-Emitter Saturation Voltage

DC Current Gain

SMALL SIGNAL CHARACTERISTICS

Transition Frequency

Output Capactiance

Notes:

= 25°C unless otherwise specified

Symbol

BR)CBO

BR)CEO

BR)EBO

CBO

EBO

CE(SAT)

DP0150ADJ

DP0150BDJ

Min

-50

-5

—

120

200

—

Typ

—

-0.15

—

1.6

Max

—

-0.1

-0.3

240

400

—

Unit

μA

—

Test Condition

= -10μA, I

= 0

= -1mA, I

= 0

= -10μA, I

= 0

= -50V, I

= 0

= -5V, I

= 0

= -100mA, I

= -10mA

= -6V, I

= -2mA

= -10V, I

= 1mA

f = 30MHz

= -10V, I

= 0,

f = 1MHz

MHz

No purposefully added lead.

Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.

Device mounted on FR-4 PCB with minimum recommended pad layout.

Measured under pulsed conditions. Pulse width = 300µs. Duty cycle

≤2%

DP0150ADJ / DP0150BDJ

Document number: DS31485 Rev. 3 - 2

1 of 4

www.diodes.com

April 2009

DP0150ADJ / DP0150BDJ

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDING TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

NEW PRODUCT

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

DP0150ADJ / DP0150BDJ

Document number: DS31485 Rev. 3 - 2

4 of 4

www.diodes.com

April 2009
