LED19-SMD5
TECHNICAL DATA
Mid-Infrared Light Emitting Diode, SMD
Light Emitting Diodes with central wavelength 1.95 µm series are based on heterostructures grown
on GaSb substrates. Solid solutions GaInAsSb are used in active layer. Wide band gap solid
solutions AlGaAsSb with Al content 64% are used for good electron confinement.
LED19-SMD5 has a stable ouput power and a lifetime more then 80000 hours.
Features
•
•
•
•
Structure: GaInAsSb/AlGaAsSb
Peak Wavelength: typ. 1.95 µm
Optical Ouput Power: typ. 1.0 mW qCW
Package: SMD 5x5 mm
Specifications
Item
Peak Wavelength
FWHM
Quasi-CW
Optical Power
Pulsed
Optical Power
Switching Time
Operation Voltage
Operating
Temperature
Emitting Area
Soldering
Temperature
Package
Condition
T=300 K
150 mA CW
200 mA qCW
1A
T=300 K
200 mA qCW
Min.
1.92
100
0.8
22
10
-240 … +50
300x300
180
Rating
Typ.
1.95
150
1.0
25
20
Max.
1.97
200
1.2
30
30
Unit
µm
nm
mW
mW
ns
V
°C
µm
°C
SMD type package 5x5 mm based on high
thermal conductivity ceramics
Operating Regime
Quasi-CW
•
•
Maximum current 220 mA
Recommended current 150-200mA
Pulsed
•
Maximum current 1 A
(puls lenght 500 ns, repetition rate 2kHz)
06.10.2010
LED19-SMD5
1 of 2

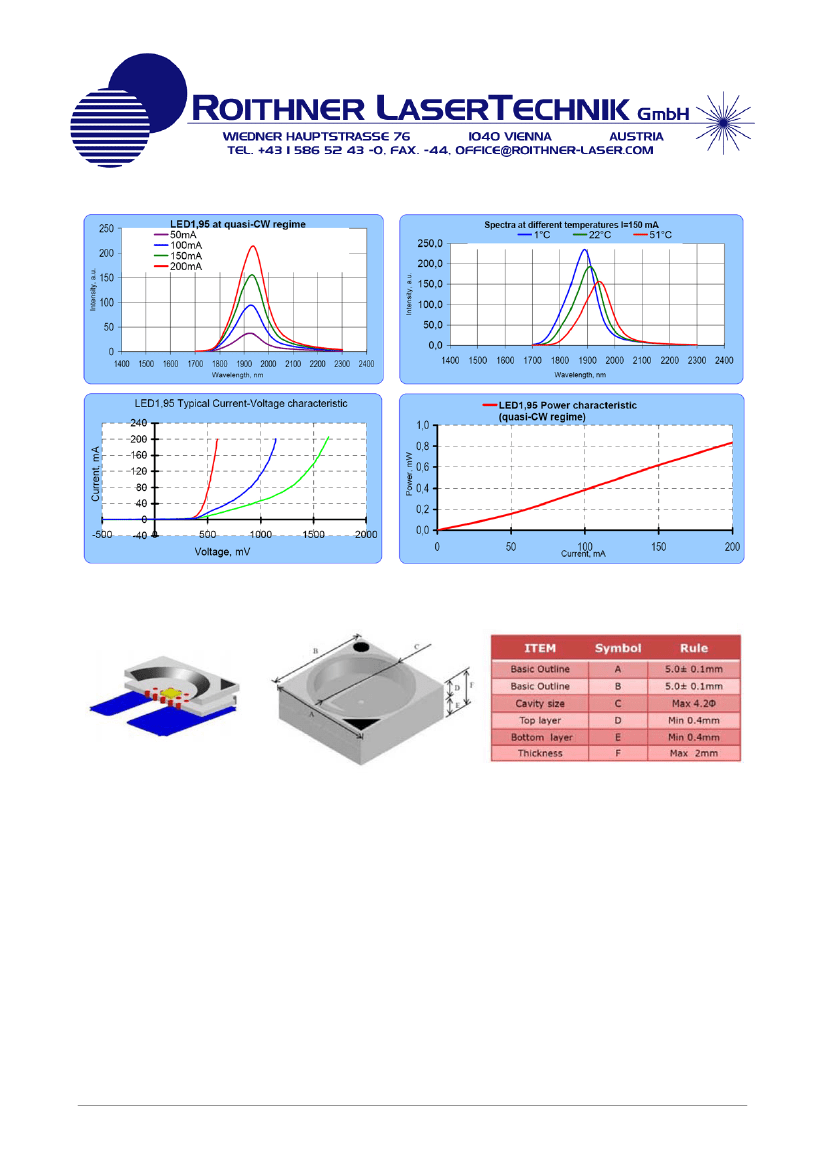

Typical Performance Curves
Package
•
Tiny package for surface mounting
•
Anode and cathode are led to the metalized areas on the back side of the ceramic surface
•
Material – Low Temperature Co-fired Ceramic (LTCC):
-
thermal conductivity 25 W/mK
-
thermoresistance 8 °C/W
06.10.2010
LED19-SMD5
2 of 2
