REVISION BB
NOTES
:
1. MAX ALLOWABLE BOW: .003 IN/IN AFTER ASSEMBLY.
2. PUSHOUT FORCE SHALL BE .5 LB MIN ON BOARD STYLE
.070-.198 AND 1 LB MIN ON BOARD STYLE .199-.690
3. GOLD AREA TO APPEAR ON POST.
4. TAILS SHEARED TO DIMENSIONS SHOWN.
5. LAYER PACKAGE POSITIONS 2 - 10.
TUBE PACKAGE POSITIONS 11 - 50.
6. AVAILABLE ONLY W/BOARD SPACE .215 TO .610
7. "B" = POST DIMENSION + BOARD SPACE.
8. MAX CUT FLASH: .010 [.25].
9. FILL BODY SO THAT THE LEAD IN OF THE CORE IS ON THE
TAIL SIDE.
FW-XX-XX-XX-X-XXX-XXX-XX
BB
No OF POS PER ROW
-02 THRU -50
POSITION SPEC
TAIL STYLE
(SEE TABLE 1)
(SEE TABLE 2 FOR
TERMINAL PIN)
OPTION
-ES: END SHROUDS (SEE FIG 4, SHT 2)
(9 POS PER ROW MIN)
(MAX POST: .075[1.91])
(SEE NOTE 6)
-EP: GUIDE POST (FIG 3, SHT 2)
(9 POS PER ROW MIN)
(MAX POST: .075[1.91])
(USE ONLY WHEN MATING WITH CLP)
(SEE NOTE 6)
POST LENGTH
-XXX±.005 [.13]
.065 [1.65] MIN
BOARD SPACE
-XXX±.005 [.13]
(.070 [1.78] MIN) SEE TABLE 1 FOR MAX
ROW OPTION
-D: DOUBLE (SEE TABLE 3 )
-S: SINGLE (USE 2 FTS-50-SV)
*DO NOT DESIGN -S: SINGLE ROW IN
SAMTEC WILL ONLY SUPPORT EXISTING
BUSINESS AS OF 10/17/97
.085 2.16
REF
C
L
BB
PLATING
-L: 10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA
MATTE TIN ON TAIL
-F: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-G: 10µ" GOLD IN CONTACT AREA
3µ" ON TAIL
-H: 30µ" HEAVY GOLD IN CONTACT AREA
3µ" ON TAIL
-LM: 10µ"LIGHT SELECTIVE GOLD IN CONTACT AREA
MATTE TIN TAIL
-FM: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA
MATTE TIN TAIL
No OF POSITIONS X .050[1.27]±.010 [2.54]
BB
No OF POSITIONS X .050[1.27]±.010 [2.54]
BB
-S
.135 3.43
REF
C
L
TAIL STYLE
-01
-02
-04
TABLE 1
"A"
.045 [1.14]
.075 [1.91]
.090 [2.29]
"B" MAX
.755 [19.18]
.725 [18.42]
.710 [18.03]
-D
2 MAX SWAY
(EITHER DIRECTION)
.050 1.27
REF
.070 1.78 REF
(CONTACT AREA)
.034 0.86 REF
"C"
(SEE TABLE 2,SHT 1)
FTS-XX-SV
-XXX±.005 [.13]
BOARD SPACE
(.070 [1.79] MIN)
FTS-XX-DV
-XXX±.005 [.13]
BOARD SPACE
(.070-.198)
[1.78-5.03]
"B"
MAX
-XXX±.005[.13]
POST LENGTH
(.065[1.65] MIN
.016 0.41 SQ
REF (TYP)
TERMINAL
T-1S15-10-XX
T-1S15-03-XX
T-1S15-04-XX
T-1S15-05-XX
TABLE 2
"C"
.401 [10.19] - .750 [19.05]
.401 [10.19] - .750 [19.05]
.170 [4.32] - .400 [10.16]
.751 [19.08] - .800 [20.32]
TABLE 3 *
BODY STYLE
FTS-XX-DV
FTSH-XX-D
ROW OPTION
D
S
D,S
D,S
C
L
C C
L L
-S
(SEE -D FOR DIMENSIONING)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
ANGLES
FTS-XX-DV BODY STYLE
FW-50-01-XX-D-198-045
(BOARD SPACE .070-.198)
PROPRIETARY NOTE
FIGURE 1
"A"
(SEE NOTE 4)
BOARD SPACE
.070 - .198
.199 - .690
FIG
1
2 (SEE SHEET 2)
.XX: .01 [.3]
5
.XXX: .005 [.13]
.XXXX: .0020 [.051]
MATERIAL:
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
code 55322
e-Mail info@SAMTEC.com
DESCRIPTION:
DWG. NO.
*THIS TABLE APPLIES TO DOUBLE ROW ASSEMBLIES
ONLY ALL SINGLE ROW ASSEMBLIES USE
FTS-XX-SV
FTM-50-D & FTSH-50-D: LCP,UL 94 VO, COLOR BLACK
FW-50-D: LCP, UL 94 VO, COLOR NATURAL
TERMINAL: PHOS BRONZE
F:\DWG\MISC\MKTG\FW-XX-XX-XX-X-XXX-XXX-XX-MKT.SLDDRW
BB
DO NOT SCALE DRAWING
SHEET SCALE: 4:1

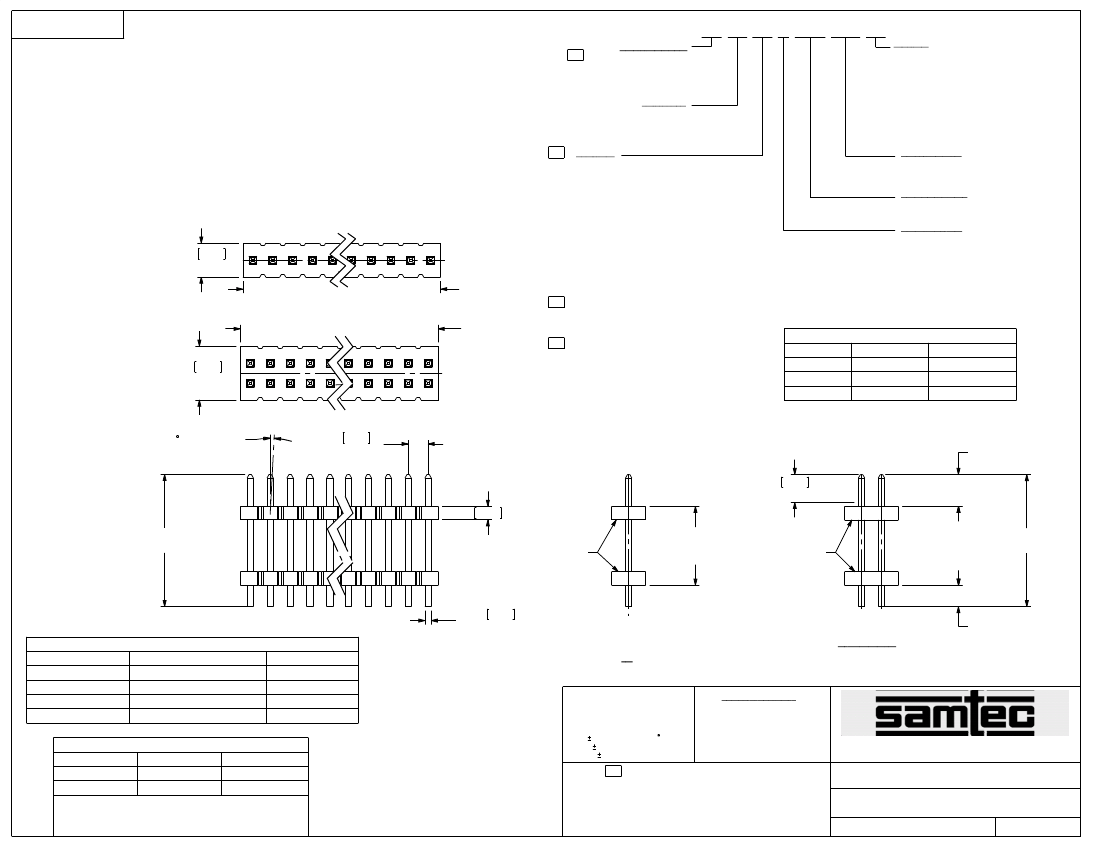

.050 x .050 SURFACE MOUNT BOARD SPACERS
FW-XX-XX-XX-X-XXX-XXX-XX
BY:
BRATCHER 4/8/94
SHEET
1
OF
3
REVISION BB
(No OF POSITIONS X .050 [1.27]
+.156 [3.96]) ±.008[.20]
.188 4.78
REF
.135 3.43 REF
-XXX±.005
POST LENGTH
(.065[1.65] MIN]
(No OF POSITIONS X .050[1.27]
+.231[5.87])±.008[.20]
.330 8.38
REF (TYP)
.120 3.05
-XXX±.005 7.58±0.13
BOARD SPACE
(.199-.690)
[5.05-17.53]
2 MAX SWAY
(EITHER DIRECTION)
.050 1.27
REF
.075 1.91 REF
CONTACT AREA
"C"
(SEE TABLE 2, SHT 1)
FTSH-XX-D
.099 2.51 REF(TYP)
"D"
"A" (SEE NOTE 4)
"F"
FTSH-XX-D BODY STYLE
FW-50-02-XX-D-690-075
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
(BOARD SPACE .199-.690)
FIGURE 2
-EP:GUIDE POST OPTION
FW-50-02-XX-D-610-075-EP
(USE ONLY WHEN MATING WITH CLP)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
(BOARD SPACE .215-.610)
FIGURE 3
(No OF POSITIONS X .050[1.27]+.101[2.57)±.008
.188 4.78 REF
LEAD
STYLE
.265 6.73
REF (TYP)
.168 4.27
REF
"E" 10.57
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
TABLE 5
BODY STYLE
"F"
.144
.174
.189
"D" RANGE "E" RANGE UPPER BODY LOWER BODY
.471-.866
.501-.896
.516-.911
.351-.746
.381-.776
.396-.791
FTSH-XX-D
FTSH-XX-D
FTSH-XX-D
FTSH-XX-D
FTSH-XX-D
FTSH-XX-D
-01
-02
-04
"F"
-ES OPTION
FW-50-02-XX-D-610-075-ES
(DIFFERENT AS SHOWN, OTHERWISE AS FIG 1)
(BOARD SPACE .215-.610)
F:\DWG\MISC\MKTG\FW-XX-XX-XX-X-XXX-XXX-XX-MKT.SLDDRW
FIGURE 4
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
SHEET SCALE: 4:1

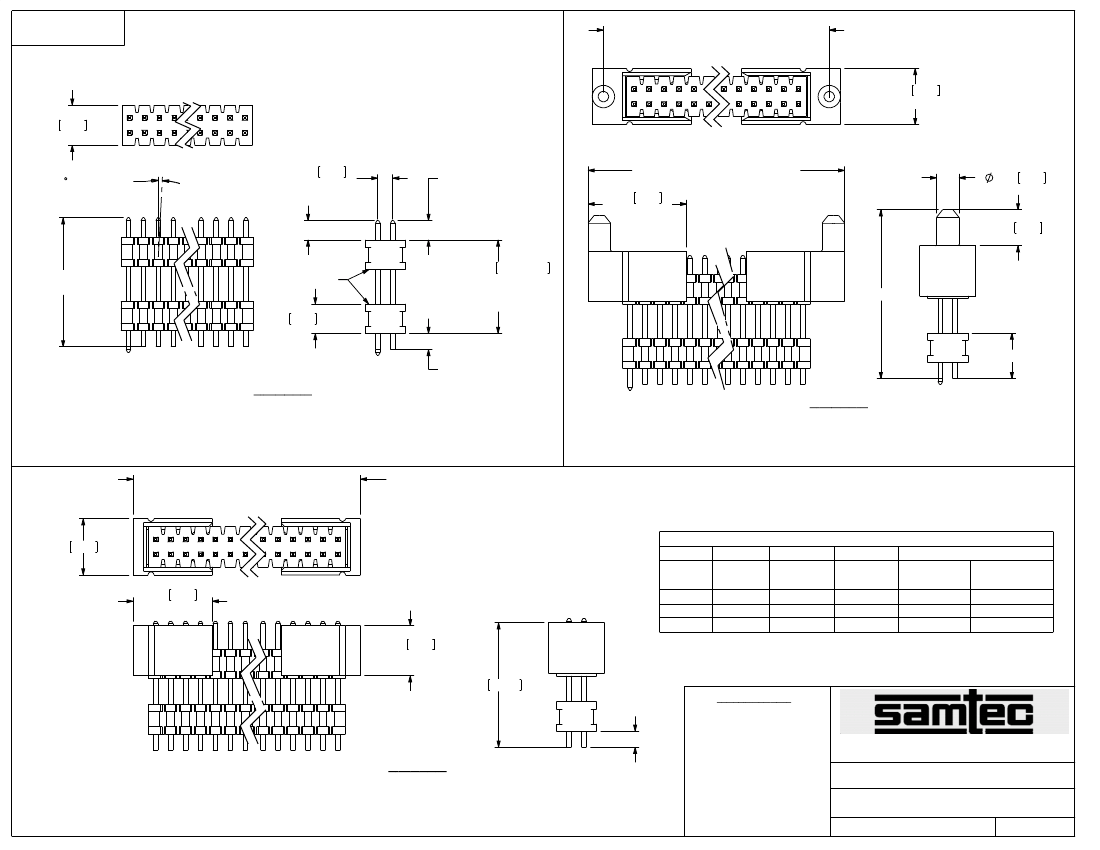

.050 x .050 SURFACE MOUNT BOARD SPACERS
DWG. NO.
DESCRIPTION:
FW-XX-XX-XX-X-XXX-XXX-XX
BY:
BRATCHER 4/8/94
SHEET
2
OF
3
REVISION BB
BB
TABLE 4
* "C"
DIMENSION
0-.350
0-.415
.416-.800
.800 MAX
FOR DOUBLE ROW OPTIONS
ONLY PACKAGING TUBE
PT-FW001-D-.070-.198
PT-FW002-D-.199-.253
PT-FW003-D-.254-690
PT-FW004-0X-D-EX
PT-FW007-D-.070-.198
LEAD STYLE
OPTIONS
BOARD STYLE/HEIGHT BOARD SPACE
PLUG
-01,-02,-04
-01,-02,-04
-01,-02,-04
-01,-02,-04
-01,-02,-04
NONE
NONE
NONE
EP,ES
NONE
FTS
FTSH (.199-.253)
FTSH(.236-.690)
.199-.690
FTS
.070-.198
.199-.234
.199-.235
TP-24
TP-24
TP-24
TP-24
TP-24
.070-.198
.351-.800
*"C" DIMENSION"=POST LENGTH + BOARD SPACE +"A"
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
.050 x .050 SURFACE MOUNT BOARD SPACERS
FW-XX-XX-XX-X-XXX-XXX-XX
SHEET
3
OF
3
F:\DWG\MISC\MKTG\FW-XX-XX-XX-X-XXX-XXX-XX-MKT.SLDDRW
BY:
BRATCHER 4/8/94
