Thermoelectric Cooling Solutions
Performance Parameters
Type
1MDL06-035-03AN25
1MDL06-035-05AN25
1MDL06-035-07AN25
1MDL06-035-09AN25
1MDL06-035-12AN25
1MDL06-035-15AN25
1MDL06-035-xxAN25
I
max
A
U
max
V
AC R
Ohm
0.62
1.01
1.39
1.77
2.35
2.92
ΔT
max
K
Q
max
W
H
mm
0.9
1.1
1.3
1.5
1.8
2.1
1MDL06-035-xxAN25 (N=35)
70
14.41
5.4
72
8.98
3.3
73
6.52
2.4
4.4
73
5.11
1.9
73
3.87
1.4
74
3.12
1.1
Performance data are given for 300K, vacuum

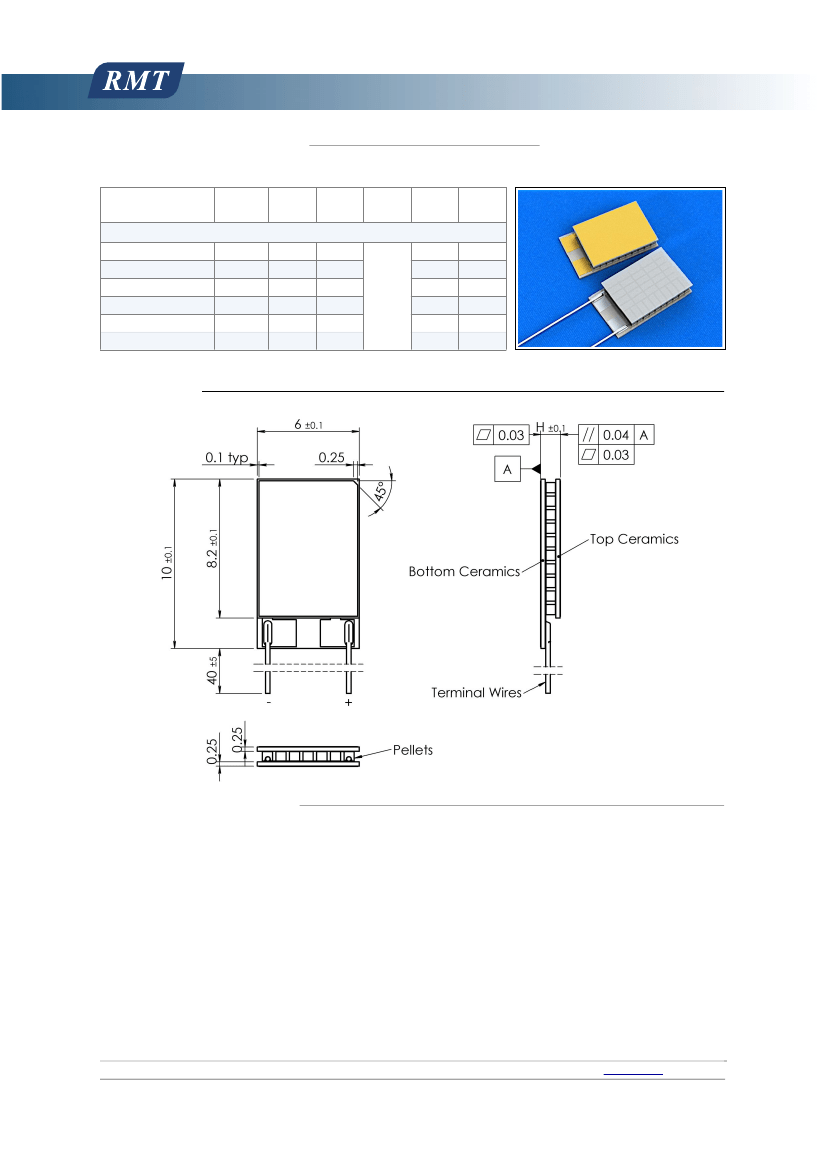

Dimensions
Manufacturing options
A. TEC Assembly:
* 1. Solder SnSb (T
melt
=230°C)
2. Solder AuSn (T
melt
=280°C)
B. Ceramics:
1.Pure Al
2
O
3
(100%)
2.Alumina (Al
2
O
3
- 96%)
C. Ceramics Surface Options:
1. Blank ceramics (not metallized)
2. Metallized (Au plating)
3. Metallized and pre-tinned with:
3.1 Solder 117 (In-Sn, T
melt
=117°C)
3.2 Solder 138 (Sn-Bi, T
melt
= 138°C)
3.3 Solder 143 (In-Ag, T
melt
= 143°C)
3.4 Solder 157 (In, T
melt
= 157°C)
3.5 Solder 183 (Pb-Sn, T
melt
=183°C)
3.6 Optional (specified by Customer)
46 Warshavskoe shosse. Moscow 115230
Russia,
ph: +7-499-678-2082, fax: +7-499-678-2083, web:
www.rmtltd.ru
Copyright 2012. RMT Ltd. The design and specifications of products can be changed by RMT Ltd without notice.
D. Thermistor (optional)
Can be mounted to cold side
ceramics edge. Calibration is
available by request.
E. Terminal contacts
1. Blank, tinned Copper
2. Insulated Wires
3. Insulated, color coded
*
3.Aluminum Nitride (AlN)
* - used by default
Page 1 of 8
Thermoelectric Cooling Solutions

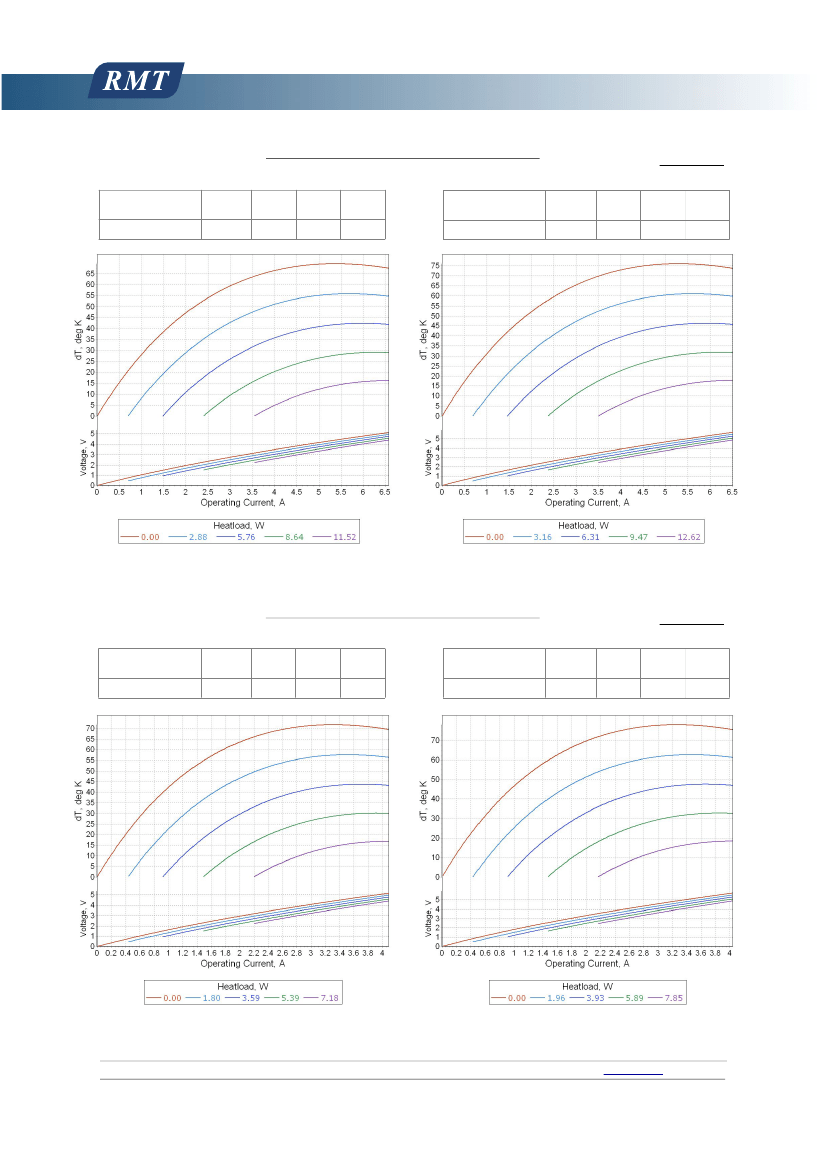

Performance
Data
@ 27ºC, Vacuum
1MDL06-035-03AN25
1MDL06-035-03AN25
Qmax
W
14.41
Imax
A
5.4
Umax
V
4.4
@50ºC, N2
1MDL06-035-03AN25
ΔTmax
K
70
ΔTmax
K
76
Qmax
W
15.78
Imax
A
5.4
Umax
V
4.9
Note:
Performance data is specified at optimal conditions (TEC hot side is stabilized at ambient temperature). Heatsink
thermal resistance is not included into estimations. Use TECCad Software for estimations under different conditions.
Performance
Data
@ 27ºC, Vacuum
1MDL06-035-05AN25
1MDL06-035-05AN25
Qmax
W
8.98
Imax
A
3.3
Umax
V
4.4
@50ºC, N2
1MDL06-035-05AN25
ΔTmax
K
72
ΔTmax
K
78
Qmax
W
9.81
Imax
A
3.3
Umax
V
4.9
Note:
Performance data is specified at optimal conditions (TEC hot side is stabilized at ambient temperature). Heatsink
thermal resistance is not included into estimations. Use TECCad Software for estimations under different conditions.
46 Warshavskoe shosse. Moscow 115230
Russia,
ph: +7-499-678-2082, fax: +7-499-678-2083, web:
www.rmtltd.ru
Copyright 2012. RMT Ltd. The design and specifications of products can be changed by RMT Ltd without notice.
Page 2 of 8
Thermoelectric Cooling Solutions
Performance
Data
@ 27ºC, Vacuum
1MDL06-035-07AN25
1MDL06-035-07AN25
Qmax
W
6.52
Imax
A
2.4
Umax
V
4.4
@50ºC, N2
1MDL06-035-07AN25
ΔTmax
K
73
ΔTmax
K
79
Qmax
W
7.13
Imax
A
2.4
Umax
V
4.9
Note:
Performance data is specified at optimal conditions (TEC hot side is stabilized at ambient temperature). Heatsink
thermal resistance is not included into estimations. Use TECCad Software for estimations under different conditions.
Performance
Data
@ 27ºC, Vacuum
1MDL06-035-09AN25
1MDL06-035-09AN25
Qmax
W
5.11
Imax
A
1.9
Umax
V
4.4
@50ºC, N2
1MDL06-035-09AN25
ΔTmax
K
73
ΔTmax
K
79
Qmax
W
5.59
Imax
A
1.9
Umax
V
4.9
Note:
Performance data is specified at optimal conditions (TEC hot side is stabilized at ambient temperature). Heatsink
thermal resistance is not included into estimations. Use TECCad Software for estimations under different conditions.
46 Warshavskoe shosse. Moscow 115230
Russia,
ph: +7-499-678-2082, fax: +7-499-678-2083, web:
www.rmtltd.ru
Copyright 2012. RMT Ltd. The design and specifications of products can be changed by RMT Ltd without notice.
Page 3 of 8
Thermoelectric Cooling Solutions
Performance
Data
@ 27ºC, Vacuum
1MDL06-035-12AN25
1MDL06-035-12AN25
Qmax
W
3.87
Imax
A
1.4
Umax
V
4.4
@50ºC, N2
1MDL06-035-12AN25
ΔTmax
K
73
ΔTmax
K
79
Qmax
W
4.23
Imax
A
1.4
Umax
V
4.9
Note:
Performance data is specified at optimal conditions (TEC hot side is stabilized at ambient temperature). Heatsink
thermal resistance is not included into estimations. Use TECCad Software for estimations under different conditions.
Performance
Data
@ 27ºC, Vacuum
1MDL06-035-15AN25
1MDL06-035-15AN25
Qmax
W
3.12
Imax
A
1.1
Umax
V
4.4
@50ºC, N2
1MDL06-035-15AN25
ΔTmax
K
74
ΔTmax
K
78
Qmax
W
3.40
Imax
A
1.1
Umax
V
4.9
Note:
Performance data is specified at optimal conditions (TEC hot side is stabilized at ambient temperature). Heatsink
thermal resistance is not included into estimations. Use TECCad Software for estimations under different conditions.
46 Warshavskoe shosse. Moscow 115230
Russia,
ph: +7-499-678-2082, fax: +7-499-678-2083, web:
www.rmtltd.ru
Copyright 2012. RMT Ltd. The design and specifications of products can be changed by RMT Ltd without notice.
Page 4 of 8
Thermoelectric Cooling Solutions

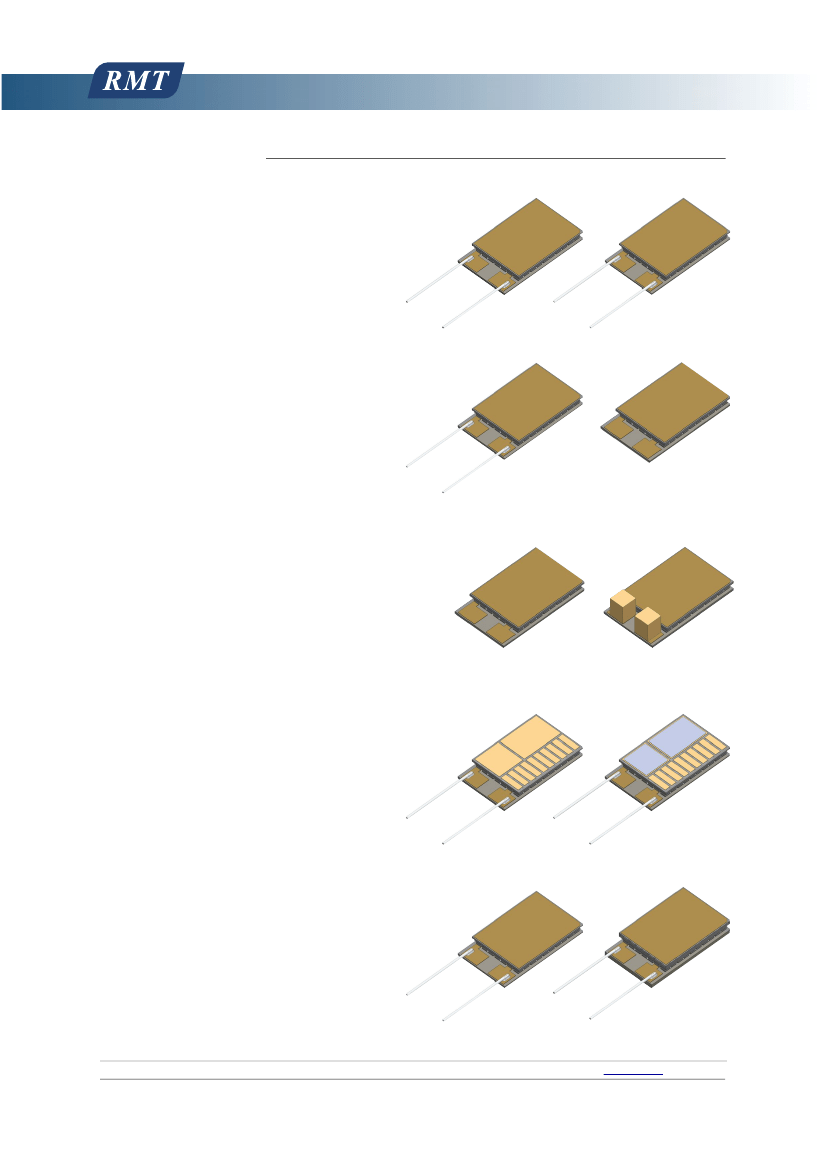

Additional Options
TEC Polarity
TEC Polarity can be modified by request. The
specified polarity in this datasheet is typical.
It can be reversed in accordance to Customer
application requirements.
-
+
+
Standard polarity
-
Reversed polarity
Terminal Wires Options
The standard solution is with terminal wires. TEC
can be modified for WB process by request. In this
case terminal wires are not mounted, TEC has Au
plated WB pads.
Standard solution,
terminal wires
WB Solution, Au
played WB pads
Optimization for WB process
In case of WB optimization, the standard WB
solution is with WB pads (no posts) by default. WB
posts are available by request. The dimensions of
WB posts can be modified and optimized for
Customers application. WB posts are made of
Copper, Au plated.
WB pads
WB posts
Customized Au Patterns
Customized Au patterns on thermoelectric cooler
cold side are available by request. Selective Pre-
tinning over pattern is also available. Please,
contact RMT Ltd for additional information about
customized Au patterns requirements.
Customized Au pattern
on cold side
Selective pre-tinning
over pattern
TEC Height modification
Standard TEC height can be modified without
performance changes by using ceramics of
different thickness. Standard thermoelectric cooler
height (specified in this datasheet) can be
increased in a range +0.5..+1.5 mm by request.
Modified height,
another ceramics
thickness
Standard height
46 Warshavskoe shosse. Moscow 115230
Russia,
ph: +7-499-678-2082, fax: +7-499-678-2083, web:
www.rmtltd.ru
Copyright 2012. RMT Ltd. The design and specifications of products can be changed by RMT Ltd without notice.
Page 5 of 8
