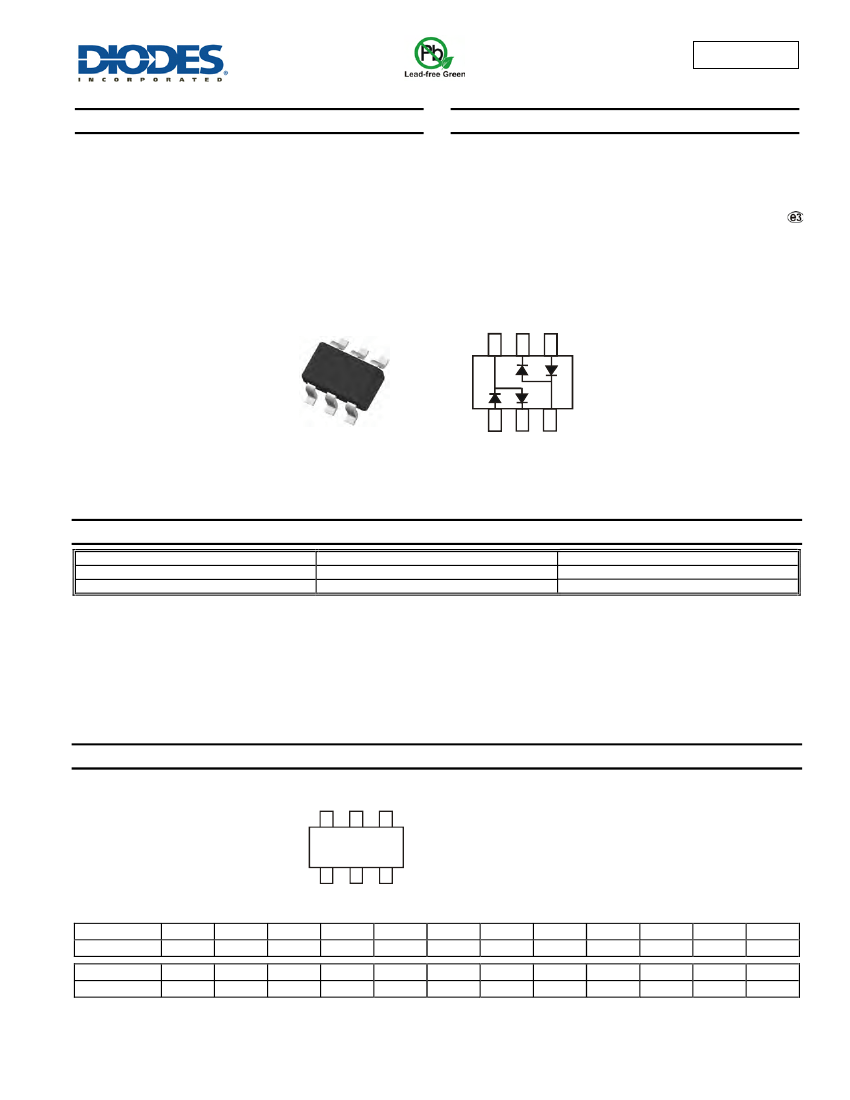

BAV99DW
SURFACE MOUNT SWITCHING DIODE ARRAY
Features
•
•
•
•
•
•
•
•
Fast Switching Speed
Small Surface Mount Package
For General Purpose Switching Applications
High Conductance
Two “BAV99” Circuits In One Package
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Notes 3 & 4)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
•
•
•
•
Case: SOT363
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Polarity: See Diagram
Weight: 0.006 grams (approximate)
SOT363
AC
1
C
2
A
2
A
1
C
1
AC
2
Top View
Top View
Internal Schematic
Ordering Information
(Note 5)
Part Number
BAV99DW-7-F
BAV99DW-13-F
Notes:
Case
SOT363
SOT363
Packaging
3000/Tape & Reel
10000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Product manufactured with Date Code UO (week 40, 2007) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code UO are built with Non-Green Molding Compound and may contain Halogens or Sb
2
O
3
Fire Retardants.
5. For packaging details, go to our website at http://www.diodes.com.
Marking Information
KJG YM
KJG YM
Date Code Key
Year
Code
Month
Code
2001
M
Jan
1
2002
N
Feb
2
2003
P
Mar
3
2004
R
Apr
4
…
…
May
5
KJG = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: N = 2002)
M = Month (ex: 9 = September)
2012
Z
Jun
6
2013
A
Jul
7
2014
B
Aug
8
2015
C
Sep
9
2016
D
Oct
O
2017
E
Nov
N
2018
F
Dec
D
BAV99DW
Document number: DS30145 Rev. 15 - 2
1 of 4
www.diodes.com
November 2012
© Diodes Incorporated
BAV99DW
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic
Non-Repetitive Peak Reverse Voltage
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 6)
Non-Repetitive Peak Forward Surge Current
@ t = 1.0μs
@ t = 1.0ms
@ t = 1.0s
Symbol
V
RM
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
FSM
Value
100
75
53
215
2.0
1.0
0.5
Unit
V
V
V
mA
A
Thermal Characteristics
Characteristic
Power Dissipation (Note 6)
Power Dissipation (Note 7)
Thermal Resistance Junction to Ambient Air (Note 6)
Thermal Resistance Junction to Ambient Air (Note 7)
Operating and Storage Temperature Range
Symbol
P
D
P
D
R
θ
JA
R
θ
JA
T
J
, T
STG
Value
200
300
625
417
-65 to +150
Unit
mW
mW
°C/W
°C/W
°C
Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Characteristic
Reverse Breakdown Voltage (Note 8)
Symbol
V
(BR)R
V
F
Min
75
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
Max
⎯
0.715
0.855
1.0
1.25
2.5
50
30
25
2.0
4.0
Unit
V
Test Condition
I
R
= 2.5μA
I
F
= 1.0mA
I
F
= 10mA
I
F
= 50mA
I
F
= 150mA
V
R
= 75V
V
R
= 75V, T
J
= +150°C
V
R
= 25V, T
J
= +150°C
V
R
= 20V
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
rr
= 0.1 x I
R
, R
L
= 100Ω
Forward Voltage
V
Reverse Current (Note 8)
I
R
C
T
t
rr
μA
μA
μA
nA
pF
ns
Total Capacitance
Reverse Recovery Time
Notes:
6. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can
be found on our website at http://www.diodes.com.
7. Device mounted on Alumina PCB, 0.4 inch x 0.3 inch x 0.024 inch; pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which
can be found on our website at http://www.diodes.com.
8. Short duration pulse test used to minimize self-heating effect.
BAV99DW
Document number: DS30145 Rev. 15 - 2
2 of 4
www.diodes.com
November 2012
© Diodes Incorporated

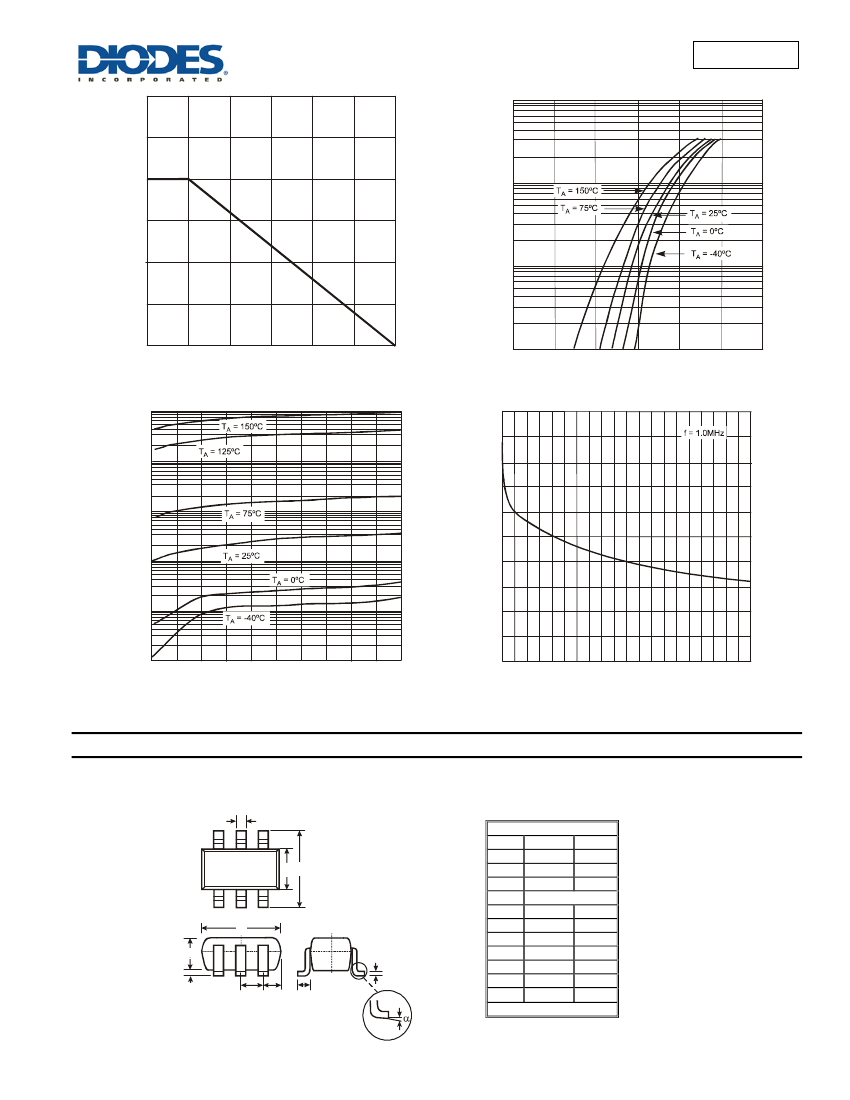

BAV99DW
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
150
300
1
P
D
, POWER DISSIPATION (mW)
250
Note 5
200
0.1
150
100
0.01
50
0
0
25
50
75
100
125
T
A
, AMBIENT TEMPERATURE (
°
C)
Fig. 1 Power Derating Curve, Total Package
0.001
0.5
1.0
1.5
0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics, Per Element
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
10,000
2.0
1.8
C
T
, TOTAL CAPACITANCE (pF)
60
80
100
20
40
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics, Per Element
0
A
B C
H
K
M
J
D
F
L
1,000
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
100
10
1
0.1
0.0
10
30
40
20
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Total Capacitance vs. Reverse Voltage, Per Element
0
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
SOT363
Dim
Min
Max
A
0.10
0.30
B
1.15
1.35
C
2.00
2.20
D
0.65 Typ
F
0.40
0.45
H
1.80
2.20
J
0
0.10
K
0.90
1.00
L
0.25
0.40
M
0.10
0.22
0°
8°
α
All Dimensions in mm
BAV99DW
Document number: DS30145 Rev. 15 - 2
3 of 4
www.diodes.com
November 2012
© Diodes Incorporated
BAV99DW
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
C2
C2
Z
G
C1
Dimensions Value (in mm)
Z
2.5
G
1.3
X
0.42
Y
0.6
C1
1.9
C2
0.65
Y
X
